inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Artikel ist nachbestellt – Lieferzeit ca. 3-6 Wochen.
- Artikel-Nr.: PM-5658
- Hersteller: Holybro
- Artikelname: 12018
- EAN: 4250902355586
Holybro H-RTK F9P Helical GPS RTK Modul für Pixhawk 4 - 12018

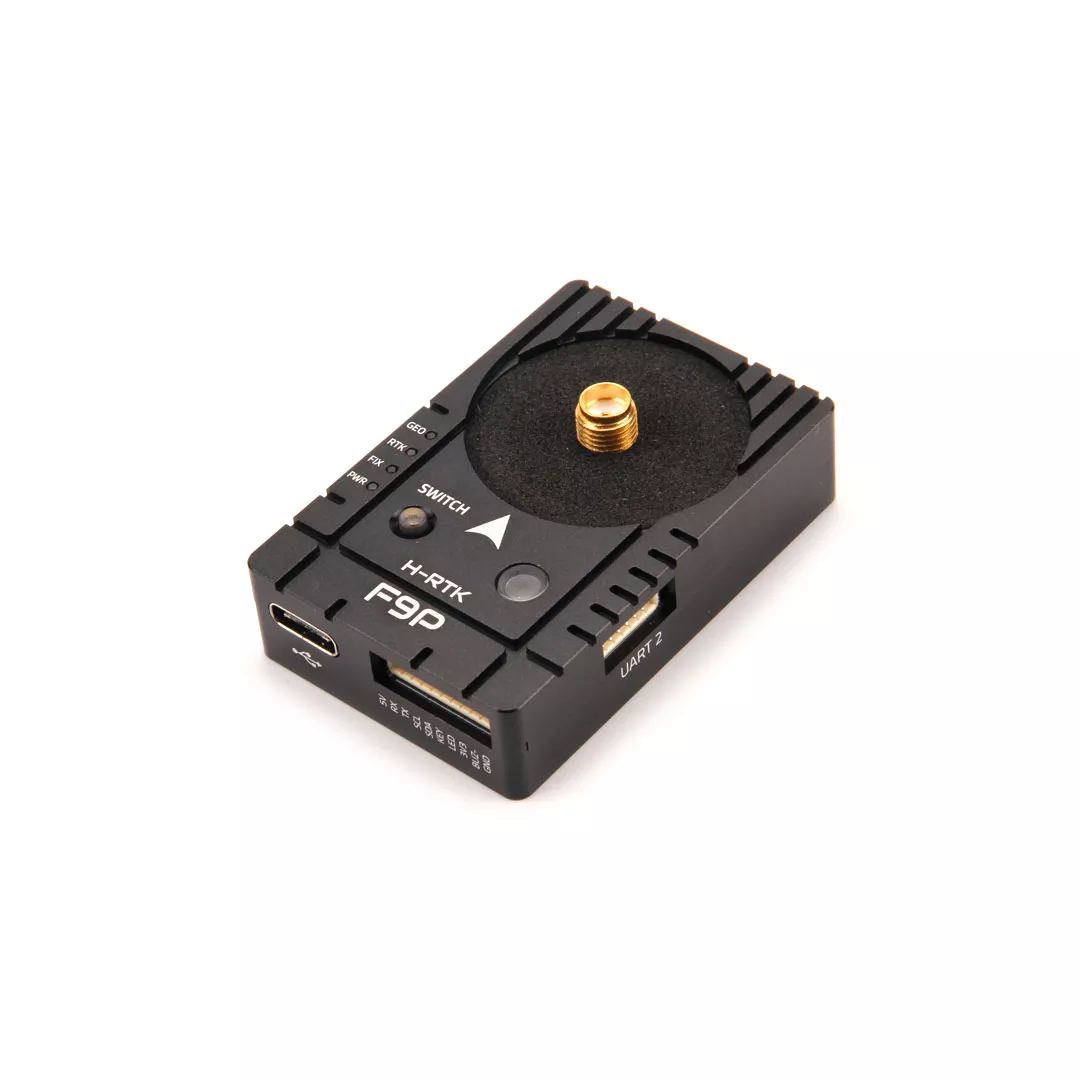

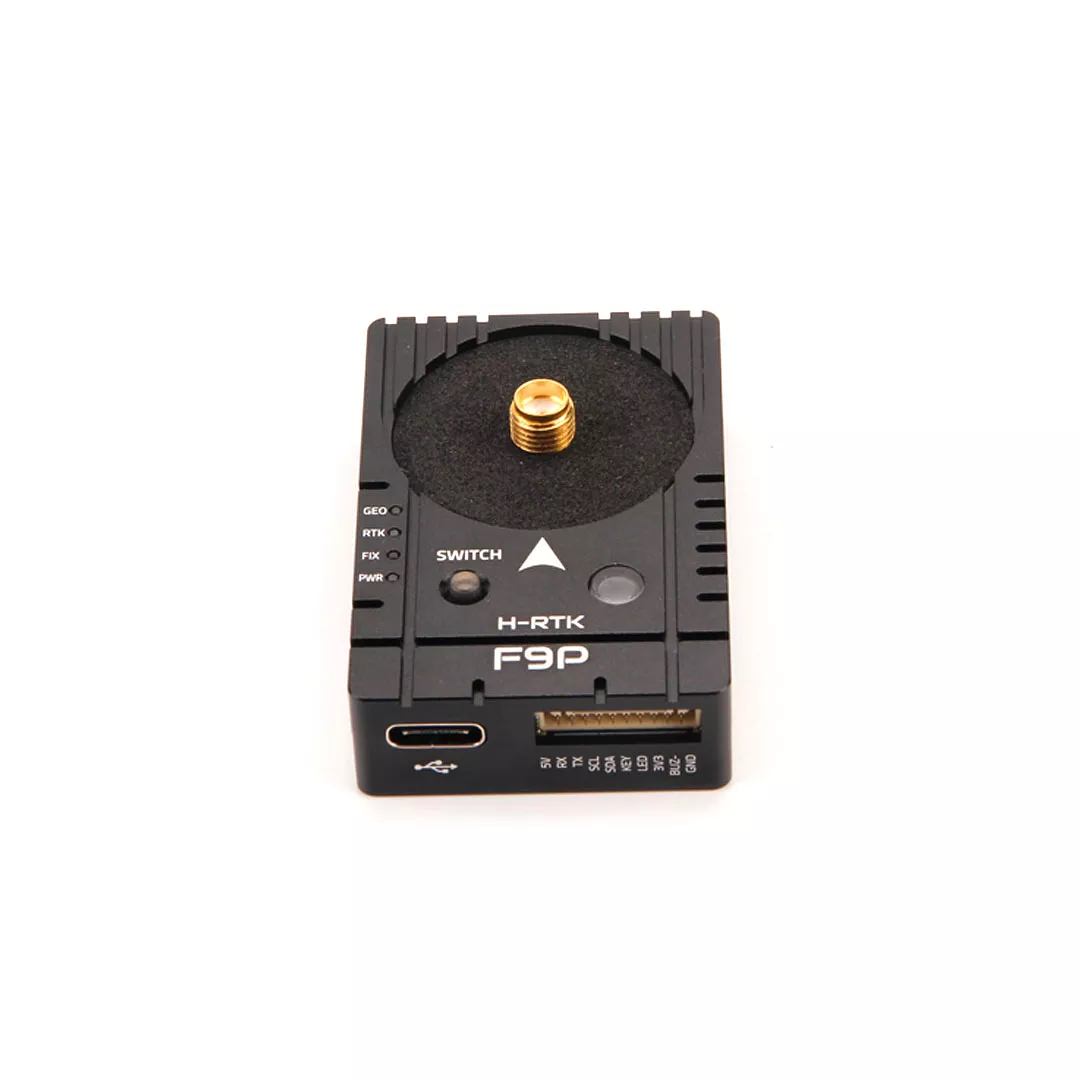

GNSS RTK Modul mit Ublox F9P Chip, Helical Antenne und IST8310 Kompass von Holbyro.
Das Modul kann wahlweise als RTK Rover oder Basis eingesetzt werden (Auch eine Kombination mit den anderen Modellen von Holybro (F9P Rover Lite & RTK F9P Basis) sind möglich.
Es handelt sich um die neue Revision (Mai 2022) welche nun über einen zweiten herausgeführten UART Port verfügt.
Das Modul kommt mit zwei Anschlusskabeln (ca. 150mm / ca. 400mm) welche mit der Pixhawk 4 kompatibel sind (GH1.25 10pin) sowie einem Anschlusskabel (ca. 300)mm für den Cube Orange.
(Für den Cube Orange haben wir auch ein 420mm Adapterkabel im Angebot: Cable-Helical-JST-GH8 )
Abmessungen: 34,8 x 52,8 x 12mm
Gewicht: ca. 49g

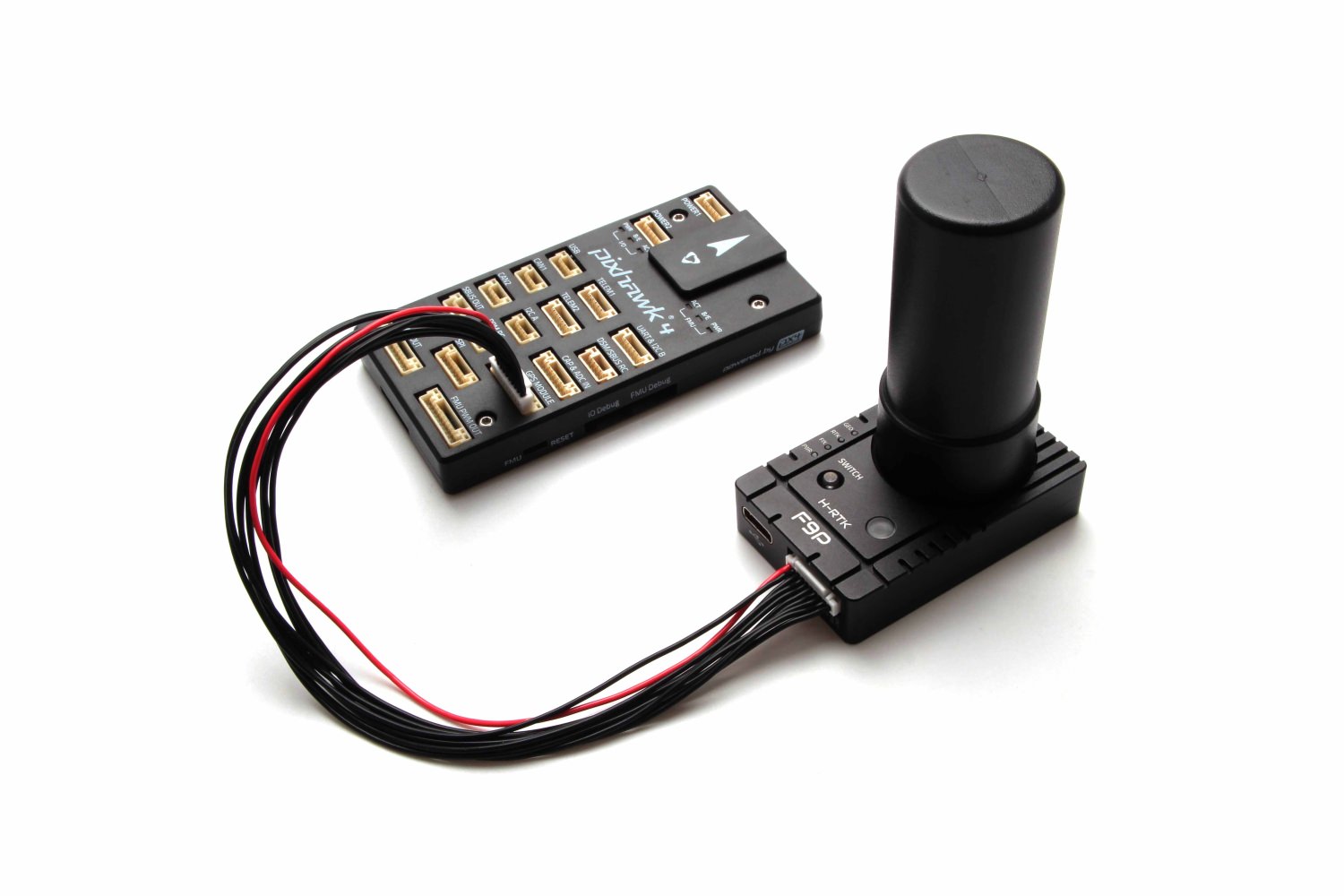

Die Pixhawk 4 dient nur zur Verdeutlichung und ist NICHT Teil des Lieferumfangs.

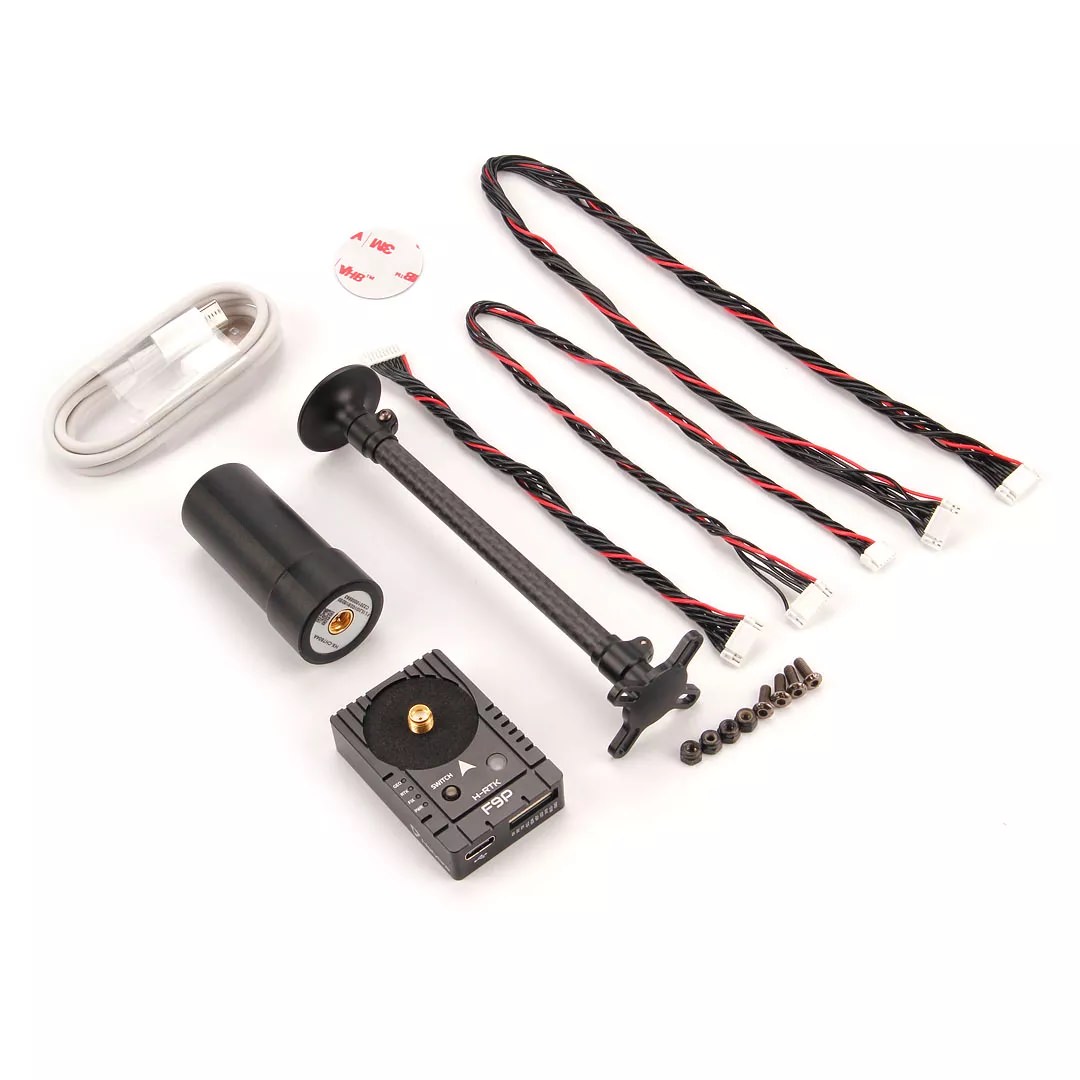

Lieferumfang
H-RTK F9P (Rev2) *1
– High Precision GNSS Antenna(CH7604A) *1
– Fixed Carbon Fiber GPS mount(29mm) *1
– GH 10P cable 150mm*1
– GH 10P cable 400mm*1
– GH 10P to 6P cable 300mm *1 (passend zu Cube Orange)
– USB type-c cable *1
Ausführliche Informationen:
Descriptions:

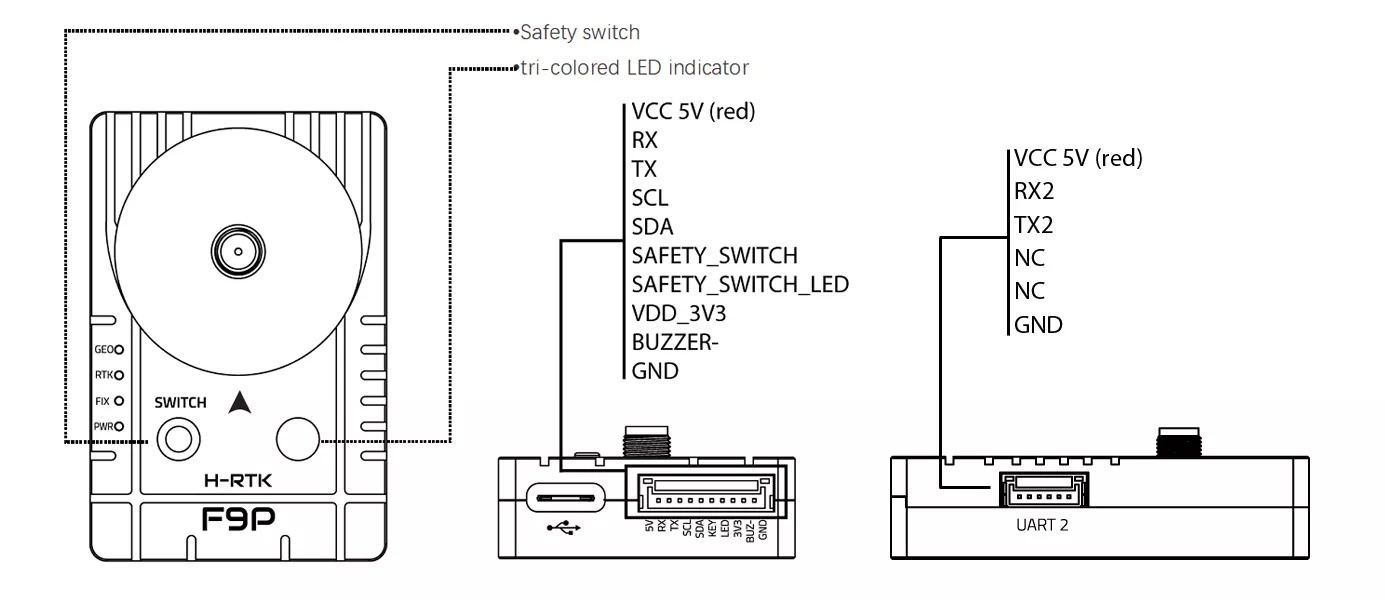

This model uses a helical antenna, which has better performance than the lite version. This model can be used both on rover (aircraft) or as base station. The aluminum alloy shell design also has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.
