Matek X Class FPV Racing PDB 12S mit BEC und Sensor - FCHUB-12S

Matek X Class FPV Racing PDB 12S mit BEC und Sensor - FCHUB-12S

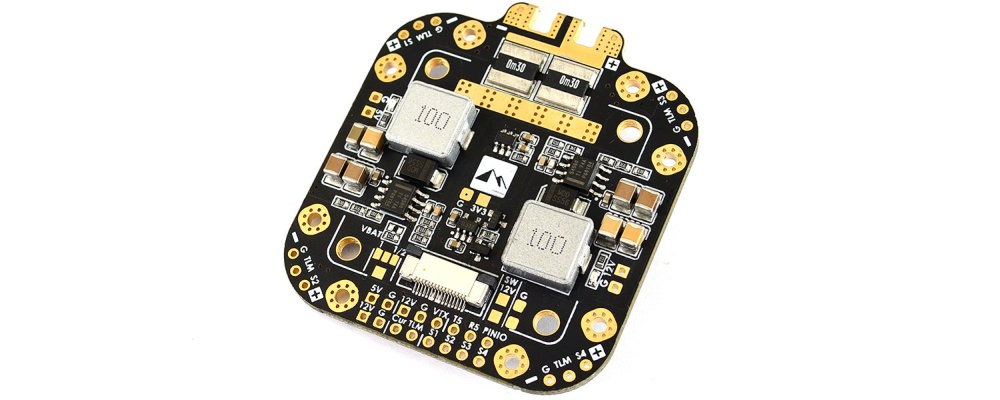

Matek PDB speziell für X Class FPV Racer oder andere größere Multicopter.

Das Board kann mit bis zu 12S betrieben werden  und verfügt über einen 440A Stromstärke Sensor zur Nutzung per FPV Flight Controller (Betaflight) sowie zwei BEC mit 5V / 12V.

PDB

• Input voltage range: 8~60V (3~12S LiPo)
• 4x70A cont, 4x110A burst
• 4x ESC power /signal/ telemetry pads
• Current Senor: 440A, 3.3V ADC, Scale 75
• 2x LED indicators for 5V, 12V

FFC connection

• Compatible with MATEKSYS FC F405-STD, F722-STD
• VTX: Video Transmitter signal
• T5 & R5: TX5 and RX5 of F405-STD/F722-STD

BEC 5V output (5V pad)

• Voltage: 5.0 +/- 0.1VDC
• Continuous current 5 Amps, Max.6A
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

BEC 12V output (12V pad)

• Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
• Continuous current 4 Amps, Max.5A
• Input voltage<12V, Output voltage = Input voltage
• Probably there is audible sound in the BEC12V inductor when Input voltage<12V
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)

• 12V ON/OFF can be switched via PINIO
• can be use for powering VTX,LED etc.

BEC 3.3V output

• Linear Regulator
• Continuous current: 500mA

Physical

• Mounting: 30.5 x 30.5mm, Φ3mm
• Dimensions: 55 x 50 x 6 mm
• Weight: 21g
