inkl. MwSt. zzgl. Versandkosten
Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands
- Artikel-Nr.: PM-5986
- Hersteller: Holybro
- Artikelname: 15019
- EAN: 4250902358860
Holybro PM06 V2-14S PX4 Pixhawk 4 Micro Power Module - 15019
Neue Version 2022
Das Micro Power Management Board (PM Board) dient als Spannungsversorgung für die Mini Pixhawk 4 und die ESCs und bietet gleichzeitig einen integrierten Stromstärke und Spannungssensor (max 120A und 14S Lipo).
Lieferumfang:
220uF 63V Kondensator (bereits verlötet) *1
80mm XT60 connector wire (bereits verlötet) *1
6pin GH cable *1
Ausführliche Informationen und Technische Daten:
Technical Specification:
- Input voltage: 2S-14S
- Power Module rated current: 60A
- Power Module max current: 120A (<60 sec)
- UBEC output: DC 5.1V~5.3V
- UBEC output current: 3A Max (Note: To ensure proper heat dissipation, UBEC output current needs to be limited to <2A when using 14S battery.)
- Voltage Divider: 18.182
- Amperes per Volt: 36.364
Mechanical Specification:
- Dimensions: 35x35x5mm
- Mounting hole: 30.5mm*30.5mm
- Weight: 24g
Pin Map:

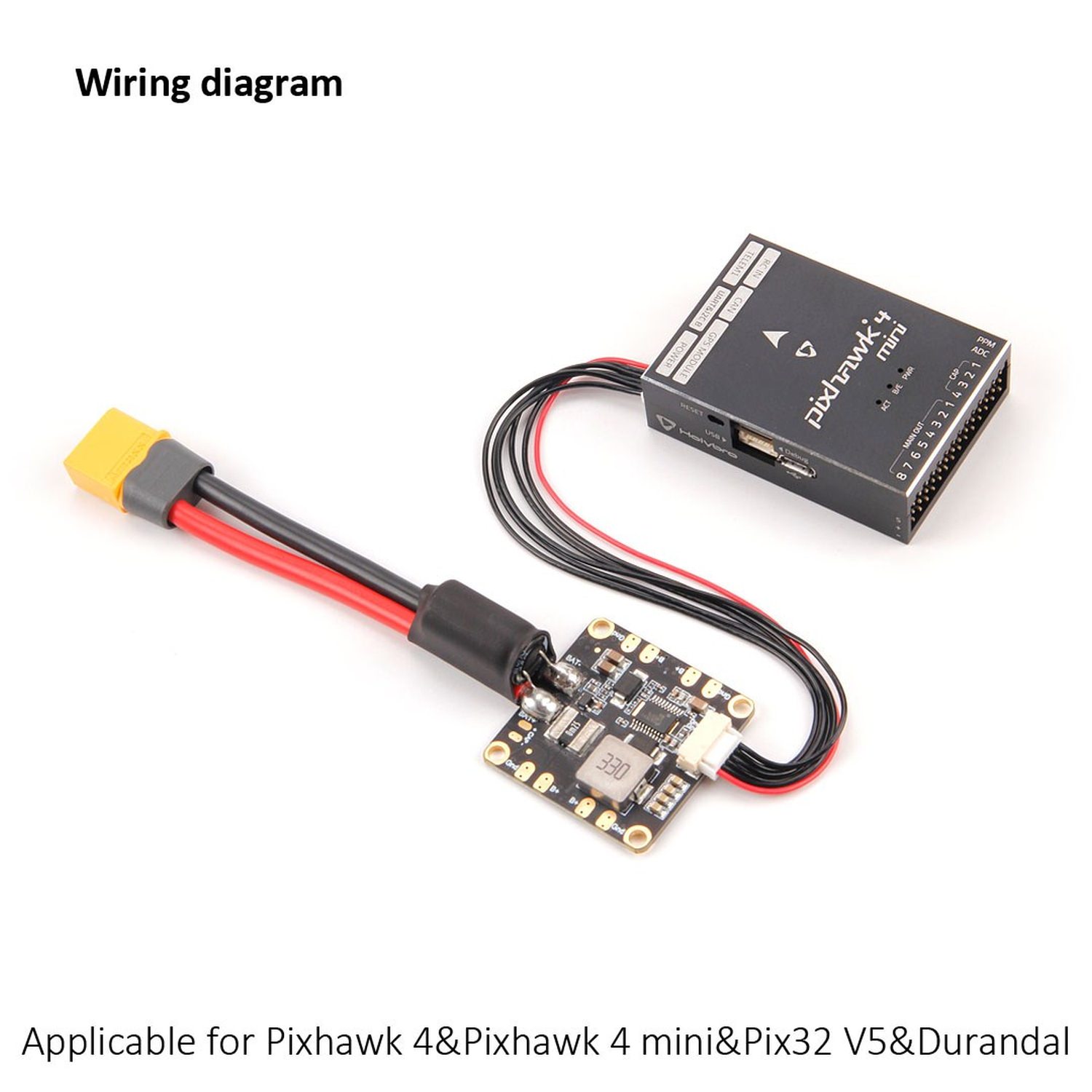

PX4 QGroundControl Setup
- Connector the Power Module to battery and connect the flight controller to your ground station via USB.
- Open QGroundControl go Vehicle Setup and Power tab and Input the Number of Cells.
- Ensure the Voltage Divider & Amps per Volt is correct.
For more information with setting PX4 with QGround Control, refer to the PX4 Guide.
Ardupilot Mission Planner Setup
- Connector the Power Module to battery and connect the flight controller to your ground station via USB.
- Open Mission Planner, go to Setup page and Battery Monitor tab and select the following:
- Monitor – “Analog Voltage and Current”
- Sensor – “9: Holybro Pixhawk 4 PM”
- For Pixhawk 4, Pixhawk 4 Mini, Pix32v5, Pix32, select the following:
- HW Ver – “0: CUAV V5/Pixhawk 4 or API “
- BATT_VOLT_PIN: 0
- BATT_CURR_PIN: 1
- For Durandal, select the following:
- HW Ver – “9: Durandal/ZealotH743”
- BATT_VOLT_PIN: 16
- BATT_CURR_PIN: 17
- For Pixhawk 5X
- You will need to use a digital power module like the that end with a “D” such as the PM02D.
For more information regarding setting up Power Module with Mission Planner. Please refer to the Ardupilot Wiki Page.
Current Rating
The XT60 plug and 12AWG wire that PM06 comes with are rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly. The specifications and models are as follows:
Plug Specification | Wire Size | Rated current: (4 hours, temperature rise <60 Deg C) | Burst Current: (1 minute, temperature rise <60 Deg C) |
XT60 | 12 AWG | 30A | 60A |
XT90 | 10 AWG | 45A | 90A |
XT120 | 8 AWG | 60A | 120A |
Package Include:
- 1x Power Module
- 1x 80mm XT60 connector wire (pre-soldered)
- 1x Electrolytic capacitor: 220uF 63V (pre-soldered)
- 1x JST GH 6pin cable
