Vorschau: TBS Lucid Wing PDB 14S Power Distribution Board 200A Current Sensor Servo-Rail

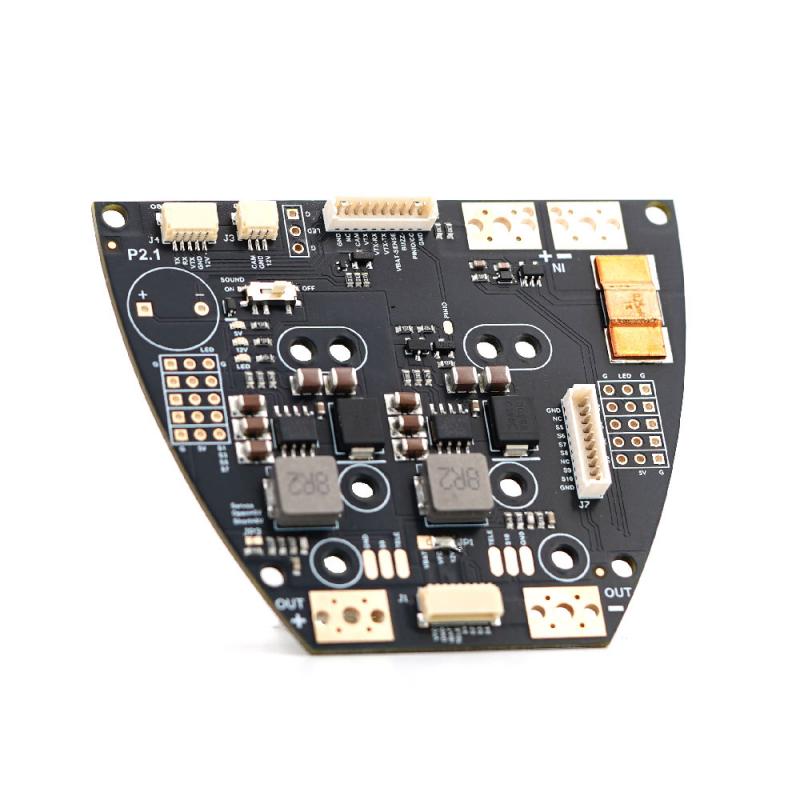

TBS Lucid Wing PDB 14S Power Distribution Board 200A Current Sensor Servo-Rail

29,90 € * 32,90 € * (9,12% gespart)

inkl. MwSt. zzgl. Versandkosten

Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands

Artikel-Nr.: PM-7335
Hersteller: TBS
Artikelname: TBS-Lucid-Wing-PDB
EAN: 4250902366889

Product Description 14S Power and Servo distribution board for wings with flight controllers.... mehr

Menü schließen

Produktinformationen "TBS Lucid Wing PDB 14S Power Distribution Board 200A Current Sensor Servo-Rail"

Product Description

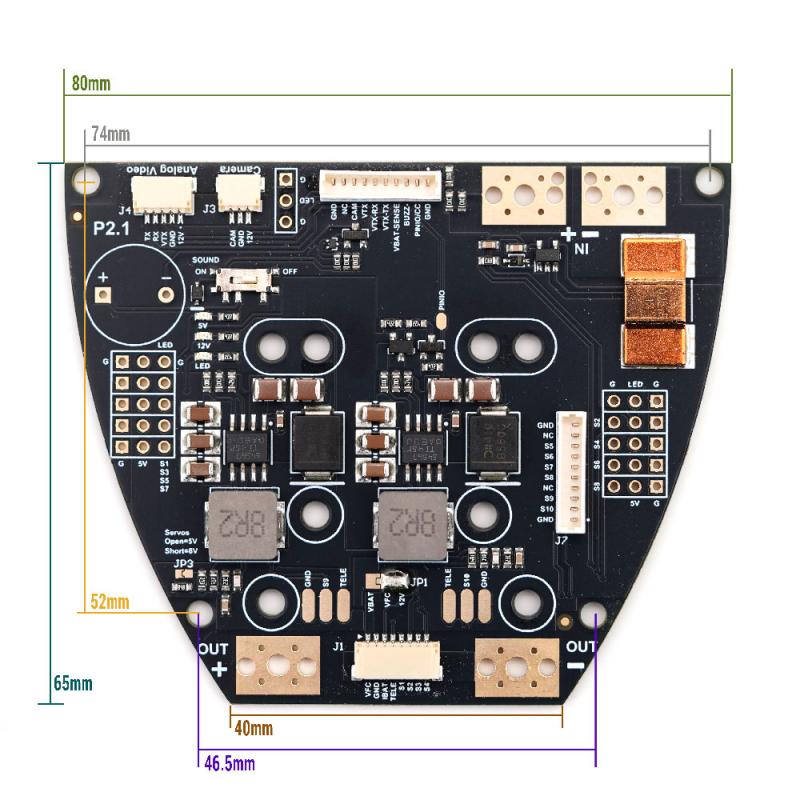

14S Power and Servo distribution board for wings with flight controllers. Compatible with any wing that has up to 4 control servos and one or two motors. Cleans up both analog and digital builds and allows reuse of existing 20x20 or 30.5x30.5 FCs.

Specification

Max Input Voltage	60V (14S)
Voltage Sensor	Depends on FC voltage input
Current Sensor	200A burst, 90A continuous
Output: 12V Rail	12V 4A (LED, FC, etc.)
Output: Servo Rail	5V / 8V selectable via jumper, 4A
Recommended FC	TBS Lucid 20x20 FC Freestyle or TBS Lucid H7 (not included)

Supported Peripherals (onboard)

20x20 and 30.5x30.5 iNav or ArduPilot FC
BLHeli/AM32 ESC with telemetry
Analog camera (3 pin)
Analog VTX (5 pin)
COB LEDs (12V)
Digital VTx, radio link and other peripherals via FC

Note: Voltage input to FC can be switched between VBat and 12V. In the case of 12V supply, a separate voltage divider is available to feed any ADC pin for VBAT sensing.

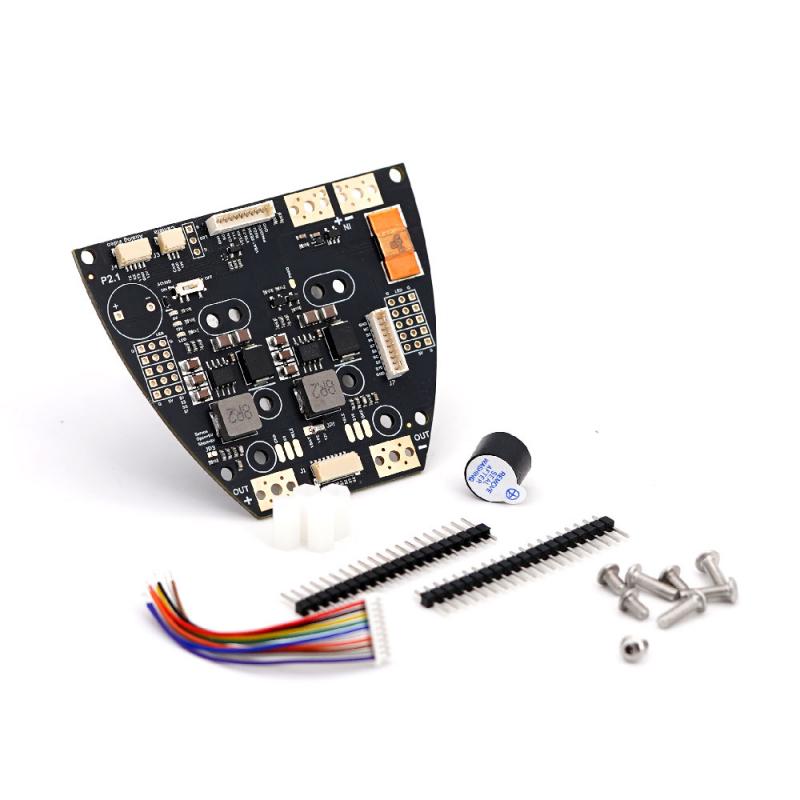

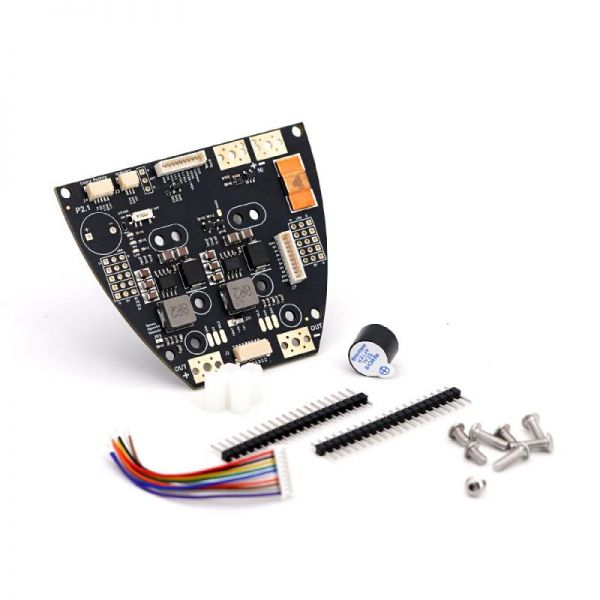

Package Contents

TBS Wing FC circuit board
Cables to connect FC peripherals to the PDB
Pin headers for servo plugs (2x20)
FC Mounting hardware: 4x M3x5mm screw, 4x M3x10mm screw, 4x M3 Nylon standoff 10mm
