inkl. MwSt. zzgl. Versandkosten
Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands
- Artikel-Nr.: PM-5408
- Hersteller: Holybro
- Artikelname: 15008
- EAN: 4250902353087

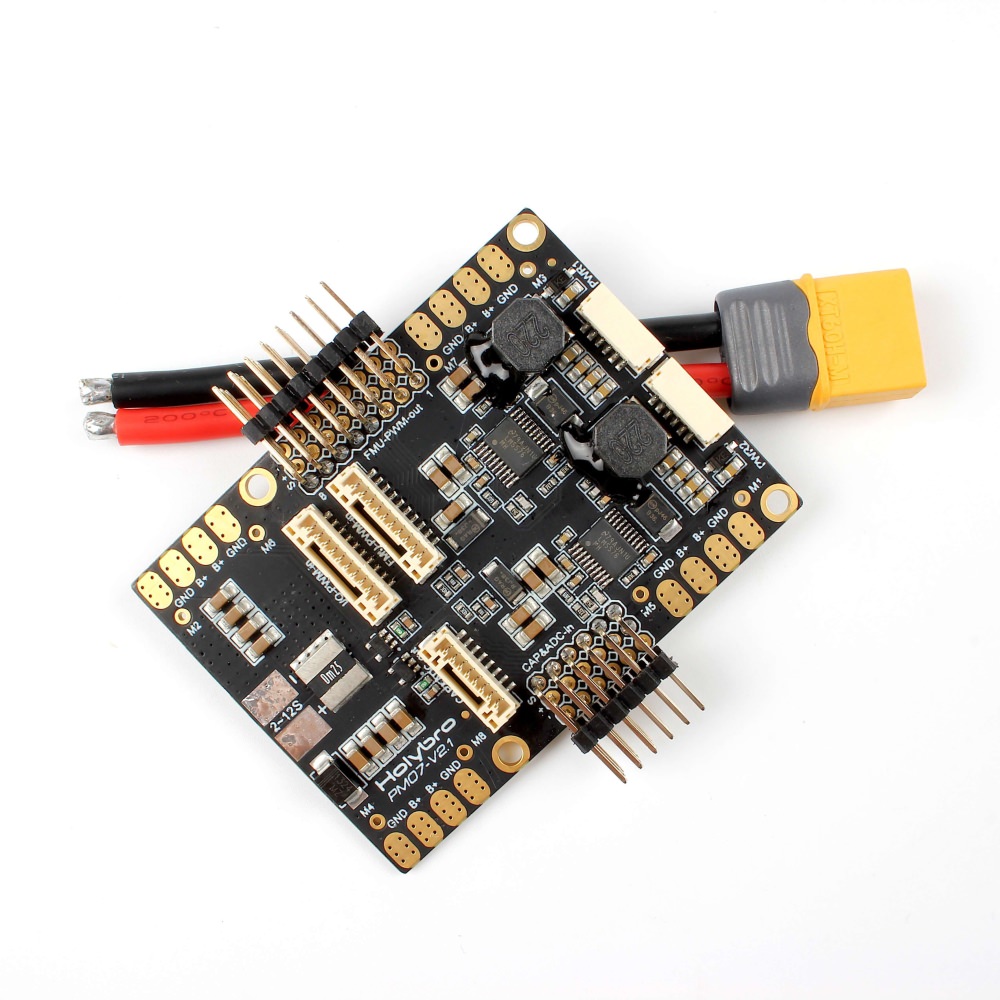

Holybro PM07 PX4 Pixhawk 4 Power Module und PDB
Das Power Management Board (PM Board) dient als Spannungsversorgung für die Pixhawk 4 und die ESCs und bietet gleichzeitig einen integrierten Stromstärke und Spannungssensor (max 120A und 12S Lipo).
Lieferumfang
80mm XT60 connector wire*1
Ausführliche Informationen und Technische Daten:
Specifications:
PCB max Ampere: Total 120A Output (MAX)
UBEC 5V Ausgangsspannung: 3A
UBEC Eingangsspannung : 7-51V (2-12s LiPo)
Abmessungen: 68*50*8 mm
Montagelöcher: 45*45mm
Gewicht: 36g
The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery’s voltage and current supplied to the flight controller and the motors.
Hersteller gemäß (GPSR (EU)2023/988):
Holybro Limited, RM 1902 EASEY COMM BLDG253-261 HENNESSY RD WANCHAI Hongkong China Hong holybro.com
Inverkehrbringer:
Premium-Modellbau Würch GmbH, Geschäftsführer: Steffen Würch, Torenstrasse 9, 88709 Meersburg, Deutschland, Tel: 07046 38795100, www.premium-modellbau.de
