Matek BEC Power Module 12S 3x BECs 5V / 12V / 5-8V einstellbar - PM12S-3

Matek BEC Power Module 12S  3x BECs 5V / 12V / 5-8V einstellbar - PM12S-3

Hochwertiges Matek Power Module mit drei separaten BECs zum Betrieb an 9-55V.

Das einstellbare BEC kann über Lötpunkte zwischen 5V und 6V und 8V umgeschaltet werden. die anderen BECs liefern 5V bzw. 12V.

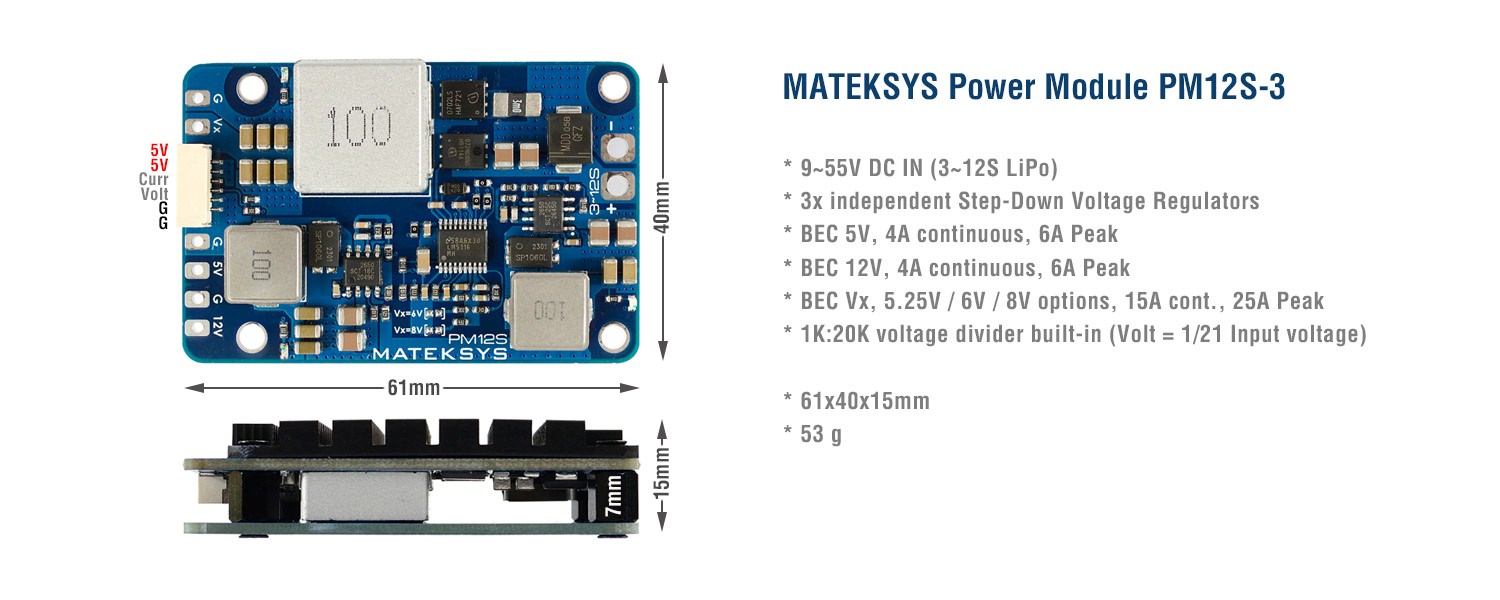

Gewicht: ca. 53g

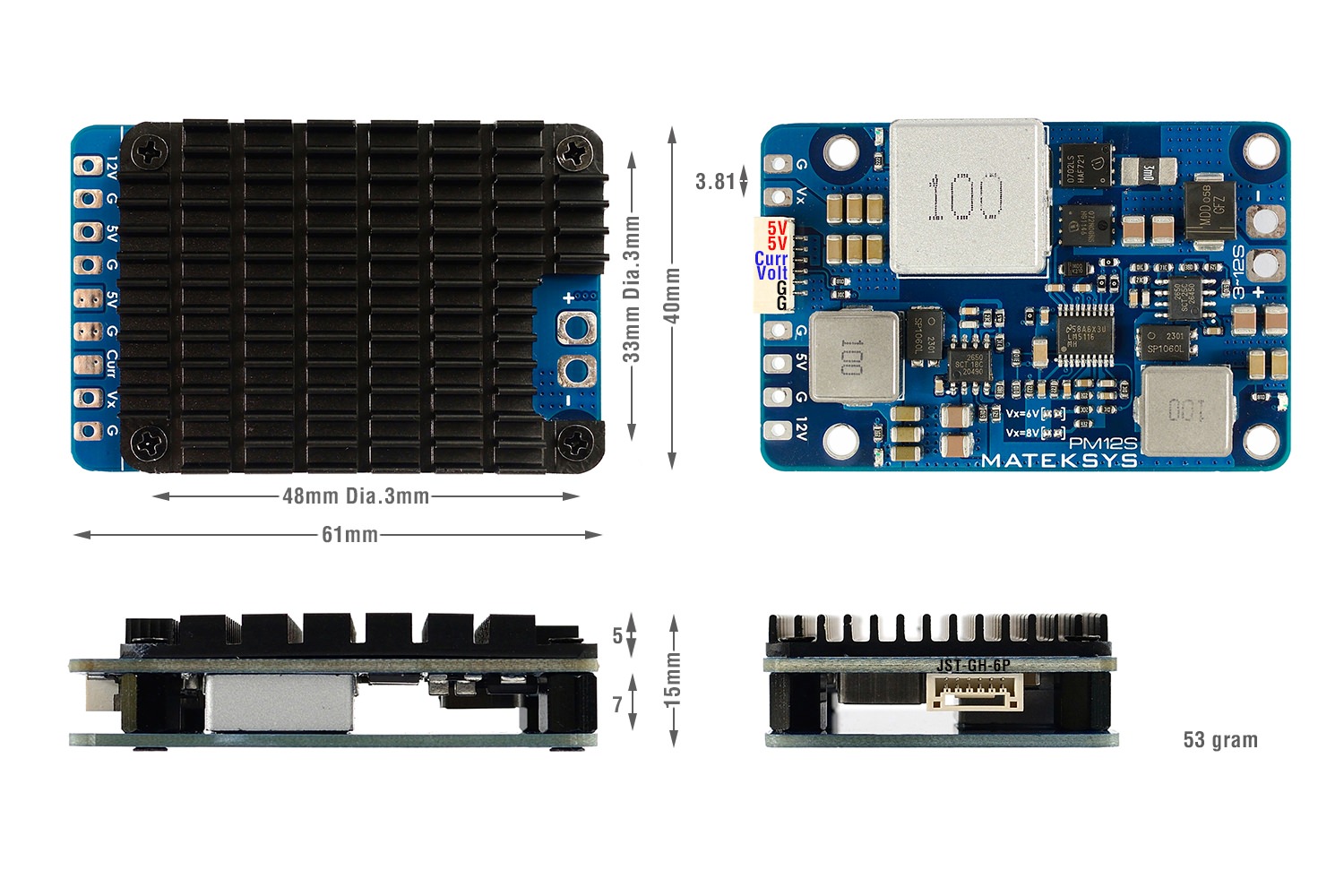

Abmessungen: 61  x 40 x 15 mm

Eingangsspannung:  (9-55V)

Ausgangsspannung BEC 1: 5V (4A Dauer / 6A Peak)

Ausgangsspannung BEC 2: 12V (4A Dauer / 6A Peak)

Ausgangsspannung BEC 3: 5,25V / 6V / 8V (15A Dauer / 25A Peak)

Features

• Wide 9V to 55V Operating Input Range with TVS protection
• 3x independent Step-Down Voltage Regulators
• BEC Vx, 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
• BEC 5V (Fixed), 4A continuous
• BEC 12V (Fixed), 4A continuous
• 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
• Current sensor signal passthrough pad
• Size & Weight: 61x40x15mm, 53g

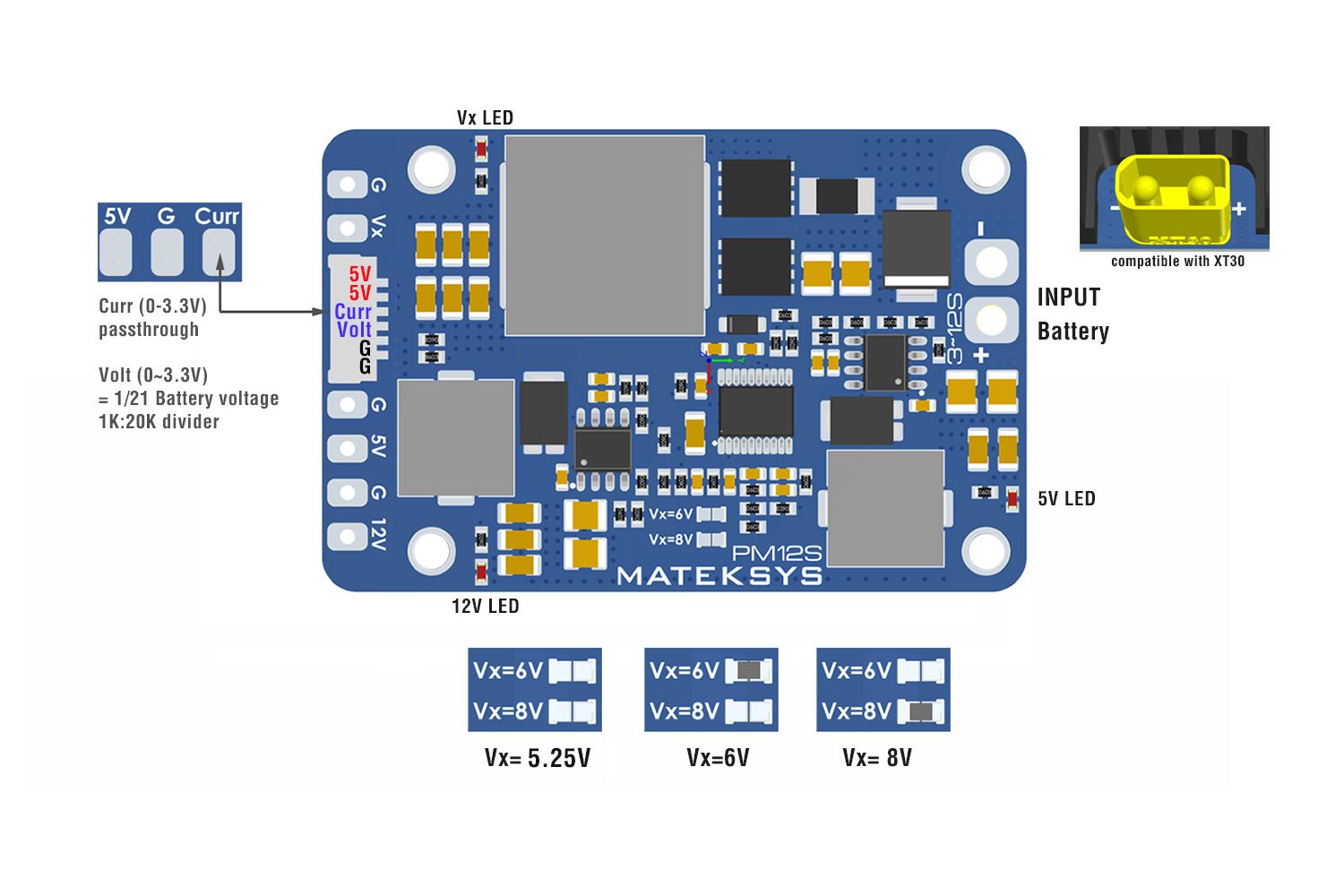

BEC Vx

• Output voltage 5.25V / 6V / 8V options.
• Output voltage tolerance 1.5%
• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
• Supports typical continuous output current of up to 15A, Peak current of up to 25A.
• Output ripple 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)
• Standby current: 10~20mA
• Reverse Input voltage protection: No
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery
• Tip: Input voltage >= 15V is required for continuous output current of 15A

BEC 5V

• Output voltage 5.2V, tolerance 1.5%
• Supports continuous output current of up to 4A, Peak current of 6A
• Output ripple 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)
• Reverse Input voltage protection: No
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

BEC 12V

• Output voltage 12V, tolerance 1.5%
• Supports continuous output current of up to 4A, Peak current of 6A
• Output ripple 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)
• Reverse Input voltage protection: No
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery
• Tip: Input voltage >= 13V is required for stable 12V output

Packing

• 1x PM12S-3
• 1x Low ESR capacitor ZLJ 63v 390uf
• Tips: If the input voltage is noisy, capacitor is required to be soldered to the input pads

BEC Messdaten / Übersicht
