- Artikel-Nr.: PM-5507
- Hersteller: Matek Systems
- Artikelname: 3901-L0X
- EAN: 4250902354077
Matek 3901-L0X Optical Flow und Lidar Sensor für INAV
Geschwindigkeitssensor zur Nutzung mit Matek Flightcontrollern.
Setting up Optic Flow in INAV PDF manual by digitalentity
This module works with INAV firmware(2.2.x or latest) only
Specifications
- Optical Flow: PMW3901
- Lidar: VL53L0X
- Interface UART
- Protocol: INAV MSP
- Working Range: 8cm~200cm
- Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)
- Minimum Illumination >60Lux
- Input voltage: 4.5~5.5V
- Power Consumption: 40mA
- Size: 36*12mm, 2g
Packing
- Module 3901-L0X, 1pc
Tips
- Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.
- Maximum range of VL53L0X is 2m, Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.
- Any unused UART of FC supports it
- Sonar connection (Trig & Echo) has not been implemented
- If your flight controller doesn’t have a barometer detected, you won’t be able to select “NAV ALTHOLD” in modes tab.
Matek 3901-L0X Optical Fl...

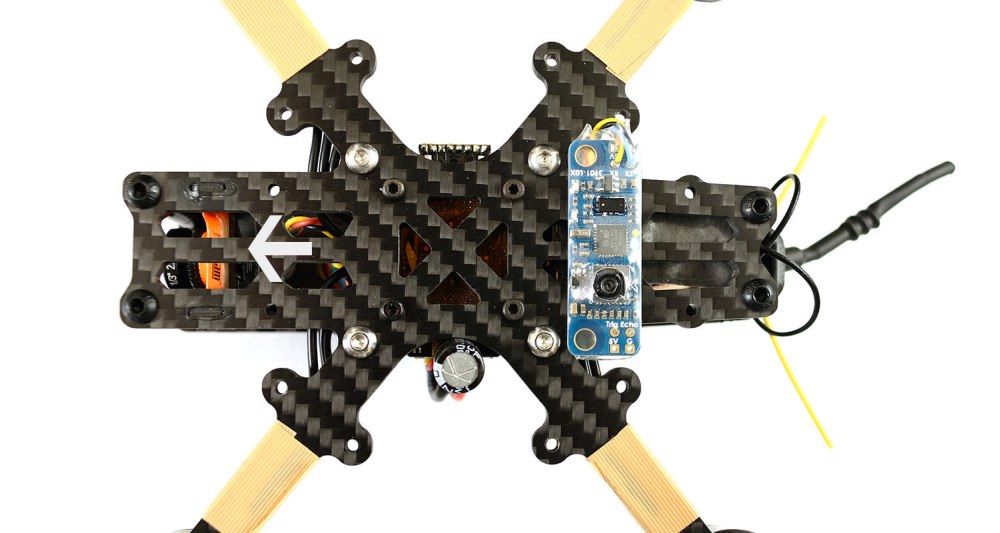

Matek 3901-L0X Optical Flow and Lidar Sensor was installed on a Matek F405-STD with a Matek PDB and a Holybro Atlatl HV V2 5.8g VTX. EMAX 2306/2700kv motors and Makefire Blheli_32 35A ESC provided power with INAV firmware. Everthing worked fine. Position Hold, Surface and Return Home modes were greatly improved.
Matek 3901-L0X Optical Fl...
Matek 3901-L0X Optical Flow and Lidar Sensor was installed on a Matek F405-STD with a Matek PDB and a Holybro Atlatl HV V2 5.8g VTX. EMAX 2306/2700kv motors and Makefire Blheli_32 35A ESC provided power with INAV firmware. Everthing worked fine. Position Hold, Surface and Return Home modes were greatly improved.
