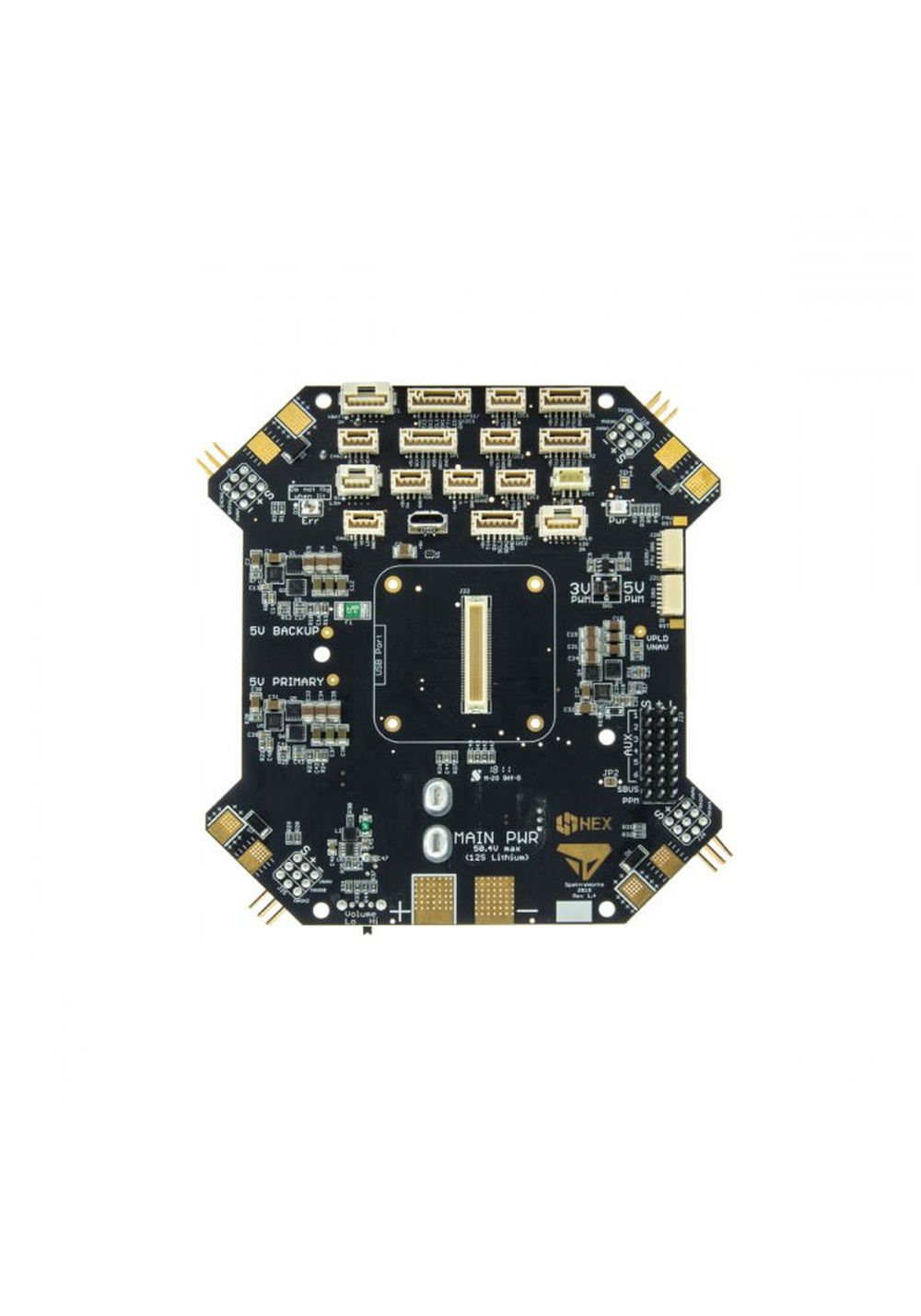

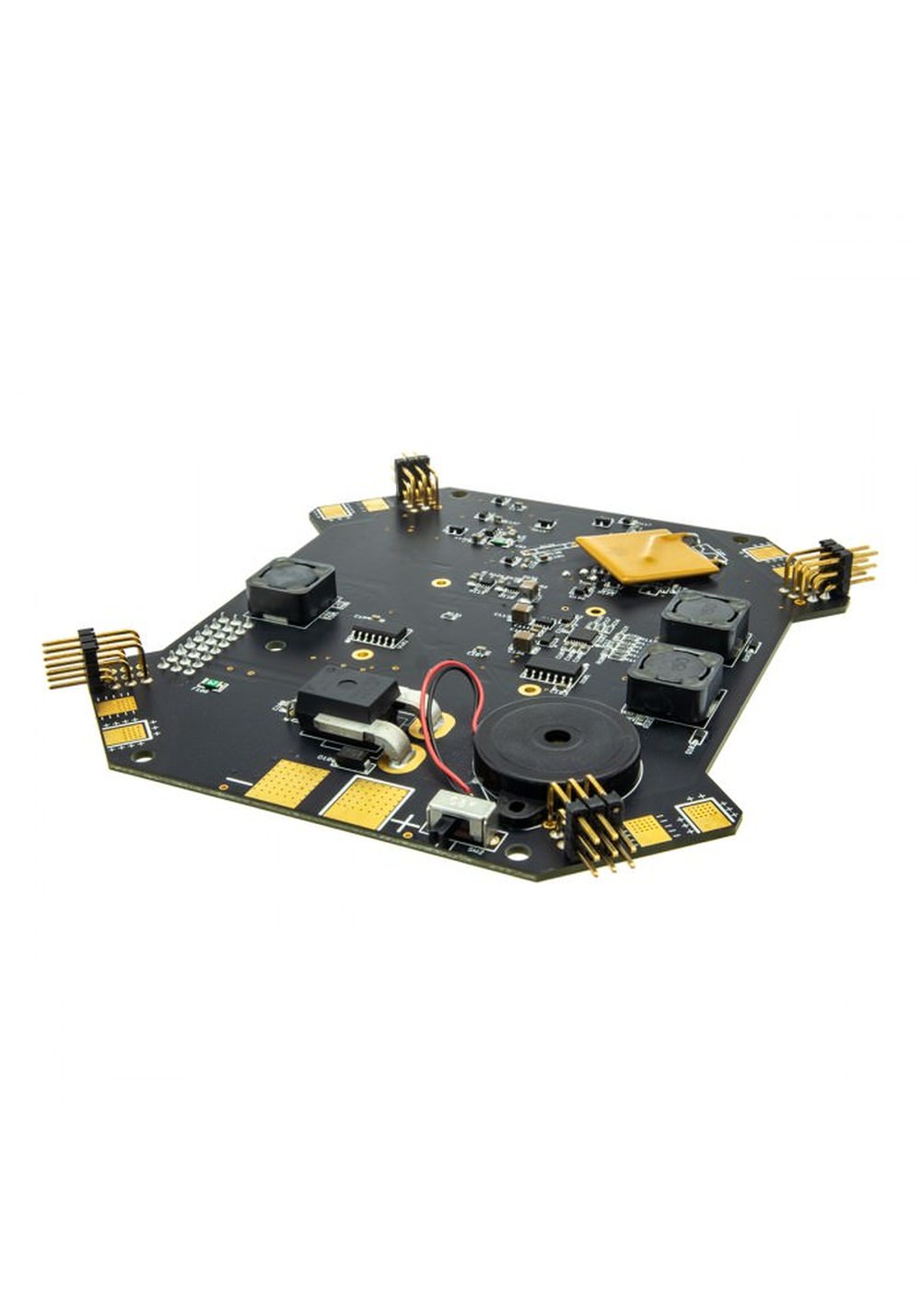

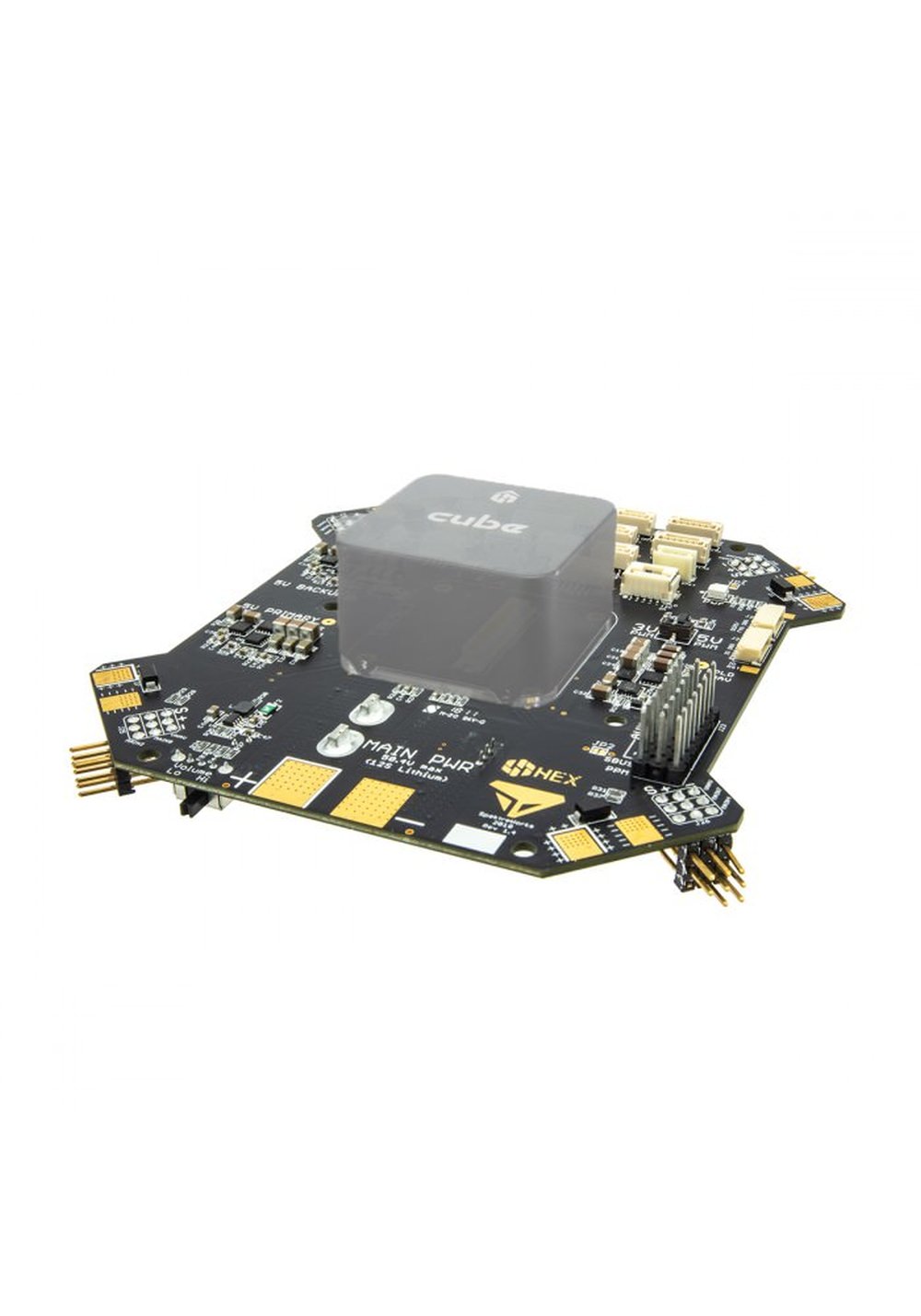

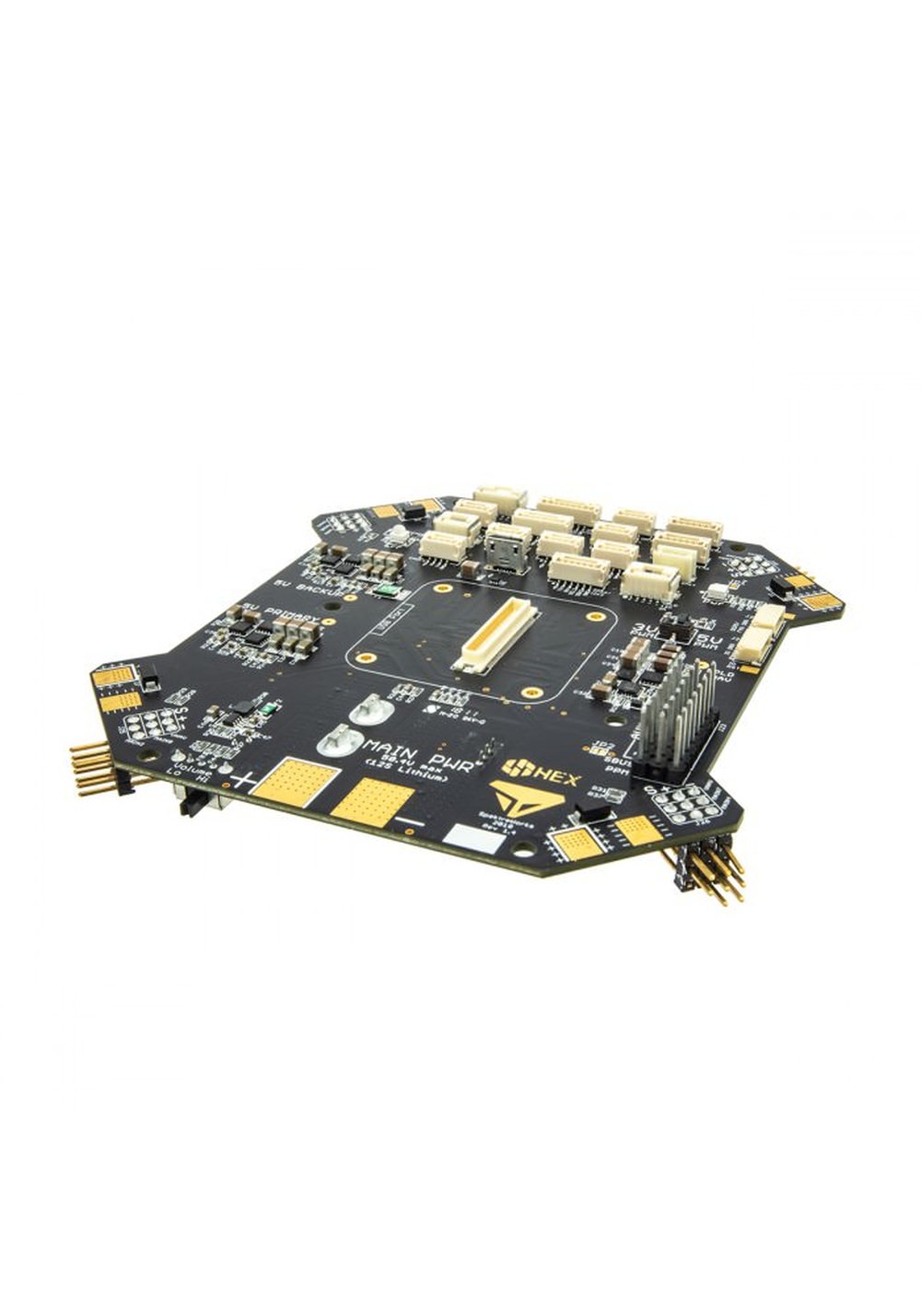

Cube Kore Carrier Board - Trägermodul für The Cube (Pixhawk 2.1)

FEATURES AT-A-GLANCE

• Up to 12-cell Lithium battery (50.4V)
• 140A continuous current with 280A surges
• Power and signal for ESCs conveniently located in corners
• 12V navigation light power available at each cornerBuilt-in power distribution
• Built-in voltage and current sense
• Redundant power supplies for flight critical components
• Payload connectors with resettable fuses for 5V, 12V, and direct battery power
• Good power and error indicator lights
• Built-in buzzer with volume control
• Connectors for every function of Pixhawk Cube
• Easily accessible PWM voltage level selector (3.3V or 5V)
• Resistant to ground bounce on PWM signal
• Connector-compatible with standard ProfiCNC carrier board
• Connector ports for debugging IO and FMU processors

STANDARD CABLES:

4-pin JST GH
6-pin JST GH

PAYLOAD POWER CABLES:

4-pin Clik-Mate 1.25mm (for 5V payload power)
5-pin Clik-Mate 1.25mm (for 12V payload power)
6-pin Clik-Mate 1.25mm (for battery payload power)

NOTE: Pixhawk 2.1 Cube NOT included.
