inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Artikel ist nachbestellt – Lieferzeit ca. 3-6 Wochen.
- Artikel-Nr.: PM-6365
- Hersteller: SIYI
- Artikelname: SIYI-ZT6
- EAN: 4250902362652

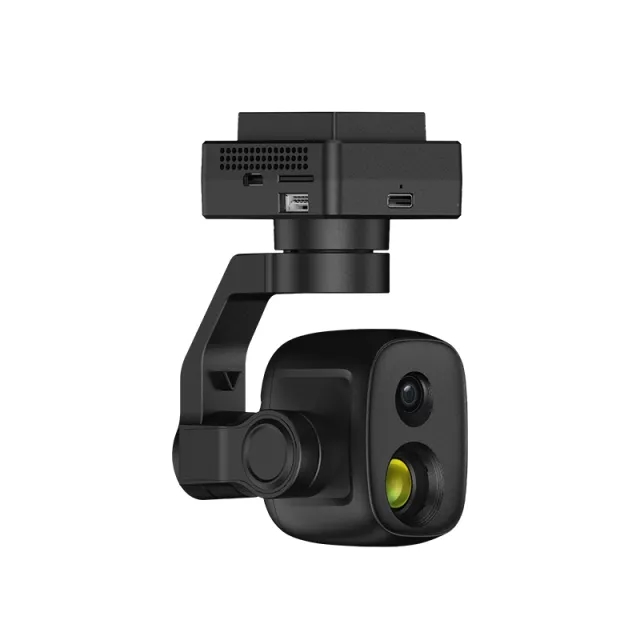

Bei der SIYI ZT6 handelt es sich um eine hochwertige DualGimbal Lösung bestehend aus einer 640x512 Wäremebild Kamera und einer 4K 3-Achsen Kamera mit Sony Sensor untergebracht in einem sehr kompakten Gehäuse inkl. 3 Achsen Gimbal Lösung. Die Einheit verfügt über einen Ethernet Video Ausgang (sowie Micro-HDMI) und ist ideal geeignet zur Nutzung in Verbindung mit der SIYI MK15 / MK32 Fernsteuerung.
Technische Daten:
Video Output Port | Ethernet / CVBS Micro-HDMI |
Control Signal Input Port | S.Bus UART Ethernet UDP / TCP |
Control Signal Output Port | S.Bus |
High Accuracy 3 Axis Stabilization | Yaw Pitch Roll |
Working Voltage | 11 ~ 25.2 V |
Power Consumption | Average 6.5 W Summit 15 W |
Waterproof Level | IP53 |
Working Temperature | -10 ~ 50 ℃ |
Dimension | 73.5 x 75 x 131.5 mm |
Weight | Excluding Anti-Vibration Board: 177 g Excluding Anti-Vibration Board: 197 g |
Angular Vibration Range | ±0.01° |
Controllable Pitch Angle | -90° ~ +25° |
Controllable Yaw Angle | -270° ~ +270° |
Rotatable Roll Angle | -45° ~ +45° |
Lens | Fixed Focal Length 6x Digital Zoom |
Equivalent Focal Length | 20 mm |
Image Sensor | Sony 1/2.7 Inch CMOS 8 MP Effective Resolution |
Aperture | F2.8 |
FOV | Diagonal 93° Horizontal 84.5° |
Video Recording Resolution | 4K (3840 x 2160) @ 30 fps 2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
Still Photo Resolution | 4K (3840 x 2160) |
Thermal Sensor | Uncooled VOx Microbolometer |
Resolution | 640 x 512 |
Zoom | 2X Digital |
Lens | Focal Length: 13 mm Aperture: F1.0 Fixed Focus Athermalization |
Wavelength Range | 8 ~ 14 um |
Temperature Measuring Range | High Gain: -20 ~ +150℃ Low Gain: 50 ~ +550℃ |
Temperature Measuring Accuracy | ±2℃ (-20 ~ +150℃) ±5℃ (50 ~ +550℃) |
Temperature Measuring Mode | Point Anywhere Measurement Full Image Measurement Selected Box Measurement |
Video Storage Bitrate | 15 Mbps (H.265 Codec) |
File Storage Format | FAT32 ExFAT |
Image Format | JPG |
Video Format | MP4 |
Supported MicroSD Cards | MicroSD Class10, Max 256 GB |
Still Photography Mode | Single |
White Balance | Auto |
