inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Artikel ist nachbestellt – Lieferzeit ca. 3-6 Wochen.
- Artikel-Nr.: PM-5994
- Hersteller: SIYI
- Artikelname: SYHM30-FMC
- EAN: 4250902358945
Bei der SIYI HM30 handelt es sich um eine Groundstation und eine FULL HD Liveübertragungsmöglichkeit in einem Gerät mit hoher Reichweite.
Die im Modell verbaute Empfängereinheit (HM30 Air Unit) verfügt über einen SBUS Ausgang, PWM Ausgänge, Ethernet (für IP Kameras) und über den optionalen Adapter (separat erhältlich) auch über einen HDMI Eingang.
Per WIFI kann eine Verbindung per Laptop / Tablet, etc. aufgebaut werden, um die Telemetrieverbindung zur Drohne zu nutzen oder Videodaten ins Netzwerk zu streamen.
Das HM30 System ist kompatibel mit ArduPilot und PX4 und lässt sich somit optimal in Verbindung mit einem Cube Orange, Pixhawk 5X, Pixawk 4, Durandal, etc Flightcontroller einsetzen.
Das System nutzt den 5Ghz Bereich und kann daher auch optimal parallel zu herkömmlichen 2,4Ghz Systemen (wie z.B. Frsky) zur Bildübertragung und Telemetrieüberwachung eingesetzt werden.
Wir bieten verschiedene Bundles an, ansonsten finden Sie auch alle Einzelteile bei uns im Shop um sich selbst ein Set zusammenzustellen.
Inhalt dieses Sets: HM30 Fly More Combo:
- HM30 Bodeneineheit (Sender)
- HM30 Empfängereinheit
- Long-Range Antennenset
- IP Camera
- Akku
- PD Akku Schnelladegerät

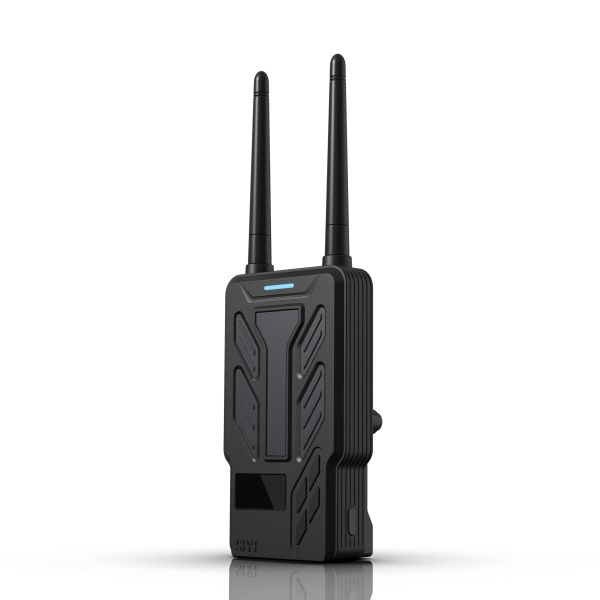

Technische Daten: HM30 Ground Unit
Working TimeMonitor | 0.96” OLED Screen |
Dimension (antenna and battery excluded) | 109 x 61 x 28 mm |
Item Weight (antenna and battery excluded) | 132 g |
Working Temperature | -10 ~ 50 ℃ |
Supported Battery | NP-F970 / F750 / F550 / F770 / F950 quick-release battery *HM30 Fly More Combo comes with NP-F750 battery |
Charging | PD 30 W fast charging |
Antenna Gain | Omni Antenna: 5 dBi Long Range Antenna: 11 dBi |
Power Consumption | 5 W |
Waterproof Level | IP53 |
Technische Daten: HM30 Air Unit
Signal Output | 16 CH S.Bus, 5 CH PWM |
Functional Interface | S.Bus: Remote control signal output UART: Datalink output to FC PWM: PWM signal output (CH 1 to 5) Ethernet: Video stream input Type-C: Firmware update |
Dimension (antenna excluded, fan included) | 70 x 55 x 24 mm |
Item Weight (antenna excluded, fan included) | 74 g |
Antenna Gain | 5 dBi |
Working Voltage | 11 ~ 16.8 V *Expandable to 14 ~ 58.8 V with BEC. |
Telemetry Voltage | 15 - 50 V |
Working Temperature: | -10 to 50 ℃ |
Technische Daten: FPV Camera
Camera Angle | FOV 120° |
Max Resolution | 1080 p @ 30 fps |
Dimension | 42 x 42 x 25 mm |
Item Weight | 23 g |
Antenna Gain | -10 ~ 50 ℃ |
