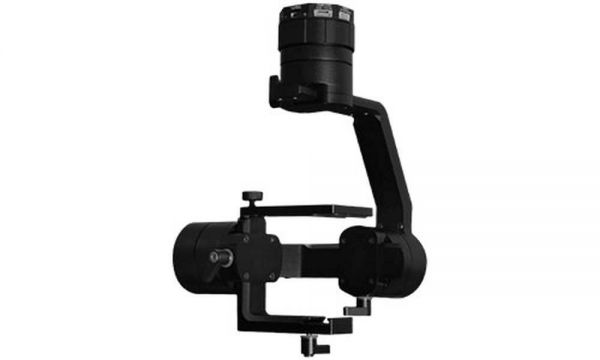

Gremsy Pixy U Gimbal für eine Vielzahl von Kameras bis zu 465g

Gremsy Pixy U Gimbal für Kameras bis zu 465g

Sehr hochwertiges Gimbal von Gremsy und Weiterentwicklung des Gremsy Pixy F Gimbals.

Das Gimbal unterstützt nun viele verschiedene Kameras (z.B. auch FLIR Duo Pro R , Sony QX1, Workswell Wiris Pro, ...).

Gerne stellen wir Ihnen ein Komplettset bestehend aus Gimbal sowie passenden Zubehörkabel und ggfs. Montagehalterung für Ihre Kamera zusammen. Kontaktieren Sie hierzu einfach unseren Support.

Das Gimbal ist sehr kompakt gebaut und vom Gewicht deutlich leichter als sonstige Gimbals, was für lange Flugzeiten und auch den Einsatz sorgt und auch den Einsatz an kleineren Coptern ermöglicht.

Multi-Camera Support

Adapting to various aerial missions has never been so fast and straightforward. Thanks to tilt axis rebuilt, just one Pixy U is enough to fit multiple camera mounting. It's time to get the best from your universal cameras system.



Compact & Lightweight

Small, ultra-lightweight, and effortless to use. Pixy U is the indispensable gimbal for any circumstances.
At just 465 grams and 18 centimeters when folded, this is your most versatile solution ever for commercial applications. Put it on your pocket, and you're good to go.

Make Mapping a Breeze

The tilt angle can be adjustable to help you achieve optimum angle per mission. Turn on your desired mapping mode on gTune via Bluetooth connection and let's fly.

Watch video





Upside Down Perspective

Thanks to inverted mode on Pixy U, the camera's movement is firmly controlled to get limitless of view so that you can capture all detail of inspection work in a safe and effective way.





New & Smart gTune

The new gTune interface is super intuitive, ergonomic, and multi-purpose. By adding profile per camera, you can quickly get the optimize parameters to ensure efficient operation of the entire system while having the best camera output.



Ergonomic & Intuitive

Configure your gimbal with ease and comfort on the re-designed gTune interface.

Easy to load & quickly adaptable

The newly available profiles set a new standard of simplicity and promptness to any camera devices.



DOWNLOAD & EXPERIENCE WITH US





Limitless Applications

Pixy U is fully compatible with the built-in flight control system of the Matrice 600 (A3 & LB2) and Pixhawk, which is essential to complete missions in any application.









Surveying & Mapping

Energy & Utilities

Solar Panel Inspection







Compatible with Pixhawk & DJI FC



Matrice 600 (A3 & LB2)

When it comes to applications in survey work, inspection or mapping, agility and flexibility are two of the key elements. The flexibility of the gimbal on Matrice 600 allows you to control between modes on gimbal and on camera precisely and instantly.

Watch Video





Pixhawk

By virtue of a possibility to communicate with Ardupilot for autonomous flight control, Pixy U is your weapon of choice to complete missions.
Pixy U responds to MAVLink commands to:

• Automated aiming of the camera at a Region of Interest (ROI)
• Autonomic triggering of a camera shutter.
• Position the gimbal with the specified roll, pitch, and yaw.
• Pass-through telemetry data of GPS, altimeter, accelerometer, etc., or camera commands, which led to the unnecessary of external GPS and suggested mapping application.

Watch Video





Open SDK Development (in-Process)

Pixy U is compatible with the Gremsy SDK to meet the requirements of those building solutions for various industrial applications. It has the COM2 port to connect with your system.

• Multi-Camera Support
• Compact & Lightweight
• Make Mapping a Breeze
• Upside Down Perspective
• New & Smart gTune
• Limitless Applications
• Compatible with Pixhawk & DJI FC
• Open SDK Development (in-Process)

DIMENSIONS & CAMERA CAGE





CAMERA COMPATIBILITY



Flir DUO Pro R

Flir Vue Pro

Flir Vue

Sony RX100

Sony R10C

Sony QX1

BMMCC

Workswell Wiris Pro

Rededge MX



GENERAL



Built-In Functions

• 1. Operation Modes
  • Motor ON/OFF
  • Lock mode
  • Follow mode / Mapping mode
  • Inverted mode
• 2. Temperature Sensor
• 3. Gremsy Specialized Gimbal Drive Motors with Encoders
• 4. Micro USB Connection
• 5. Gremsy Advanced 32-Bit high performance ARM microprocessor
• 6. S-Bus/Spektrum/PPM Receiver Supported



MECHANICAL & ELECTRICAL CHARACTERISTICS



Working Current

• Static current: 400mA (@12V)
• Dynamic current: 800mA (@12V)
• Locked motor current: Max 4.0A (@12V)



Operating Temperature

• 5° F ~ 120° F (-15° C ~ 50° C)



Weight

• 1 lb (0.465 kg)



Gimbal Dimension

• 112(W) x 145(D) x 200(H)



PERIPHERAL



Camera Tray Dimensions

• Maximum depth from the center of gravity on camera base plate: 65.5mm
• Maximum height measured from top of camera base plate: 70mm
• Maximum width: 100mm



Input Power (Including UBEC)

• 14-52V



Operating Power

• 12V



Connections

• USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Bluetooth



PC Assistant Software Requirements

• Windows XP or above; Mac OS X 10.9 or above





Mobile Assistant Software Requirements

• iOS 7.1 or above; Android 4.3 or above



WORKING PERFORMANCE



Maximum Payload

• 1 lb (0.465 kg)



Angular Vibration Range

• ± 0.02°



Maximum Controlled Rotation Speed

• Pan axis: 100°/s
• Tilt axis: 100°/s
• Roll axis: 100°/s



Mechanical Endpoint Range

• Pan axis control: +330° to -330°
• Tilt axis control: +135° to -45°
• Roll axis control: +45° to -90°



Controlled Rotation Range

• Pan axis control: +330° to -330°
• Tilt axis control: +135° to -45°
• Roll axis control: ± 45°
