T-Motor Cine60 FPV Cinewhoop Brushless Motor 6S 4" X4 39,1g

66,90 € * 69,90 € * (4,29% gespart)

inkl. MwSt. zzgl. Versandkosten

Lieferzeit ca. 2 Wochen

  • PM-7238
  • T-Motor
  • Cine60
  • 4250902365912
.fontBlod { font-weight: bold; } .textCenter { text-align: center; } .lineHeight12 {... mehr
Produktinformationen "T-Motor Cine60 FPV Cinewhoop Brushless Motor 6S 4" X4 39,1g"
cine

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

Corrosion resistant

CORROSION
RESISTANT

Sand resistant

SAND
RESISTANT

Dust resistant

DUST
RESISTANT

All-environment reliability

ALL-ENVIRONMENT
RELIABILITY

MEETS TO MULTIPLE FILMING STYLES

Suitable for 6" cinematic drone. It handles extended flights with high throttle without issues like thrust loss and desync. Allowing the drone to handle chasing fixedwing, chasing cars or flying over the mountain with ease.

cine

ULTRA POWER, FEARLESS HIGH-SPEED FLIGHT

The maximum thrust of the Cine60 is over 1.5kg. Excellent heat dissipation design, maintains power even with high-pitch props, suitable for multiple 6" propellers. Matches 5" drone handling performance under GOPRO loads, making your cinematic shots smoother.

DOUBLE FLIGHT TIME SINGLE-TAKE SHOT READY

Unique electromagnetic design, compared to a 5-inch cinematic drone, it offers double the flight time (1550mAh 6s battery, AUW 850g, flight time 12 mins), reducing battery load while ensuring smooth filming efficiency. Perfect for extended single-take shots, empowering creators to focus on filming.

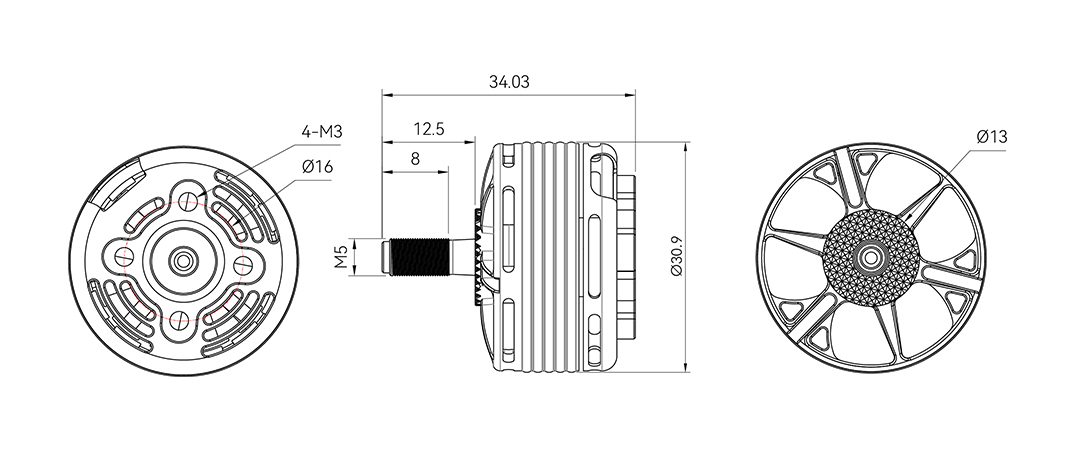

Technical Drawing


Specification Export to Excel
TypeCine60Motor DimensionΦ30.9*34.03mm
MagnetNickel platedarc magnetCoil insulation test200V withstandvoltage test
Waterproof and dustproof classIP45Configuration12N14P
Dynamic balancerequirements standards≤5mgBearingsImported 684ZZ
Shaft Diameter1.5mmLead24AWG*180mm
Screw DiameterΦ16-M2-4Prop Adapter Shaft ThreadM5*12.5mm
Packing Size65*65*55mmPacking Weight70g
Tech Specs
Recommended Voltage6SIdle Current(10V)0.96A
Max Power(1s)782WInternal Resistance84mΩ
Rated Voltage (Lipo)24VPeak Current(1s)34A
Max Thrust1789gWeight (incl.cable)39.1g
Recommended
MotorCine60 6SFrame TypeX4
PropT6143-3(6-inch Tri-bladepropeller, pitch 3.0-4.5)Lipo Cells6S
ESCF7 PRORecommended
takeoff weight range
Within 1000g
FCF55A PROⅢMax Takeoff Weight2000g
Test Data:1、2200mah 6s battery (310g), load weight 160g, AUW 900g, flight time 16 minutes.
2、1550mah 6s battery (260g), load weight 160g, AUW 850g, flight time 12 minutes.
3、5000mah 6s battery (420g), load weight 160g, AUW 1100g, flight time 34 minutes.
4、5000mah 6s battery (420g), without payload, AUW 940g, flight time 40 minutes.
5、1550mah 6s battery (260g), without payload, AUW 690g, flight time 16 minutes.
Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 16-BYRPM,
Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync)
Test Data Export to Excel
TypePropellerVoltage
(V)
Throttle
(%)
Current
(A)
RPMThrust
(g)
Power
(W)
Efficiency
(g/W)
Torque
(N*m)
Operating
Temperature
(℃)
Cine60
6S
T-HOBBY T6143-324.0210%0.2237152955.500.00
24.0120%0.847037117205.850.02138
(Ambient temperature:
25℃)
23.9930%2.039894252495.180.03
23.9640%3.9412535417944.420.05
23.9150%6.80151906411633.940.08
23.8460%10.45175398722493.500.10
23.7670%14.961940410943553.080.13
23.6580%20.282131113414802.800.16
23.5490%26.482295515746232.530.18
23.42100%33.402435417897822.290.21
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine60
6S
HQ
6*3*3
24.0310%0.2037332354.770.00
24.0220%0.73716195185.440.0196
(Ambient temperature:
25℃)
24.0030%1.7410243207424.980.03
23.9740%3.3213040353804.430.04
23.9350%5.69158155421363.980.06
23.8760%8.88182617512123.540.08
23.8070%12.78204339673043.180.11
23.7080%17.702251512084192.880.14
23.6090%23.512427514735552.660.16
23.48100%29.892590517107022.440.19
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine60
6S
HQ
6*4.3-2
24.0310%0.2137362755.280.00
24.0220%0.757117108185.990.0191
(Ambient temperature:
25℃)
24.0030%1.8210150233445.320.03
23.9740%3.4512946388834.690.04
23.9250%5.88157346071414.310.06
23.8760%9.09181908252173.800.09
23.8070%12.992036810463093.380.11
23.7080%17.892244712914243.040.14
23.5990%23.702426015285592.730.16
23.48100%30.092585417617062.490.19
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Analysis Chart


Packing List
