Tarot Multirotor Frame/ Quadcopter /Plastic/Lateral folding TL718 Tarot's newest... mehr
Produktinformationen "Tarot TL718 Foldable Quadcopter Frame 718mm — Multicopter Rahmen"

Tarot Multirotor Frame/Quadcopter/Plastic/Lateral folding TL718

TL718

  • Tarot's newest foldable quadcopter frame
  • With a wheelbase of 718 mm, it can accommodate commonly available equipment such as camera mounts, microphones, and throwers and other equipment
  • Suitable for applications such as surveillance, remote sensing, surveying, aerial reconnaissance, fire monitoring, search and rescue, cable inspection, and farm monitoring—where high mobility is required and the equipment load is relatively light.

Product Features

  1. Integrated frame body with a wrap-around folding design
  2. The body is made of imported composite materials through integrated injection molding, with a 30% carbon fiber content, ensuring a sturdy and stable structure

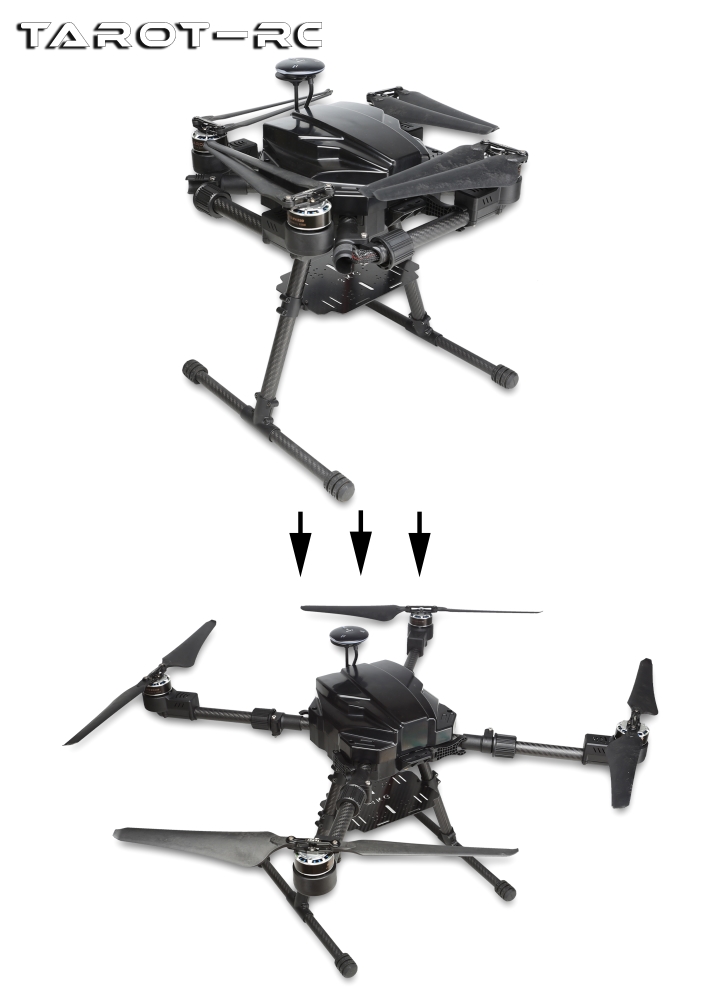

  3. Wrap-around folding mechanism with 360-degree counterclockwise folding arms, effectively maximizing space utilization
  4. Swivel arm latches that securely lock the arms in place during both deployment and folding

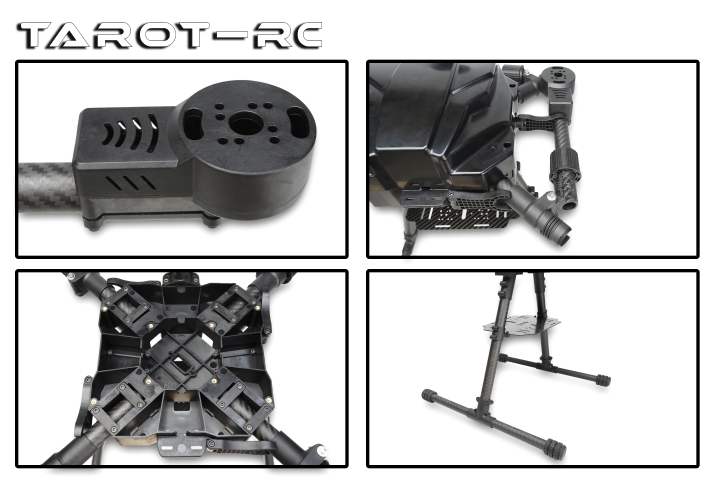

  5. Integrated motor mount with a wraparound design accommodates ESCs within specified dimensions, giving the entire aircraft a sleek and elegant appearance
  6. Large mounting platform provides ample space for equipment installation
  7. User-friendly cable exit port design seamlessly integrates with Tarot distribution boards and effectively supports the installation of mainstream electronic modules available on the market
  8. Recommended for use with the Tarot High-Performance Power Kit (Tarot 4012/320KV motor + Hobbywing XRotor-Pro-40A ESC),Tested flight time: 40 minutes
  9. Designed for a payload of 3 KG, suitable for a wide range of flight applications
  10. Empty frame weight(without props,motor,ESC and others): 1380 g.

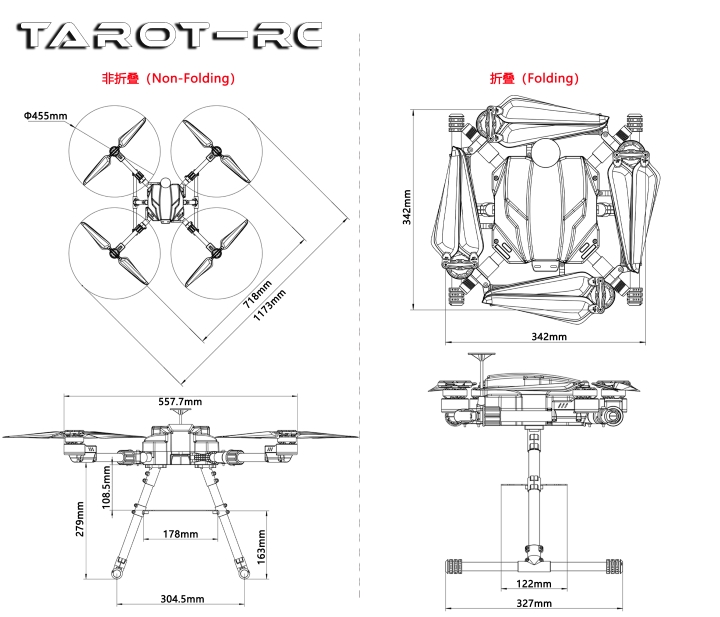

Specifications

Empty aircraft weight2.44kg
Wheelbase718mm
Battery weight1.66kg(12000mAh)
Deployed wing length1173mm
Take-off weight3.1kg
Folding size342*342mm
Max. wind resistanceForce 6 wind
Frame height279mm
Flight distance4000m
Flight altitude3000m
Flight modeSelf-stabilizing,altitude setting,stay-behind,one-key return,etc.
Test environmentsSunny.28°C. Wind force 2
Unloaded flight16.7A?40min
Loaded flight(0.5kg/20A)?35min,(1kg/22.6A)?30min,(2kg/30.2A)?22min,(3kg/37.1A)?18min

Recommended Configuration

ConfigurationAttributeRecommended Tarot Part
MotorMartin 6S/4012/320KVMartin Motor/6S/4012/320KV TL40P12
ESCHobbywing/40A/6SHobbywing XRotor ESC/40A TL2923
PropsTarot 1865Tarot 18 inch Folding CW/CCW Propeller holder Set/1865 TL100D21
FCCUAV V5+CUAV Pixhawk flight control/ V5+
CoverABS

Packing List

Product Details

TL718

TL718

TL718

TL718

TL718

TL718

TL718
