Tarot TL680B Quadcopter Frame 680 — Carbon Multicopter Rahmen

199,90 € * 219,90 € * (9,1% gespart)

inkl. MwSt. zzgl. Versandkosten

 Versandkostenfreie Lieferung
     innerhalb Deutschlands

Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands

  • PM-7406
  • Tarot
  • TL680B
  • 4250902367589
Tarot Multi-Rotor Frame/Non-Folding Quadcopter 680/Plastic Model TL680B Tarot's... mehr
Produktinformationen "Tarot TL680B Quadcopter Frame 680 — Carbon Multicopter Rahmen"

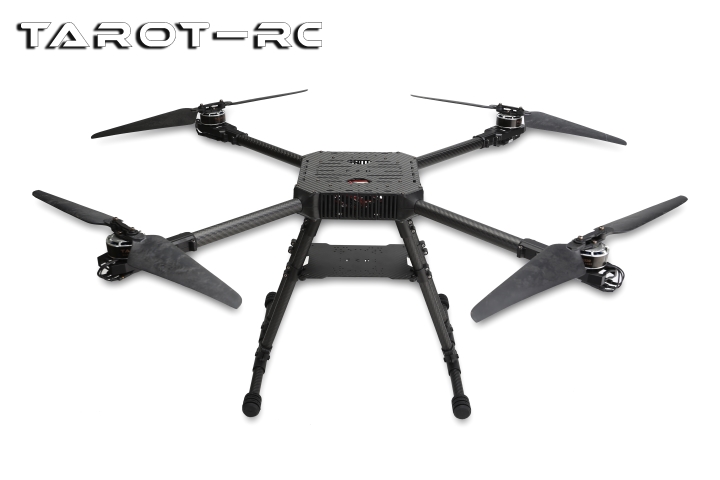

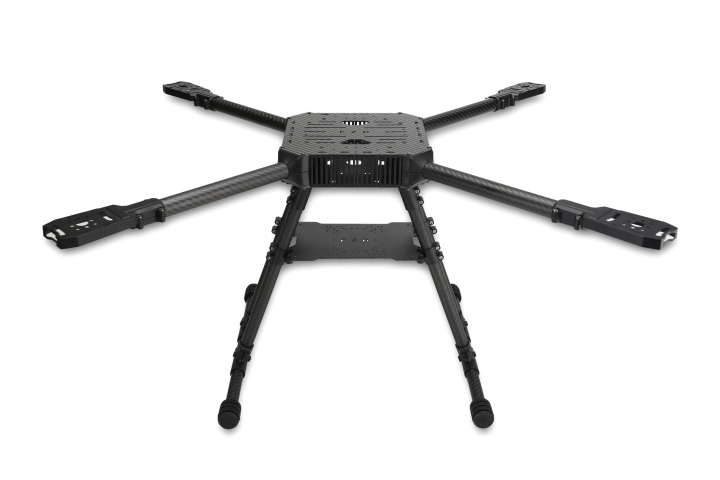

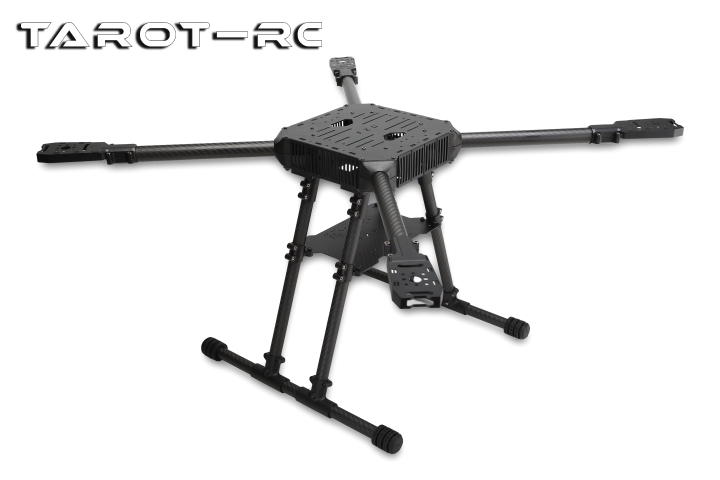

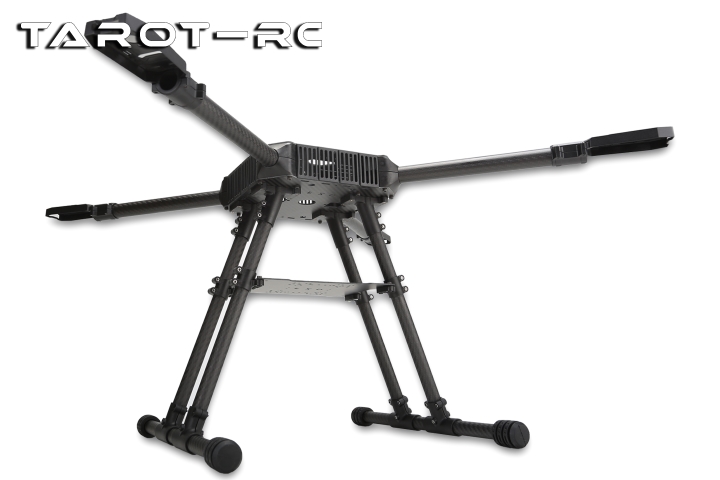

Tarot Multi-Rotor Frame/Non-Folding Quadcopter 680/Plastic Model TL680B

TL680B

  • Tarot's newest 680-wheelbase quadcopter, the Plastic model
  • Adopting integrated non-folding structure design, the whole frame is reliable and sturdy
  • Suitable for surveillance, remote sensing, mapping, aerial reconnaissance, fire observation, life exploration, cable patrol, farm monitoring, and other applications that require high mobility and low equipment load.

Product Features

  1. Non-folding integrated frame structure design, the whole machine is firm and sturdy
  2. The frame body, arm, landing gear full carbon fiber material
  3. The arm joints and landing gear joints are made of imported composite material injection molding, which is very sturdy and durable
  4. Large space in the center plate can easily install various electronic devices
  5. Magnesium alloy motor base, ultra-light material
  6. Dual landing gear, 16 to 16 T-type structure design, and fully embraced battery compartment, the overall rigidity of the strong and stable
  7. The weight of the frame is only 845g.

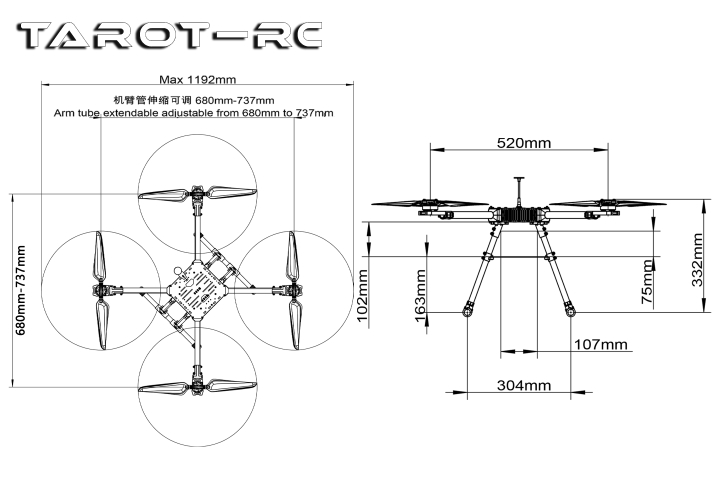

Specifications

Empty aircraft weight1.91kg
Wheelbase737mm
Battery weight1.66kg(12000mAh)
Deployed wing length1192mm
Take-off weight3.57kg
Center plate size170*170mm
Max. wind resistanceForce 6 wind
Frame height332mm
Flight distance4000m
Flight altitude3000m
Flight modeSelf-stabilizing,altitude setting,stay-behind,one-key return,etc.
Test environmentsSunny.35°C. Wind force 2
Unloaded flight13.7A?42min
Loaded flight(0.5kg/17.3A)?35min,(1kg/20.3A)?29min,(1.5kg/24.3A)?25min,(2kg/28.1A)?21min

Recommended Configuration

ConfigurationAttributeRecommended Tarot Part
MotorMartin 6S/4012/320KVMartin Motor/6S/4012/320KV TL40P12
ESCHobbywing/40A/6SHobbywing XRotor ESC/40A TL2923
PropsTarot 1865Tarot 18 inch Folding CW/CCW Propeller holder Set/1865 TL100D21
FCCUAV V5+CUAV Pixhawk flight control/ V5+
CoverABS

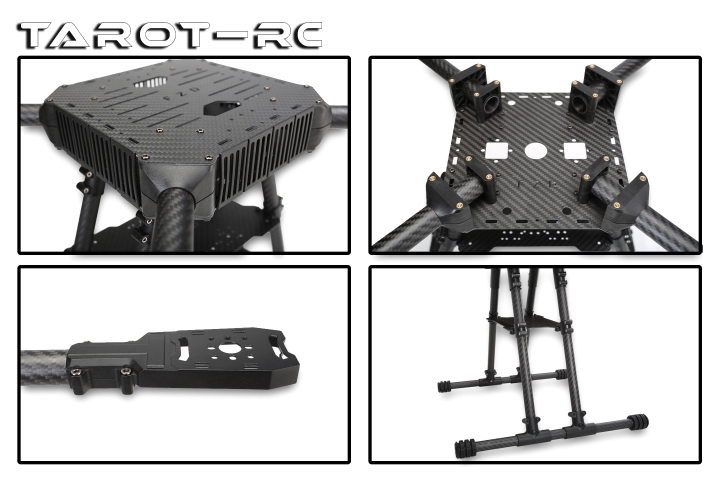

Frame Material

  • Magnesium alloy: motor mount
  • Carbon fiber: upper and lower center plates, arms, landing gear
  • Plastic parts: arm mount, landing gear mount, battery plate mount, fence, landing gear adapter

Packing List

  • TL680B Frame ×1

Product Details

TL680B

TL680B

TL680B

TL680B

TL680B

TL680B
