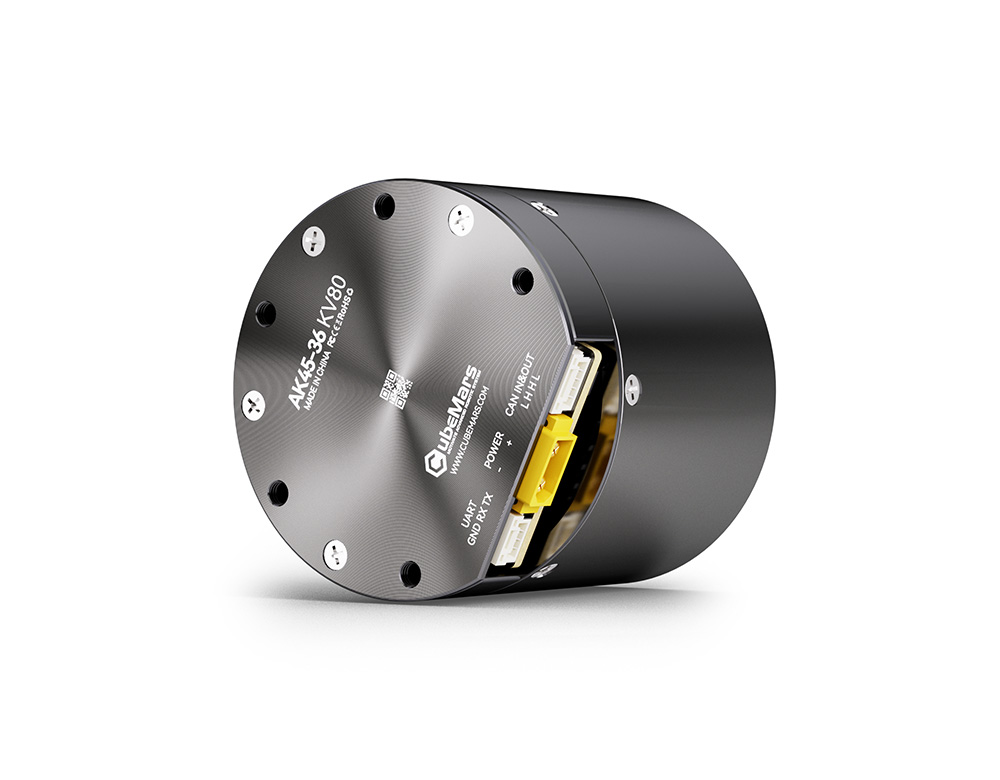

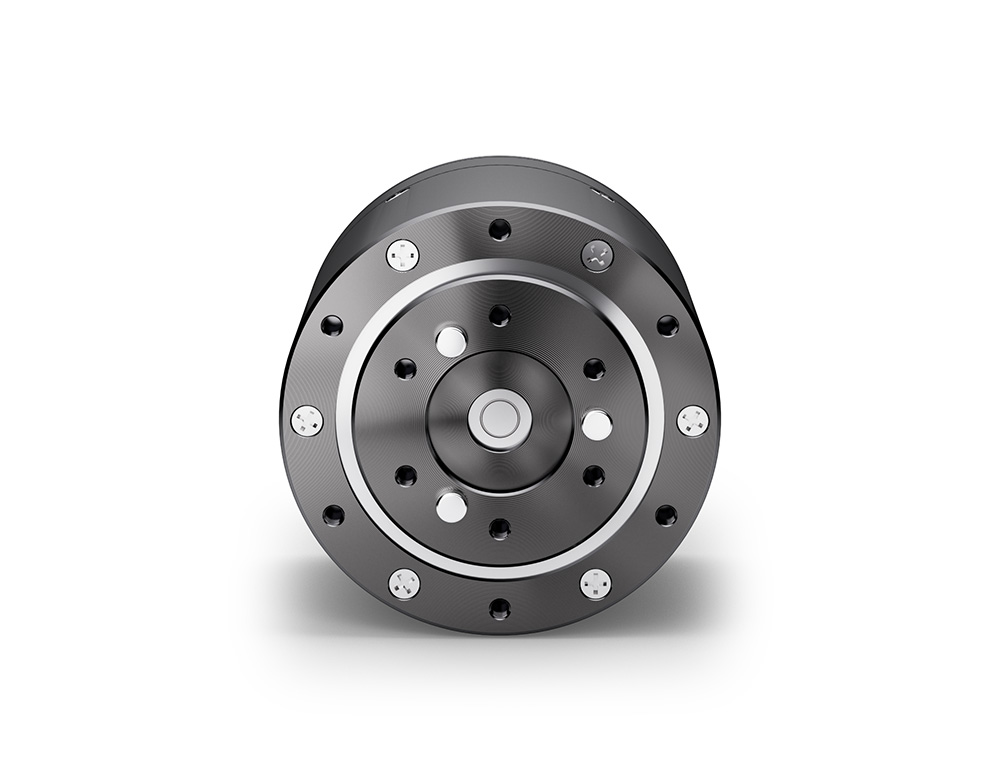

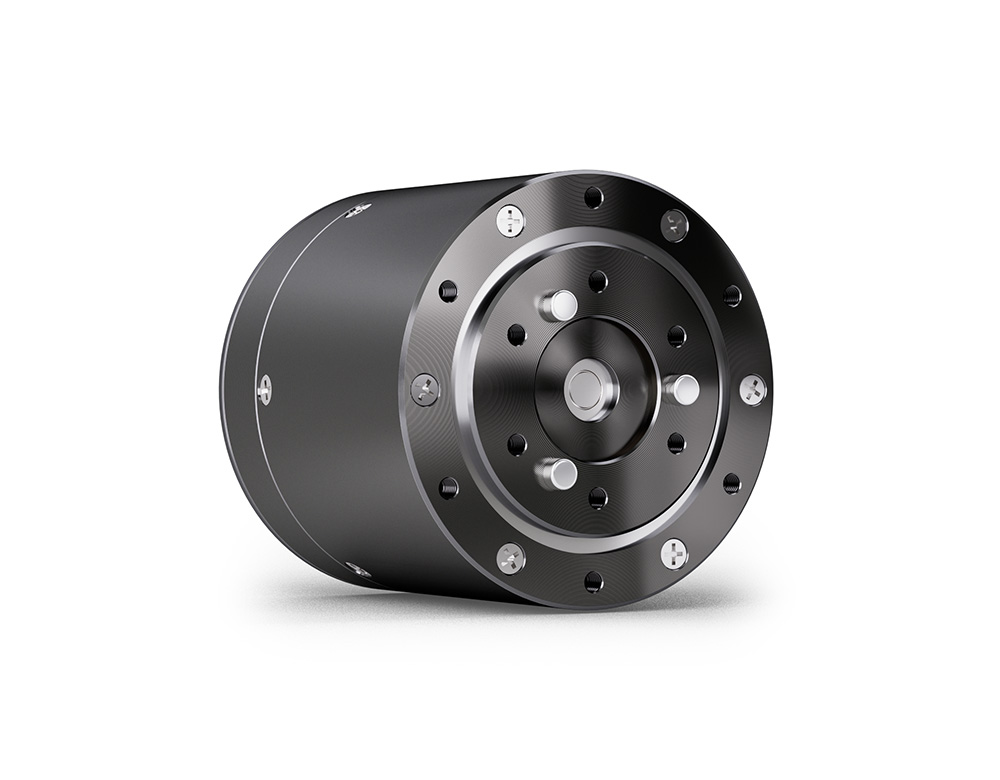

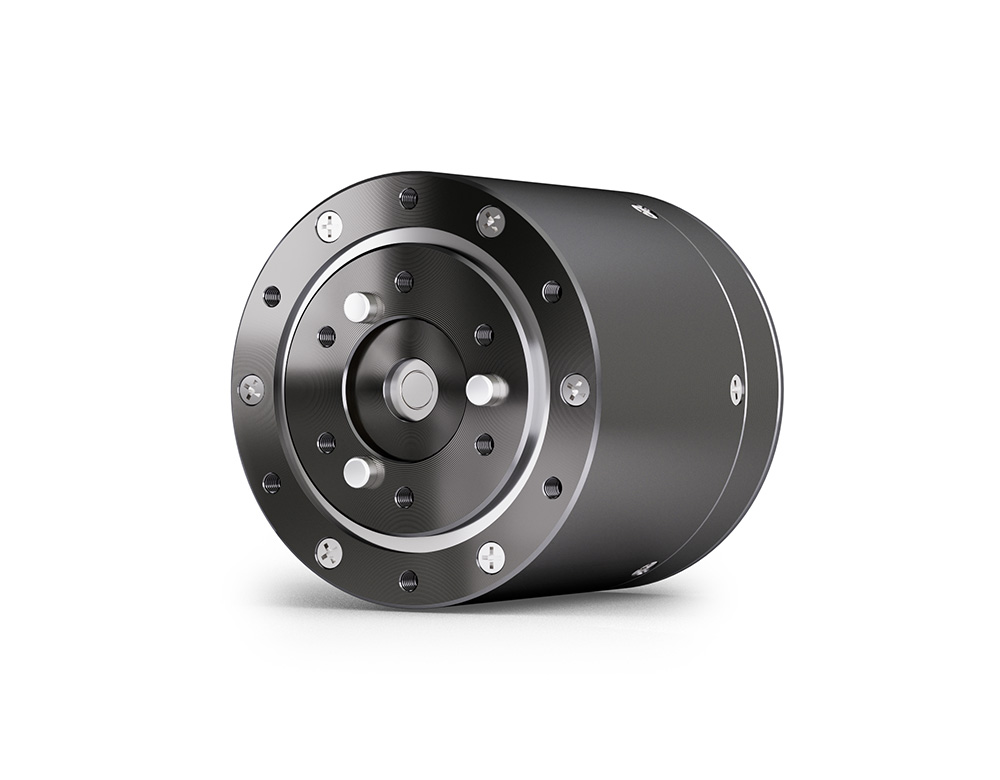

CubeMars AK45-36 KV80 Robotic Actuator 36:1 Planetengetriebe 24Nm 340g
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands
- Artikel-Nr.: PM-7339
- Hersteller: CubeMars
- Artikelname: AK45-36-KV80-with-Driver
- EAN: 4250902366926
Product Description
The CubeMars AK45-36 KV80 robotic actuator integrates a brushless DC motor, 36:1 planetary gearbox, and driver board into a compact, easy-to-install unit. This module delivers high torque output while maintaining responsive performance. It supports both servo and MIT control modes, features plug-and-play connectors, adaptive PID parameter identification, and integrated protection against overcurrent, overvoltage/undervoltage, and overheating, ensuring stable and safe operation in complex environments.
Core Specifications
Motor Dimensions: ?55*54mm
Motor Weight: 340g
Peak Torque: 24Nm
No-load Speed: 52rpm
Product Highlights
High Reduction Ratio Design: The 36:1 gear ratio enables strong torque output in low-speed, high-load applications
Lightweight Structure: Weighs only approximately 340g, suitable for weight- and space-sensitive devices
High Torque Density: Exceeds 70 Nm/kg, delivering outstanding performance among similar products
Low Backlash for Precision: Backlash controlled within 12 arcmin, beneficial for fine positioning
Plug-and-Play Connectivity: Simplifies wiring and improves installation efficiency
Dual Control Mode Support: Switchable between servo and MIT control modes for flexible application adaptation
Comprehensive Protection: Integrated overcurrent, overvoltage/undervoltage, and overtemperature protection enhances device safety
Wide Application Range: Commonly used in compact spaces such as humanoid wrist joints and exoskeletons
Packaging Contents
AK45-36 KV80 Actuator (Comes standard with a driver board)x1
Power Cable x1
Serial CAN Cable x1
Certificate of Conformance x1
Related Accessories
R-link V2.0
Driver Board MINI Board
Wiring Package V2.0
| Application | Legged Robot, Exoskeleton,AGV | Peak torque (Nm) | 24 |
| Driving way | FOC | Peak current (ADC) | 6.5 |
| Operation ambient temperature | -20℃~50℃ | No-load speed (rpm) | 52 |
| Winding Type | star | KV (rpm/V) | 80 |
| Insulation Level | F | KT (Nm/A) | 0.11 |
| Insulation High-voltage | 500V 5mA/2s | KE (V/krpm) | 12.5 |
| Insulation resistance | 500V10MΩ | Coil resistance (Ω) | 1.8 |
| Number of Slots | 24 | Inductance(mH) | 1.1 |
| Pole Pairs | 14 | Rotor Inertia (gcm²) | 32 |
| Reduction Ratio | 36:1 | Motor constant(Nm/√W) | 0.15 |
| Back drive (Nm) | 0.8 | Mechanical Time Constant (ms) | 0.83 |
| Backlash (arcmin) | 12 | Maximum Torque Density(Nm/kg) | 70.5 |
| Temperature sensor | NTC MF51B 103F3950 | CAN connector | A1257WR-S-3P |
| Noise dB (65CM away the motor) | 65 | UART connector | A1257WR-S-3P |
| Basic dynamic load rating Cr(N) | 2810 | Power connector | XT30PW-M |
| Basic static load rating Cor(N) | 2760 | Inner loop encoder type | Magnetic |
| Rated voltage (V) | 24 | Inner ring encoder resolution | 14bit |
| Rated torque (Nm) | 8 | Outer ring encoder type | / |
| Rated speed (rpm) | 40 | Outer ring encoder resolution | / |
| Rated current (ADC) | 2 | Number of encoder | 1 |
| Weight (g) | 340 |
Product Details

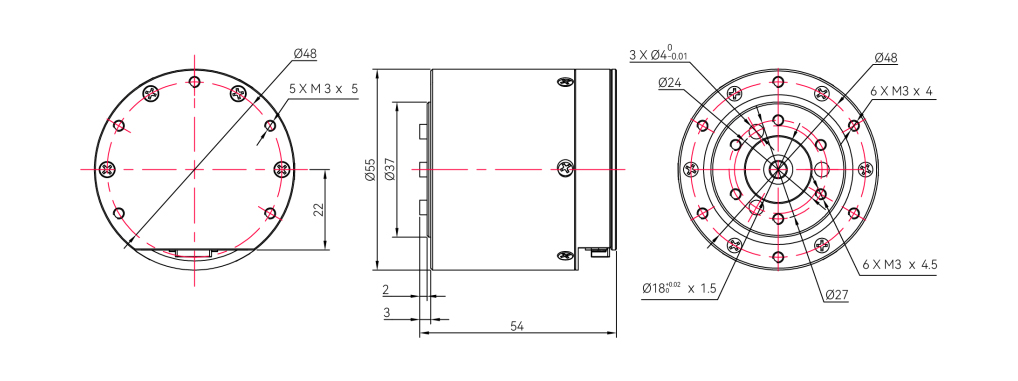

Dimensional Drawing

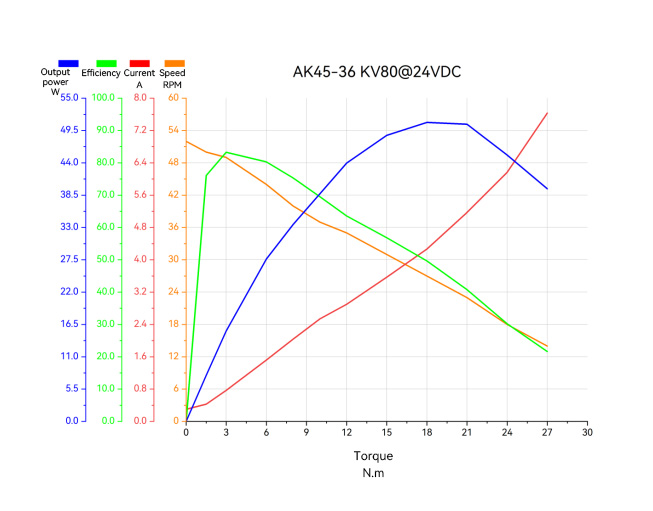

Performance Data
