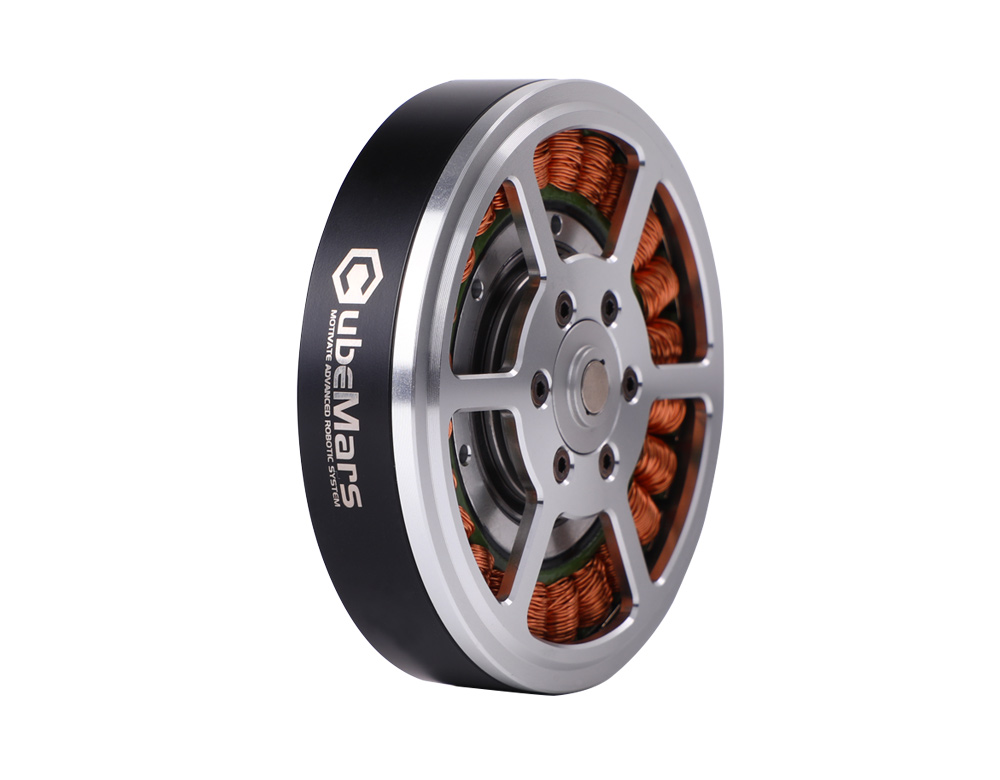

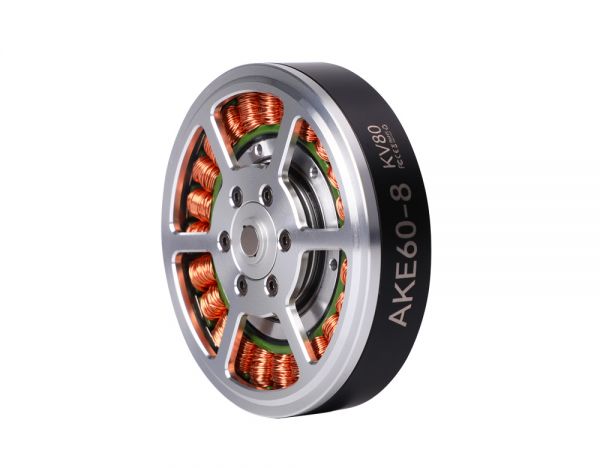

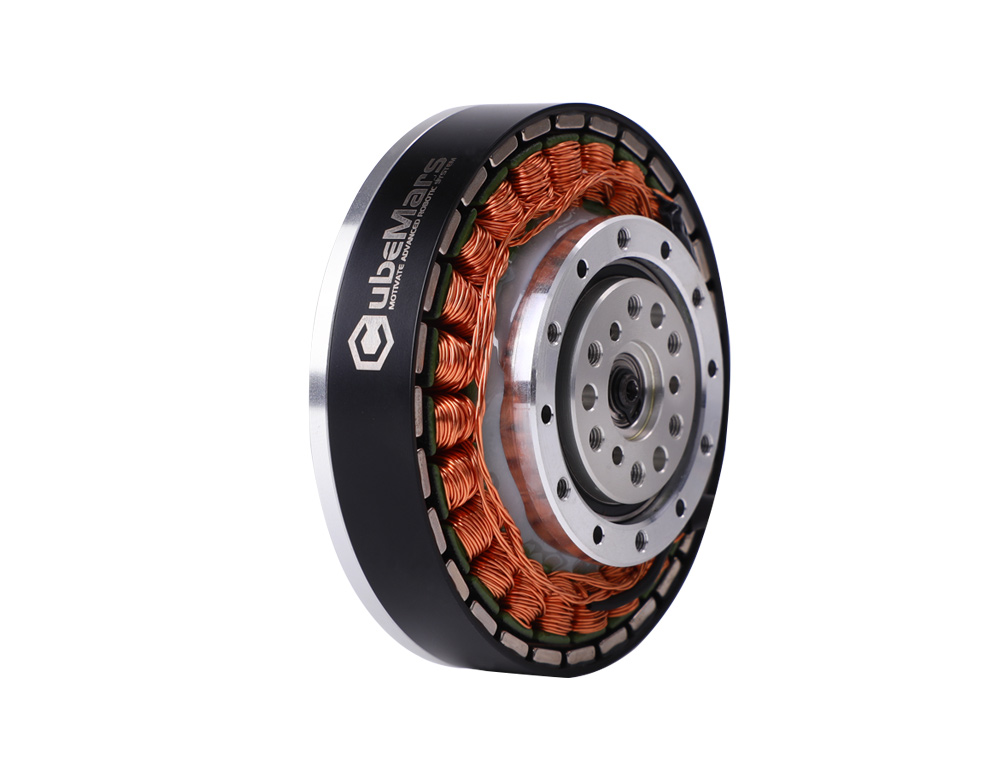

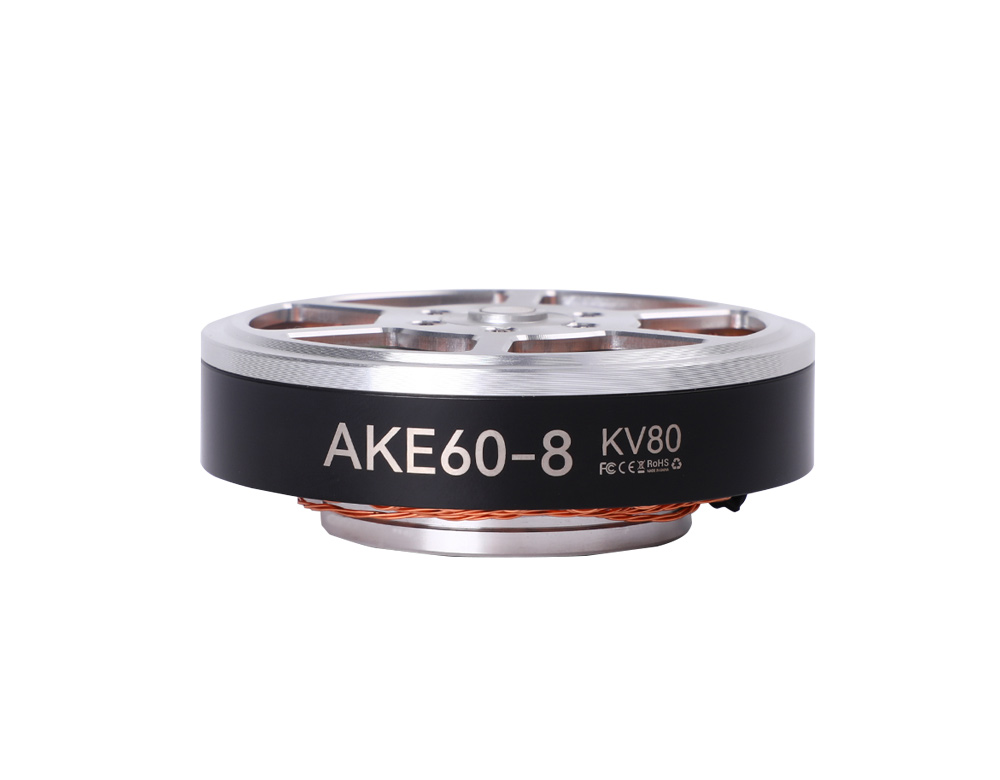

Vorschau: CubeMars AKE60-8 80kv Brushless Motor 24V 260g

CubeMars AKE60-8 80kv Brushless Motor 24V 260g

259,90 € * 269,90 € * (3,71% gespart)

inkl. MwSt. zzgl. Versandkosten

Versandkostenfreie Lieferung
innerhalb Deutschlands

Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands

Artikel-Nr.: PM-7049
Hersteller: CubeMars
Artikelname: AKE60-8-80kv
EAN: 4250902364052

• Robotic Actuator with a Planetary Gear • Flexible Installation with Bi-directional... mehr

Menü schließen

Produktinformationen "CubeMars AKE60-8 80kv Brushless Motor 24V 260g"

• Robotic Actuator with a Planetary Gear

• Flexible Installation with Bi-directional Mounting

• Modular Design

• low Arcmin Backlash for High Precision

• Constantly Powerful Performance

• Specially for Exokseleton

CubeMars' AKE Quasi Direct Drive is the ideal choice for the industrial automation and robotics. This product integrates motor and gearbox, particularly suited for applications such as exoskeletons, bipedal robots, robotic arms, and industrial collaborative robots.

The core components of the gearbox are optimized for design and manufacturing processes, offering higher load capacity and lighter weight, achieving a backlash of 9 arcminutes and a torque density of 46 N.m/kg. The modular design of the gearbox and motor facilitates easy installation and maintenance. The motor base is equipped with threaded and through holes for versatile bi-directional mounting, accommodating various installation requirements.

CubeMars is dedicated to innovation and quality, ensuring each product meets high customer standards through advanced manufacturing technologies and stringent quality control processes.

Robotic Actuator with Planetary Gear

QUASI DIRECT DRIVE

Light and Compact,Precise and Powerful

PRECISION TRANSMISSION
WITH HEAVY LOAD CAPACITY

Achieve higher transmission accuracy within 9 arc backlash;
optimized reducer increases load capacity,reaching peak torque density of 46N.m/kg.

QUIET OPERATION WITH PRECISION
EXCELLENCE

Utilizing grade 5 precision gears and optimized core components
in the reducer significantly reduces operational noise while extending motor lifespan

WINDING UPGRADING FOR
EFFICIENCY BOOST

Enhanced winding process increases slot fill factor by 10% compared to AK series
reducing copper losses and temperature rise for superior torque output

LIGHT AND COMPACT FOR
VERSATILE APPLICATIONS

Lightweight design and compact structure with bi-directional
mounting for diverse application

MODULAR DESIGN FOR
HASSLE-FREE MAINTENANCE

Motor and reducer feature separate modular design for
easy and quick disassembly and maintenance

Technical Drawing

Specification

Application	Exoskeleton	Peak torque (Nm)	12.5
Driving way	FOC	Peak current (ADC)	12
Operation ambient temperature	-20℃~50℃	Kv (rpm/V)	80
Winding type	star	Kt (Nm/A)	0.13
Insulation class	F	Ke (V/krpm)	12.5
Insulation High-voltage (V)	500	Phase to Phase resistance (mΩ)	577
Insulation resistance (MΩ)	10	Phase to Phase inductance (μH)	704
Pole pairs	14	Inertia (gcm²)	32
Backlash (arcmin)	9	Km (Nm/√W)	0.15
Rated voltage (V)	24	Mechanical time constant (ms)	1.2
No-load speed (rpm)	240	Electrical time constant (ms)	1.7
Rated torque (Nm)	5	Weight (g)	260
Rated speed (rpm)	180	Maximum torque weight ratio (Nm/kg)	46
Rated current (ADC)	4.8

Analysis Chart

Downloads:

AKE60-8-KV80 drawing.PDF

AKE60-8-KV80.zip

Vergleich aller Cube Mars Motoren:

category	Model	Rated Voltage (V)	Rated Power (W)	Rated Torque (Nm)	Rated Current (A)	Rated Speed (RPM)	Peak Torque (Nm)	Peak Current (A)	No-load Speed (RPM)	Reduction Ratio	Weight (G)	Size (diameter *length) MM	Driver Board	Encoder
AK Series	AK60-6 V3.0	24/48	74	3	3.8	233/490	9	10.3/11.2	320/640	6:1	380	Ф79*43	Yes	Single
AK Series	AK10-9 V3.0	48	442	18	10.7	235	53	31.9	320	9:1	940	Ф98*61.7	Yes	Dual
AK Series	AK10-9 V2.0 KV60	24/48	430	18	10.6	109/228	48	29.8	160/320	9:1	960	Ф98*61.7	Yes	Dual
AK Series	AK60-6 V1.1 KV80	24	74	3	3.8	233	9	13.1	320	6:1	368	Ф79*39.5	Yes	Single
AK Series	AK10-9 V2.0 KV100	24/48	720	15	16.2	205/421	38	41.2	266/533	9:1	960	Ф98*61.7	Yes	Dual
AK Series	AK60-6 V1.1 KV140	24	130	3	6.5	420	9	22.7	560	6:1	368	Ф79*39.5	Yes	Single
AK Series	AK70-10	24/48	230	8.3	7.2	148/310	24.8	23.2	240/480	10:1	521	Ф89*50.25	Yes	Single
AK Series	AK80-6	48	340	6	9.7	603	12	20	800	6:1	485	Ф98*38.5	Yes	Single
AK Series	AK80-64	24/48	220	48	7	23/48	120	19	37/75	64:1	850	Ф98*61.9	Yes	Single
AK Series	AK80-8	48	230	10	6.9	243	25	21	360	8:1	570	Ф98*43.9	Yes	Dual
AKE Series	AKE90-8	48	700	55	21	120	170	72	210	8:1	1400	Ф107.5*43.5	No
AKA Series	AKA10-9	48	205	18	10.6	109	53	32	320	9:1	1060	∅100*70	Yes	Single
AK Series	AK80-9	48	330	9	10.3	390	18	22.3	533	9:1	485	Ф98*38.5	Yes	Single
AKA Series	AKA60-6	24/48	62	3	4	200/400	9	11.2	320/640	6∶1	460	Ф80*51.2	Yes	Single
AKE Series	AKE60-8	24	95	5	4.8	180	12.5	12	240	8:1	260	Ф69*25	No
AKE Series	AKE80-8	48	188	12	4.8	150	30	12	180	8:1	570	Ф87*32	No
