Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph

Matek Systems
Preview: Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph Preview: Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph Preview: Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph
Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph
Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph
Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph

€19.90 *
Content: 1 Stück

Prices incl. VAT plus shipping costs

In Stock
Delivery time appr. 1-3 workdays within Germany

  • Order number: PM-5972
  • Hersteller: Matek Systems
  • Artikelname: CAN-L431
  • EAN: 4250902358723
Description Evaluations 0
Description
Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph CAN Node für die Integration von... more
Close menu
Product information "Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph"

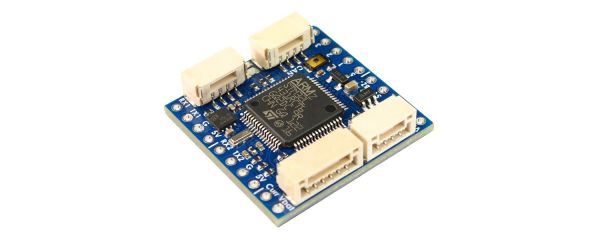

Matek AP_PERIPH CAN NODE L431 für Ardupilot AP Periph

CAN Node für die Integration von UART / I2C Zubehörkomponenten (Lidar, GPS, etc.) in den Ardupilot CAN BUS.

Weitere Informationen finden Sie auch hier:

https://ardupilot.org/dev/docs/ap-peripheral-landing-page.html



Ausführliche Informationen und Technische Daten:

  • CAN-L431 is an Adapter Node based on ArudPilot AP_Periph firmware.
  • With this board, you can easily utilize the ArduPilot driver library to convert ArduPilot supported GNSS, Compass, Barometer,Airspeed sensor, and GPIO based (PWM, Buzzer/LED notify) peripherals to DroneCAN bus peripherals.

Specifications

  • MCU: STM32L431xC, 256KB Flash
  • CAN transceiver data rates up to 5 Mbit/s in the CAN FD fast phase
  • 1x CAN, DroneCAN Protocol (2x GH-4P connectors in parallel)
  • 3x UARTs
    • UART1, spare
    • UART2, MSP default, DFU
    • UART3, GPS default
  • 1x I2C
    • for peripheral Airspeed sensor
    • for peripheral Barometer
  • 1x SPI
    • for peripheral RM3100
  • 4x ADC
    • BATT_VOLT, PIN 5
    • BATT_CURR, PIN 6
    • BATT2_VOLT, PIN 15
    • BATT2_CURR, PIN 16
  • 5x PWM outputs
  • 1x GPIO with TIM16 for buzzer
  • ST debug, SWCLK & SWDIO
  • LED
    • Blue, Fast blinking, Booting
    • Blue, Slow blinking, working
    • Red, 3.3V indicator
  • Input voltage range: 4.5~5.5V @5V pad/pin
  • Power consumption: 40mA
  • Physical
    • 2x JST-GH-4P(SM04B-GHS-TB) for CAN
    • 1x JST-GH-4P(SM04B-GHS-TB) for I2C
    • 1x JST-GH-6P(SM06B-GHS-TB) for UART3+I2C
    • Board Size: 26mm*26mm*6mm. 3.7g
    • 3D file : CAN-L431_STEP.zip
  • Firmware
    • ArduPilot AP_Periph MatekL431-Periph, or MatekL431-Airspeed
    • Update via DroneCAN GUI Tool

Packing

  • 1x CAN-L431 board
  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
  • 1x JST-GH-6P to JST-GH-6P 20cm silicon wire

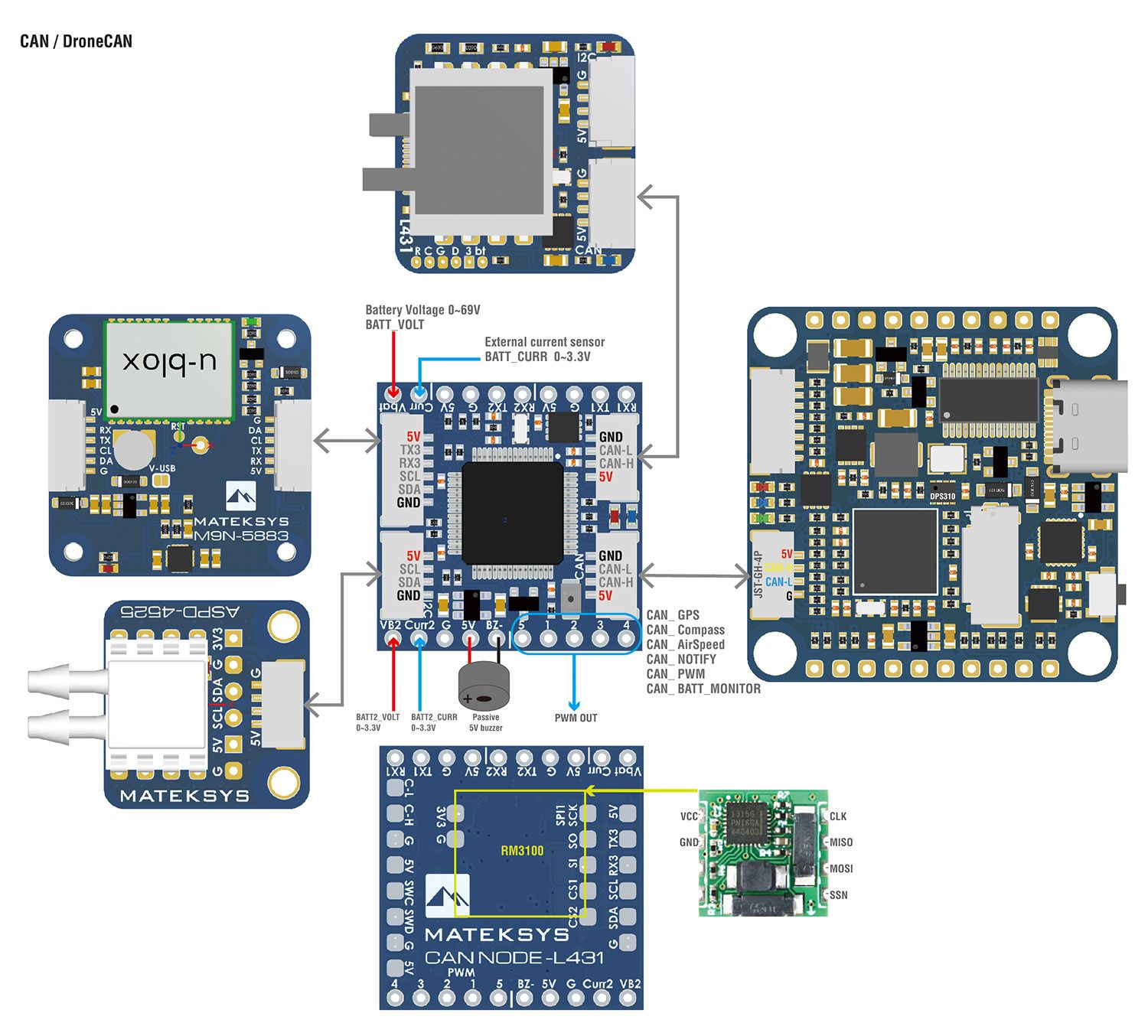

SLCan Mode CAN1 > Parameters Parameters
UART TX1 RX1 UART1 Serial PORT 0 USER
TX2 RX2 UART2 Serial PORT 1 MSP_PORT 1
TX3 RX3 UART3 Serial PORT 2 GPS_PORT 2
I2C SCL/SDA
GH connector		 PB13/PB14 Baro SPL06 Address 0x76
QMC5883L COMPASS_AUTODEC 1
MS4525
DLVR-L10D		 ARSP_TYPE 1
ARSP_TYPE 9
SPI1 SCK, SO, S1, CS1 RM3100
ADC Vbat pad PA0 0~69V
1K:20K divider builtin		 BATT_MONITOR 4
BATT_VOLT_PIN 5
BATT_VOLT_MULT 21
Curr pad PA1 0~3.3V BATT_CURR_PIN 6
VB2 PB0 0~3.3V BATT_MONITOR 4
BATT2_VOLT_PIN 15
Curr2 PB1 0~3.3V BATT2_CURR_PIN 16
PWM 1 PA8 TIM1_CH1 OUT1
2 PA9 TIM1_CH2 OUT2
3 PA10 TIM1_CH3 OUT3
4 PA11 TIM1_CH4 OUT4
5 PA15 TIM2_CH1 OUT5
2812 LED
OUT5_FUNCTION 120
NTF_LED_TYPES 257
Buzzer Bz- Passive buzzer –
5V Passive buzzer +
  Disable GPS GPS_TYPE 0
GPS_PORT -1
  Disable compass COMPASS_ENABLE 0
  Disable Battery monitor BATT_MONITOR 0
BATT2_MONITOR 0
  Disable MSP MSP_PORT -1

Parameters in Flight controller

  • CAN_D1_PROTOCOL = 1
  • CAN_P1_DRIVER = 1
  • GPS_TYPE = 9 DroneCAN
  • COMPASS_TYPEMASK DroneCAN (Unchecked)
  • ARSPD_TYPE = 8 (DroneCAN)
  • NTF_LED_TYPE -> DroneCAN (Checked)
