Airbot Systems Herelink Antennen Upgade Set

Airbot Systems Herelink Antennen Upgade Set

This antenna kit allows the upgrade of the original Herelink antennas. Airbot Systems 2.4GHz antennas have similar performance but are more discreet and more convenient to install. (Air unit not included)

The set of antennas for Herelink allows you to replace the original antennas.
Two adapter cables are provided, and allow panel mounting of the antennas (vertically or horizontally).
The antennas are foldable at 90deg and their SMA connection allows quick and easy dismantling. Their performances are similar to the original ones

TECHNICAL SPECIFICATIONS:

Frequency : 2.4ghz

Connector : SMA

Lenght : 160mm ; width : 20mm (at largest)

Gain : 5dBi max

Impedance : 50 Ohms

Type : Omnidirectionnal

Polarisation : vertical

VSWR : <1.5

Kit weight : 51g

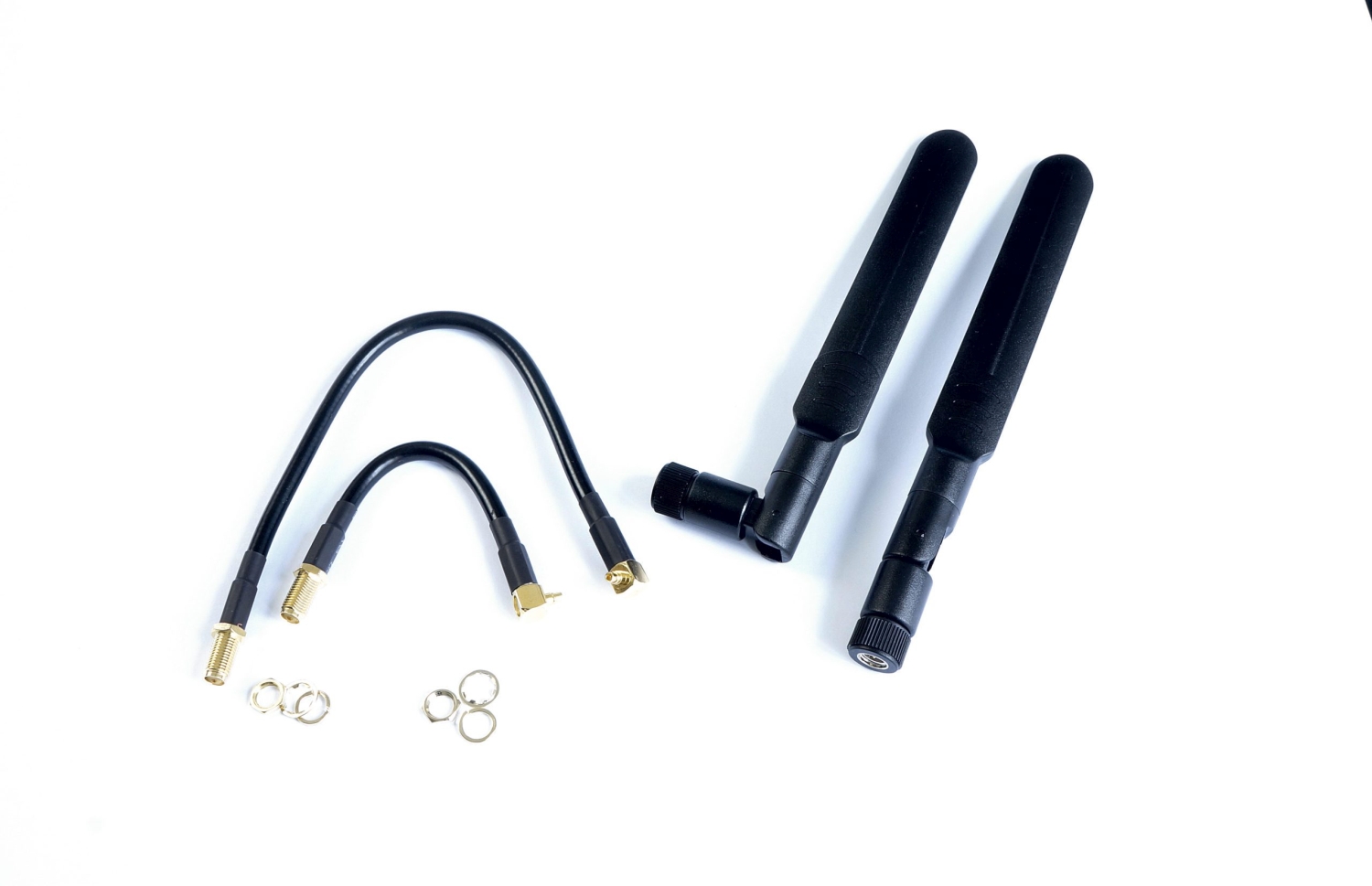

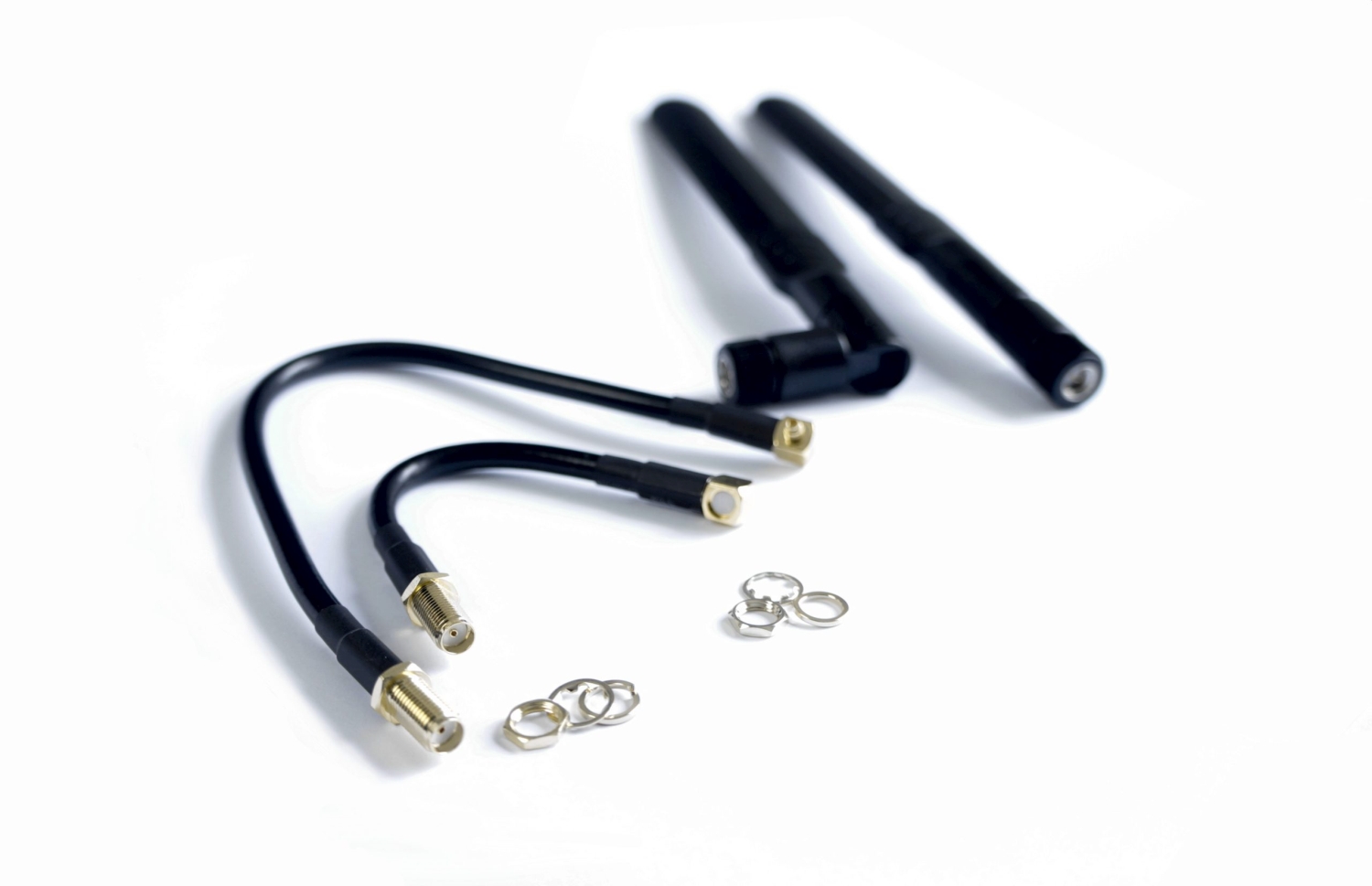

Lieferumfang:

2.4ghz Antenna (x2)

10cm Adapter (x1)

20cm adapter (x1)

Nuts and washers set

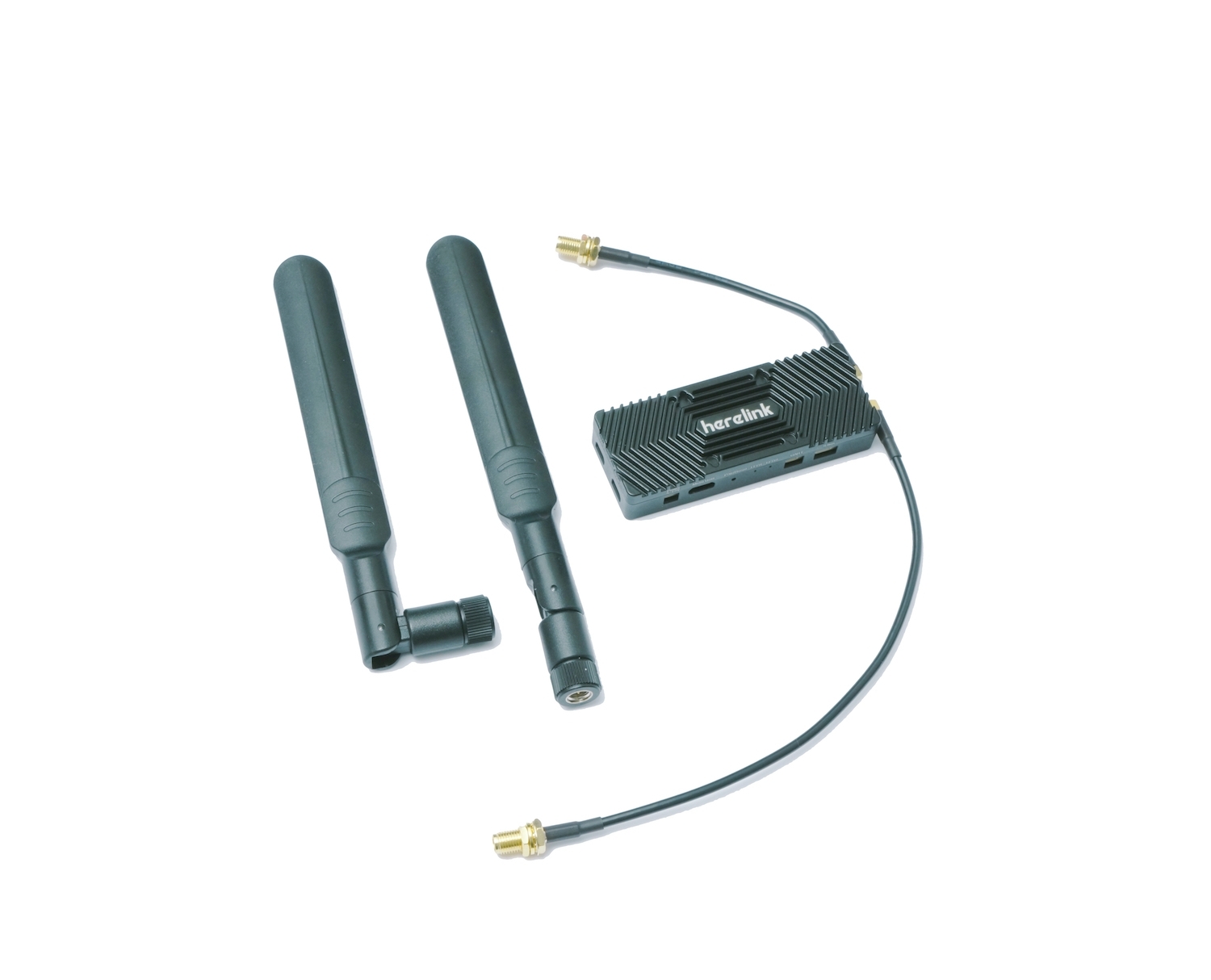

Eine Airunit nicht im Lieferumfang enthalten und dient nur zur Illustrationszwecken auf den Fotos.
