Vorschau: TBS Lucid Wing AIO 2-6S 50A Flight Controller STM32H7 Duo-Gyro AM32 ESC

TBS Lucid Wing AIO 2-6S 50A Flight Controller STM32H7 Duo-Gyro AM32 ESC

85,90 € * 89,90 € * (4,45% gespart)

inkl. MwSt. zzgl. Versandkosten

Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands

Artikel-Nr.: PM-7333
Hersteller: TBS
Artikelname: TBS-Lucid-AIO-50A
EAN: 4250902366865

Product Description The TBS Lucid Wing AIO 2-6S 50A is your quick plug & play wing FC for... mehr

Menü schließen

Produktinformationen "TBS Lucid Wing AIO 2-6S 50A Flight Controller STM32H7 Duo-Gyro AM32 ESC"

Product Description

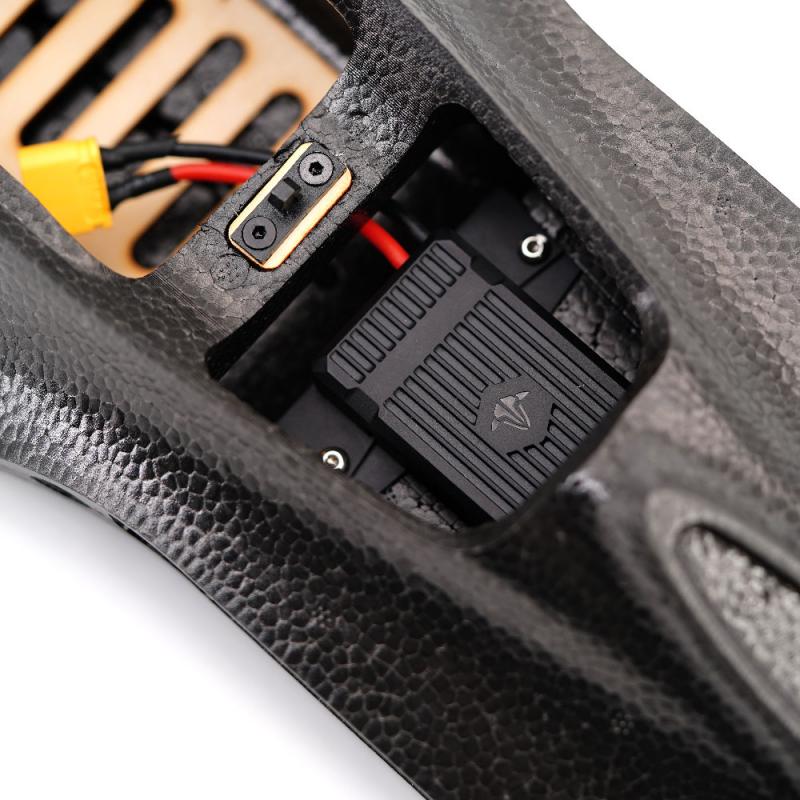

The TBS Lucid Wing AIO 2-6S 50A is your quick plug & play wing FC for flying wings with up to 1m wingspan, or 1.5kg of takeoff weight (approximately). Running the STM32H7 chip, a custom AM32 50A ESC in a sleek, heat-dissipating plastic case with plug connectors for peripherals such as servos, VTx, Camera, GPS and external USB.

Designed for both seasoned pros and enthusiastic newcomers, this flight controller takes the chore out of building your FPV setup and gets you up and running quicker and easier.

Specification

MCU	STM32H743VIH6 @ 480MHz, 1MB RAM, 2MB Flash
Gyro	ICM42688 x 2 (duo gyro)
OSD Chip	AT7456E (SPI2)
Barometer	Infineon DPS310 (I2C2)
PWM Outputs	6 channels external, 1 internal (ESC)
Blackbox	MicroSD card slot (SDIO)
UARTs	5 ext, 2 int (UART1 RX only / UART2 / UART3 / UART4 / UART6 / UART7 RX only internal ESC / UART8 internal)
I2C Buses	2 (1x GPS, 1x barometer internal)
CAN Bus	1x
ADC	2 internal channels (VBAT, Current)
USB	Type-C (USB 2.0)

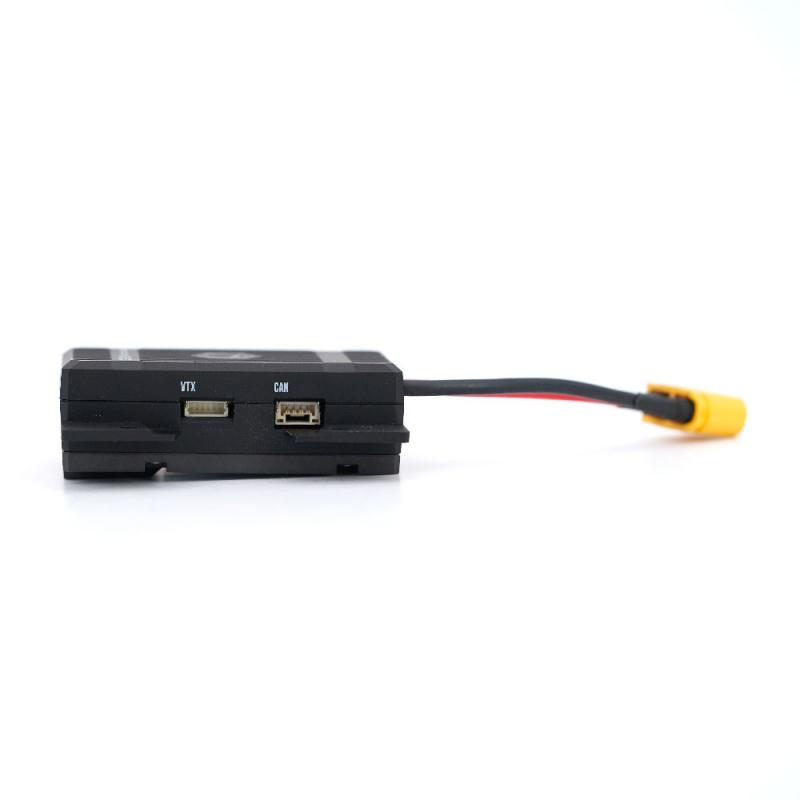

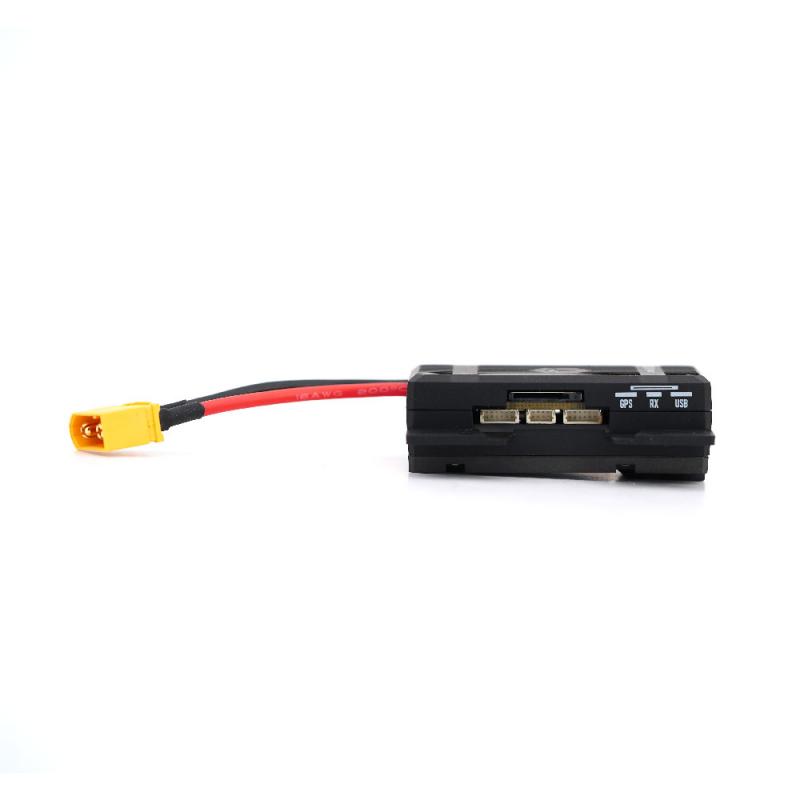

JST Connectors	1x SH1.0 4-pin (Receiver), 3x SH1.0 6-pin (USB/GPS/VTX), 1x GH1.25 4-pin (CAN)
Servo Power	Filtered 5V / 6.2V / 7V / 8.4V (switchable)

Power Specifications

Input Voltage	6–26V (2–6S LiPo)
BEC #1	5V / 6V / 7.2V 5A (Servos, digital VTX, analog VTX, analog camera)
BEC #2	5V 1A (Receiver, GPS, CAN bus)
Battery Voltage Sensor	1K:20K (Scale 2100 in iNav, BATT_VOLT_MULT 21.0 in ArduPilot)
Current Sense ADC	3.2V @ 160A
Power Consumption	200mA @ 5V (Betaflight), 150mA @ 5V (ArduPilot)

Firmware Targets

ArduPilot: TBS_LUCID_H7_Wing
iNav: TBS_LUCID_H7_WING_MINI

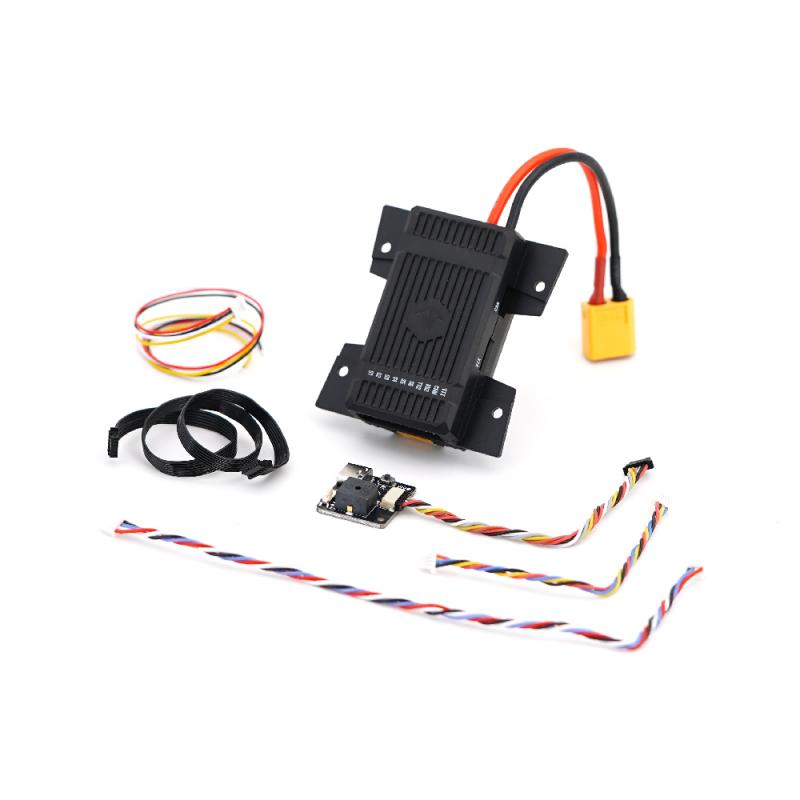

Includes

TBS Lucid AIO Wing FC
FC-to-USB board & cable
FC-to-VTX cable
DroneCAN Cable
DJI O3 cable (plug & play)

Note

iNav firmware defaults may have different Mixer output settings than those intended for this AIO's internal connections. To ensure proper operation, users are encouraged to start with applying the TBS Chupito CLI, or adjust Timer Outputs manually: Timer 3 = SERVOS (S1 and S2), Timer 4 = MOTORS (S7).

DJI Switch: The DJI Switch will only output VBAT. Contact TBS support for instructions to fix.
