Holybro H-RTK Unicore UM982 Dual Antennen GPS RTK Modul - 12036 Das Modul ist die... mehr
Produktinformationen "Holybro H-RTK Unicore UM982 Dual Antennen GPS RTK Modul - 12036"

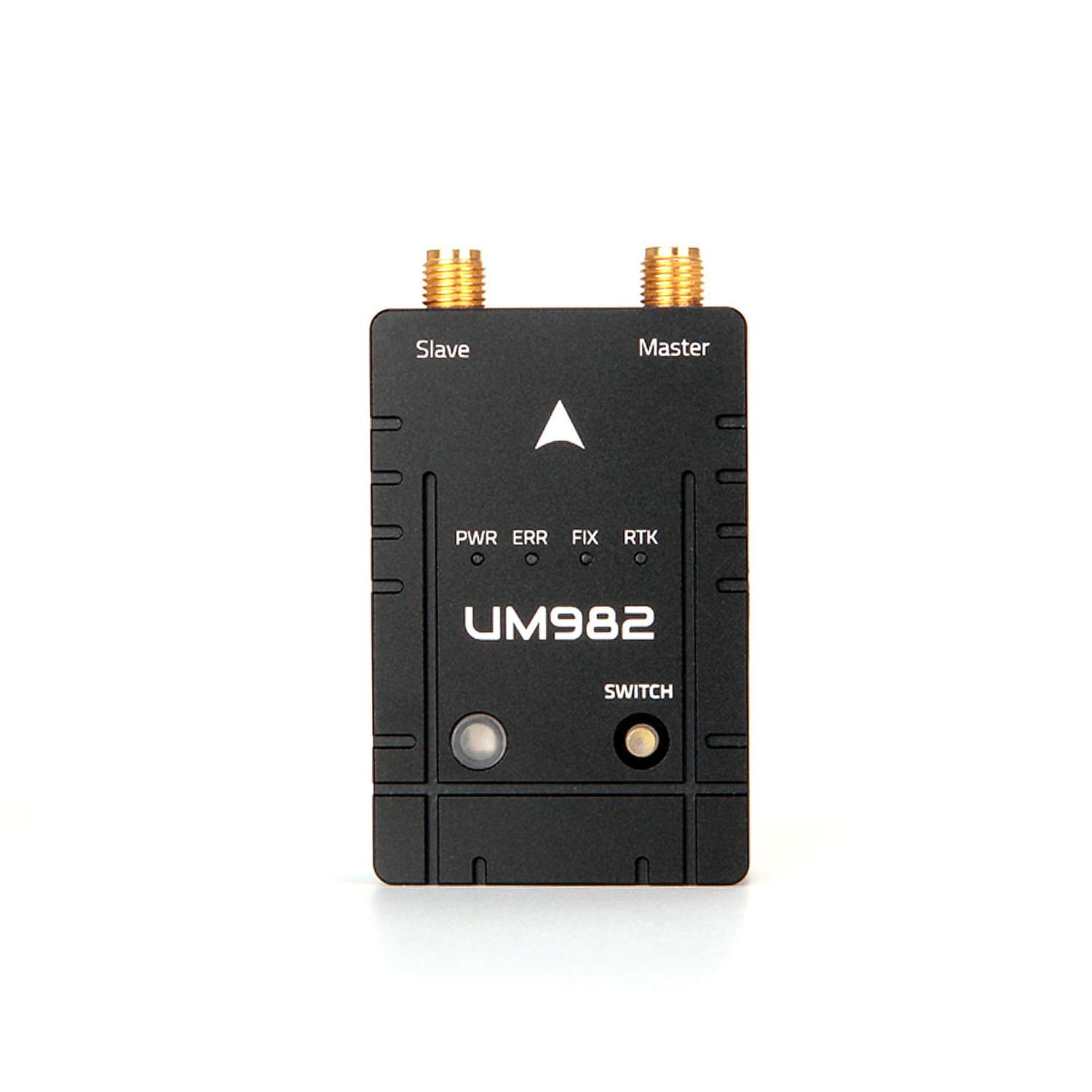

Holybro H-RTK Unicore UM982 Dual Antennen GPS RTK Modul - 12036

Das Modul ist die Neuentwicklung von Holybro (06-2023) und ist speziell dafür vorgesehen mit nur einem GPS Modul GPS Heading (Moving Baseline Yaw) durchzuführen, was eine Navigation ohne Kompass ermöglicht.

Hierzu sind KEINE zusätzlichen RTK Korrekturdaten notwendig, die Berechnung erfolgt rein über die beiden Antennen.

Das Modul kann mit allen gängigen Flightcontrollern (z.B. Holybro Pixhawk 6X,  6C, 6C Mini, HEX Cube Orange, HEX Cube Orange+, uvm.)

Abmessungen Board:   34,8 x 58,9 x 14,4 mm

Abmessungen Antenne:   Durchmesser: 27,5mm - Höhe 59mm

Gewicht: ca. 37,9g (ohne Antenne)





Lieferumfang

1x H-RTK UM982

2x High Precision Helical Antennas

2x Antenna Mounts

2x SMA Cables

2x 10pin - 10pin JST-GH Cables

1x 10pin - 6pin JST-GH Cable

1x 6pin - 6pin JST-GH Cable





Ausführliche Informationen:



The Holybro UM982 Dual Antenna RTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.

One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the autopilot.

This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS,Beidou, Galileo, and QZSS global positioning systems.

It also includes a magnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.



Features

Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module

Can replace the traditional compass/magnetometer

Perfect for system/environment with high magnetic interference

Excellent RTK performance

Tips: It is recommended to use the H-RTK F9P-Base orF9P Helical as your base station because it's simple setup procedure in Mission Planner & QGroundControl. Neither MP nor QGC can configure the UM982 automatically as base station at this moment, additional manual setup is required.



Spezifikationen:

Product
UM982
Application
  • Rover
  • Moving Baseline Rover
  • Base Station (Recommend using H-RTK F9P Base)
Compass IST8310
GNSS
BDS B1I/B2I/B3I
GPS L1C/A/L2P (Y)/L2C/L5
GLONASS L1/L2
Galileo E1/E5a/E5b
QZSS L1/L2/L5
Antennas Peak Gain (MAX)
2dBi
LNA Gain
(typical)
33±2dB
Time-TO-First Fix
Cold start: ≤ 30s
Hot start: ≤ 5s
RTK-SurveyIn-Time
≤5 minute @2.0mCEP
Data and Update Rate
20 Hz Positioning & Heading
20 Hz Raw Data observation
Port
Port 1: GH1.25 10-pin
Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Cable Length
GH 10P: 150mm
GH 10P: 400mm
GH 10P to 6P: 300mm
Antenna Connection Type
Board: SMA female
Antenna: SMA male
Baud rate: (Adjustable)
230400 5Hz default
Working voltage:
4.75V~5.25V
Current Consumption
~350mA
Dimensions
Board: 34.8*58.9*14.4mm
Antenna Diameter: 27.5mm
Antenna height: 59mm
Weight
37.9g (without antennas)
