| Gremsy S1 | x1 |
| S1 - Mini Damping | x1 |
| S1 - UBEC | x1 |
| S1 - Sony Dummy Battery | x1 |

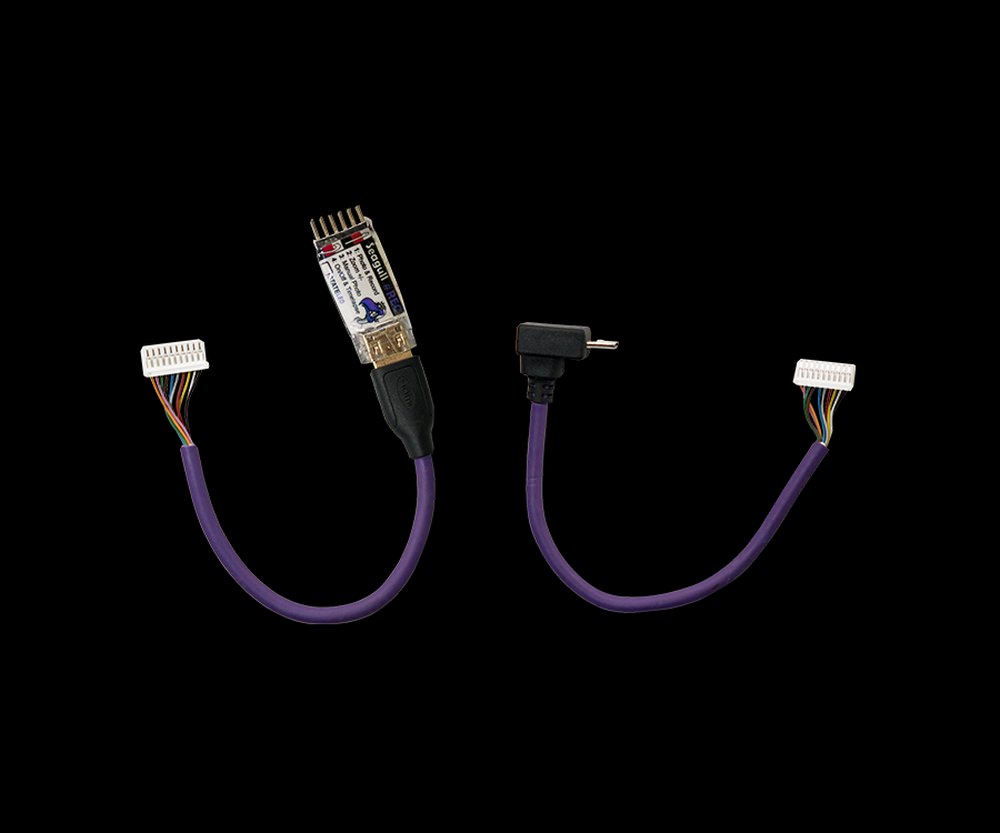

| S1 - Seagull #REC and Cable set | x1 |
| Lightweight Right Angle Micro HDMI Cable | x1 |
Gremsy S1 Gimbal Bundle für Sony Alpha A6000 Kamera Serie
2.249,90 € *
Inhalt:
1 Stück
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Artikel wird auf Kundenwunsch produziert – Lieferzeit ca. 2-3 Wochen.
Bestellung wird direkt bei Liefereingang versendet
- Artikel-Nr.: PM-5028
- Hersteller: Gremsy
- Artikelname: Gremsy-S1-Alpha6000-Bundle
- EAN: 4250902349288
Gremsy S1 Gimbal Bundle für Sony Alpha 6000 Kamera Serie A6000 A6300 A6500 Sehr... mehr
Produktinformationen "Gremsy S1 Gimbal Bundle für Sony Alpha A6000 Kamera Serie"
Gremsy S1 Gimbal Bundle für Sony Alpha 6000 Kamera Serie A6000 A6300 A6500
Sehr hochwertiges S1 Gimbal von Gremsy als Bundle inkl. allem Zubehör zum Einsatz mit der Sony Alpha A6000 Kamera Serie (A6000 / A6300 / A6500).

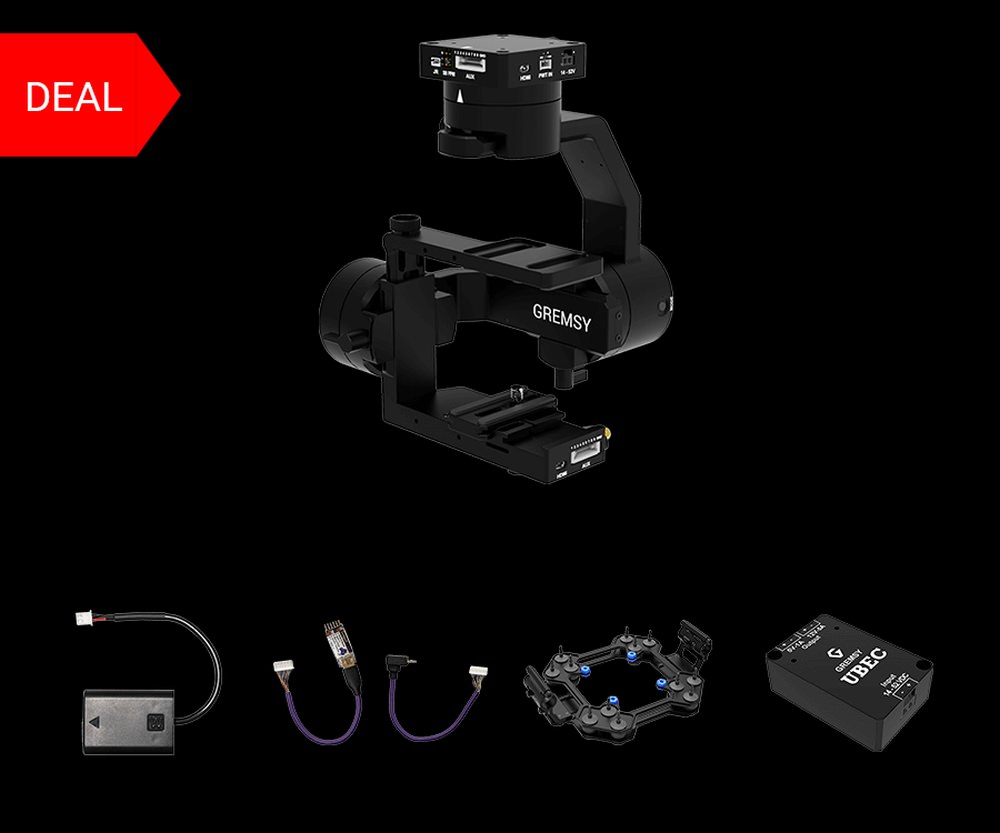

Folgende Artikel sind in diesem Bundle enthalten:
Infos zum Gimbal:

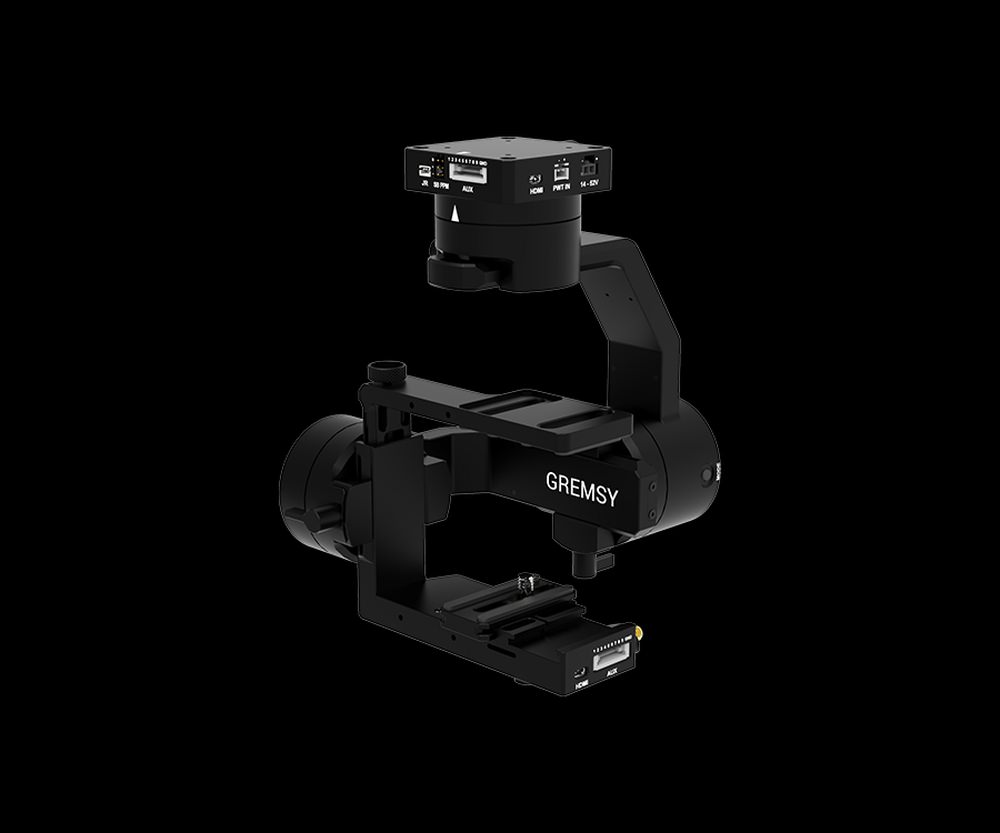

Gremsy S1 is the world’s first ever small gimbal with onboard HDMI and SMA ports fully supported for Flir Duo Pro R. Developed based on Gremsy T1 technology with a larger camera cage, the S1 can plug and play with various platforms to provide high precision pointing accuracies for every industrial need.
YOUR DEVICE HUB
Centralized design and one-stop connection speeds up pairing time with various devices.
EXTERNAL PORTS
(HDMI, AUX)
The S1 features up to 9 connector pins and HDMI, you can do more with your job.
FULLY SUPPORT FLIR DUO PRO R
Gremsy S1 is fully compatible with Flir Duo Pro R for rapid aerial thermal imaging.
Plug and play with camera with SMA port integrated.
SEPARATE POWER SUPPLY
Gremsy S1 utilizes an innovative structure that separates power supply into two parts, one for gimbal and the other for diverse accessories.
*Optional accessory is required.
MAPPING MODE
Gremsy S1 is a comprehensive solution for reliable aerial mapping and inspection applications specialized for a single operator.
Smart mapping mode allows customers to define the home position which will be aligned with the nose direction of the aircraft and tilted down 90 degrees.
DIMENSIONS & CAMERA CAGE
CAMERA COMPATIBILITY
Flir DUO Pro R
Flir DUO Pro
Flir DUO
Flir Vue Pro R
Flir Vue Pro
Flir Vue
Wiris
Wiris Mini
TeAx Fusion
TeAx Fusion Zoom
Keii HL2-640
RED Edge
RED Edge M
Sony DSC-QX10
Sony DSC-QX30
BMMCC
Sony A5xxx Series
Sony A6xxx Series
Sony RX100 Series
GENERAL
Built-In Functions
- 1. Operation Modes
- Motor ON/OFF
- Lock mode
- Follow mode / Mapping mode
- 2. Temperature Sensor
- 3. Gremsy Specialized Gimbal Drive Motors with Encoders
- 4. Micro USB Connection
- 5. Gremsy Advanced 32-Bit high performance ARM microprocessor
- 6. S-Bus/Spektrum/PPM Receiver Supported
MECHANICAL & ELECTRICAL CHARACTERISTICS
Working Current
- Static current: 300mA (@12V)
- Dynamic current: 600mA (@12V)
- Locked motor current: Max 3.5A (@12V)
Operating Temperature
- 32° F ~ 120° F (0° C ~ 50° C)
Weight
- 1.6 lb (0.75 kg)
Gimbal Dimension
- 150(W) x 165(D) x 195(H)
PERIPHERAL
Camera Tray Dimensions
- Maximum depth from the center of gravity on camera base plate: 65mm
- Maximum height measured from top of camera base plate: 75mm
- Maximum width: 120mm
Input Power
- 14-52V
Connections
- Bluetooh, USB 2.0, CAN, UART, S-bus, Spektrum, PPM
PC Assistant Software Requirements
- Windows XP or above; Mac OS X 10.9 or above
Mobile Assistant Software Requirements
- iOS 7.1 or above; Android 4.3 or above
WORKING PERFORMANCE
Maximum Payload
- 1.6 lb (0.75 kg)
Angular Vibration Range
- ± 0.02°
Maximum Controlled Rotation Speed
- Pan axis: 100°/s
- Tilt axis: 100°/s
- Roll axis: 100°/s
Mechanical Endpoint Range
- Pan axis control: +172° to -172°
- Tilt axis control: +160° to -190°
- Roll axis control: +50° to -100°
Controlled Rotation Range
- Pan axis control: +160° to -160°
- Tilt axis control: +90° to -135°
- Roll axis control: ± 45°
