EASY MOUNTING-INSTANT DEPLOYMENT

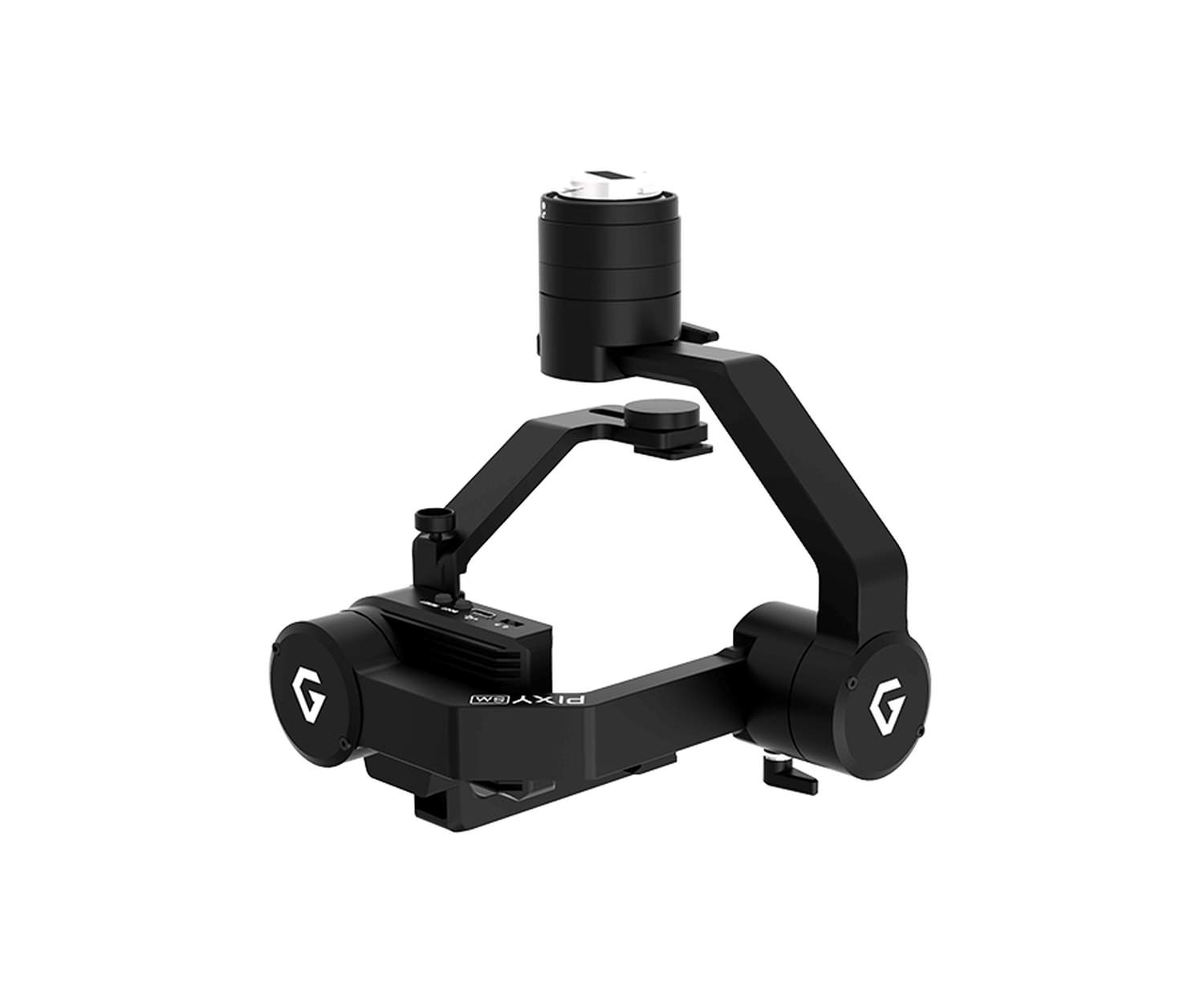

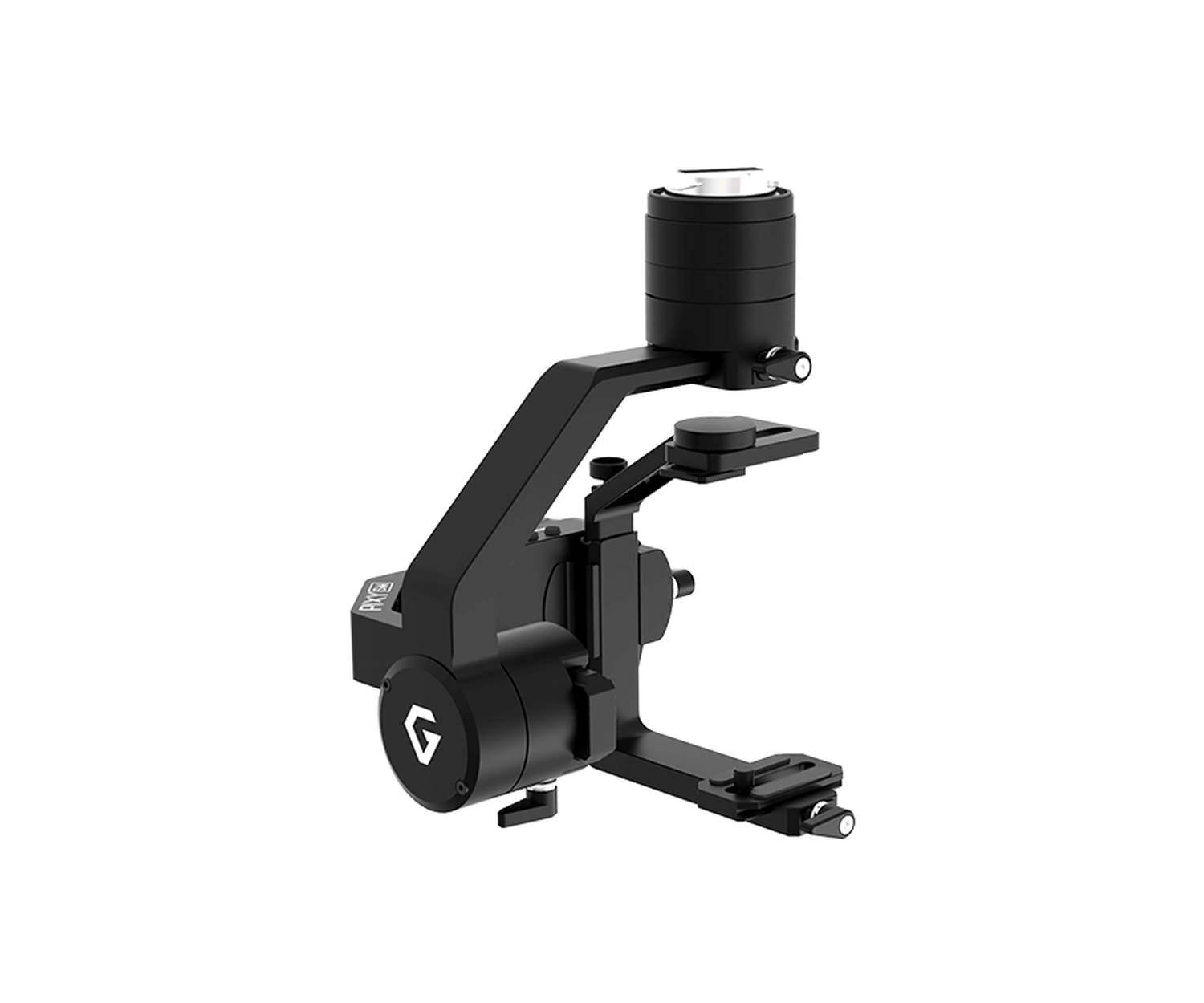

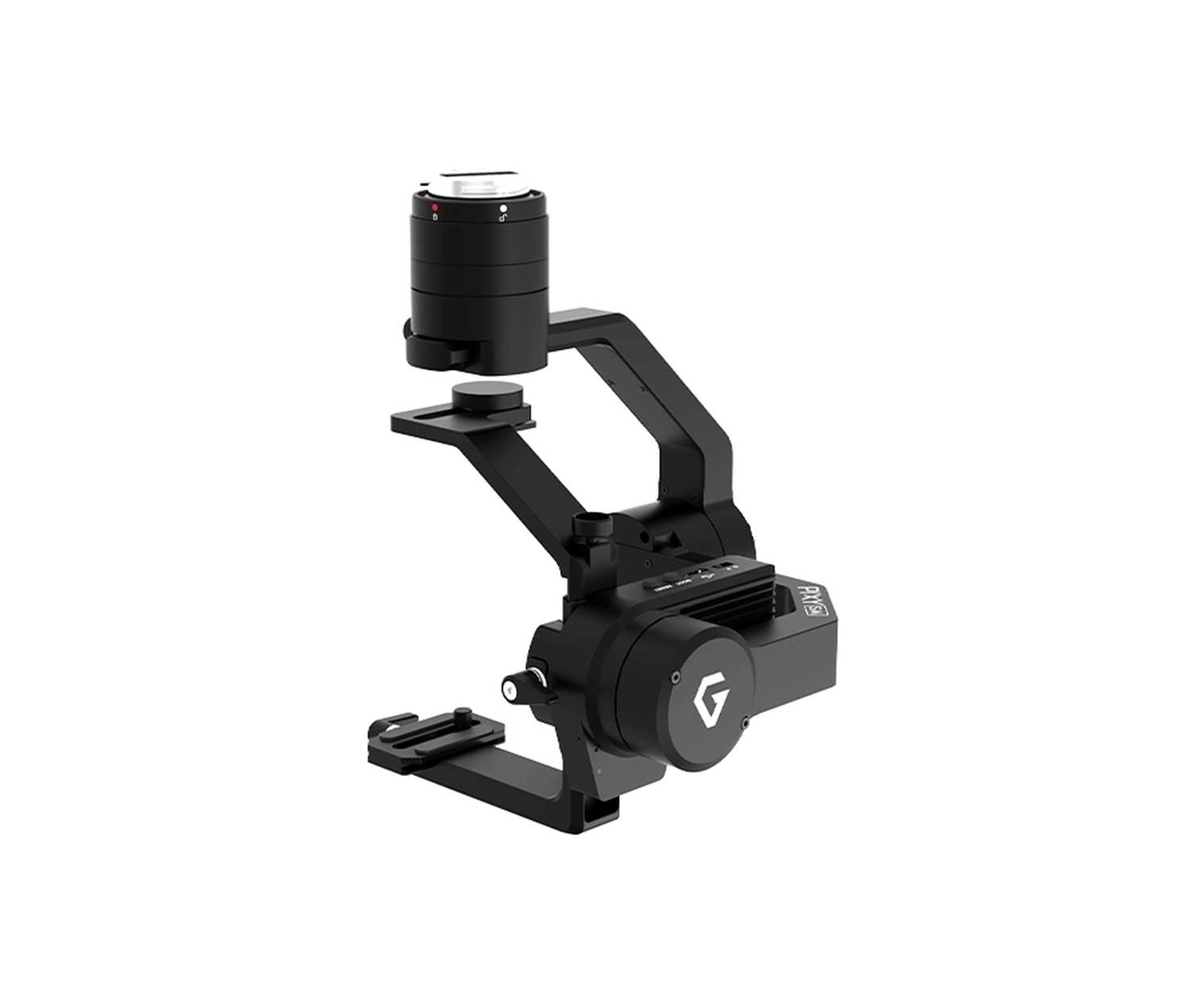

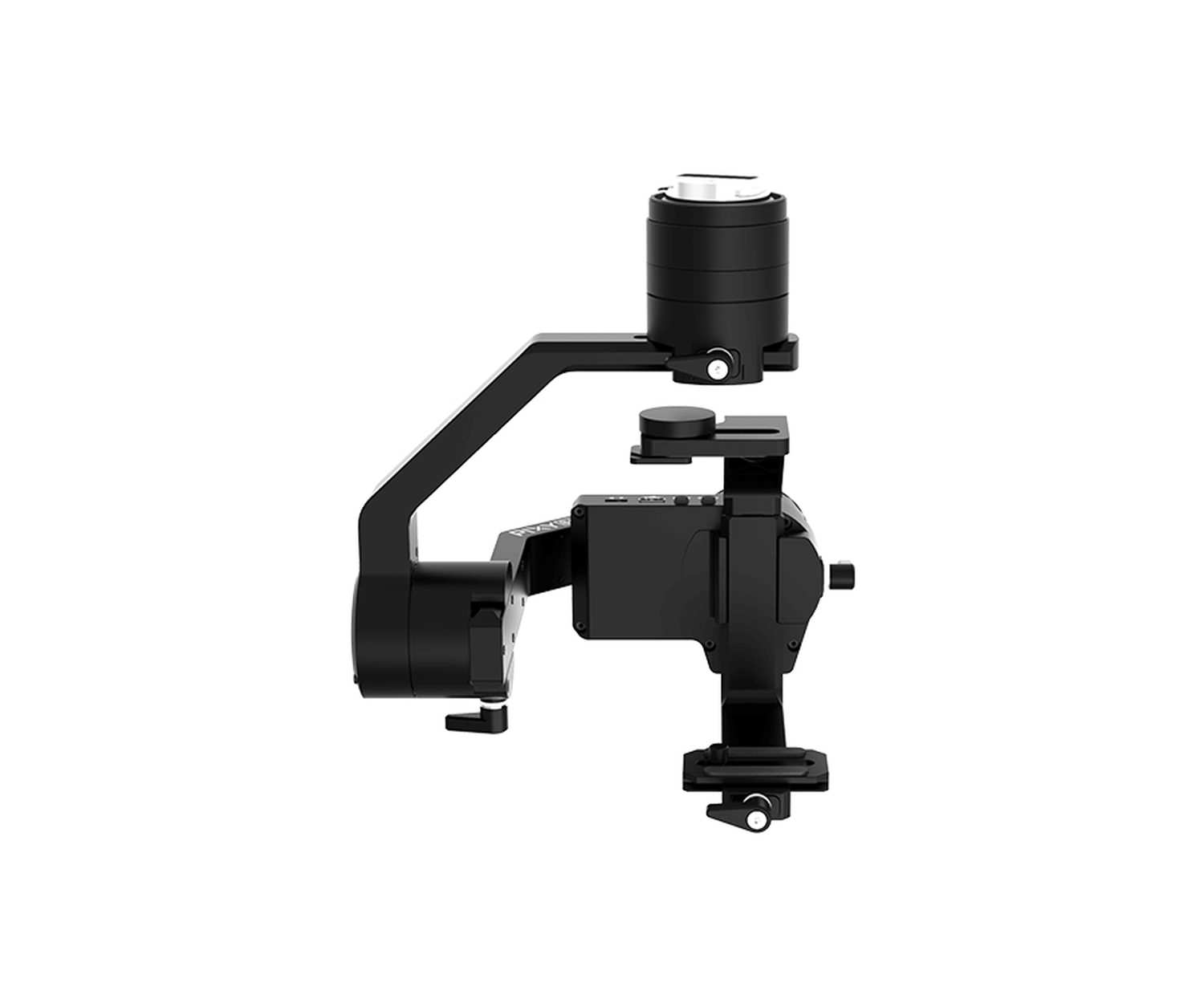

With Pixy SM, the most powerful drone and superior sensor are now perfectly combined for industrial operations, making your entire system clean and easy to deploy.
PLUG-AND-PLAY WITH M300 RTK
Utilizing the built-in advanced processing module, integrating with M300 RTK is quick and straightforward within seconds.
Just mount, connect, and you're ready to go.
FULLY COMPATIBLE WITH SONY α7R IV
Pixy SM is optimized to work perfectly with the 61-megapixel Sony α7R IV, ensuring that you can get high-resolution imagery for creating accurate maps.
Supported lens: 28mm, 35mm, 55mm
Recommended SD cards: 256GB, at least 90MB/s read/write speed
TAKE AERIAL MAPPING TO A NEW LEVEL
In concert with M300 RTK and Sony α7R IV, Pixy SM brings out the best-ever-grade mapping solution for geospatial experts.
Camera/Gimbal controls & settings on DJI pilot app
Taking photos & live streaming video from M300 RTK
Automatic geotagging by GPS
Technische Daten:
DIMENSIONS
LENS COMPATIBILITY
Lens 28mm - SEL28F20
Lens 35mm - SEL35F28Z
Lens 55mm - SEL55F18Z
GENERAL
Built-In Functions
MECHANICAL & ELECTRICAL CHARACTERISTICS
Working Current
- Static current: 400mA (@13.7V)
- Dynamic current: 800mA (@13.7V)
- Locked motor current: Max 4.0A (@13.7V)
Operating Temperature
- 32° F ~ 122° F (0° C ~ 50° C)
Weight
- 1.26 lbs (0.57 kg)
PERIPHERAL
Operating Power
- 13.7V
Connections
- USB 2.0, UART
PC Assistant Software Requirements
- Windows XP or above; Mac OS X 10.9 or above
WORKING PERFORMANCE
Angular Vibration Range
- ± 0.02°
Maximum Controlled Rotation Speed
- Pan axis: 100°/s
- Tilt axis: 100°/s
- Roll axis: 100°/s
Mechanical Endpoint Range
- Pan axis control: +330° to -330°
- Tilt axis control: +135° to -45°
- Roll axis control: +25° to -90°
Controlled Rotation Range
- Pan axis control: +160° to -160°
- Tilt axis control: +135° to -45°
- Roll axis control: ± 25°
