Gremsy Mio Gimbal - Bundle für FlIR DUO Pro R

1.999,90 € *
Inhalt: 1 Stück

inkl. MwSt. zzgl. Versandkosten

 Versandkostenfreie Lieferung
     innerhalb Deutschlands

Artikel wird auf Kundenwunsch produziert – Lieferzeit ca. 2 Wochen.
Bestellung wird direkt bei Liefereingang versendet

  • PM-5834
  • Gremsy
  • Gremsy-Mio-FLIR-DUO-Pro-R-Bundle
  • 4250902357344
Gremsy Mio Gimbal  -  Bundle für FlIR DUO Pro R   Sehr hochwertiges Gimbal von... mehr
Produktinformationen "Gremsy Mio Gimbal - Bundle für FlIR DUO Pro R"

Gremsy Mio Gimbal  -  Bundle für FlIR DUO Pro R



Sehr hochwertiges Gimbal von Gremsy.

Das Mio Gimbal ist die Neuheit von Gremsy in 2021



Dieses Bundle ist für die FLIR DUO PRO R Kamera ausgelegt und enthält alles benötigte Zubehör zur Inbetriebnahme mit einem Pixhawk Flightcontroller.

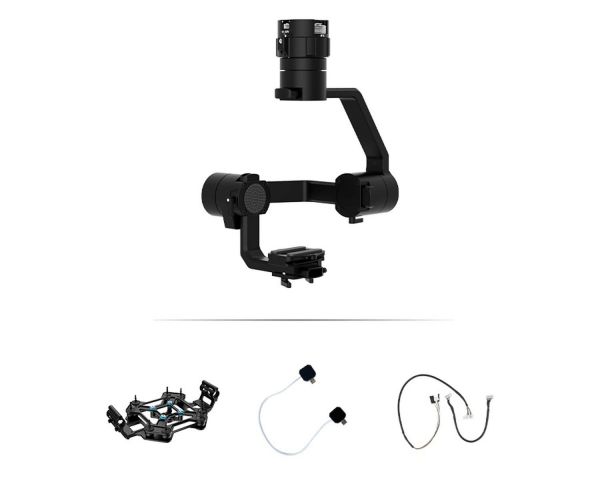

Lieferumfang des Bundles:

Gremsy MIO

Mio Damping Set

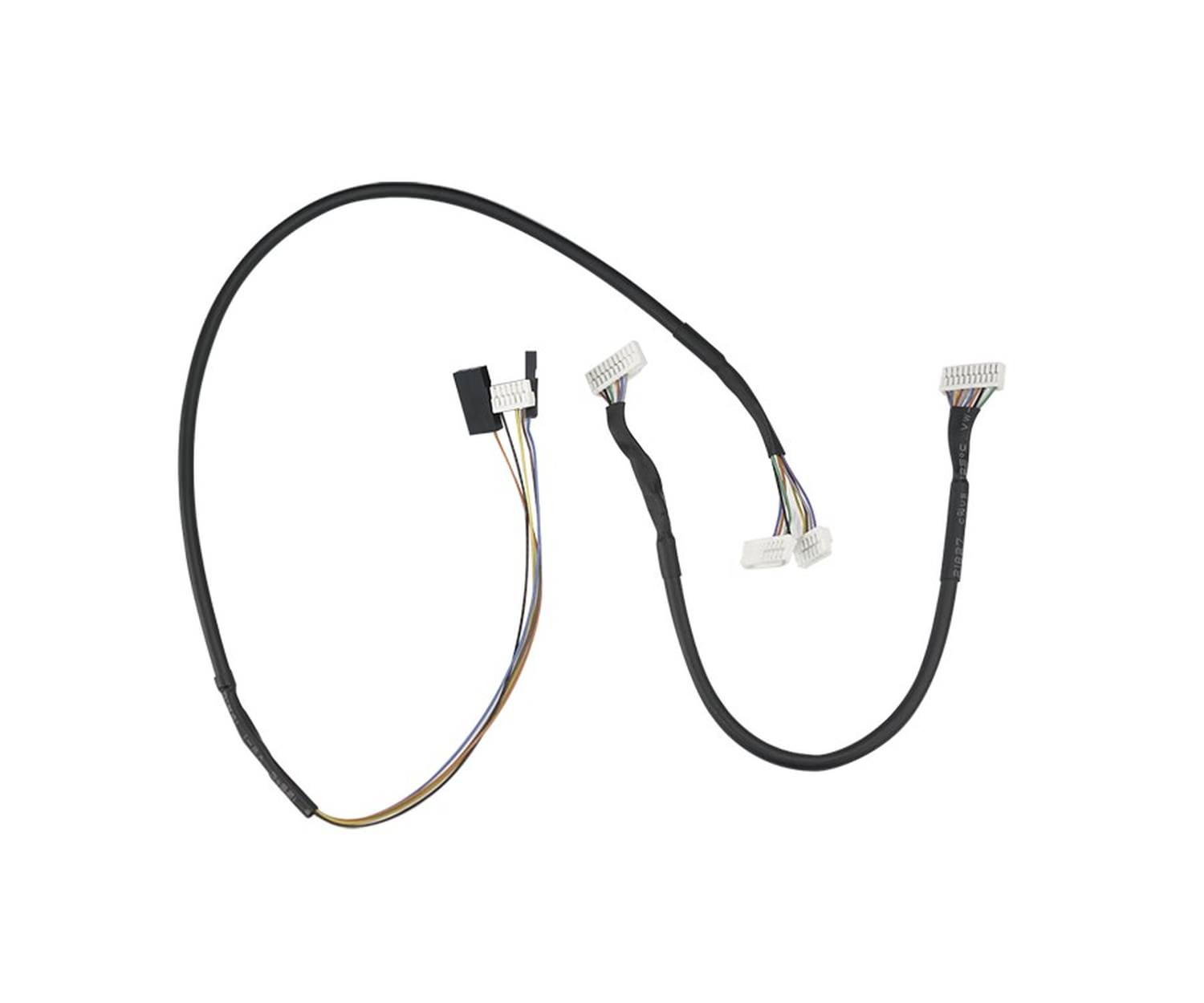

Mio - Power / Control Kabel für FLIR DUO PRO R (Pixhawk Version)

MIO -  Micro to Micro HDMI Kabel







(Im Lieferumfang ist keine Kamera enthalten, die teilweise abgebildete Kameras dienen nur zu Demonstrationszwecken).



Infos zum Gimbal:



SMALL FORM FACTOR DESIGN

Smaller and lighter than ever, Mio is the smartphone-sized gimbal tailored to meet the needs of industrial uses.





VERSATILE PAYLOAD

With powerful motors allowing payloads up to 400g, Mio has versatile compatibility perfect for your target missions.

Flir Duo Pro R
Flir Vue / Vue Pro
Sony R10C / QX1
Rededge MX
Sony RX0,I,II




ADVANCED CAMERA MOUNT

Mio features a smart camera mounting solution without using the top bar, making your set-up cleaner but still excelling in performance.




FLEXIBLE MOUNTING OPTIONS

Capturing distinct camera angles from any perspective with three different mounting options: bottom, top, and front mounting.



Top Mount

Front Mount

Bottom Mount






OPEN SDK DEVELOPMENT

Mio is compatible with the Gremsy SDK to meet the requirements of those building solutions for various industrial applications.

Connect your system with the COM2 port on the MTX Hub of Mio.



  • Small Form Factor Design
  • Versatile Payload
  • Advanced Camera Mount
  • Flexible Mounting Options

Technische Daten:

DIMENSIONS & CAMERA CAGE


CAMERA COMPATIBILITY


Flir DUO Pro R

Flir Vue Pro

Flir Vue

Sony R10C

Sony QX1

Rededge MX

Rededge MX

Sony RX0 I, II

Sony RX0 I, II


GENERAL

Built-In Functions
  • 1. Operation Modes
    • Motor ON/OFF
    • Lock mode
    • Follow mode / Mapping mode
    • Inverted mode/ Front mode
  • 2. Temperature Sensor
  • 3. Gremsy Specialized Gimbal Drive Motors with Encoders
  • 4. Micro USB Connection
  • 5. Gremsy Advanced 32-Bit high performance ARM microprocessor
  • 6. S-Bus/PPM Receiver Supported

MECHANICAL & ELECTRICAL CHARACTERISTICS

Working Current
  • Static current: 400mA (@12V)
  • Dynamic current: 800mA (@12V)
  • Locked motor current: Max 3.5A (@12V)

Operating Temperature
  • 5° F ~ 120° F (-15° C ~ 50° C)

Weight
  • 0.55 lbs (250 g)

Gimbal Dimension
  • 99(W) x 120(D) x 175(H)

PERIPHERAL

Camera Tray Dimensions
  • Maximum depth from the center of gravity on camera base plate: 43mm
  • Maximum height measured from top of camera base plate: 70mm
  • Maximum width: 85mm

Input Power
  • 14-52V

Operating Power
  • 12V

Connections
  • USB 2.0, CAN, UART, S-bus, PPM, Bluetooth

PC Assistant Software Requirements
  • Windows XP or above; Mac OS X 10.9 or above


Mobile Assistant Software Requirements
  • iOS 7.1 or above; Android 4.3 or above

WORKING PERFORMANCE

Maximum Payload
  • 0.88 lbs (400g)

Angular Vibration Range
  • ± 0.02°

Maximum Controlled Rotation Speed
  • Pan axis: 100°/s
  • Tilt axis: 100°/s
  • Roll axis: 100°/s

Mechanical Endpoint Range
  • Pan axis control: ±338°
  • Tilt axis control: -200° to +135°
  • Roll axis control: -265° to +75°

Controlled Rotation Range
  • Pan axis control: ±325°
  • Tilt axis control: ± 120°
  • Roll axis control: ± 40°
