Tarot TL16H00 Hexacopter Frame 1600mm 15kg - Multicopter Rahmen

Dieser Artikel ist derzeit leider ausverkauft.
849,90 € * 899,90 € * (5,56% gespart)

inkl. MwSt. zzgl. Versandkosten

 Versandkostenfreie Lieferung
     innerhalb Deutschlands

Lieferzeit ca. 2 Wochen

  • PM-7407
  • Tarot
  • TL16H00
  • 4250902367596
Tarot Multi-rotor/ Hexacopter /15KG/IV Training Drone/Empty frame TL16H00 Tarot's... mehr
Produktinformationen "Tarot TL16H00 Hexacopter Frame 1600mm 15kg - Multicopter Rahmen"

Tarot Multi-rotor/Hexacopter/15KG/IV Training Drone/Empty frame TL16H00

TL16H00

  • Tarot's newest hexacopter multi-rotor drone frame, specifically designed for medium-sized IV training instructors
  • Wheelbase: 1600mm Compatible with commonly available tripods, microphones, projectors, and other equipment
  • Suitable for applications demanding high mobility, such as surveillance, remote sensing, surveying and mapping, aerial reconnaissance, fire observation, life exploration, cable inspection, farm monitoring, and more.

Product Features

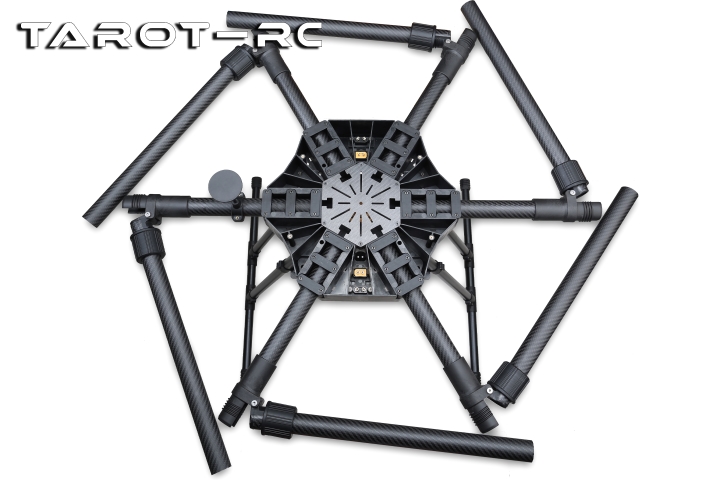

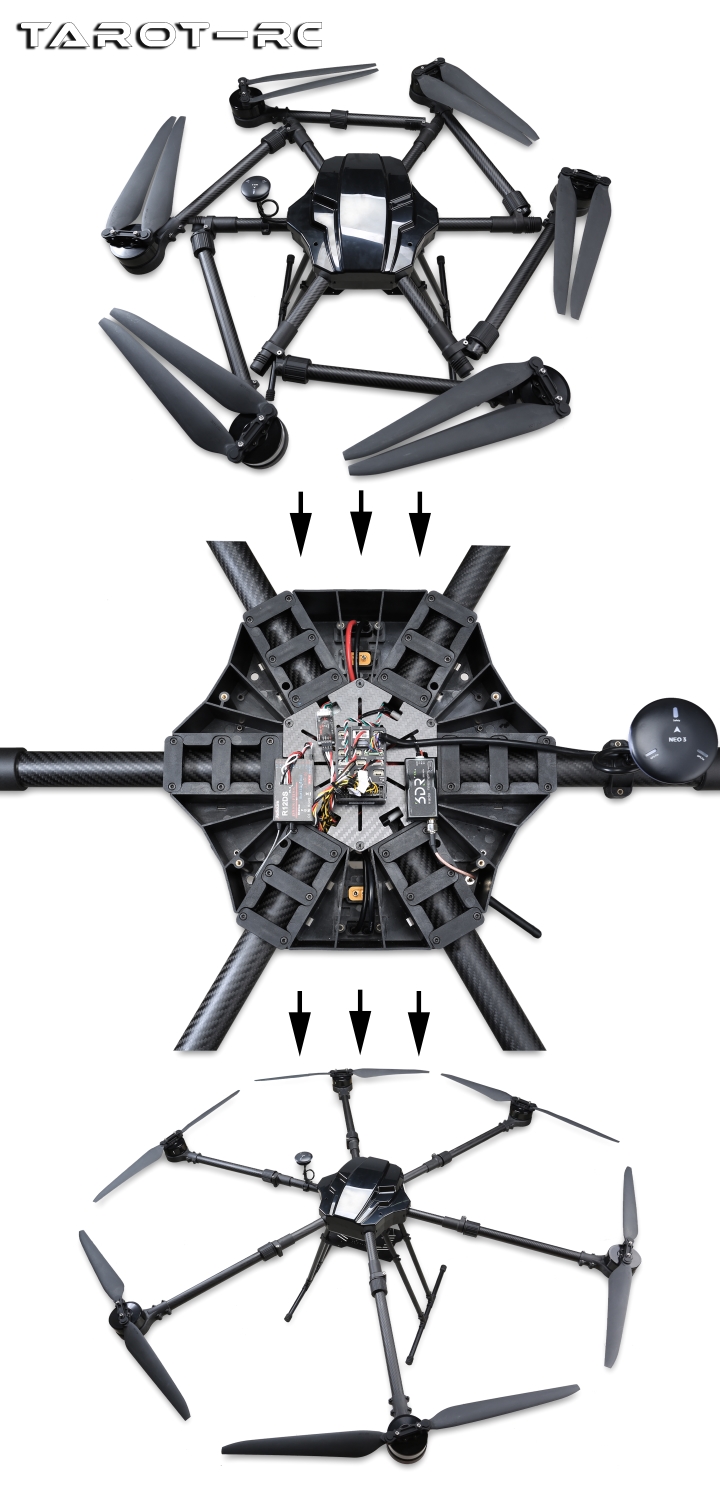

  1. Integrated frame body with wrap-around folding design

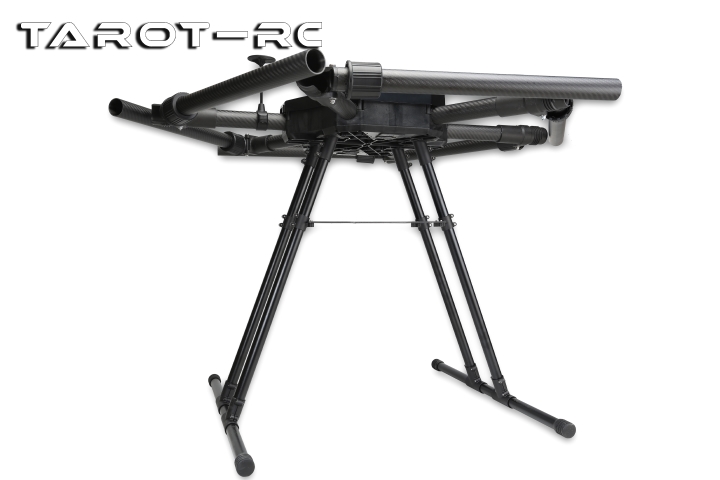

  2. Knob-operated folding mechanism allows 360-degree counterclockwise folding of arms, maximizing space efficiency
  3. Frame body molded from imported composite material via one-piece injection molding, featuring 30% carbon fiber content for robust structural stability

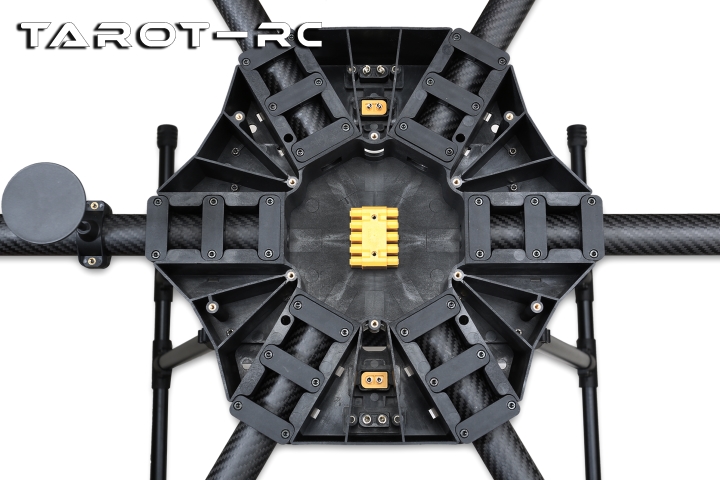

  4. Integrated Tarot TL60-10H full copper gold-plated high-current power distribution board, minimalist installation structure compatible with mainstream flight controllers
  5. Integrated dual XT90E-M battery input connectors and dual XT60E-F power output connectors; reinforced connector design for easy plugging/unplugging and enhanced user experience
  6. Recommended pairing with Tarot High-Performance Power Kit (8120 motor + 80A custom ESC), delivering 46 minutes of flight time in testing
  7. Supports choice of either 12S30AH*1 or 6S22AH-30AH*2 batteries in series configuration
  8. 15KG payload capacity design, suitable for diverse flight applications
  9. Empty frame weight: 2.34KG.

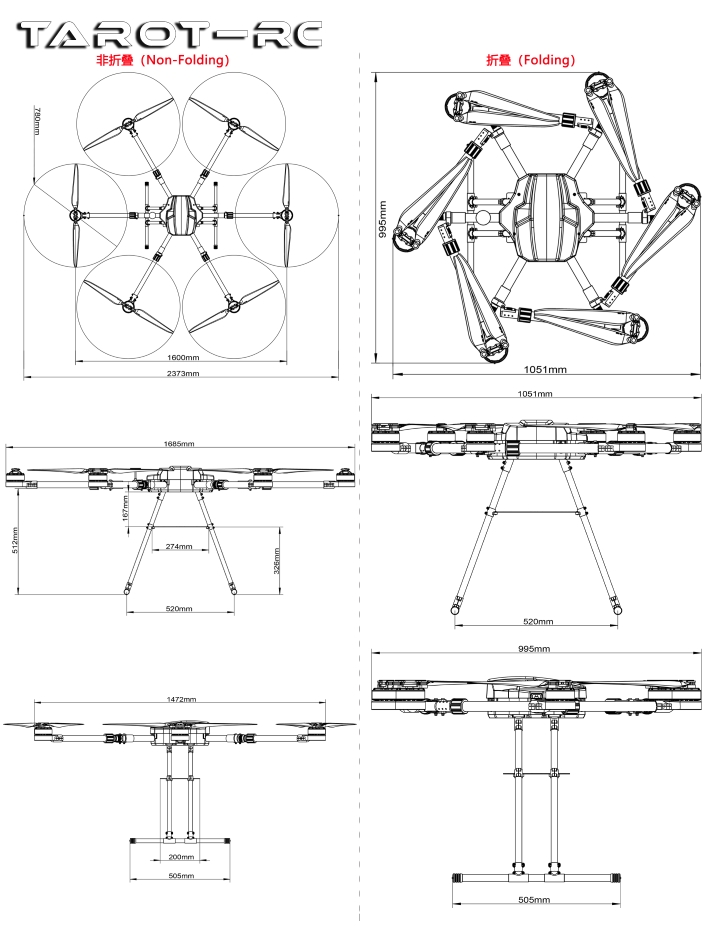

Specifications

Empty Frame Net Weight2.34KG
Wheelbase1600mm
Empty aircraft weight10.3KG(with ESC,Props,Motor)
Deployed wing length2373mm
Battery weight2.56KG*2
Folding size995*1051mm
Take-off weight15.4KG
Center plate size315*293mm
Max. wind resistanceForce 6 wind
Frame height512mm
Flight distance4000M
Arm tube diameter30mm
Flight altitude3000M
Landing gear tube diameter (horizontal/vertical)20mm
Flight modeSelf-stabilizing,altitude setting,stay-behind,one-key return,etc.
Test environmentsDec. 15, 2025: Sunny. 12°C. Wind force 3

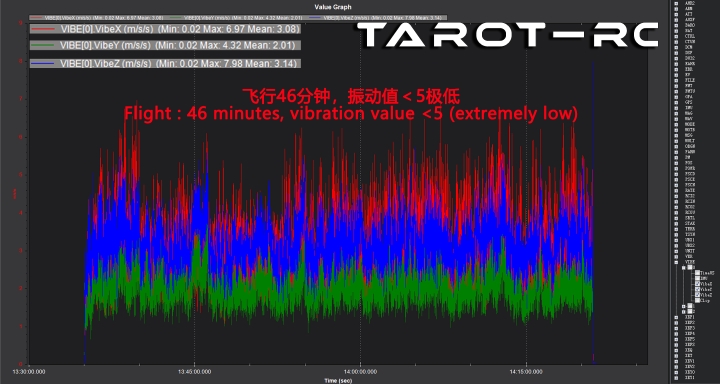

Unload Flight27A?46 minutes (Tested with TATTU 6S22000mAh*2 batteries Fully charged at 4.2V, discharged to 3.0V during testing)

Recommended Configuration

ConfigurationAttributeRecommended Tarot Part
Motor MountTarot 30mm Motor MountTarot Motor Mount 30mm Tube Diameter TL1813
MotorTarot 12S/8120/95KV
ESCTarot 80A/12SCustomed ESC
PropsTarot 3011Tarot 30 inch Folding Propeller 3011 TL100D38
Battery22000mAh/6S*2

Packing List

Product Details

TL16H00

TL16H00

TL16H00

TL16H00

TL16H00

TL16H00

TL16H00
