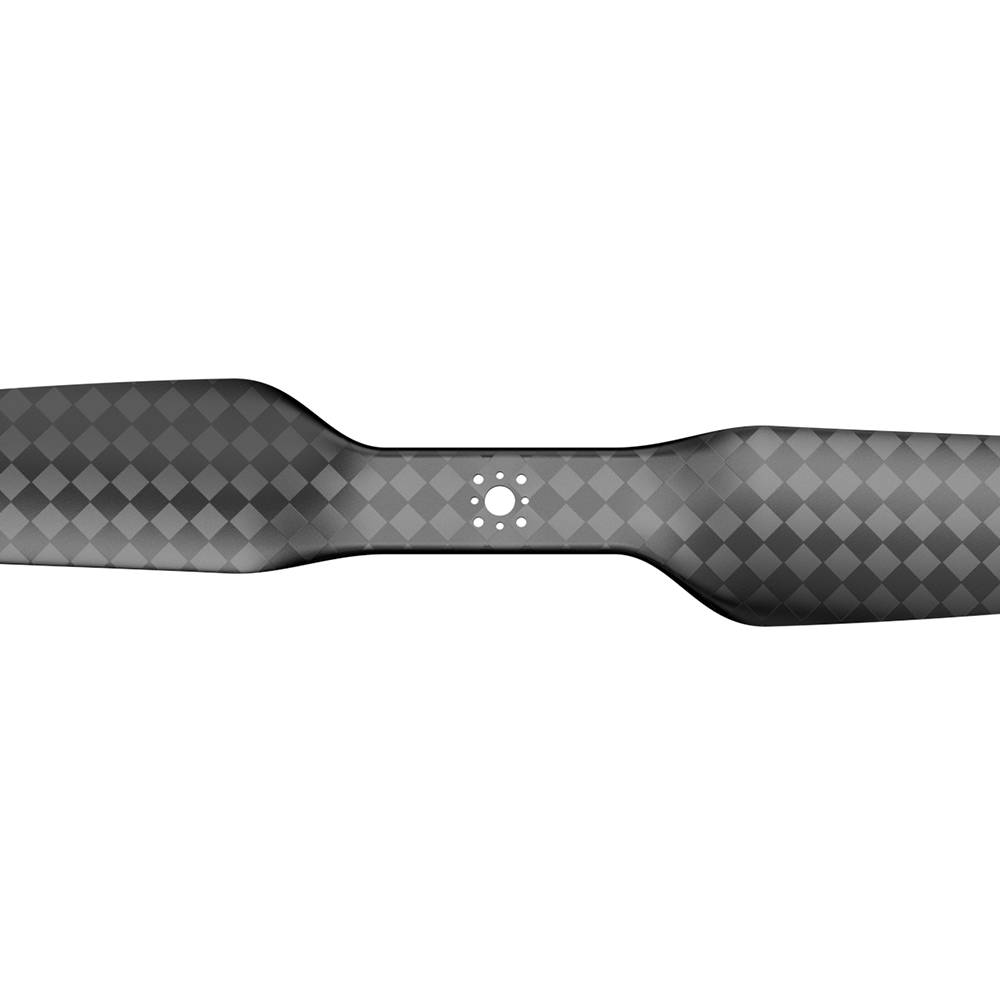

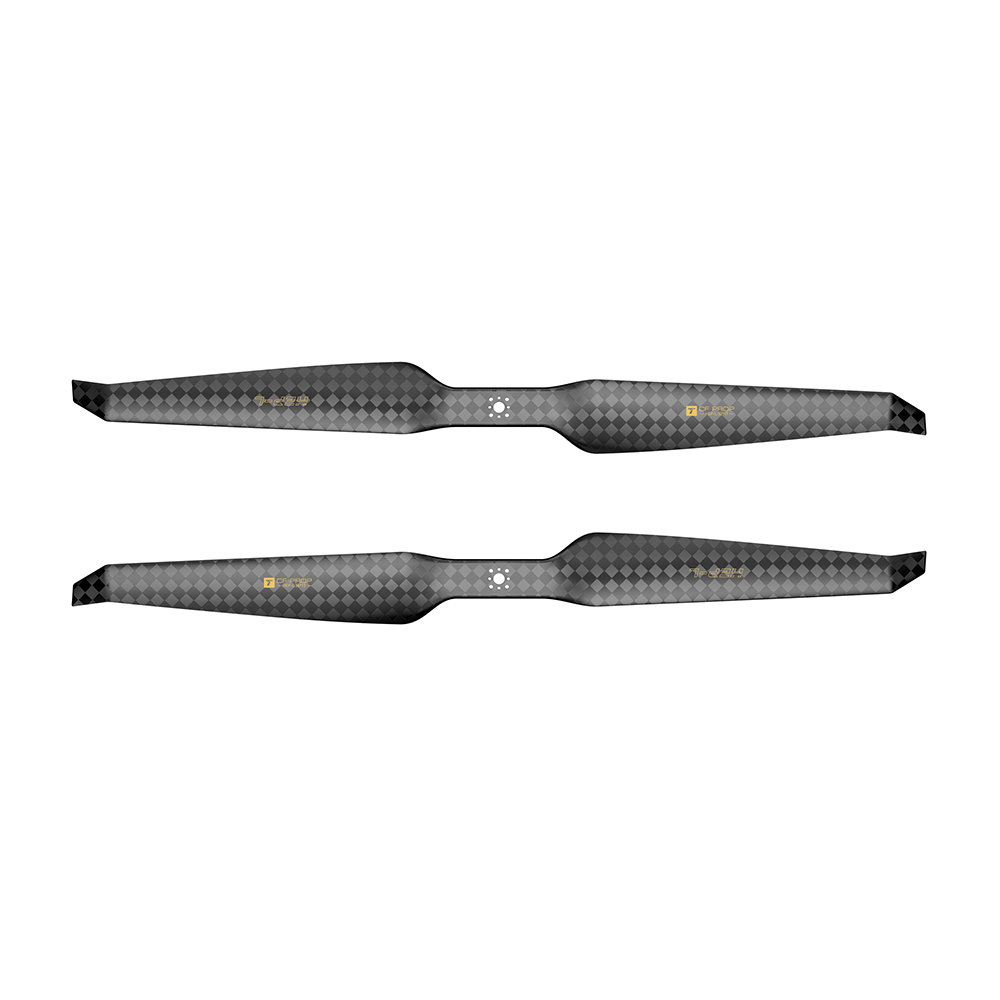

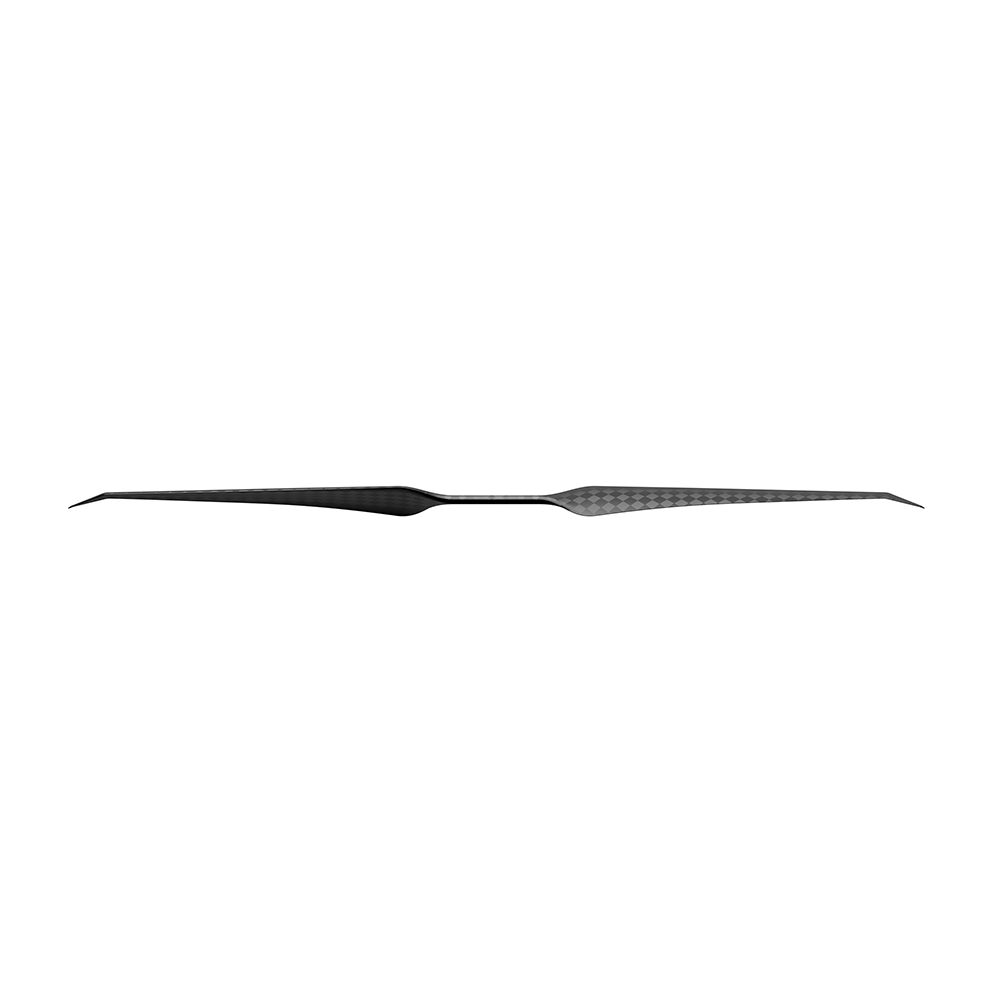

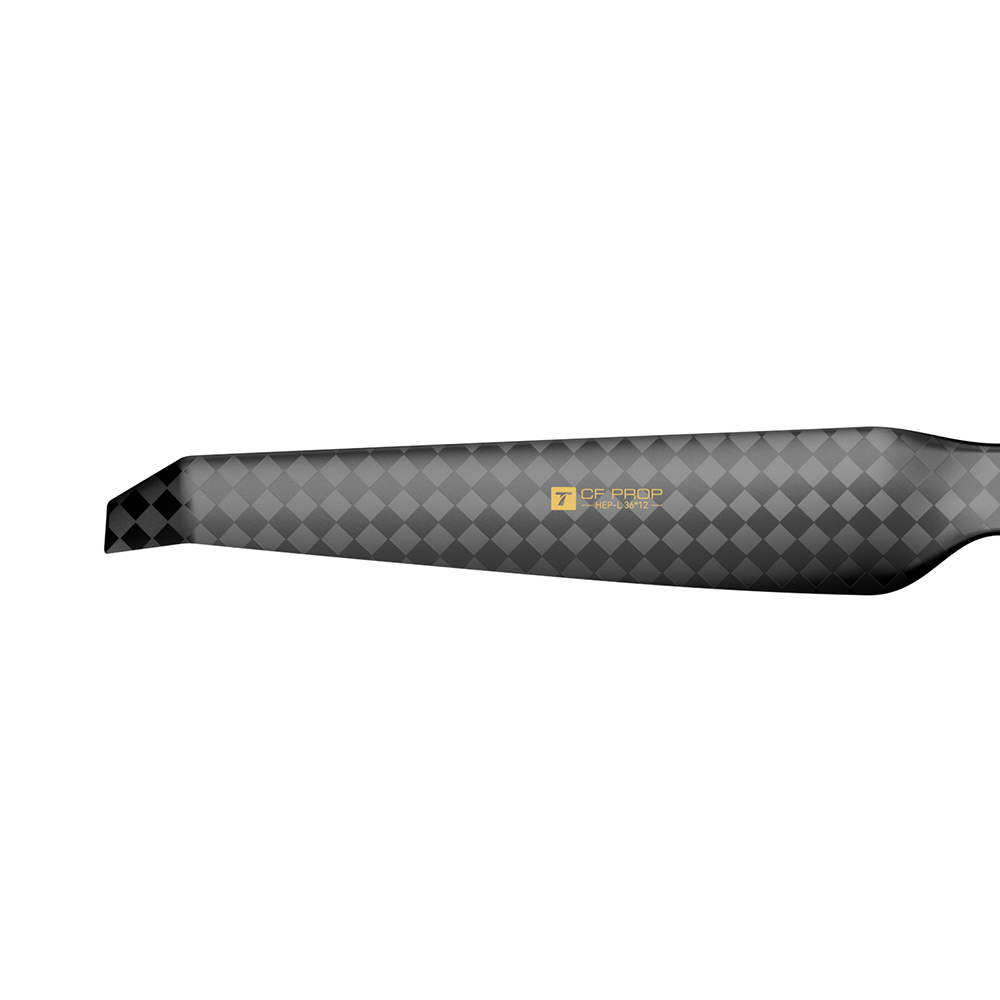

HEP-L 36*12 High-Performance Ultra-Light Rotor Propellers

3% Increased Flight Time · More Stable Forward Flight · Motor Collaborative Design

• Single Propeller Weight 106g

• Recommended RPM Range 1510~1980RPM

• Recommended Thrust Range 4.0~7.0kg

Extended Flight Endurance

Aerodynamic optimization improves hovering efficiency and increases effective flight time by up to 3%

Optimized Motor Propeller Matching

Designed specifically for T-MOTOR efficiency motors to achieve optimal RPM and torque matching

HEP-L is precisely matched with T-MOTOR's high-efficiency motors enabling long endurance multirotors with flights of 60~90 minutes

Forward Flight Vibration Suppression

Enhanced propeller structure reduces vibration and improves wind resistance during cruise

Lightweight and Durable

Breakthroughs in lightweight and toughness

Scaling industrial-grade lightweight processes for ultra-lightweight mass production

HEP-L 36*12 single propeller weighs about 106g

Enhanced Damage Resistance

Engineered high-toughness resin surface fiber reinforcement, and damage-tolerant design limit micro-damage propagation for enhanced reliability

Under identical 6J impact energy, HEP-L achieves a 1.93mm impact depth versus 2.54mm for NS, delivering 24% improved impact resistance

NS Series

Damage Measurement: Ultrasonic C-Scan

Pre-Impact

Post-Impact

HEP-L Series

Damage Measurement: Ultrasonic C-Scan

Pre-Impact

Post-Impact

Reliable Identification and Protection

Integrated QR code molding and protective packaging improve lifetime traceability and transport safety

Recommended Combo

HEP-L 36*12, Motor Compatibility: MN1010 KV90, Recommended Voltage: 12S
Recommended Takeoff Weight for Quadcopter: 20 kg

Technical Drawing

Specification

Recommendations

Test Data

Ambient Temperature 22 °C, Altitude 25 m RPM Torque (N·m) Thrust (gf) Output Power (W) Efficiency (gf/W) 1420 1.48 3557 220.23 16.15 1620 1.91 4642 323.78 14.34 1820 2.41 5907 460.09 12.84 2020 3.00 7352 634.07 11.60 2220 3.66 8978 850.62 10.55 2420 4.40 10784 1114.63 9.68 2620 5.22 12771 1431.01 8.92 2820 6.11 14937 1804.66 8.28 3020 7.08 17284 2240.47 7.71 3220 8.14 19812 2743.35 7.22 3420 9.27 22519 3318.19 6.79 3620 10.47 25407 3969.89 6.40 3820 11.76 28476 4703.36 6.05 4020 13.12 31725 5523.49 5.74 4220 14.56 35154 6435.18 5.46

Important: Data may vary under different testing standards due to factors such as equipment, methodology, and environment. Ensure compatibility between the propeller mounting holes and motor before flight.

Packing List

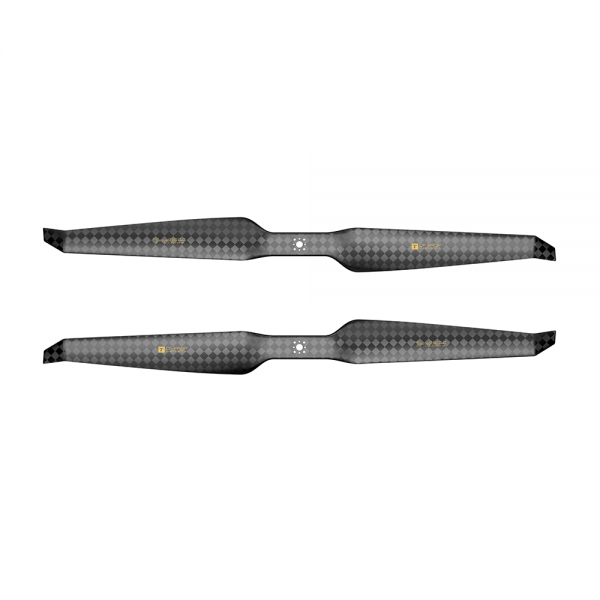

Lieferumfang: 2× HEP-L Carbonfaser-Propeller (1× CW + 1× CCW), 1× Montagezubehör (Schrauben & Adapter)

Motor Compatibility — HEP-L Series
