Vorschau: T-Motor Cine25 Cinewhoop Brushless Motor 4S 2.5" 11g

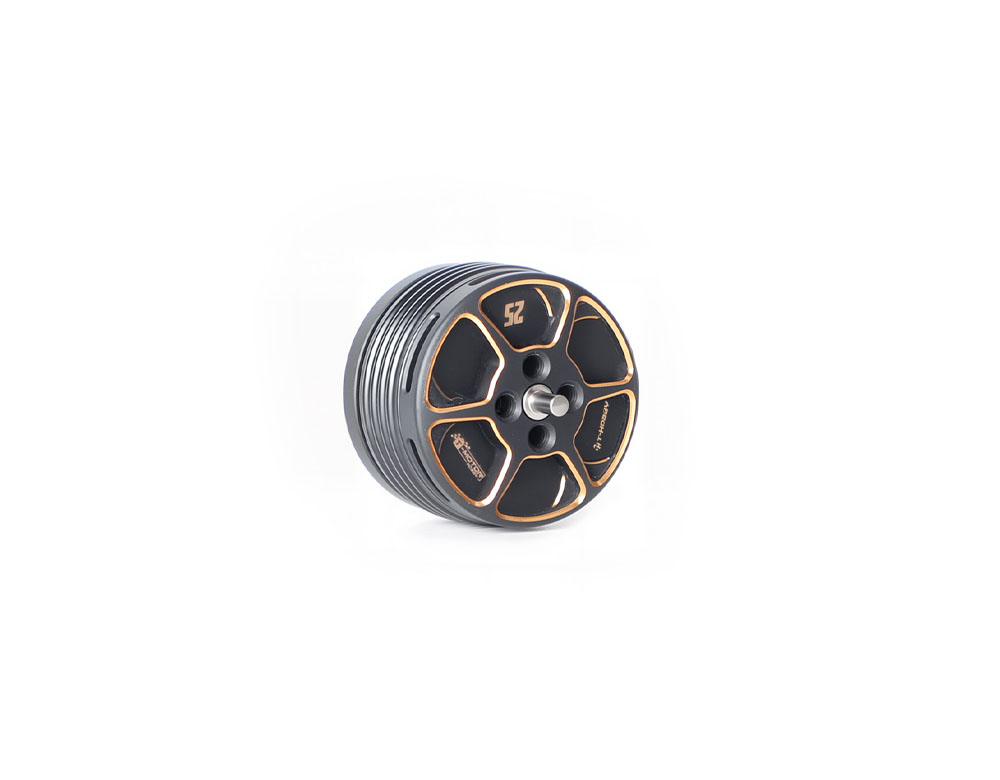

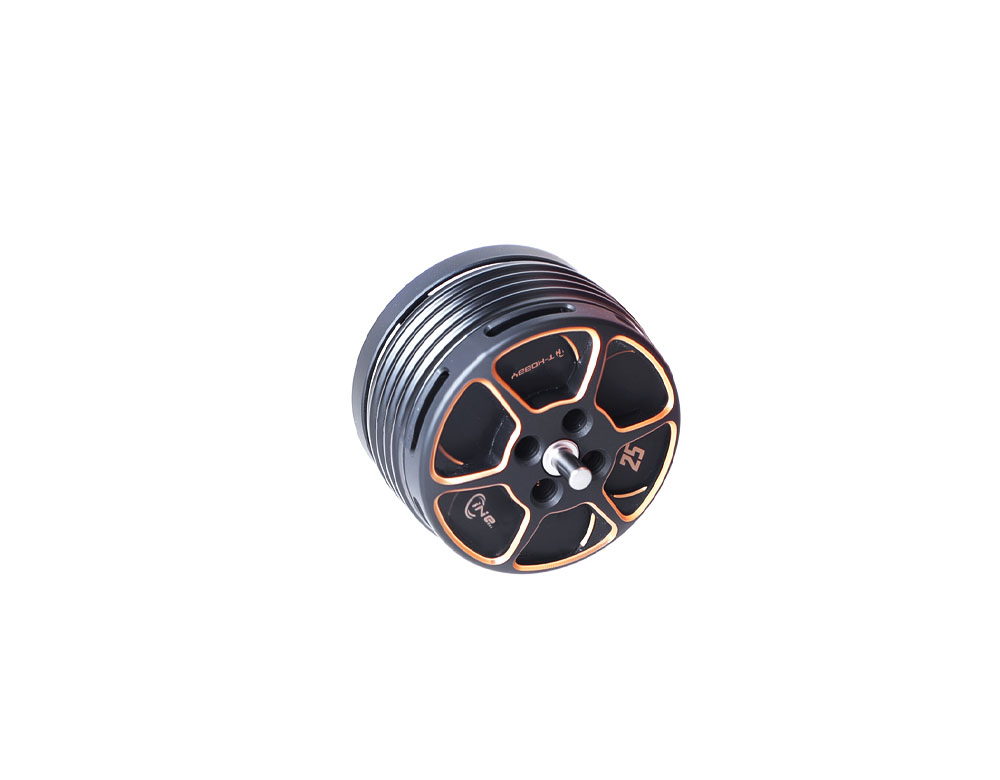

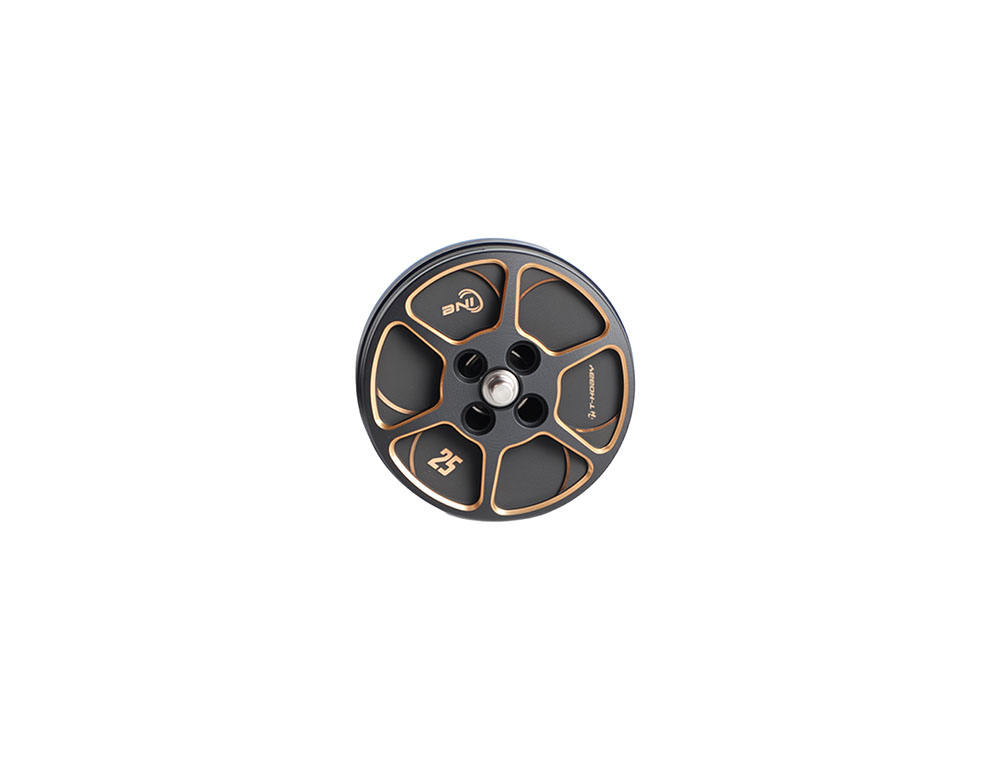

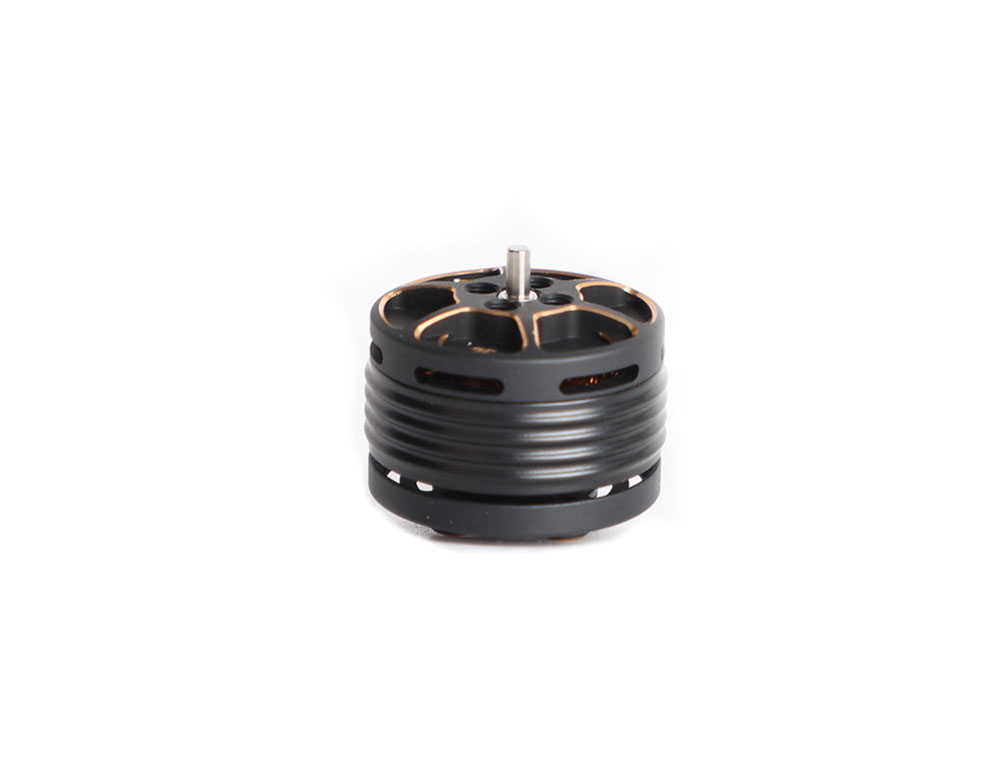

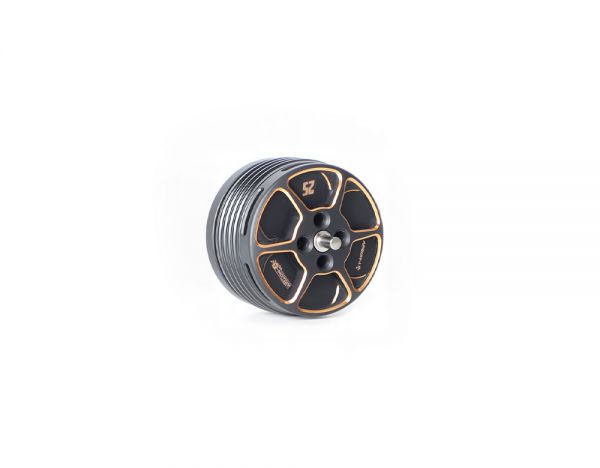

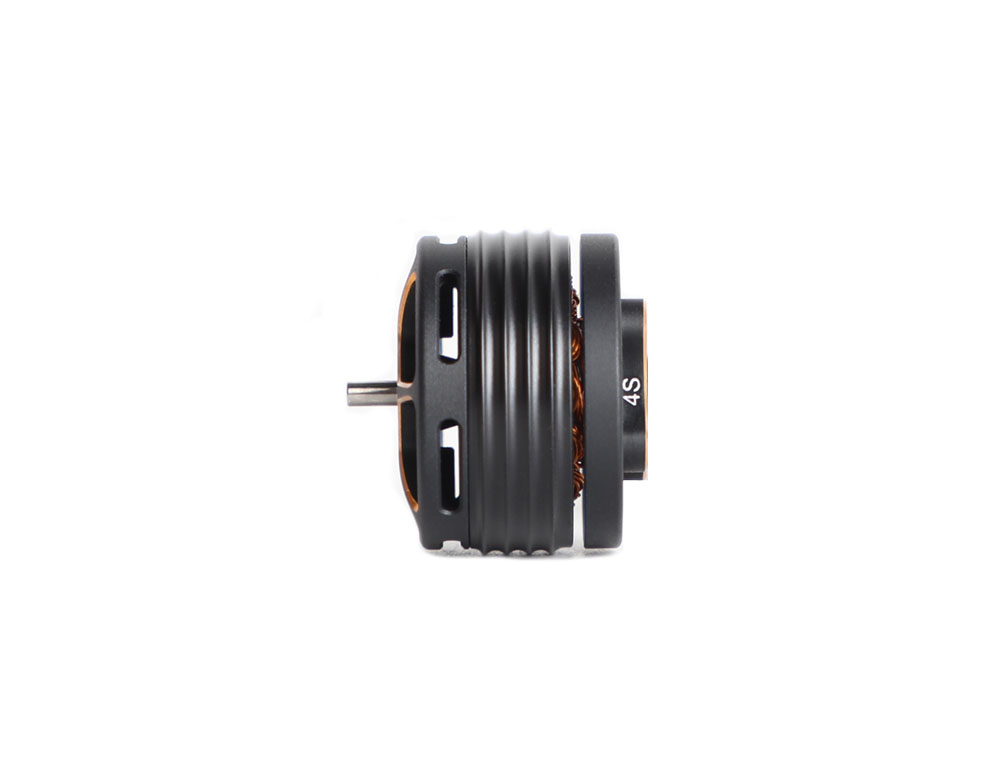

T-Motor Cine25 Cinewhoop Brushless Motor 4S 2.5" 11g

38,90 € * 39,90 € * (2,51% gespart)

inkl. MwSt. zzgl. Versandkosten

Lieferzeit ca. 3-4 Wochen.

Artikel-Nr.: PM-7235
Hersteller: T-Motor
Artikelname: Cine25
EAN: 4250902365882

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT The integrated protective design... mehr

Menü schließen

Produktinformationen "T-Motor Cine25 Cinewhoop Brushless Motor 4S 2.5" 11g"

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

CORROSION
RESISTANT

SAND
RESISTANT

DUST
RESISTANT

ALL-ENVIRONMENT
RELIABILITY

AGILE IN COMPACT SPACE

Fast response enables 2.5" Cinewhoop to excel in tight spaces and obstacle-rich environments. Enhanced electromagnetic design with upgraded temperature control and efficiency. Maintains power redundancy even with GOPRO and DJI O3, perfect for indoor/outdoor filming.

MULTI-FRAME COMPATIBLE BASE DESIGN

The non-protruding shaft screw configuration ensures compatibility with various frame types, allowing the motor to demonstrate exceptional performance across different application scenarios and frame configurations.

RECOMMENDED

CINE25

F7 35A AIO

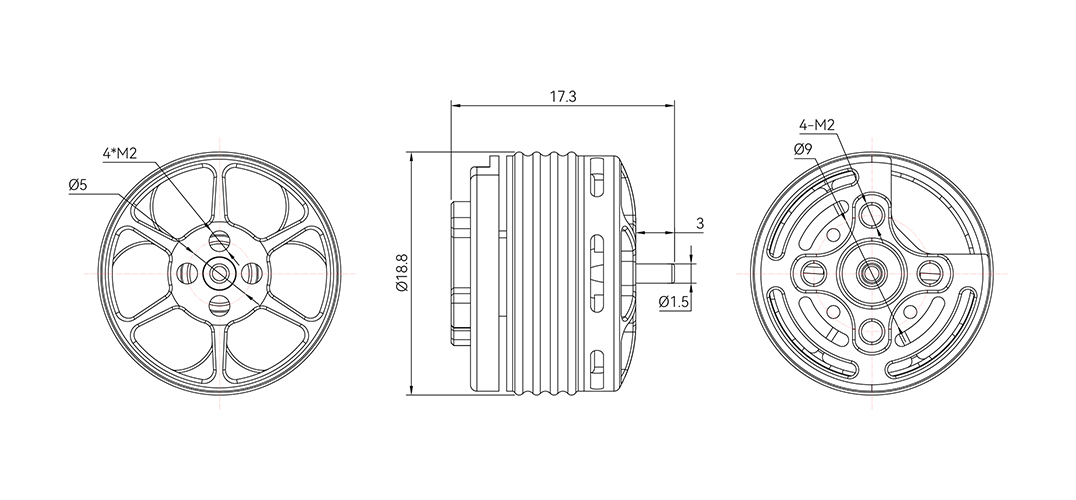

Technical Drawing

Specification Export to Excel

Type	Cine25 4S	Motor Dimension	Φ18.8*17.3mm
Magnet	Nickel platedarc magnet	Coil insulation test	200V withstandvoltage test(3s)
Waterproof anddustproof class	IP45	Configuration	12N14P
Dynamic balancerequirements standards	≤3mg	Bearings	Imported 520ZZ
Shaft Diameter	1.5mm	Lead	24AWG*100mm
Screw Diameter	Φ9-M2-4	Prop Adapter Shaft Thread	Φ5-M2-4
Packing Size	656533mm	Packing Weight	95.3g（4pcs）

Tech Specs
Recommended Voltage	4S	Idle Current(10V)	0.7A
Max Power(1s)	192W	Internal Resistance	141mΩ
Rated Voltage (Lipo)	16V	Peak Current(1s)	12A
Max Thrust	342g	Weight (incl.cable)	11g

Recommended
Motor	Cine25 4S	Frame Type	Cinewhoop X4
Prop	GF D63-3	Lipo Cells	16V
ESC	F7 35A AIO	Recommended takeoff weight range	Within 300g
FC	F7 36A AIO	Max Takeoff Weight	400g
Test Data:	1、850mah 4s battery (92g), load weight 60g, AUW 280g, flight time 10 minutes. 2、1350mah 4s battery (155g), without payload, AUW 283g, flight time 15 minutes. 3、850mah 4s battery (92g), without payload, AUW 220g, flight time 14 minutes.
Note: Recommend ESC settings: Startup power: 40%, Timing: AUTO, PWM frequency: 32-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync)

Test Data Export to Excel

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
Cine25 4S	GF D63-3	16.04	10%	0.09	4801	5	1	3.37	0.000	78 (Ambient temperature: 25℃)
		16.03	20%	0.33	10208	21	5	3.89	0.002
		16.02	30%	0.73	14695	43	12	3.69	0.004
		16.02	40%	1.35	18999	72	22	3.33	0.007
		16.00	50%	2.26	23273	108	36	2.98	0.010
		15.99	60%	3.55	27516	151	57	2.65	0.013
		15.96	70%	5.08	31360	196	81	2.41	0.017
		15.93	80%	6.93	34965	242	110	2.19	0.021
		15.90	90%	9.01	38434	288	143	2.01	0.025
		15.87	100%	11.78	42061	349	187	1.87	0.030
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine25 4S	GF D63-3 (With Oddity frame)	16.04	10%	0.08	5203	5	1	4.20	0.000	72 (Ambient temperature: 25℃)
		16.04	20%	0.29	10507	21	5	4.48	0.002
		16.02	30%	0.67	15322	45	11	4.17	0.004
		16.01	40%	1.20	19418	73	19	3.82	0.006
		15.99	50%	2.00	23643	110	32	3.43	0.009
		15.96	60%	3.16	28034	154	50	3.05	0.013
		15.93	70%	4.52	32025	200	72	2.78	0.016
		15.88	80%	6.18	35594	249	98	2.54	0.020
		15.84	90%	8.06	39045	299	128	2.34	0.024
		15.78	100%	10.25	42261	348	162	2.15	0.028
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine25 4S	HQ T63-4 (With Oddity frame)	16.04	10%	0.08	5137	6	1	4.55	0.000	75 (Ambient temperature: 25℃)
		16.04	20%	0.30	10363	23	5	4.67	0.002
		16.02	30%	0.69	14907	47	11	4.24	0.004
		16.01	40%	1.25	18940	75	20	3.76	0.007
		15.99	50%	2.12	23113	113	34	3.33	0.010
		15.96	60%	3.31	27363	155	53	2.94	0.013
		15.92	70%	4.83	31326	205	77	2.66	0.018
		15.88	80%	6.54	34738	251	104	2.42	0.021
		15.82	90%	8.50	38065	298	135	2.22	0.025
		15.76	100%	10.87	41022	351	171	2.05	0.029
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine25 4S	GFD63-5 (With Oddity frame)	16.04	10%	0.09	5122	6	1	4.04	0.001	83 (Ambient temperature: 25℃)
		16.03	20%	0.32	10262	23	5	4.40	0.002
		16.02	30%	0.74	14567	47	12	3.97	0.005
		16.00	40%	1.44	18600	81	23	3.53	0.008
		15.98	50%	2.41	22433	118	39	3.07	0.012
		15.94	60%	3.78	26273	164	60	2.73	0.016
		15.90	70%	5.51	29885	213	88	2.43	0.020
		15.85	80%	7.40	33175	261	117	2.23	0.024
		15.79	90%	9.77	36300	313	154	2.03	0.029
		15.72	100%	12.33	38930	361	194	1.86	0.033
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Analysis Chart

Packing List
