Preview: T-Motor Cine99 Cinematic Brushless Motor 350kv 12S 355g

T-Motor Cine99 Cinematic Brushless Motor 350kv 12S 355g

€170.90 * €178.90 * (4.47% Saved)

Prices incl. VAT plus shipping costs

Free Shiping within Germany

Item is backordered – Lead time approx. 2-4 weeks.

Order number: PM-7233
Hersteller: T-Motor
Artikelname: Cine99
EAN: 4250902365868

.slideInDownInit { -webkit-transform: translateY(32px); transform: translateY(32px);... more

Close menu

Product information "T-Motor Cine99 Cinematic Brushless Motor 350kv 12S 355g"

Cine99

Dual Protection For Every Shot

Cine99 features IP45 protection with a sealed top cover and dust screen to block debris, protecting your valuable gear. Its electroplated iron core and black- nickel magnets resist corrosion and wear, ensuring worry-free performance during filming, takeoff, and transport in all conditions.

WATER-RESISTANT

SAND-RESISTANT

Cine99

Strong Thrust Heavy Payload

Each motor delivers over 8kg of maximum thrust with ample power redundancy, easily supporting 4–10kg of cinematic gear.Built to meet the demanding requirements of high- mobility FPV cinematic flights.

4-10kg

Effortless Carry

Cine99

Instant Response, Seamless Tracking

With optimized electromagnetic design and an active cooling system, Cine99 delivers fast response and stable performance under heavy loads—ideal for sharp turns and high-speed tracking with dynamic, cinematic shots.

Cine99

Zero Desync, Safer Flight

Cine99 delivers stable and desync-free performance even during rapid flight changes, ensuring safe and reliable operation in dynamic shooting scenarios.

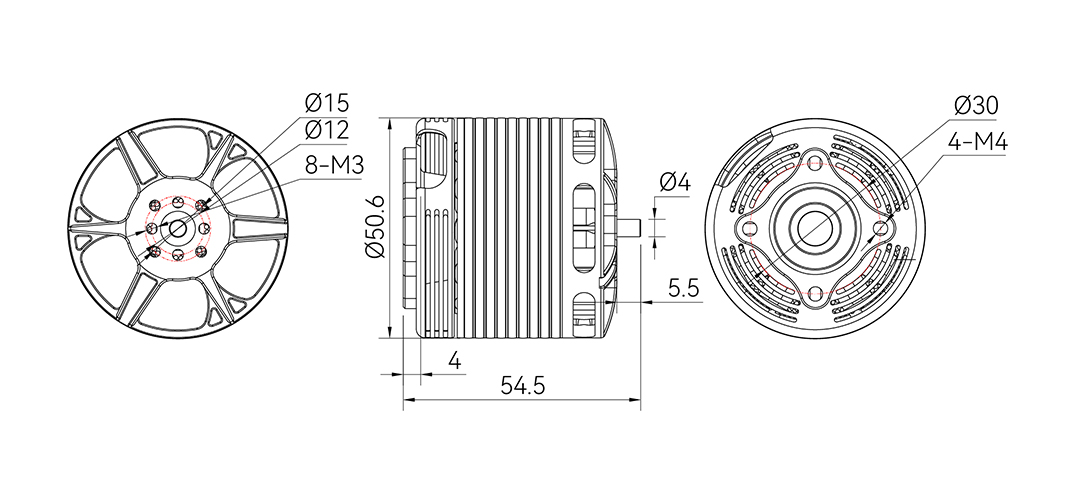

Technical Drawing

Specification Export to Excel

Type	Cine99	Motor Dimension	Φ50.6*54.5mm
Magnet	Nickel Plated Arc Magnet	Coil InsulationTest	500V Withstand Voltage Test
Waterproof And Dustproof Class	IP45	Configuration	12N14P
Dynamic Balance Requirements Standards	≤5mg	Bearings	Imported 626-ZZ
Shaft Diameter	4mm	Lead	14AWG*600mm
Screw Diameter	Φ30-M4-4	Prop Adapter Shaft Thread	φ15/φ12-M3-4Holes/M6 (With Prop Adapter)
Packing Size	10010070mm	Packing Weight	400g

Tech Specs
Recommended Voltage	KV350	Idle Current (10V)	1.7A
Max Power	5670W	Internal Resistance	46mΩ
Rated Voltage (LiPo)	12S	Peak Current	126A
Max Thrust	8867g	Weight (Incl.cable)	355g

Recommended
Motor	Cine99	Frame Type	15-Inch X4 Frame
Prop	Cine1510	LiPo Cells	12S
ESC	C80A, 5~12S,Separate Type	Recommended Takeoff Weight Range	Within 18kg
FC	F7 PRO+12S To≤ 8S BEC	Max Takeoff Weight	26kg
Test Data	1. With an 8000mAh 12S battery (2.2kg), the drone carries a 5kg payload, has a takeoff weight of 12.2kg, and achieves a 10-minute cruise flight time. 2. With a 16000mAh 12S battery (4.4kg), the drone carries a 5kg payload, has a takeoff weight of 14.4kg, and achieves an 18-minute cruise flight time. 3. With an 11000mAh 12S battery (3.8kg), the drone carries an 8kg payload, has a takeoff weight of 16.8kg, and achieves a 9-minute cruise flight time.

Test Data Export to Excel

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N.m)	Operating Temperature (℃)
Cine99 KV350	T-HOBBY Cine 1510	32.1	10%	0.3	944	85	11	7.86	0.04	37 (Ambient Temperature: 25)
		32.0	20%	1.4	1945	416	45	9.28	0.13
		32.0	30%	3.7	2872	971	120	8.13	0.27
		31.9	40%	7.7	3726	1656	247	6.71	0.46
		31.7	50%	13.3	4490	2421	423	5.72	0.66
		31.5	60%	21.8	5251	3310	688	4.81	0.91
		31.3	70%	31.9	5905	4209	999	4.21	1.15
		31.0	80%	42.3	6449	5010	1313	3.82	1.38
		30.7	90%	56.3	6986	5884	1728	3.41	1.62
		30.4	100%	69.8	7424	6661	2119	3.14	1.84
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine99 KV350	T-HOBBY P20*6	32.1	10%	0.4	945	101	13	7.71	0.04	43 (Ambient Temperature: 25)
		32.0	20%	1.4	1958	491	44	11.06	0.12
		32.0	30%	3.5	2890	1143	113	10.12	0.26
		31.9	40%	7.3	3767	1974	234	8.45	0.43
		31.8	50%	12.5	4548	2899	397	7.31	0.62
		31.6	60%	20.4	5318	3998	644	6.21	0.85
		31.3	70%	30.0	6000	5136	939	5.47	1.09
		31.1	80%	41.5	6618	6279	1288	4.87	1.34
		30.8	90%	53.2	7116	7313	1637	4.47	1.56
		30.4	100%	66.6	7565	8333	2026	4.11	1.79
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine99 KV350	T-HOBBY Cine 1310	48.1	10%	0.4	1423	112	18	6.18	0.04	67 (Ambient Temperature: 25)
		48.0	20%	1.6	2928	531	76	6.98	0.14
		48.0	30%	4.1	4295	1208	197	6.14	0.30
		47.9	40%	8.2	5538	2033	394	5.17	0.49
		47.7	50%	14.4	6703	2997	687	4.36	0.72
		47.5	60%	24.1	7887	4164	1142	3.65	1.01
		47.2	70%	37.1	8981	5422	1748	3.10	1.32
		46.8	80%	50.3	9857	6559	2357	2.78	1.61
		46.4	90%	66.0	10594	7647	3064	2.50	1.89
		46.0	100%	83.8	11221	8587	3853	2.23	2.17
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine99 KV350	T-HOBBY Cine 1312	48.1	10%	0.4	1402	116	19	6.02	0.04	82 (Ambient Temperature: 25)
		48.0	20%	1.7	2892	583	83	7.03	0.16
		48.0	30%	4.5	4226	1261	215	5.86	0.34
		47.8	40%	9.1	5438	2102	437	4.81	0.56
		47.7	50%	15.6	6490	3015	745	4.05	0.80
		47.4	60%	26.8	7687	4250	1272	3.34	1.14
		47.1	70%	41.3	8692	5459	1945	2.81	1.48
		46.7	80%	56.6	9498	6545	2643	2.48	1.79
		46.2	90%	74.0	10146	7525	3424	2.20	2.08
		45.7	100%	94.1	10673	8354	4304	1.94	2.33
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine99 KV350	T-HOBBY Cine 1508	48.1	10%	0.4	1376	156	20	7.92	0.05	132 (Ambient Temperature: 25)
		48.0	20%	2.0	2817	758	95	7.99	0.20
		47.9	30%	5.3	4101	1683	255	6.60	0.42
		47.8	40%	10.8	5230	2780	514	5.41	0.69
		47.6	50%	18.8	6258	4033	896	4.50	0.99
		47.3	60%	32.4	7347	5624	1529	3.68	1.39
		46.9	70%	47.1	8160	6995	2212	3.16	1.73
		46.4	80%	68.9	8863	8328	3193	2.61	2.07
		45.9	90%	88.8	9300	9232	4074	2.27	2.31
		45.3	100%	112.1	9547	9764	5076	1.92	2.45
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine99 KV350	T-HOBBY Cine 1510	48.1	10%	0.5	1341	181	22	8.35	0.07	127 (Ambient Temperature: 25)
		48.0	20%	2.3	2749	887	111	7.99	0.25
		47.9	30%	6.3	3960	1879	301	6.25	0.52
		47.8	40%	12.5	5021	3042	597	5.09	0.83
		47.5	50%	21.9	5984	4344	1043	4.16	1.19
		47.1	60%	38.3	7004	5936	1808	3.28	1.63
		46.7	70%	55.5	7674	7155	2591	2.76	1.98
		46.2	80%	75.0	8218	8192	3466	2.36	2.28
		45.6	90%	101.3	8441	8659	4615	1.88	2.42
		44.9	100%	126.2	8460	8706	5671	1.54	2.43
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine99 KV350	T-HOBBY P15*5	48.0	10%	0.3	1469	89	16	5.59	0.02	45 (Ambient Temperature: 25)
		48.0	20%	1.2	3051	430	56	7.63	0.08
		48.0	30%	2.9	4505	1028	140	7.32	0.19
		47.9	40%	5.8	5881	1809	279	6.48	0.32
		47.8	50%	10.1	7154	2715	484	5.61	0.48
		47.6	60%	18.1	8605	3987	861	4.63	0.70
		47.4	70%	26.2	9723	5176	1241	4.17	0.91
		47.2	80%	35.9	10732	6395	1693	3.78	1.13
		46.9	90%	47.4	11651	7641	2222	3.44	1.37
		46.6	100%	60.6	12468	8867	2821	3.14	1.61
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

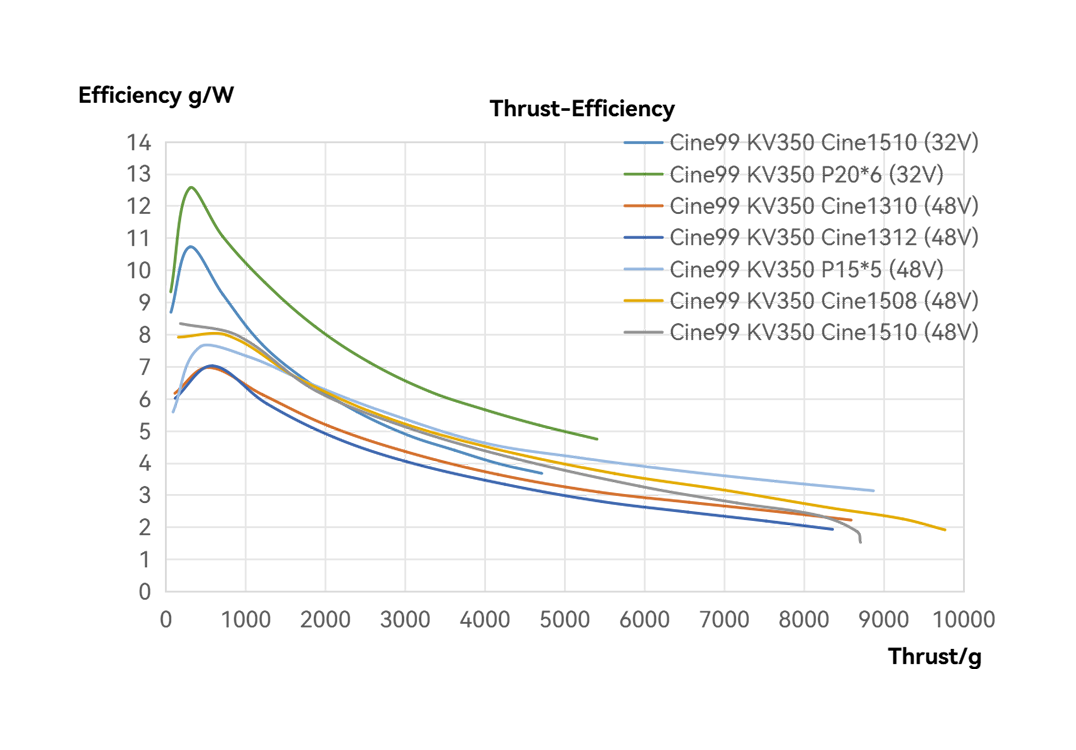

Analysis Chart
