Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086

Holybro
Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086 Preview: Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086
Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086

€49.90 *
Content: 1 Stück

Prices incl. VAT plus shipping costs

In Stock
Delivery time appr. 1-3 workdays within Germany

  • Order number: PM-6297
  • Hersteller: Holybro
  • Artikelname: 18086
  • EAN: 4250902361976
Description Evaluations 0
Description
Holybro CAN Hub 2S-12S  42cm Kabellänge - 18086 Holybro CAN Hub mit aktiver... more
Close menu
Product information "Holybro CAN Hub 2S-12S 42cm Kabellänge - 18086"

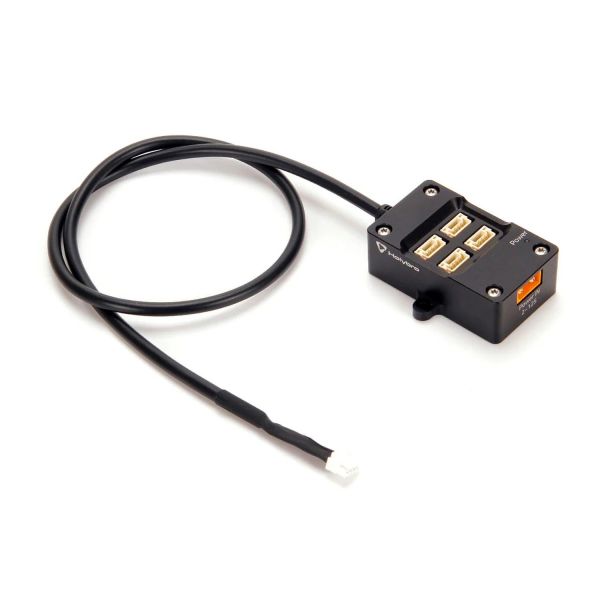

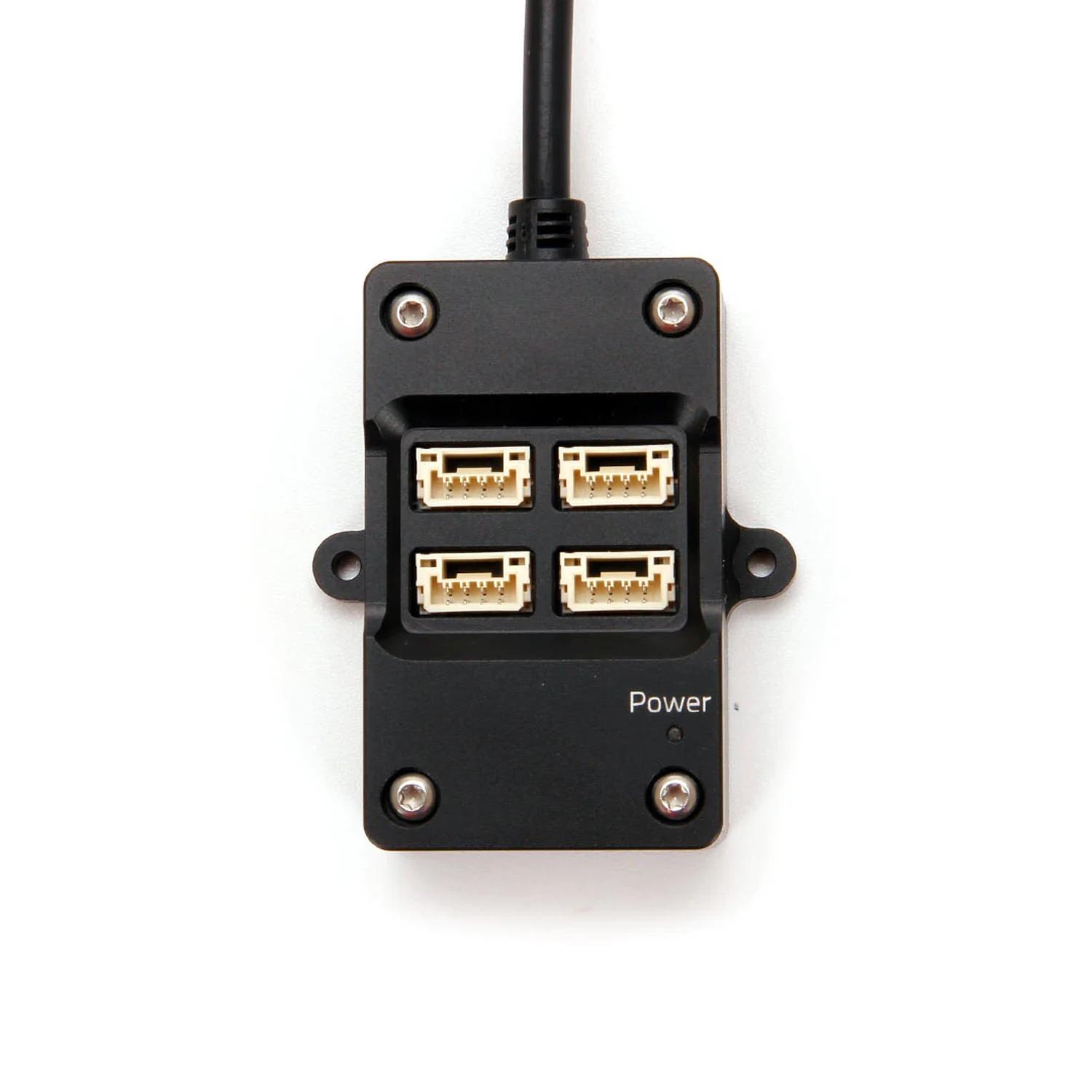

Holybro CAN Hub 2S-12S  42cm Kabellänge - 18086

Holybro CAN Hub mit aktiver Spannungsversorgung (2S-12S Lipo).

Technische Daten:

Eingangsspannung: 2S - 12S

Ausgangsspannung: 5.2V±0.15V

Max Ampere pro Output: 1.0A @ 5.2V pro CAN port. Die Gesamtstromaufnahme für alle 4 Ports drauf 3A nicht überschreiten.

Spannungseingang: XT30

CAN Eingang: GHR-4V-S (Standard Pixhawk Style)

CAN Ausgang: 4 Port BM04B-GHS-TBT (Standard Pixhawk Style)





Ausführliche Informationen:



The Holybro CAN Hub is a powered CAN port expansion module developed for various flight controllers and their supporting peripherals. This CAN Hub is integrated with a step-down power supply. It supports 2-12S power input and 5V CAN power output and can expand one CAN port into up to four ports while providing stable 5V/1A power for each port with its dedicated power input.

Most flight controllers have a 5v output on the CAN port, but the voltage can sometime be lower than 5v because it is affected by other devices that is connected to the FC, and there is a ~3A current limit for sum of all ports (Excluding Telem1). The power supply of this hub is independent and can guarantee a stable 5V power source to your CAN peripherals.
