Preview: CubeMars GL60 II 28kv Außenläufer Gimbal Brushless Motor 276g 16V-24V

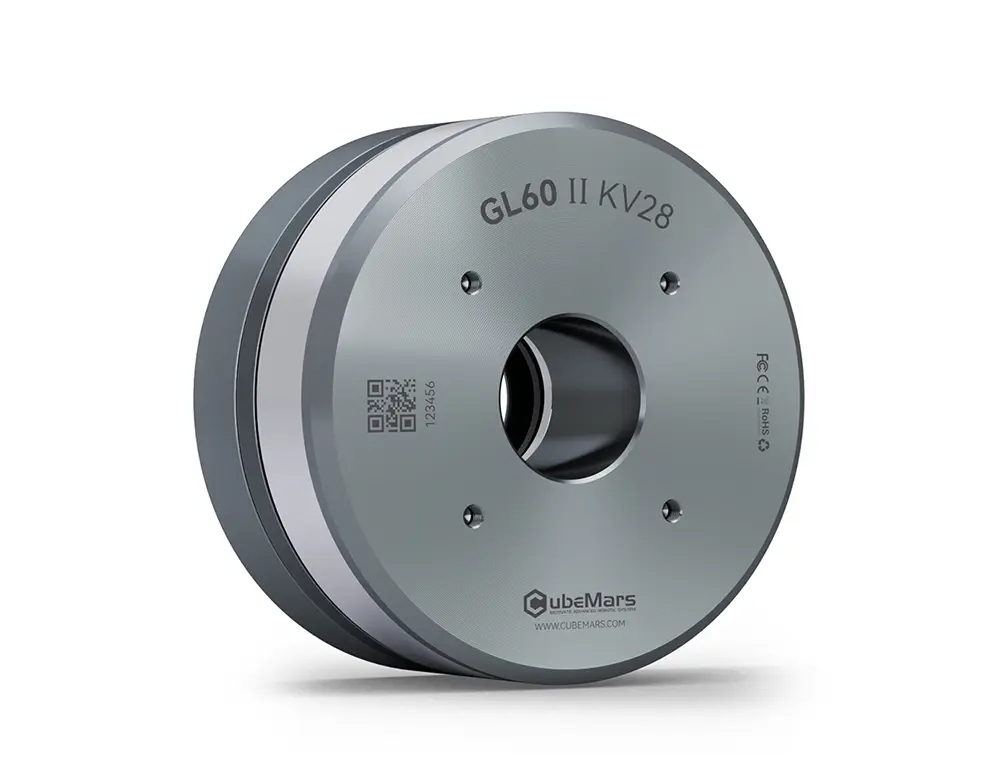

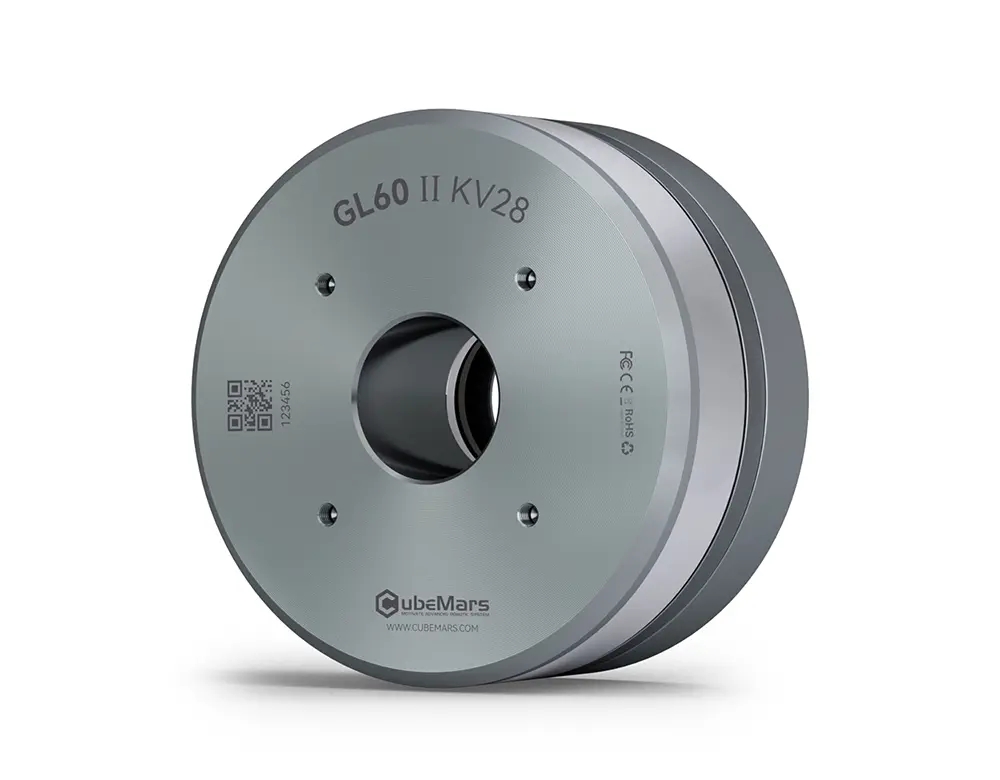

CubeMars GL60 II 28kv Außenläufer Gimbal Brushless Motor 276g 16V-24V

€198.71 * €207.90 * (4.42% Saved)

Prices incl. VAT plus shipping costs

Free Shiping within Germany

In Stock
Delivery time appr. 1-3 workdays within Germany

Order number: PM-7180
Hersteller: CubeMars
Artikelname: GL60-II-28kv
EAN: 4250902365363

•New generation hollow drive board •Cogging torque reduced by 37.5% •CAN and PWM... more

Close menu

Product information "CubeMars GL60 II 28kv Außenläufer Gimbal Brushless Motor 276g 16V-24V"

•New generation hollow drive board

•Cogging torque reduced by 37.5%

•CAN and PWM communication

•MIT, Velocity-position, and Velocity mode

•One-click motor parameter recognition

The GLII series motors are specifically designed for high-end gimbal systems. With outstanding performance and innovative technology, they are widely used in high-precision control scenarios such as gimbal systems and autonomous driving. This series adopts a completely new electromagnetic design and structural optimization, upgrading the electromagnetic solution to significantly reduce cogging torque from 24 cN.m to 15 cN.m. This greatly improves the stability and servo performance during low-speed operation, ensuring precise control even in low-speed scenarios.

To meet the complex control demands of gimbal motors, the GLII series features the latest generation of hollow drive boards, supporting both CAN and PWM communication. It offers multiple control modes (MIT mode, velocity-position mode, velocity mode), making motor control more flexible and efficient. Whether for high-dynamic-response gimbal stabilization systems or finely tuned autonomous driving scenarios, the GLII series motors can easily handle both. Additionally, the product is equipped with a dual-port design: the black XT30 2+2 interface combines the power and CAN signal cables, ensuring safe and reliable signal transmission, while the white CJT-3Pin interface allows users to connect to an upper computer for real-time parameter adjustments, further enhancing debugging flexibility.

The GLII series motors not only pursue peak performance in design but also focus on user experience. The newly added host computer function supports current loop parameter settings and serial port baud rate adjustments. Users can easily identify motor parameters with a one-click function and flexibly select from various working modes via an intuitive interface. This significantly reduces operational difficulty and improves usability. Whether for industrial-grade applications or high-end consumer scenarios, the GLII series motors provide users with stable, reliable, and efficient drive solutions, helping customers achieve higher control precision and system performance, while greatly enhancing customer satisfaction.

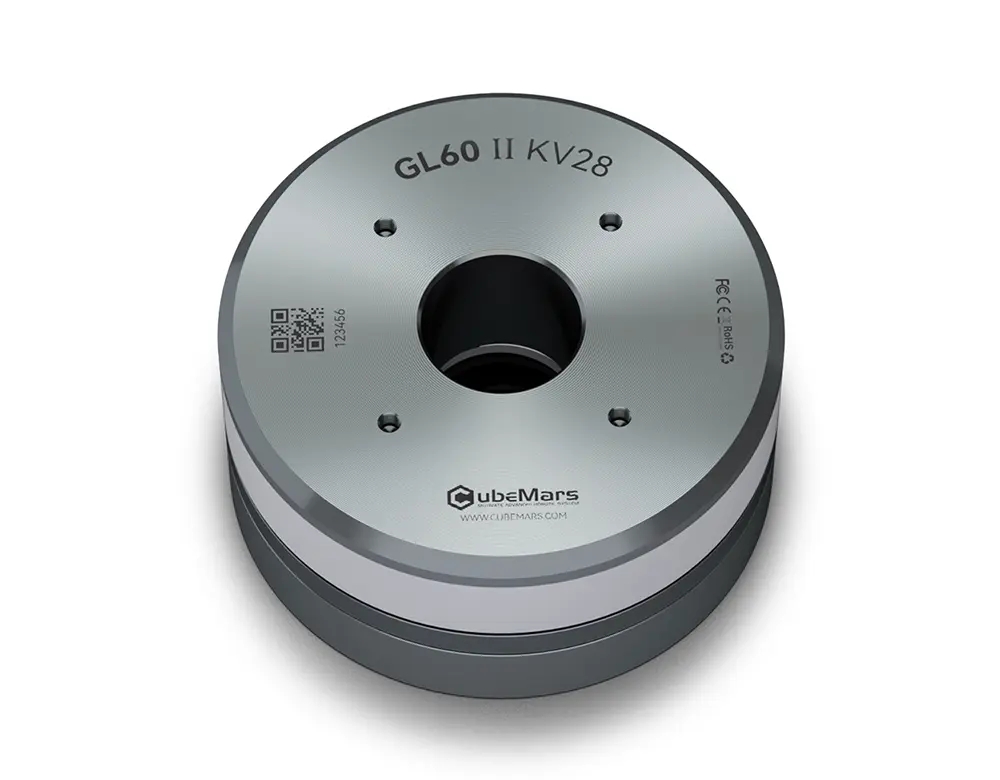

GL60II Gimbal Motor

SMOOTH OPERATION,EQUIPPED DRIVE

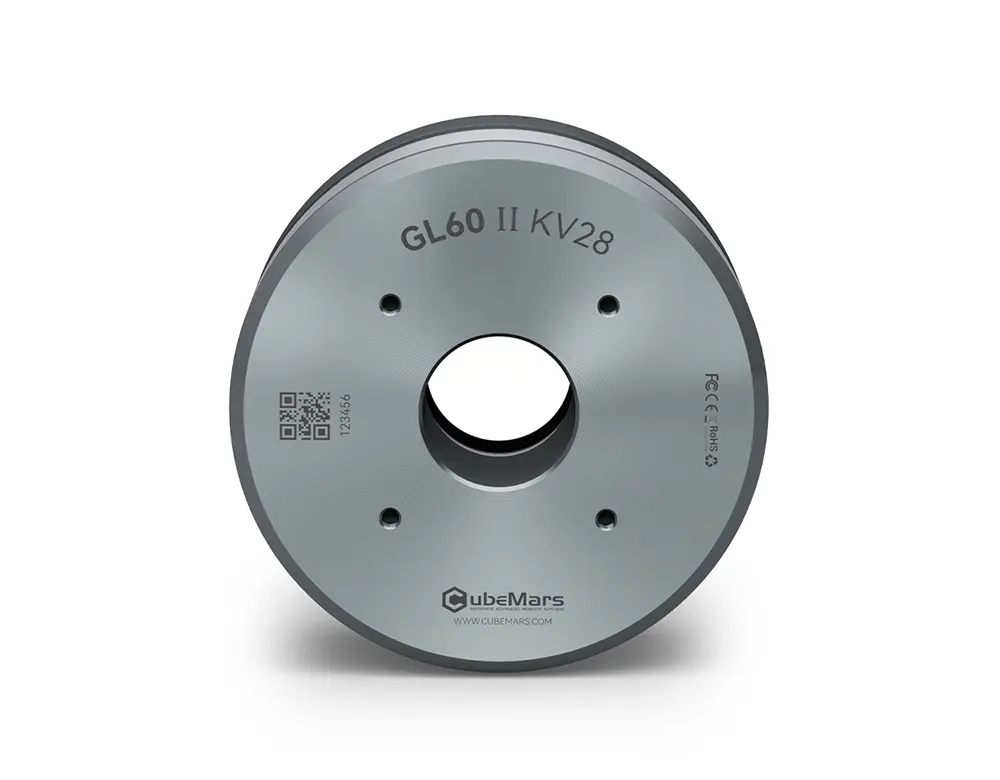

LARGE HOLLOW SHAFE

Install a hollow driver board for more flexible control

EQUIPPED DRIVE, GREAT CONTROL

Install a hollow drive board supporting CAN and PWM communication.
The 3 control modes can meet different needs flexiblyInstall a hollow drive board supporting CAN and PWM communication.The 3 control modes can meet different needs flexibly

MIT

mode

velocity-position

mode

velocity

mode

Upgraded EM,
Lower Cogging
Torque

Upgraded electromagnetic design
and motor structure. Reduce cogging
torque from 2.4 cN.m to 1.5 cN.m,
enhancing low-speed servo
performanceUpgraded electromagnetic design and motor structure. Reduce cogging torque from 2.4 cN.m to 1.5 cN.m,enhancing low-speed servo performance

1.5cN.m

Black & White Dual
Interface Free for debugging

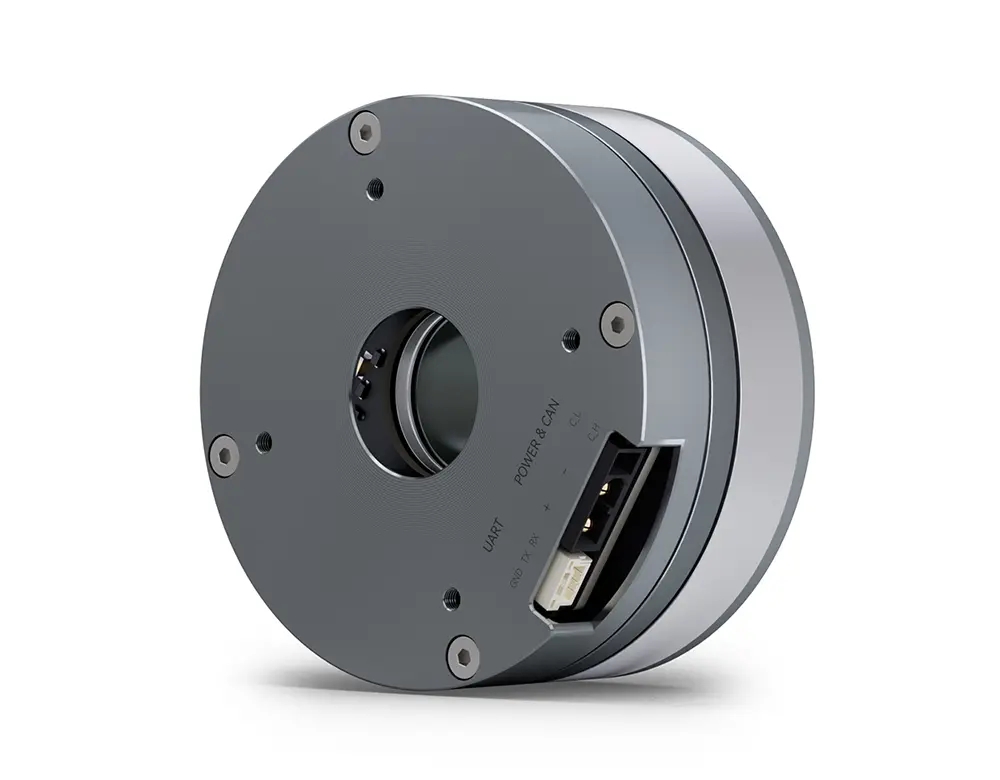

The black is the XT30 2+2 interface, combined the power cable and
CAN signal cable into one, making the signal transmission safer and more reliable;
The white is a CJT-3pin interface. Convenient for connecting to the upper
computer to communicate and adjust parametersThe black is the XT30 2+2 interface, combined the power cable and CAN signal cable into one, making the signal transmission safer and more reliable;The white is a CJT-3pin interface. Convenient for connecting to the upper computer to communicate and adjust parameters

XT30 2+2

Black Interface

CJT-3pin

White Interface

Equipped Upper
Computer Easier Operation

Open current loop parameters & serial port baud rate settings One-click for motor parameter
recognition. Various working mode,more flexible upper computer page selectionOpen current loop parameters & serial port baud rate settings One-click for motor parameter recognition. Various working mode,more flexible upper computer page selection

Technical Drawing

GL60 II工程图.jpg

Specification

Motor Model	GL60II	Copper Wire	Level E 150℃
Motor Dimensions(mm)	φ70.5*33.6	Wiring Method	/
Stator Technology	Rust-proof，180℃ coating	Enamelled Wires Temperature Resistance Grade	Level H 180℃
Configuration	24N28P	Coil Withstand Voltage	500V 5mA/2s
Bore Size(mm)	φ20	Rotor Inertia(g.cm²)	401.086
Torque Constant(Nm/A)	0.34	Waterproof and dustproof class	/
Bearings	Imported 6705 ZZ

performance parameters
KV	KV28	Rated Voltage(V)	16
Rated Current(A)	1.56	Rated Speed(rpm)	153
Rated Torque(Nm)	0.6	Line Inductance(mH)	6
Stall/Peak Current(A)	2.75	Package Dimensions(mm)	16012242
Stall/Peak Torque(Nm)	1	Weight(g)	276
Winding Resistance(Ω)	5.8

KV	KV28	Rated Voltage(V)	24
Rated Current(A)	1.54	Rated Speed(rpm)	319
Rated Torque(Nm)	0.6	Line Inductance(mH)	6
Stall/Peak Current(A)	4.09	Package Dimensions(mm)	16012242
Stall/Peak Torque(Nm)	1.5	Weight(g)	276
Winding Resistance(Ω)	5.8

Analysis Chart


Download:

GL60II-2D.pdf

GL60II-3D.rar
