Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot

Benewake
Preview: Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot Preview: Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot Preview: Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot
Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot
Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot
Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot

This product is currently not available.
€279.90 *
Content: 1 Stück

Prices incl. VAT plus shipping costs

 Free Shiping within Germany

Item is backordered – Lead time approx. 2-4 weeks.

  • Order number: PM-6230
  • Hersteller: Benewake
  • Artikelname: TF03-100m-UC
  • EAN: 4250902361303
Description Downloads 1 Evaluations 0
Description
Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot   Das TF03 ist... more
Close menu
Product information "Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot"

Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot



Das TF03 ist ein hochwertiges Mini LiDAR von Benewake mit einer Messreichweite von bis zu 100m, verbaut in einem IP67 Gehäuse.

Das LiDAR kann z.B.in Mulitcoptern für Präzison Landing, Obstacle Avoidance oder Terrain Follow Aufgaben genutzt.

Eine Anbindung ist über die Serielle Schnittstelle (UART) möglich, auch die Integration in z.B. Ardupilot ist sehr einfach umzusetzen.



Inhaltsbeschreibung und Specs:

TF03 is a industrial high-speed LiDAR. TF03 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need.



  • Messbereich : 0,1 - 100 m
  • Frame Rate: 1Hz-10KHz
  • FOV: 0,5°
  • Gewicht: 77g (inkl. Gehäuse)
  • Gehäuse Schutzklasse: IP67
  • Betriebsspannung: 5V
  • Schnittstelle: UART / CAN

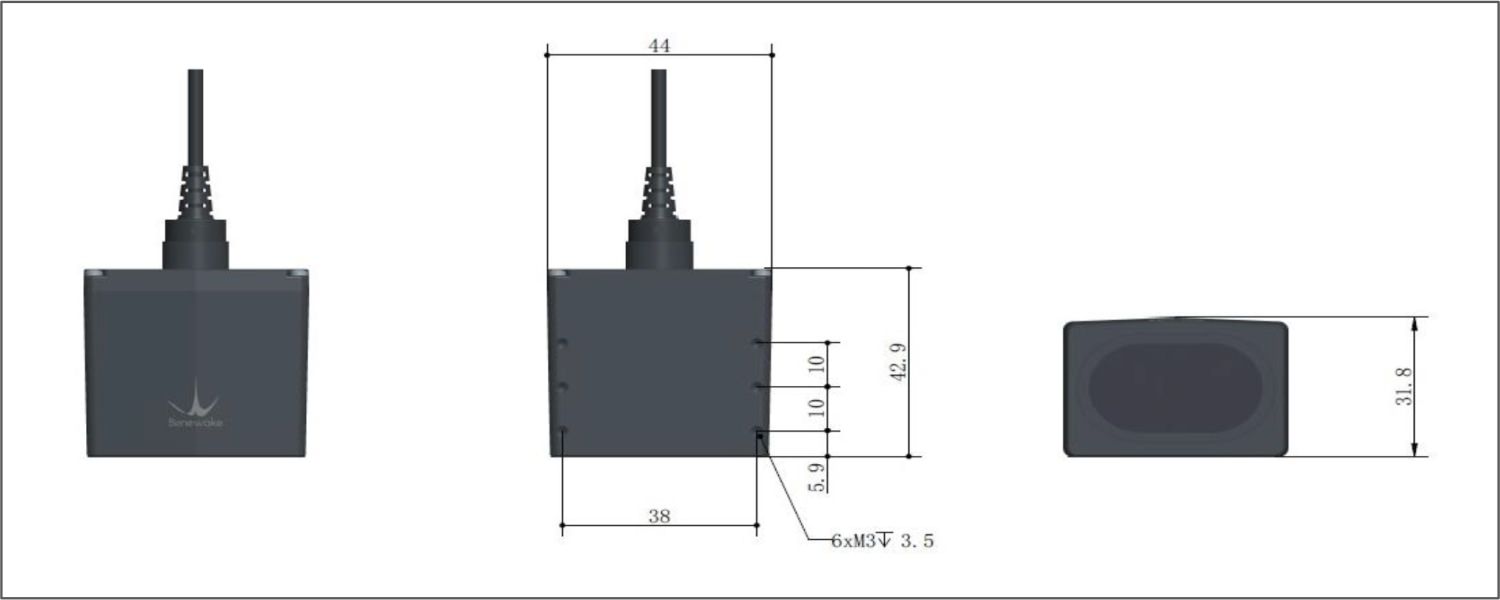

  • Abmessungen: 44 x 43 x32 mm










Related links to "Benewake TF03 100m UART / CAN LiDAR Rangefinder 100m für Pixhawk Ardupilot"

Hersteller gemäß (GPSR (EU)2023/988):

Benewake, Headquarters: 3rd Floor, Haiguo Jiaye Sci-Tech Park, Haidian District, Beijing, China https://en.benewake.com/

Inverkehrbringer:

Premium-Modellbau Würch GmbH, Geschäftsführer: Steffen Würch, Torenstrasse 9, 88709 Meersburg, Deutschland, Tel: 07046 38795100, www.premium-modellbau.de
