CubeMars TW-40A-12S Unterwasser-ESC (2 Stück/Set) – IP67, 6-12S
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 3-4 Wochen.
- Artikel-Nr.: PM-7331
- Hersteller: CubeMars
- Artikelname: TW-40A-12S-2x
- EAN: 4250902366841
Description

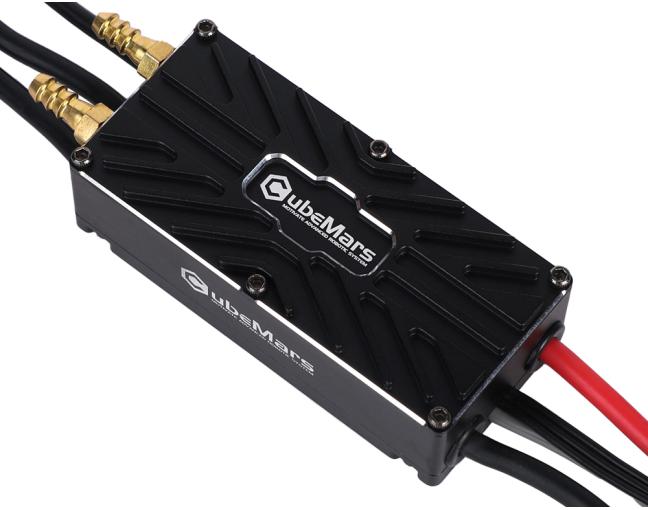

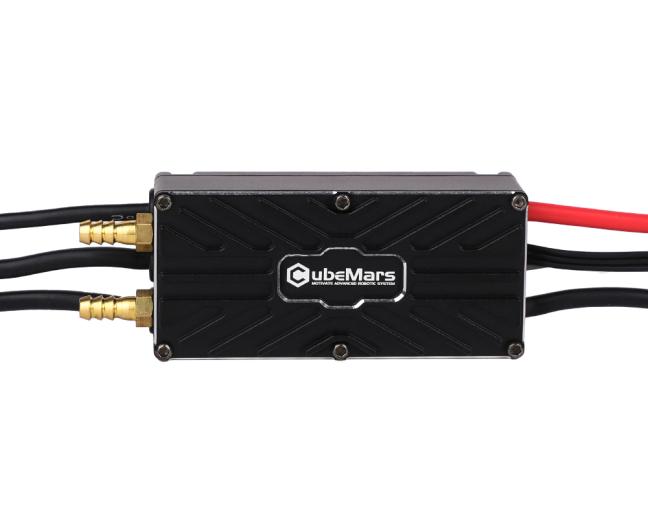

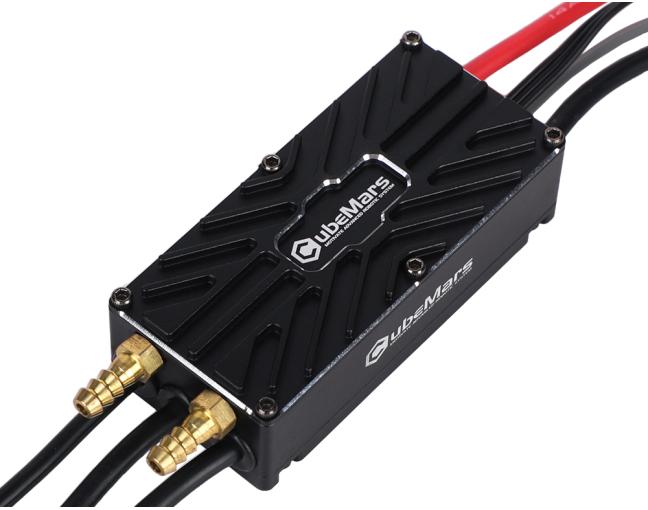

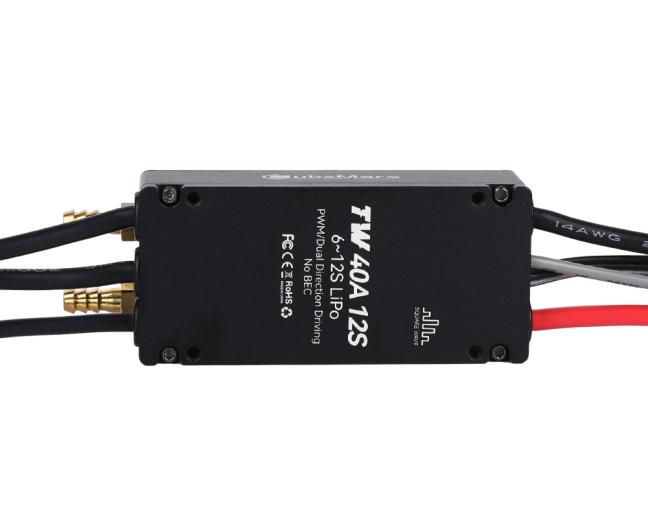

TW-40A-12S underwater electronic speed controller (ESC) is a high-performance solution custom-designed for CubeMars' SW and DW series underwater thrusters.
This model supports 6-12S Li-ion/LiPo battery input (approximately 22.2-44.4V) and features a fully sealed IP67-rated waterproof enclosure. It integrates CubeMars' proprietary startup and direction-switching algorithm, ensuring smooth motor starts and seamless forward/reverse transitions.
Each standard kit includes two ESCs, enabling simultaneous control of both CW and CCW motors in a single underwater thruster system.
Specifications
| Product Model | TW-40A-12S |
| Package Contents | 2x ESC |
| Applicable Models | SW7 / SW12 / DW10 / DW15 |
| Size | 78*30*19.9mm |
| Single Unit Weight | 90.33g |
| Package Dimensions | 140*137*77mm |
| Input Voltage | 6-12S |
| Throttle Range | 1000μs-2000μs |
| Bidirectional Rotation | 1000μs-1500μs Forward / 1500μs-2000μs Reverse |
| Communication Mode | Serial |
| Waterproof Rating | IP67 |
Wiring
| Power Cable (Input) | Red (positive), Black (negative) |
| Three-Phase Cable (Output) | 3 × Black |
| Signal Cable | ×1 |
| Serial Cable | ×1 |
