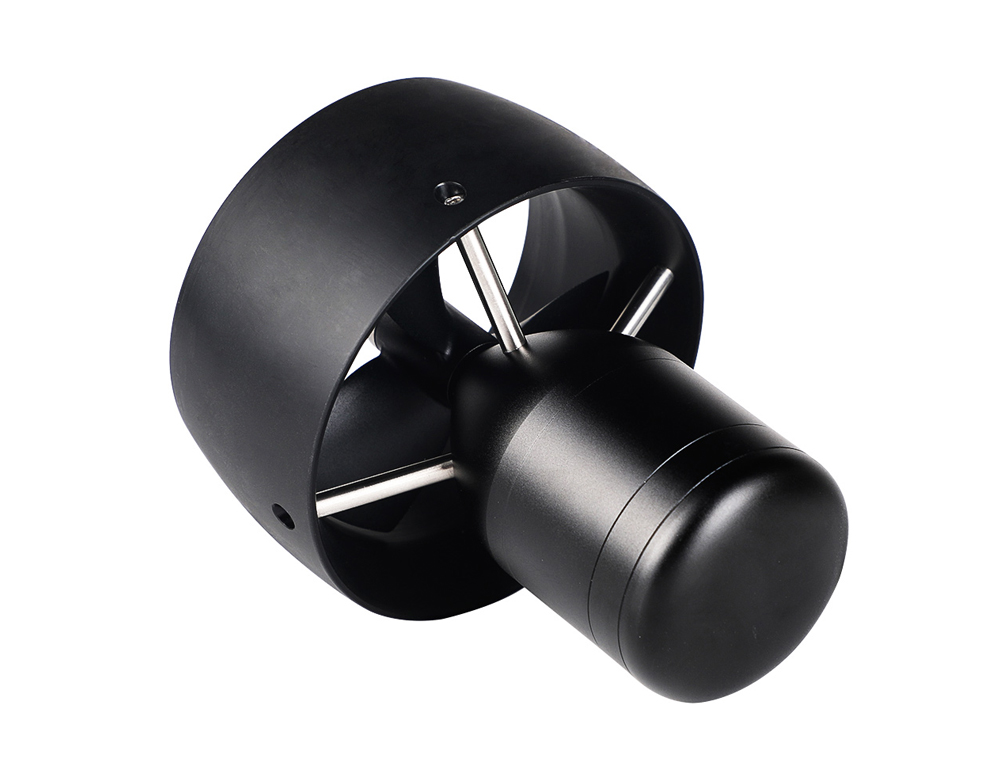

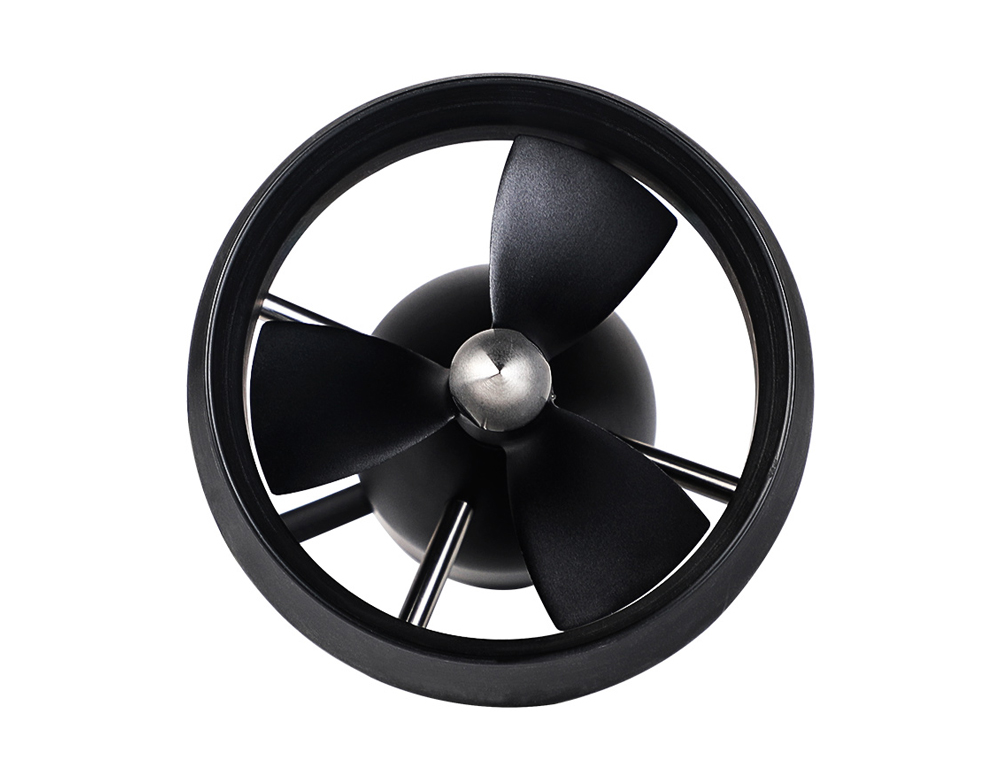

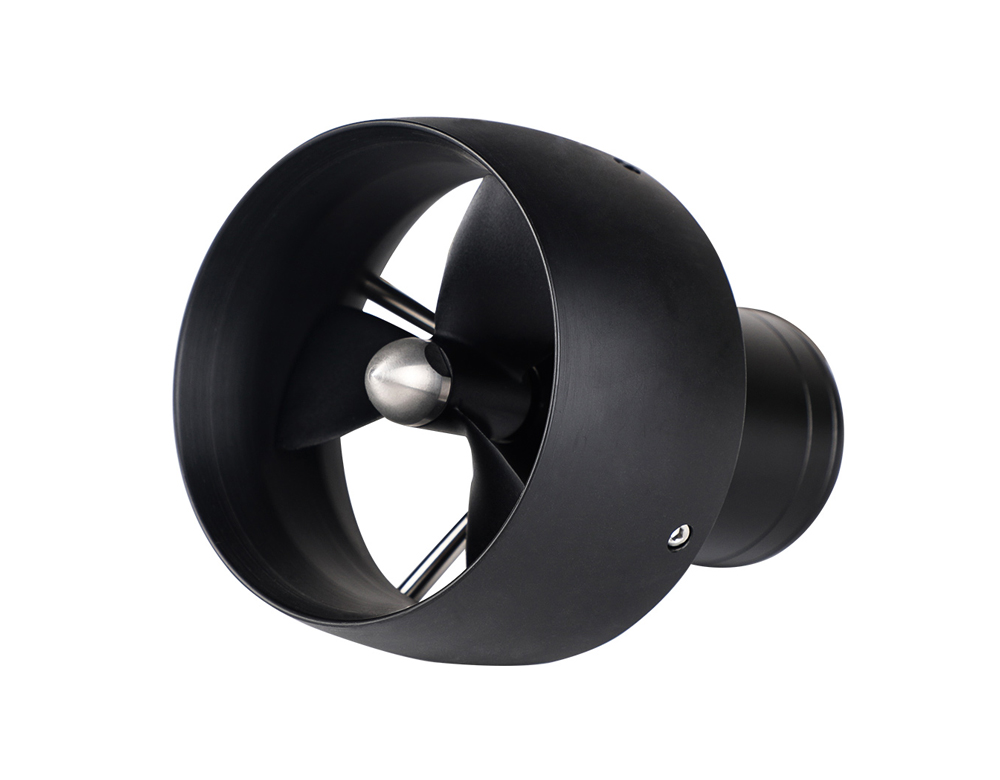

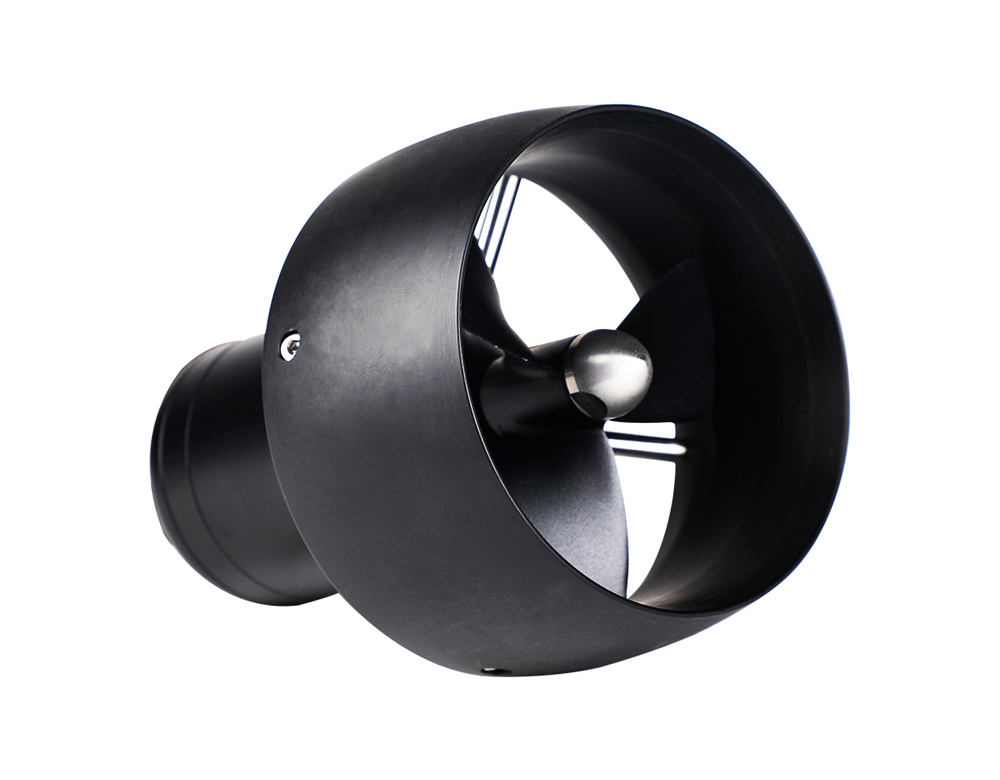

CubeMars SW17 Underwater Thruster 48V 17kgf 30m Tauchtiefe
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 3-4 Wochen.
- Artikel-Nr.: PM-7351
- Hersteller: CubeMars
- Artikelname: SW17
- EAN: 4250902367046
Product Description
The CubeMars SW17 underwater thruster is a high-thrust propulsion system engineered specifically for shallow-diving unmanned surface vessels (USVs) and handheld diver propulsion vehicles (DPVs).
Constructed with precision-cast aluminum alloy, it features a dual-chamber independent sealing structure and a low-friction dynamic shaft seal. Internally filled with high-thermal-conductivity potting material, the thruster achieves enhanced heat dissipation—enabling reliable operation in water depths from 0 to 30 meters. With a rated voltage of 48 V, it delivers a maximum static thrust of ?17 kgf, making it ideal for USVs, electric surfboards, handheld propulsion units, and other applications demanding high power in compact form.
Core Specifications
-
Dimensions: ?130.6 × 163.5 mm
-
Weight: 1350 g
-
Maximum Static Thrust: 17 kgf
-
Continuous Rated Power: 870 W
-
Operating Depth: 0–30 m
-
Cable specification: TPU ?8mm, 3×16 AWG, 1.5M
Product Highlights
-
High-Thrust Output: Delivers ?17 kgf static thrust—providing ample power for medium-sized USVs or handheld devices with demanding propulsion needs
-
Precision Aluminum Alloy Housing: Lightweight yet robust cast aluminum body offers excellent resistance to corrosion and mechanical impact
-
Dual-Chamber Sealing & Low-Drag Shaft Seal: Two-stage independent sealed chambers combined with a low-friction dynamic shaft seal effectively block sand and debris ingress, significantly enhancing reliability and service life
-
Compact Design for Easy Integration: Optimized footprint allows installation in space-constrained propulsion systems or onboard platforms while supporting overall lightweight architecture
-
Optimized for Shallow-Water Use: Designed specifically for operations within 0–30 m depth, meeting the requirements of USVs, handheld thrusters, and similar marine applications
Packaging Contents
-
SW17 Underwater Thruster ×1
-
Certificate of Conformance ×1
Related Accessories
-
Underwater ESC TW-80A-12S
| Rated power | 870W | Main shaft sealing method | Low-resistance dynamic seal |
| Rated voltage | 48V | Main body structure | Two-stage sealing chamber |
| Maximum mooring thrust | ≥17kgf | Cable specifications | TPU（Glossy） φ8.5mm- 3*14AWG- 1.5M |
| Applicable water depth | 0-30M | Driver | External |
| Material of the nozzle | POM | Applications | Unmanned surface vehicle, Electric surfboard,Handheld thruster,etc. |
| Material of the propeller | Aluminum alloy | Weight | 1350g(in the air) 775g(in the water) |
| Material of the shell | Aluminum alloy | Environmental conditions | 0-50℃(Storage) 0-40℃(Operating ) |
| Propeller specifications | φ106mm | Usage tips | Rinse with clean water promptly after use. |
| Motor rotor pole number | 28P | Recommended ESC matching | TW-80A-12S |
Product Details

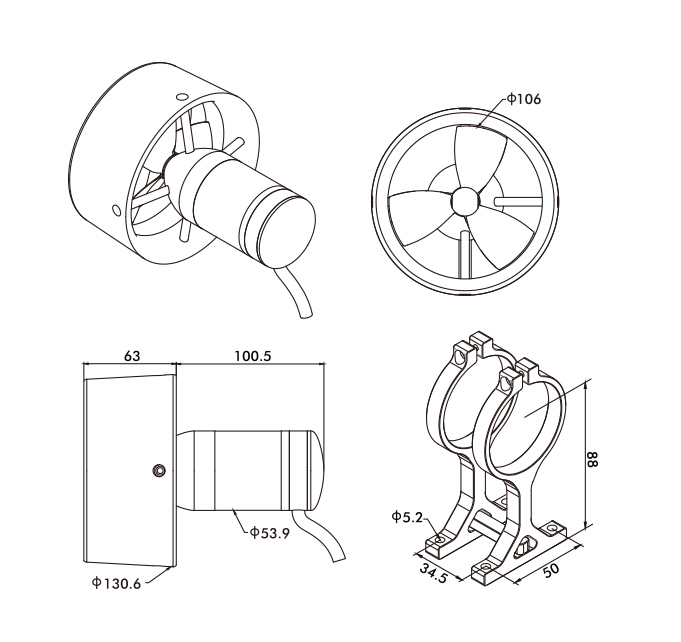

Dimensional Drawing

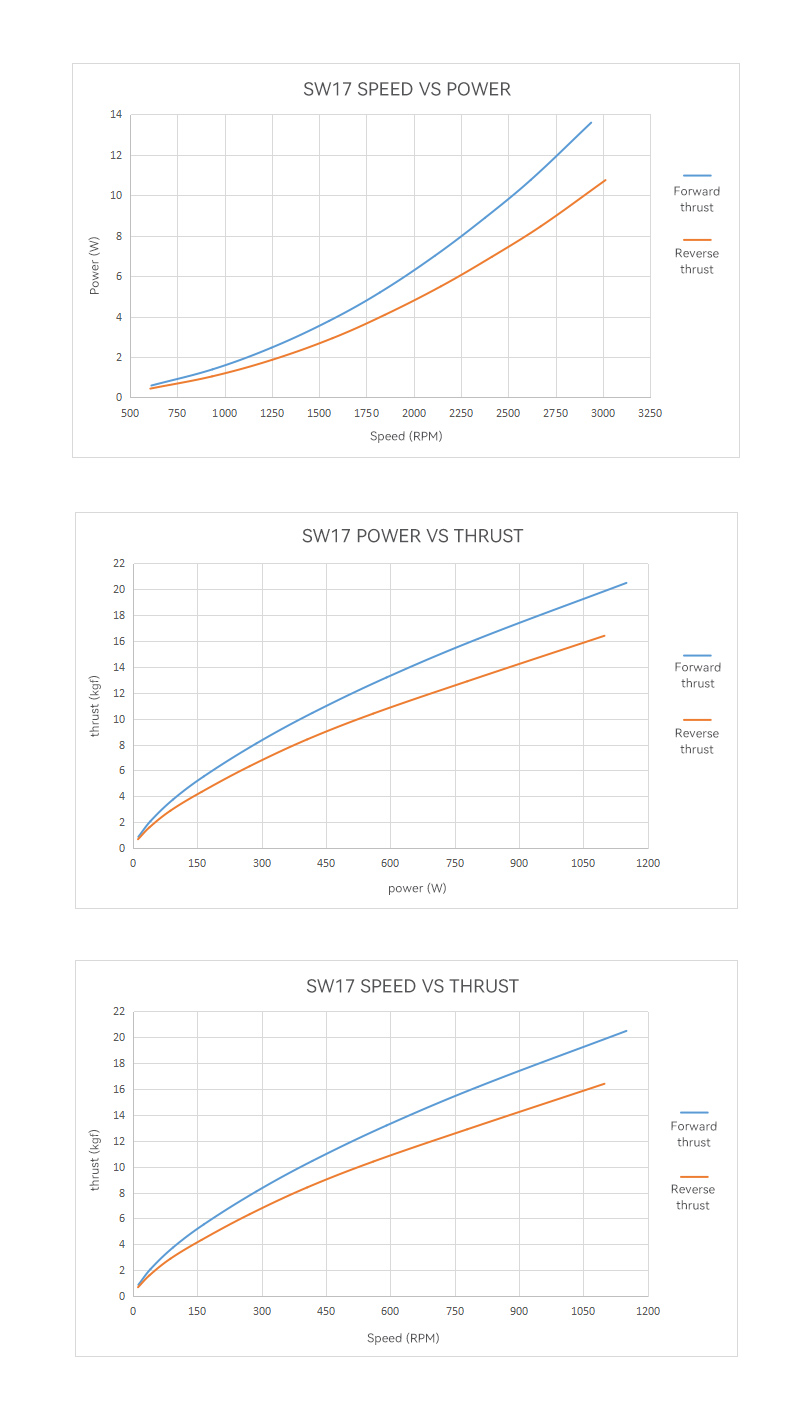

Performance Data
