CubeMars DW20 Underwater Thruster 48V 20kgf 350m Tauchtiefe

Product Description

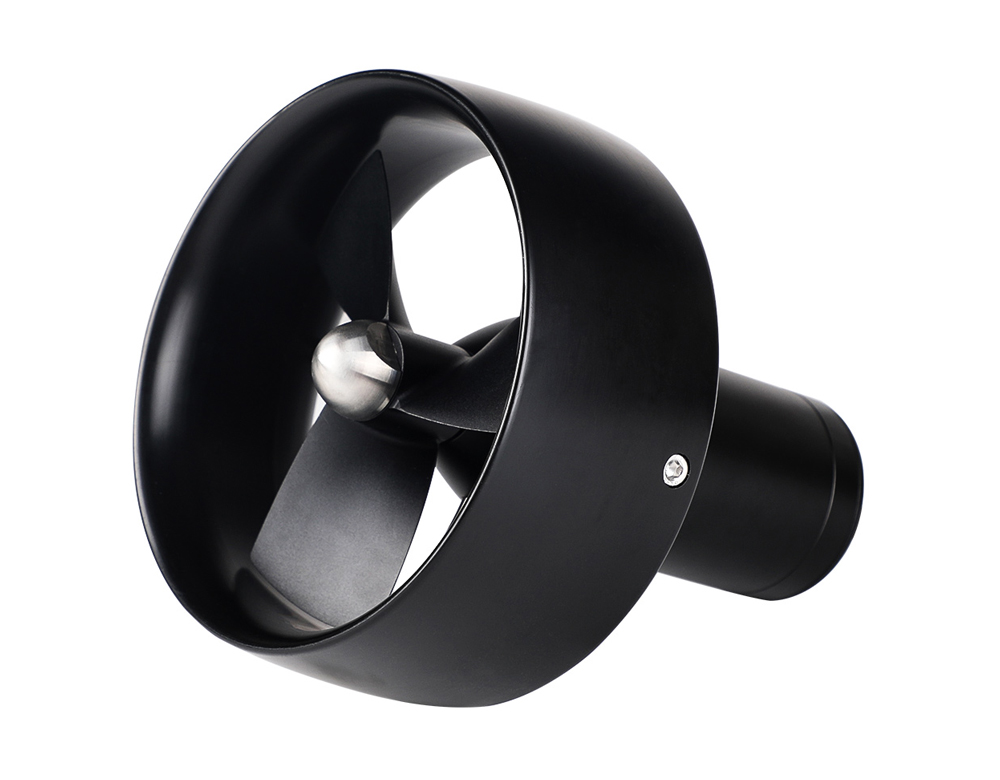

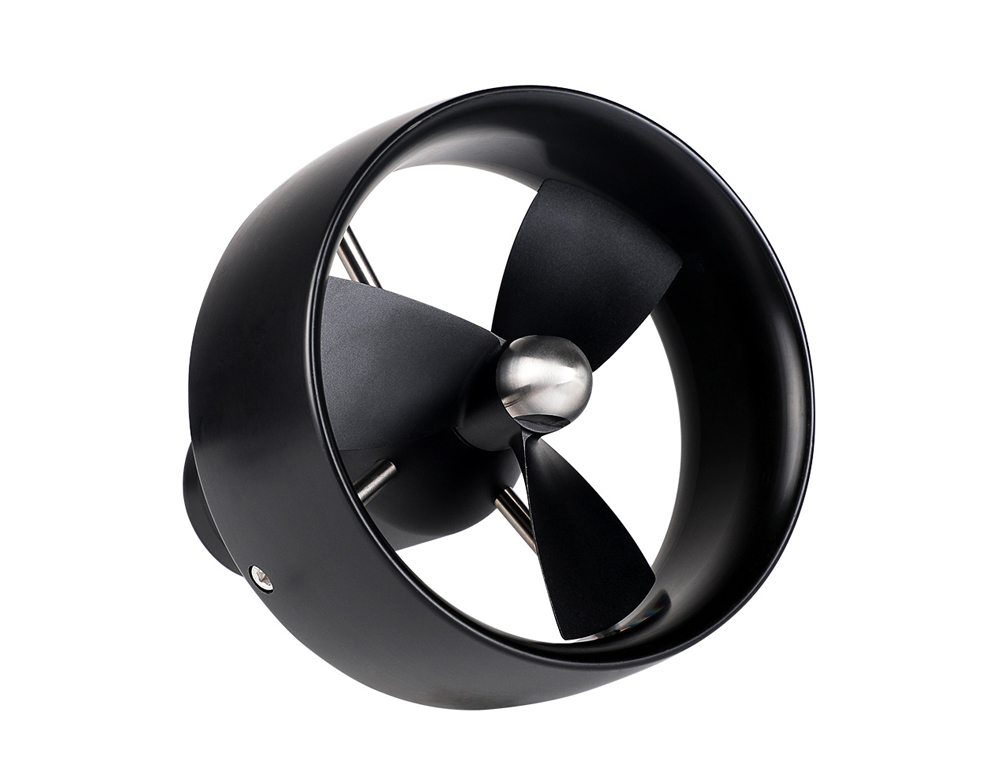

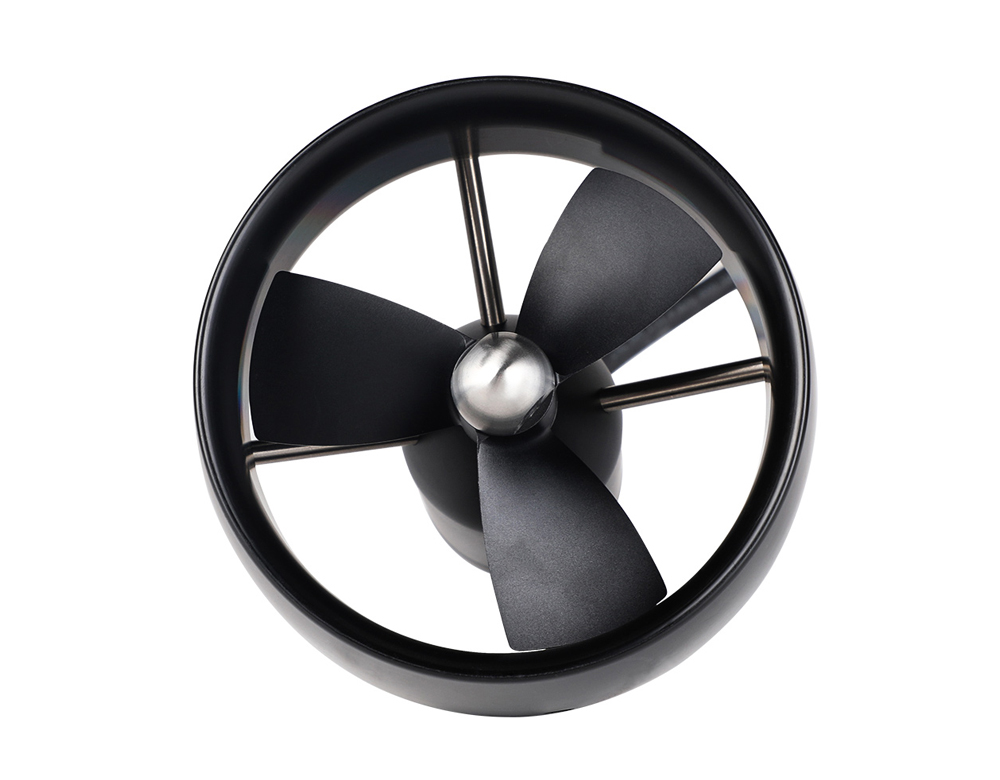

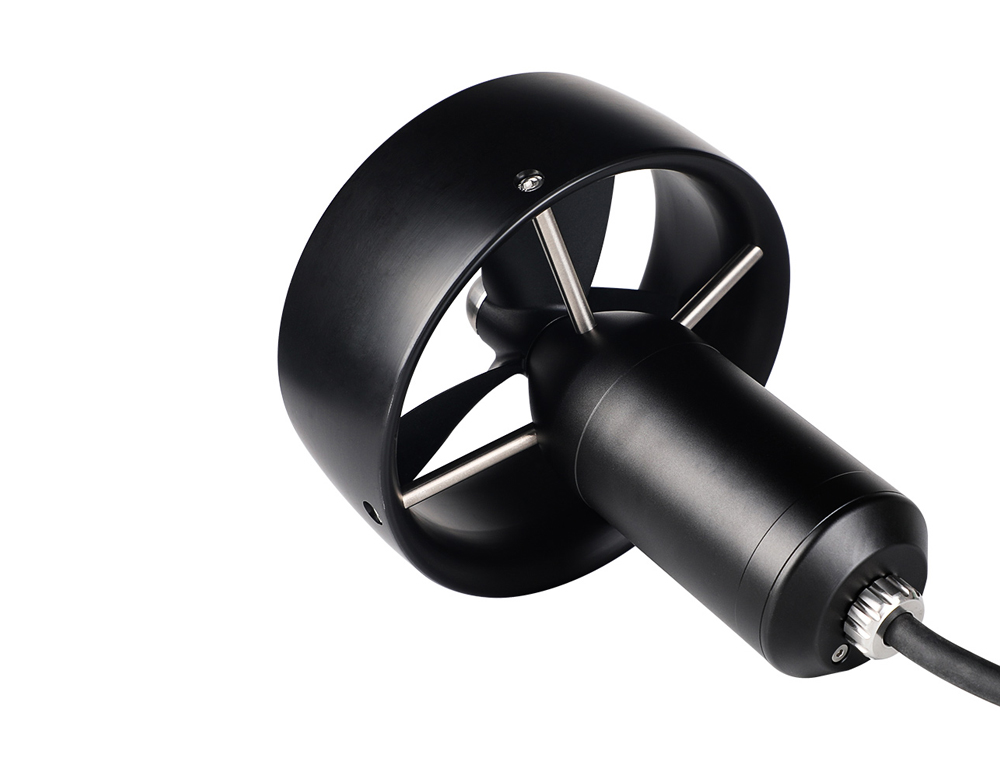

The CubeMars DW20 underwater thruster is a high-performance propulsion system designed specifically for medium-class remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs).

Rated at 48 V, it delivers a maximum static thrust of ?20 kgf and is rated for operation down to a depth of approximately 350 meters. The thruster features a precision-cast aluminum alloy housing, a dual-chamber independent sealing structure, and a low-friction dynamic shaft seal—collectively reducing hydrodynamic drag while enhancing propulsion efficiency and long-term reliability in demanding subsea environments.

Core Specifications

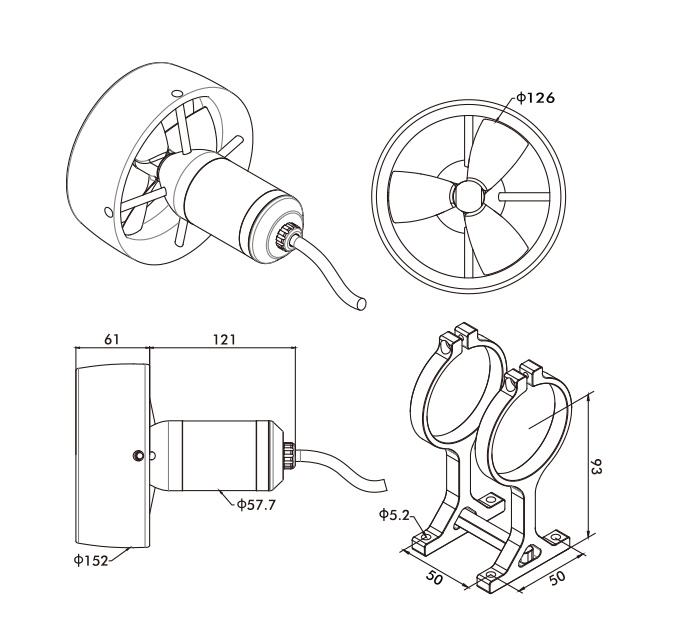

• Dimensions: ?152 × 191 mm

• Weight (in air): 1630 g

• Maximum Static Thrust: 20 kgf

• Continuous Rated Power: 910 W

• Operating Depth: 0–350 m

• Cable specification: TPU (Matte) ?p9mm-3*13AWG-1.5M


Product Highlights

• High-Thrust Output: Delivers ?20 kgf static bollard thrust—ideal for propulsion of medium-sized unmanned underwater platforms

• Deep-Dive Capability: Validated for use down to ~350 m, suitable for underwater inspection, maintenance, and survey missions

• High-Strength Housing: Precision-cast aluminum alloy shell offers excellent corrosion resistance and impact durability

• Dual-Seal + Low-Drag Shaft Seal: Advanced sealing architecture effectively blocks sand, dust, and water ingress, significantly extending service life and operational reliability

• Streamlined Nozzle Design: Optimized hydrodynamic profile reduces underwater drag, improves thrust efficiency, and lowers electrical load on the power system

Packaging Contents

• DW20 Underwater Thruster ×1

• Certificate of Conformance ×1

Related Accessories

• Underwater ESC: TW-80A-12S
