CubeMars DW15 Unterwasser-Thruster 48V – 15 kgf Schub, 350m Tauchtiefe
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 2 Wochen
- Artikel-Nr.: PM-7332
- Hersteller: CubeMars
- Artikelname: DW15
- EAN: 4250902366858
Description
The CubeMars DW15 underwater thruster is a high-performance propulsion system designed specifically for deep-diving remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs).
Rated at 48V, it delivers a maximum static thrust of ≥15 kgf and is engineered to operate reliably in underwater environments down to approximately 350 meters. The thruster features a precision-cast aluminum alloy housing, a dual-chamber independent sealing structure, and a low-friction dynamic shaft seal.
Specifications
| Rated Power | 750W |
| Rated Voltage | 48V |
| Maximum Mooring Thrust | ≥15kgf |
| Applicable Water Depth | 0-350M |
| Material of the Nozzle | POM |
| Material of the Propeller | Aluminum alloy |
| Material of the Shell | Aluminum alloy |
| Propeller Specifications | φ106mm |
| Motor Rotor Pole Number | 28P |
| Main Shaft Sealing Method | Low-resistance dynamic seal |
| Main Body Structure | Two-stage sealing chamber |
| Cable Specifications | TPU (Glossy) φ8mm-3*16AWG-1.5M |
| Driver | External |
| Weight | 1300g (in air) / 735g (in water) |
| Dimensions | Φ130.6 × 174.5mm |
| Environmental Conditions | 0-50°C (Storage) / 0-40°C (Operating) |
| Recommended ESC | TW-40A-12S |
| Applications | USV, Electric Surfboard, ROV, etc. |

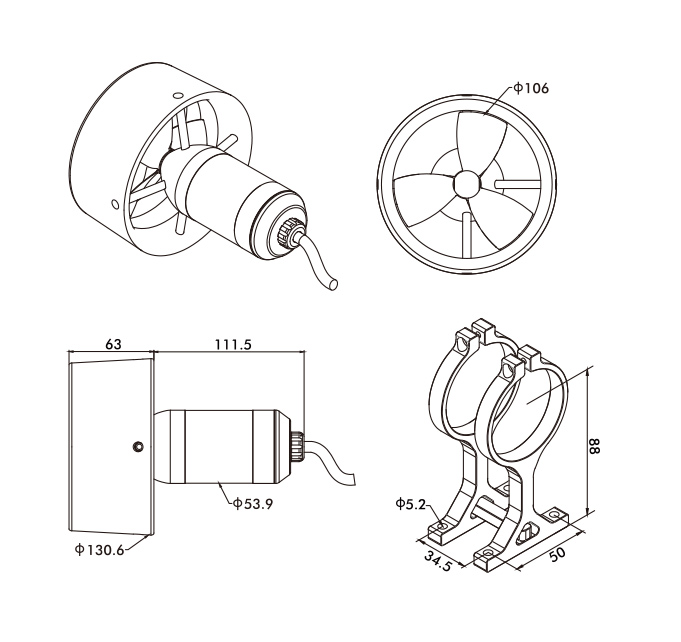

Dimensions

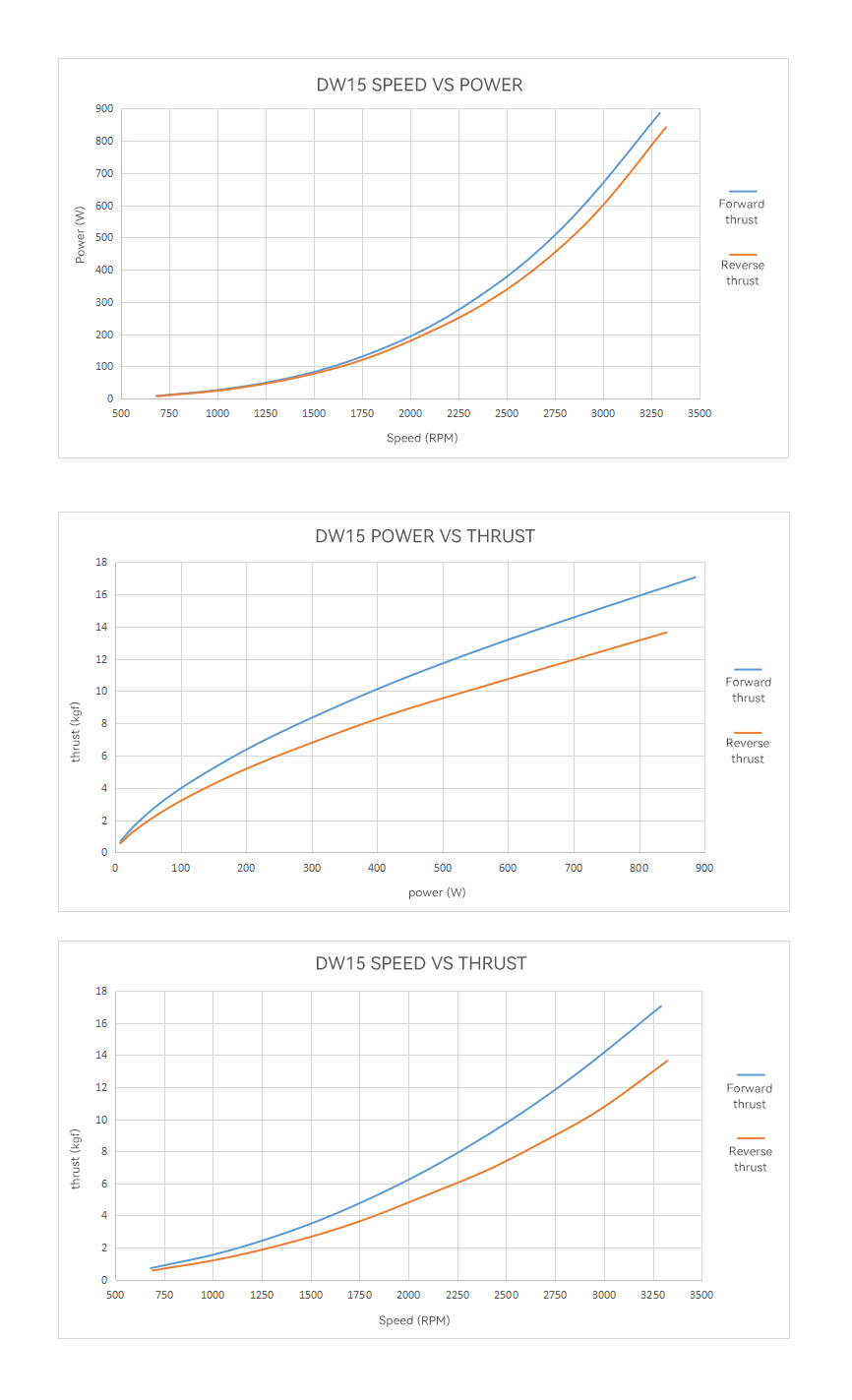

Analysis Chart
