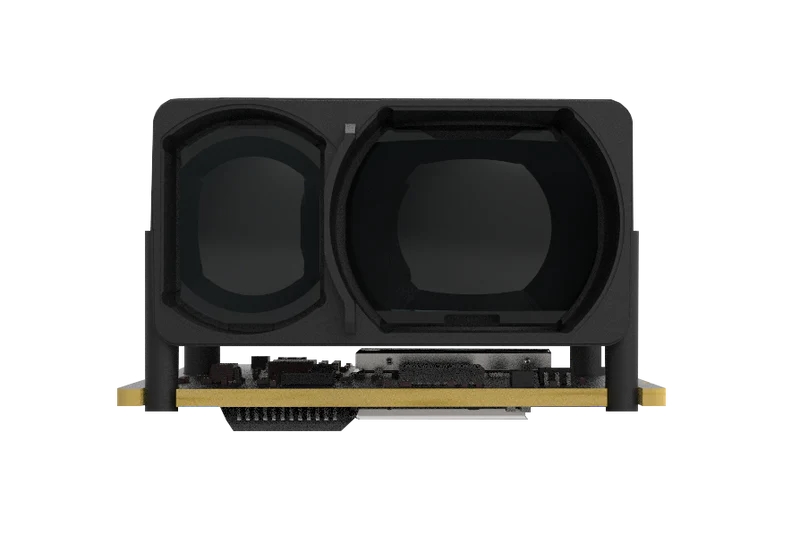

Benewake - TFA170-L - Lidar

293,90 € * 299,90 € * (2% gespart)

inkl. MwSt. zzgl. Versandkosten

 Versandkostenfreie Lieferung
     innerhalb Deutschlands

Lieferzeit ca. 3-4 Wochen.

  • PM-7107
  • Benewake
  • TFA170-L
  • 4250902364632
TFA170-L is an Industrial-Grade long-range LiDAR based on the pulsed time of flight principle... mehr
Produktinformationen "Benewake - TFA170-L - Lidar"

TFA170-L is an Industrial-Grade long-range LiDAR based on the pulsed time of flight principle and it is designed for the Long-range single-point up to 170m with a unique design of the optical system and the signal processing circuit it offers improved detection performance in a compact size.  It Optimizes various compensation algorithms, with unique optics, electricity, and algorithms to achieve stability, precision, sensitivity, and high-speed distance measurement. It can work under a strong light environment and rain, fog, and snow conditions. Widely used in terrain-following of drones, the collision avoidance of cars, intelligent transportation, and industrial safety warnings.

The sensor can output up to 1000 readings per second. It can detect points up to 170m with an accuracy of 1% and has a narrow FoV of 0.5°.

It operates on 12V and can connect to a microcontroller, PLC, and computer through a UART interface. Please go through the development manual under the Technical Details Tab for the detailed commands and responses by the sensor.


Features:

  • Operating Voltage: 12V DC
  • Communication: RS232(suitable for up to 2m cables. Use the  model with CAN/other output for longer distances)
  • Long-range detection up to 170M
  • Has a higher Accuracy of up to 1cm resolution
  • Multi-output interface compatibility, suitable to be used in many applications
  • Small in volume and easy to integrate
  • High frame rate of 1000Hz (up to 1000 readings every second)
  • Excellent noise and light immunity and can be used outdoors and in industrial environments
  • A narrow FoV of 0.5° suitable for point detection
  • Low power consumption


Specification:

  • Product: Distance Sensor
  • Brand: Benewake
  • Model: TFA170-L
  • Frame Rate:50Hz
  • Distance Range:0.1-170m
  • Field of View (fov):0.5°
  • Operating Temperature:-20℃~ 60 ℃
  • Communication Interface: RS232
  • Supply voltage:12V


Package contains:

  • 1x Benewake TFA170-L LIDAR Distance Sensor 170m RS232
