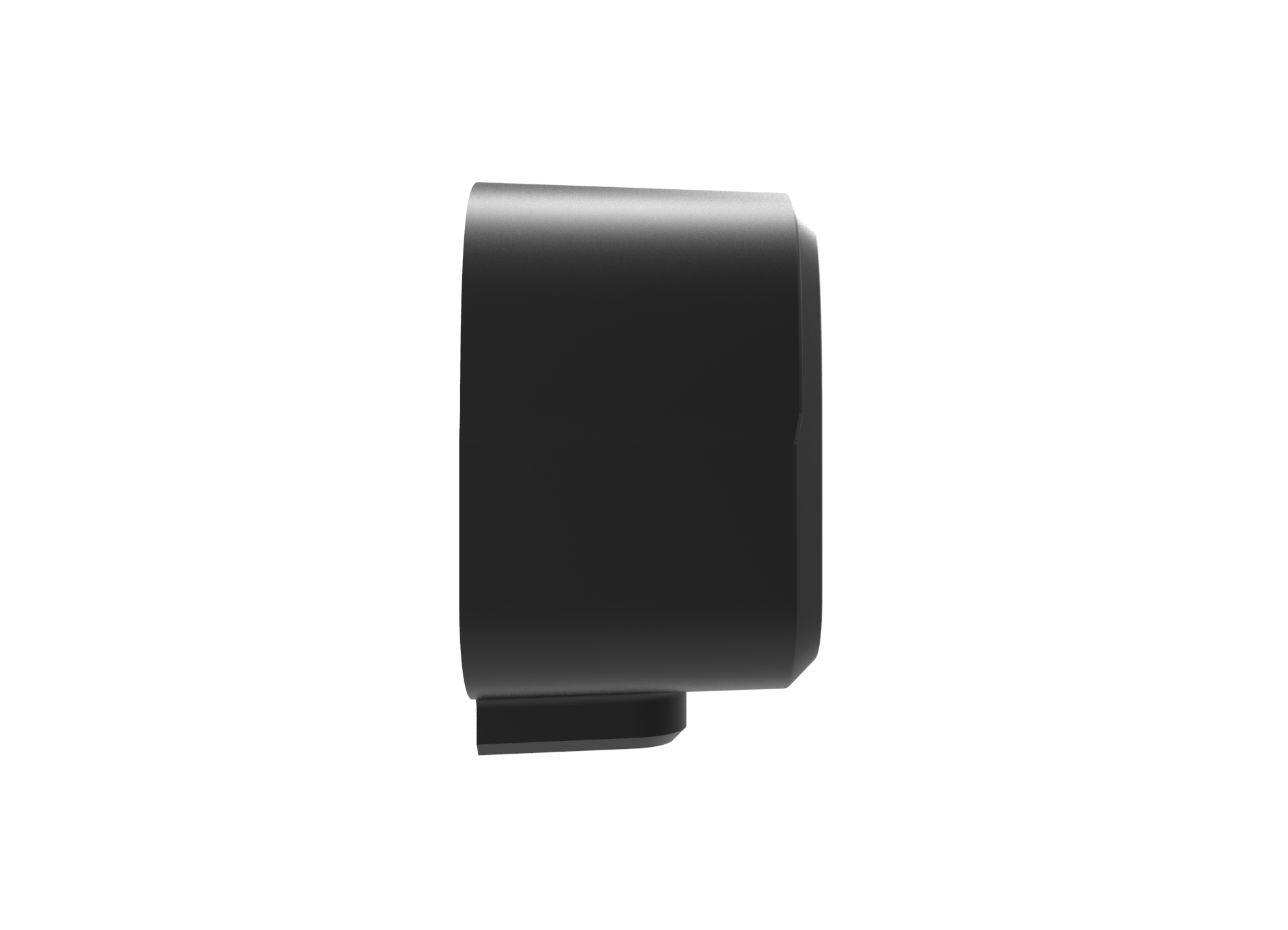

Benewake - TF Nova Lidar

The Benewake TF-NOVA is a compact, solid-state LiDAR sensor designed for precise area detection. It features a unique line pattern laser beam with a horizontal field of view of 14° and a vertical field of view of 1°, enabling the detection of areas of approximately 25×1.7 cm at a distance of 1 meter. With a measurement range of 0.1 to 7 meters and an adjustable frame rate between 1 Hz and 500 Hz, the TF-NOVA offers accurate and responsive performance.

Its small dimensions (26.5×21.05×12 mm) and low weight (less than 5 grams) facilitate its integration into various systems. The sensor supports multiple interfaces, including UART, I²C and I/O, and is equipped with a waterproof lens, making it suitable for both indoor and outdoor applications. Its robust design enables reliable detection of objects with low reflectivity, such as black vehicles, even in strong ambient lighting.

Specification:

• Product Category - Distance Sensor Modules
• Dimensions - 26.5mm x 21.05mm x 12mm
• Interface type - 12C, UART
• Maximum operating temperature - +70V
• Minimum operating temperature - -25C
• Operating supply voltage - 5V
• Product - Sensors
• Sensing distance - 7m
• Type - Laser Beam LiDAR

Package contains:

• 1x TF Nova
