Vorschau: T-Motor VTOL Brushless Motor VL8020 170kv - 735g 12S

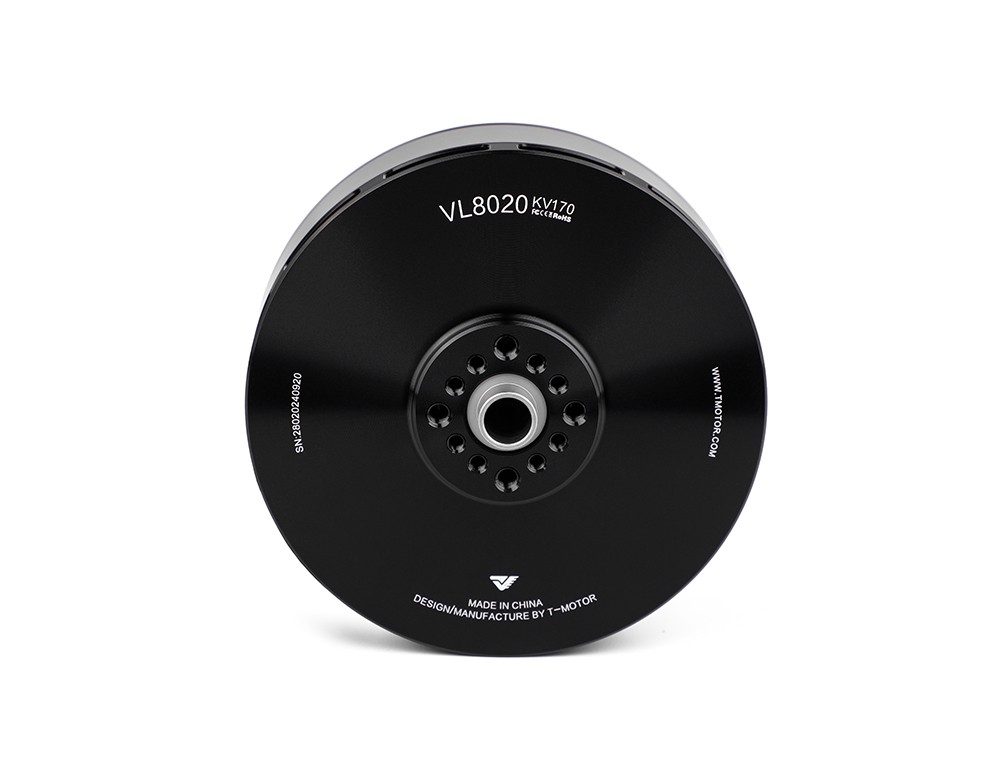

T-Motor VTOL Brushless Motor VL8020 170kv - 735g 12S

399,90 € * 409,90 € * (2,44% gespart)

inkl. MwSt. zzgl. Versandkosten

Versandkostenfreie Lieferung
innerhalb Deutschlands

Lieferzeit ca. 2 Wochen.

Artikel-Nr.: PM-7092
Hersteller: T-Motor
Artikelname: VL8020 -170kv
EAN: 4250902364489

T-Motor VTOL Brushless Motor aus der VL Serie Es handelt sich um den reinen Motor wie in der... mehr

Menü schließen

Produktinformationen "T-Motor VTOL Brushless Motor VL8020 170kv - 735g 12S"

T-Motor VTOL Brushless Motor aus der VL Serie

Es handelt sich um den reinen Motor wie in der Packaging List beschrieben.

Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten:

VL Series
Propulsion System

VL8020 KV170

MOTOR

V150A

ESC

VZ28

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

19.7kg

Max Thrust/Arm

35kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL8020	Magnet Level	180℃
Motor Size	Φ88.8*45.5mm	Lead Cable	Silicone wire13# 1000mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 6901	IP	IPX5
CentrifugalCooling Design	YES	Package Size	15012057mm

Model No.	VL8020	KV (RPM/V)	170
Rated Voltage (LiPo)	12S	Idle Current (15V)	2.4A
Internal Resistance(25℃)	32mΩ	Peak Current	116A
Continuous Power(180s)	1760W	Ambient Temperature	-30℃～55℃
Max. Thrust	19.7kg	Motor Weight(indl. Cable)	735g

ESC specs.
Model No.	V150A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	160A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	70A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -10AWG-150±10mm
Throttle Pos. Range	1040~1940us (fixed)	Input Cable	Silicone wire-red/black -10AWG-200±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-500±10-JP -3P*2-Black blank white -green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	295g

Prop specs.
Model No.	VZ2810.8 inch (711.2274.32mm)	Weight (Single Blade)	80±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL8020 KV170 V150A 14S VZ28*10.8	40%	44.40	3783	1.26	8.87	2357	394	9.61	72 (Ambient Temperature: 25)
	42%	44.37	4186	1.40	10.21	2473	453	9.24
	44%	44.35	4620	1.53	11.71	2589	519	8.89
	46%	44.31	5066	1.67	13.30	2703	589	8.59
	48%	44.28	5498	1.82	14.98	2815	663	8.29
	50%	44.25	5972	1.97	16.84	2924	745	8.01
	52%	44.20	6436	2.12	18.78	3032	830	7.75
	54%	44.16	6923	2.28	20.88	3139	922	7.51
	56%	44.12	7426	2.44	23.13	3245	1021	7.28
	58%	44.07	7938	2.60	25.52	3348	1124	7.06
	60%	44.02	8469	2.78	28.14	3454	1239	6.84
	62%	43.96	9016	2.96	30.89	3555	1358	6.64
	64%	43.89	9552	3.13	33.73	3652	1481	6.45
	66%	43.84	10092	3.30	36.77	3748	1612	6.26
	68%	43.76	10627	3.48	39.91	3842	1746	6.09
	70%	43.69	11158	3.65	43.15	3932	1885	5.92
	80%	43.28	13892	4.56	61.99	4361	2683	5.18
	90%	42.71	16422	5.39	84.09	4715	3592	4.57
	100%	42.11	18321	6.02	109.61	4964	4616	3.97
VL8020 KV170 V150A 14S VZ28*10.8	40%	49.88	4756	1.57	10.82	2629	540	8.81	72 (Ambient Temperature: 25)
	42%	49.85	5243	1.73	12.43	2755	620	8.46
	44%	49.82	5750	1.90	14.18	2879	706	8.14
	46%	49.78	6282	2.07	16.08	3003	800	7.85
	48%	49.75	6823	2.24	18.14	3123	902	7.56
	50%	49.71	7386	2.43	20.37	3242	1012	7.30
	52%	49.67	7984	2.62	22.81	3358	1133	7.05
	54%	49.61	8579	2.81	25.37	3473	1258	6.82
	56%	49.56	9189	3.01	28.14	3586	1395	6.59
	58%	49.50	9791	3.21	31.00	3696	1535	6.38
	60%	49.44	10431	3.42	34.19	3807	1690	6.17
	62%	49.37	11059	3.62	37.43	3913	1848	5.98
	64%	49.30	11680	3.83	40.87	4014	2015	5.80
	66%	49.23	12307	4.03	44.43	4114	2187	5.63
	68%	49.15	12916	4.23	48.11	4210	2365	5.46
	70%	49.08	13528	4.43	51.97	4304	2550	5.30
	80%	48.61	16375	5.38	73.08	4712	3553	4.61
	90%	48.10	18594	6.11	95.83	4994	4610	4.03
	100%	47.64	19679	6.48	115.38	5122	5496	3.58
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL8020 3D Diagram

User Manual

TM_UAVCAN_V2 Communication Protocol

VL8020 Propulsion System Specifications.pdf

TM-Link.exe Host Computer
