Vorschau: T-Motor VTOL Brushless Motor VL6011 180kv - 300g 12S

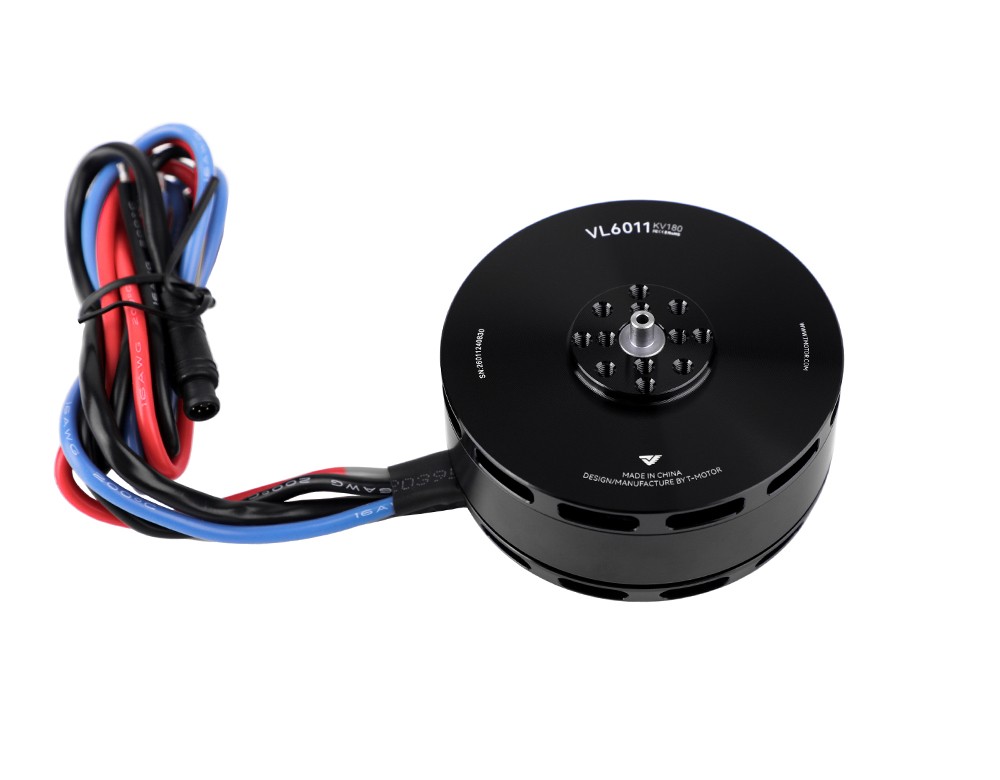

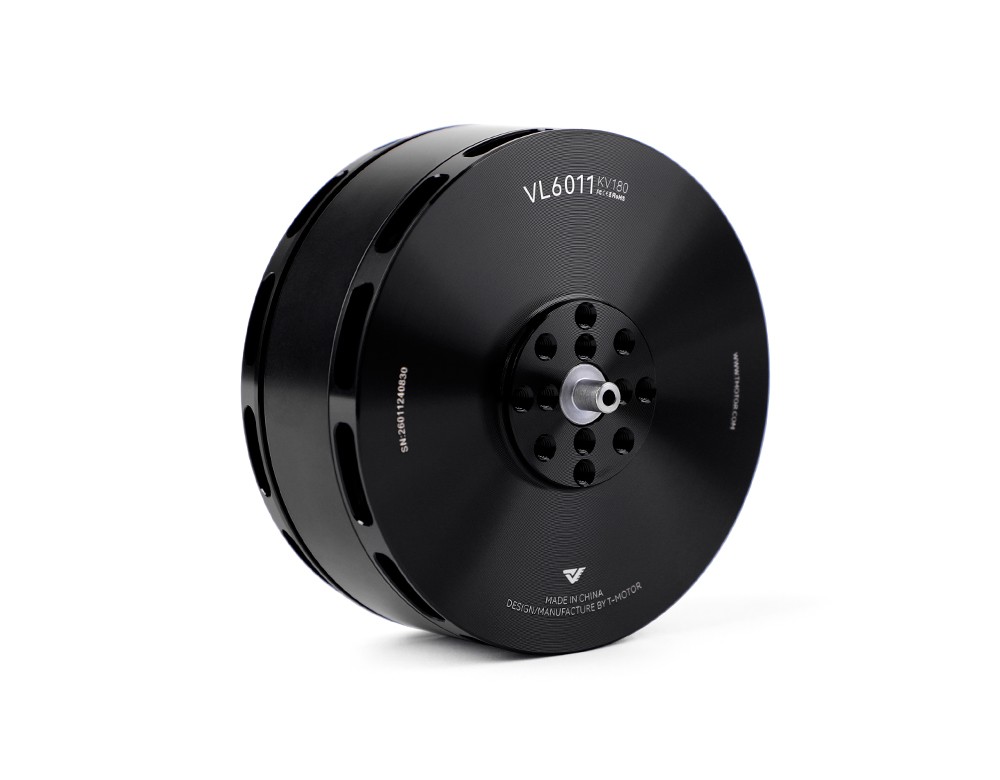

T-Motor VTOL Brushless Motor VL6011 180kv - 300g 12S

167,90 € * 175,90 € * (4,55% gespart)

inkl. MwSt. zzgl. Versandkosten

Versandkostenfreie Lieferung
innerhalb Deutschlands

Lieferzeit ca. 2 Wochen

Artikel-Nr.: PM-7087
Hersteller: T-Motor
Artikelname: VL6011-180kv
EAN: 4250902364434

T-Motor VTOL Brushless Motor aus der VL Serie Es handelt sich um den reinen Motor wie in der... mehr

Menü schließen

Produktinformationen "T-Motor VTOL Brushless Motor VL6011 180kv - 300g 12S"

T-Motor VTOL Brushless Motor aus der VL Serie

Es handelt sich um den reinen Motor wie in der Packaging List beschrieben.

Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten:

VL Series
Propulsion System

VL6011 KV180

MOTOR

V60A

ESC

P22

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

10.5kg

Max Thrust/Arm

15~18kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL6011	Magnet Level	180℃
Motor Size	Φ67.2*38.4mm	Lead Cable	Silicone wire16# 600mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 6 OUT: 4	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 696	IP	IPX5
CentrifugalCooling Design	YES	Package Size	12610351mm

Model No.	VL6011	KV (RPM/V)	180
Rated Voltage (LiPo)	12S	Idle Current (15V)	1.1A
Internal Resistance(25℃)	80mΩ	Peak Current	55A
Continuous Power(180s)	2450W	Ambient Temperature	-30℃～55℃
Max. Thrust	10.1kg	Motor Weight(indl. Cable)	300g

ESC specs.
Model No.	V60A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	60A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	30A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-300±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -16AWG-60±10mm
Throttle Pos. Range	1100-1940us (fixed)	Input Cable	Silicone wire-red/black -14AWG-160±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-300±10mm -JP-3P*2-Black blank white-green yellow gray
Throttle Response Speed	300ms	Weight (Incl. cables)	85g

Prop specs.
Model No.	P226.6 inch (558.8167.6mm)	Weight (Single Blade)	45±2g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL6011 KV180 V60A 14S P22*6.6	40%	44.41	1461	0.36	3.03	2738	135	10.84	51 (Ambient Temperature: 25)
	42%	44.40	1618	0.40	3.47	2880	154	10.49
	44%	44.40	1778	0.43	3.95	3019	175	10.14
	46%	44.39	1952	0.47	4.47	3161	199	9.83
	48%	44.38	2121	0.52	5.04	3298	224	9.48
	50%	44.37	2302	0.56	5.65	3438	251	9.18
	52%	44.36	2497	0.61	6.35	3583	282	8.86
	54%	44.35	2694	0.65	7.07	3718	314	8.59
	56%	44.34	2896	0.70	7.84	3853	348	8.33
	58%	44.33	3128	0.75	8.71	3995	386	8.10
	60%	44.32	3350	0.81	9.63	4133	427	7.85
	62%	44.30	3575	0.86	10.60	4270	470	7.61
	64%	44.29	3816	0.92	11.65	4408	516	7.40
	66%	44.27	4068	0.98	12.81	4550	567	7.17
	68%	44.26	4336	1.04	14.05	4686	622	6.97
	70%	44.24	4595	1.11	15.37	4823	680	6.76
	80%	44.13	6023	1.44	23.16	5497	1022	5.89
	90%	43.97	7800	1.88	34.85	6226	1532	5.09
	100%	43.70	9992	2.42	54.09	7011	2364	4.23
VL6011 KV180 V60A 14S P22*6.6	40%	49.95	1837	0.45	3.69	3062	184	9.98	51 (Ambient Temperature: 25)
	42%	49.94	2034	0.49	4.22	3220	211	9.65
	44%	49.93	2232	0.54	4.83	3377	241	9.26
	46%	49.92	2447	0.59	5.48	3531	274	8.94
	48%	49.91	2670	0.64	6.19	3686	309	8.64
	50%	49.90	2913	0.70	7.00	3846	349	8.34
	52%	49.89	3148	0.76	7.85	4001	392	8.04
	54%	49.88	3402	0.82	8.77	4156	437	7.78
	56%	49.86	3661	0.88	9.75	4310	486	7.53
	58%	49.85	3938	0.94	10.88	4471	542	7.26
	60%	49.83	4221	1.01	12.03	4624	600	7.04
	62%	49.81	4515	1.08	13.32	4782	663	6.81
	64%	49.80	4820	1.15	14.64	4935	729	6.61
	66%	49.77	5134	1.23	16.07	5090	800	6.42
	68%	49.75	5474	1.30	17.70	5248	880	6.22
	70%	49.73	5802	1.39	19.33	5402	961	6.04
	80%	49.58	7617	1.83	29.96	6185	1485	5.13
	90%	49.44	9072	2.19	39.96	6714	1976	4.59
	100%	49.33	10150	2.46	48.59	7045	2397	4.19
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

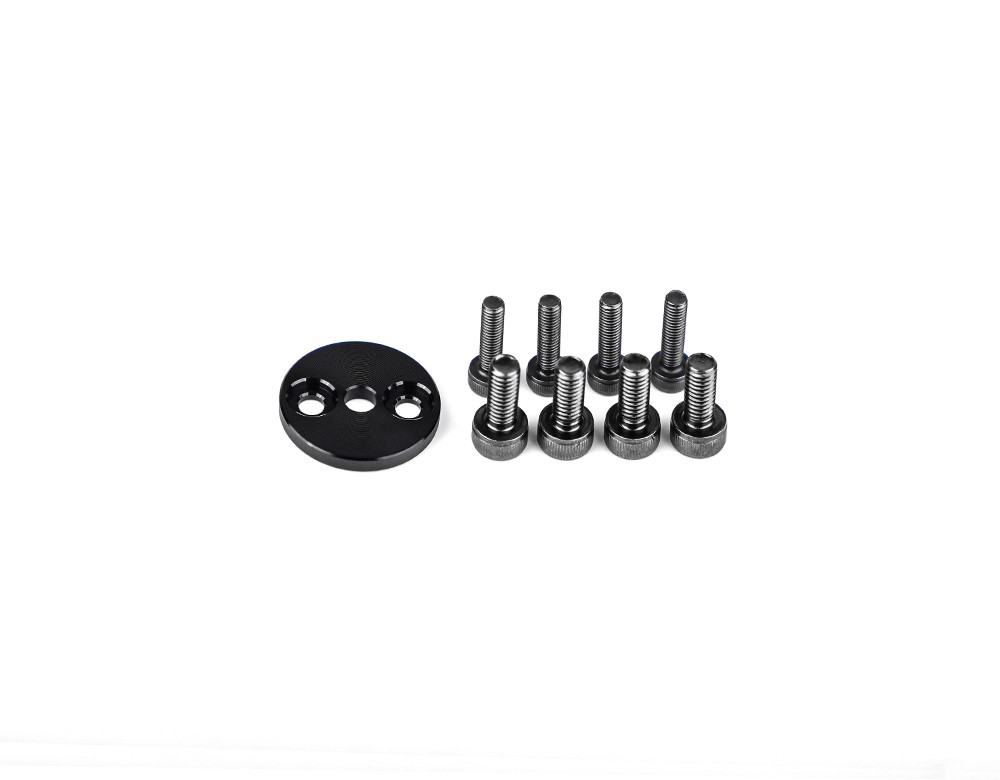

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL6011 3D Diagram

User Manual

TM_UAVCAN_V2 Communication Protocol

VL6011 Propulsion System Specifications.pdf

TM-Link.exe Host Computer
