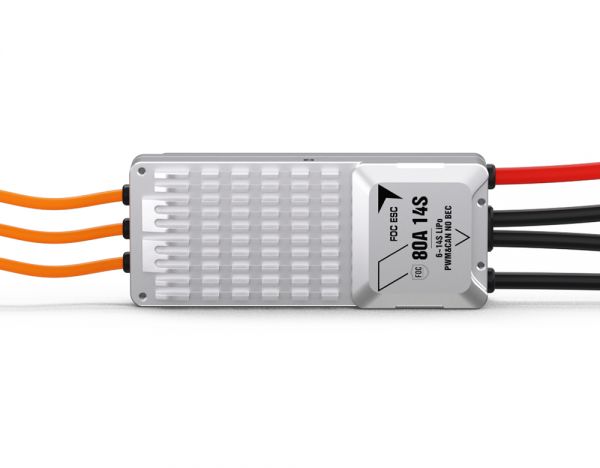

T-Motor V-Series - FOC HV Brushless ESC 6S-14S - V80A
179,90 € *
189,90 € * (5,27% gespart)
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 2 Wochen
- Artikel-Nr.: PM-7082
- Hersteller: T-Motor
- Artikelname: V80A-14S
- EAN: 4250902364380
Specifications
Model No. V80A 14S
Size 84*35*19mm (L*W*H)
Weight... mehr
Produktinformationen "T-Motor V-Series - FOC HV Brushless ESC 6S-14S - V80A"
Specifications
| Model No. | V80A 14S |
| Size | 84*35*19mm (L*W*H) |
| Weight (Incl. Cables) | 110g |
| Support Voltage | 18~60V (6~14S) |
| Continuous Current | 40A |
| Peak Current (<10s) | 80A |
| Protocol | PWM/CAN |
| BEC | NO |
| Throttle Pos. Range | 1040~1940 |
| Throttle Refresh Frequency | 50~500Hz |
| Throttle Response Speed | 300ms |
| Standby Consumption | ≤50mA@48V |
| Input Cable | Silicone Wire-Red/Black-12AWG-180mm |
| Output Cable | Silicone Wire-Orange-14AWG-110mm |
| Signal Cable | Shielded Cables-Black-OD4.2-5C-450mm-JP-3P*2-Black Blank White-Green Yellow Gray |
| Encoder Cables | Shielded Cables-Black-24AWG-5C-450mm-M6 Aviation Connector |
Recommended Motor/Prop Combinations
| Motor | Voltage | Propeller | Prop Locking |
| VL6013 KV210 | 12S | P22 | YES |
| VL7015 KV165 | 12S | G28 | YES |
| VL7015 KV190 | 12S | P24 | YES |
| VL8015 KV170 | 12S | G26 | YES |
| MN8017 KV120 | 12S | G30 | |
| MN8017 KV120 | 12S | FA30.2 | |
| U11 II KV120 | 12S | G29 | |
| V605 KV210 | 12S | V22&P21 | |
| MN705 KV125 | 12S | G27 | |
| MN705 KV220 | 12S | G22 | |
| MN805 KV150 | 12S | G28 | |
| MN805 KV170 | 12S | G26 | |
| P80 III KV100 | 14S | G32 | |
| P80 III KV100 | 12S | ||
| P80 III KV120 | 14S | G29 | |
| P80 III KV120 | 12S | G30 | |
| V605S KV210 | 12S | G22 | |
| AT4130 KV300 | 6S | G20 | |
| AT5230 KV200 | 12S | G18 | |
| MN801S KV150 | 12S | G26 | |
| P60 KV170 | 12S | G22 | |
| AT4130 KV230 | 12S | 1712 |
Dimensions

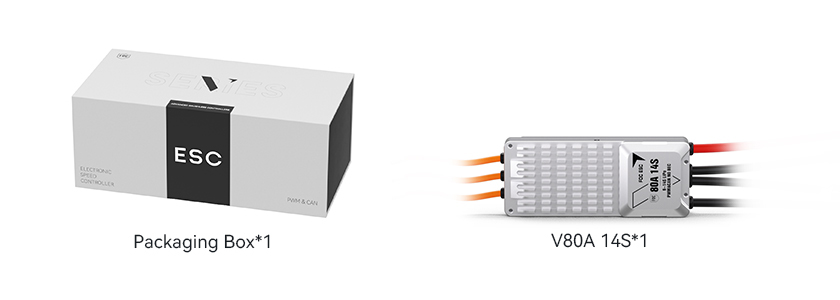

Packing List
Downloads
