T-Motor V-Series - FOC HV Brushless ESC 6S-14S - V60A
155,90 € *
164,90 € * (5,46% gespart)
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 2 Wochen
- Artikel-Nr.: PM-7081
- Hersteller: T-Motor
- Artikelname: V60A-14S
- EAN: 4250902364373
Specifications
Model No. V60A 14S
Size 77*33*19mm (L*W*H)
Weight... mehr
Produktinformationen "T-Motor V-Series - FOC HV Brushless ESC 6S-14S - V60A"
Specifications
| Model No. | V60A 14S |
| Size | 77*33*19mm (L*W*H) |
| Weight (Incl. Cables) | 85g |
| Support Voltage | 18~60V (6~14S) |
| Continuous Current | 30A |
| Peak Current (<10s) | 60A |
| Protocol | PWM/CAN |
| BEC | NO |
| Throttle Pos. Range | 1040~1940 |
| Throttle Refresh Frequency | 50~500Hz |
| Throttle Response Speed | 300ms |
| Standby Consumption | ≤50mA@48V |
| Input Cable | Silicone Wire-Red/Black-14AWG-160mm |
| Output Cable | Silicone Wire-Orange-16AWG-60mm |
| Signal Cable | Shielded Cables-Black-OD4.2-5C-300mm-JP-3P*2-Black Blank White-Green Yellow Gray |
| Encoder Cables | Shielded Cables-Black-24AWG-5C-300mm-M6 Aviation Connector |
Recommended Motor/Prop Combinations
| Motor | Voltage | Propeller | Prop Locking |
| VL5009 KV275 | 12S | VD17 | YES |
| VL6011 KV180 | 12S | P21 | YES |
| VL5005 KV410 | 6S | P18 | YES |
| U8II LITE KV100 | 12S | FA29.2 | |
| MN501S KV240 | 14S | P18 | |
| 12S | P15 | ||
| 6S | G22 | ||
| MN5008 KV340 | 7S | P18 | |
| U7 KV420 | 6S | P17 | |
| U8 II KV100 | 12S | G28 | |
| 12S | G29 | ||
| U10 II KV100 | 12S | G30 | YES |
| MN601 KV320 | 7S | P21 | |
| MN605 KV170 | 12S | G22 | |
| MN805 KV120 | 12S | G30 | |
| U8 II KV190 | 7S | G24 | |
| U8 II KV150 | 8S | G28 | |
| 12S | G22 | ||
| 12S | 14S | ||
| U8 LITE KV150 | 13S | MF24 | |
| 6007 II KV320 | 6S | P18 | |
| MN601S KV170 | 12S | G22 | |
| MN605S KV170 | 12S | ||
| MN705S KV125 | 12S | G27 | |
| MN1005 KV90 | 12S | G32 | |
| 14S | G30 | ||
| MN8012 KV100 | 12S | ||
| MN8012 KV100 | 14S | ||
| U8LITE L KV110 | 12S | ||
| MN505 KV380 | 6S | P18 | |
| V505 KV260 | 12S | P1758 |
Dimensions

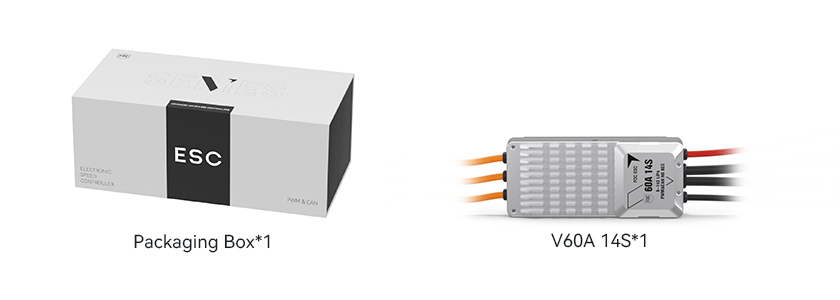

Packing List
Downloads
