Vorschau: T-Motor MF Variable-Pitch Klapp Propeller 1x CW 1x CCW 24 Zoll - MF2412VP

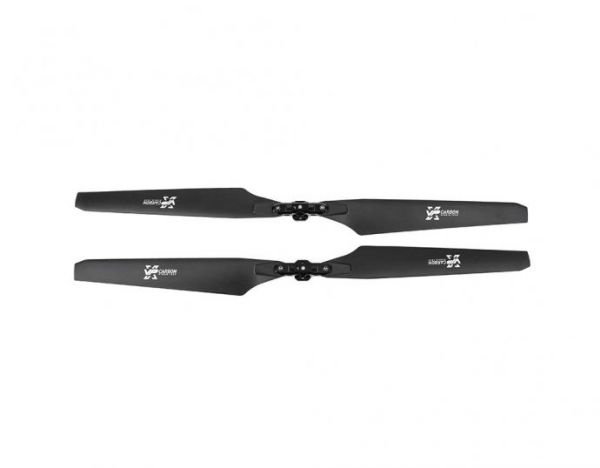

T-Motor MF Variable-Pitch Klapp Propeller 1x CW 1x CCW 24 Zoll - MF2412VP

105,90 € * 109,90 € * (3,64% gespart)

inkl. MwSt. zzgl. Versandkosten

Versandkostenfreie Lieferung
innerhalb Deutschlands

Lieferzeit ca. 2 Wochen.

Artikel-Nr.: PM-7077
Hersteller: T-Motor
Artikelname: MF2412VP
EAN: 4250902364335

MF VP SERIES... mehr

Menü schließen

Produktinformationen "T-Motor MF Variable-Pitch Klapp Propeller 1x CW 1x CCW 24 Zoll - MF2412VP"

MF VP SERIES PROPELLER

Manual Variable-Pitch Series

Simplicity Over Complexity, Consistency in Performance

Specially designed to address the issues of low flight efficiency at high speeds and high altitudes, this series is suitable for aircraft development and professional users requiring rapid switching across multiple scenarios.

Manual Variable-Pitch Series

Flexible and easy-to-use drone propulsion system enhances flight efficiency in various operating conditions.

Typical application scenarios include high-speed flight, high-altitude flight, adjustments for overall aircraft weight, and fine-tuning of custom propeller performance.

Limitations of Traditional Propellers: Fixed pitch and fixed aerodynamic characteristics leading to limited power and flight condition matching.

Drawbacks of the adjustable propellers available from the market: Low adjustment precision, complicated operation, requires large auxiliary tools, and cannot be quickly adjusted on-site.

T-MOTOR (New) manual adjustable variable-pitch series solution: Designed for complex and changing working conditions with diverse power demands, we provide flexible solutions that allow for quick manual pitch adjustment by simply changing the positioning blocks.

Quick Assembly and Disassembly Precise and Reliable

Quick to replace without requiring professional training—easy to learn and use. The pitch adjustment accuracy remains unaffected by manual operation errors with user-friendly operation.

Methodical Approach

Using calculation tables derived from extensive experimental data, users can quickly find the required pitch angle based on the operating scenario and simple parameters.

(7.5°, 10°, and other positioning blocks are available upon request for customization.)

Performance Comparison

The efficiency curve of three positioning blocks (pitches) under different airflow speeds

(Example: MN605 KV170 + FLAME 180A 12S V2.0 + MF2211VP, Flight inclination 30°, S0, S5, S10, S15 respectively represents speed 0m/s, 5m/s, 10m/s, 15m/s, D0, D2.5, D5 respectively represents 0° positioning block, 2.5° positioning block, and 5° positioning block.)

Conclusion: As the positioning block angle (pitch) increases, the efficiency of the propeller improves at higher airflow speeds.

Multi-adaptability

The manual variable pitch propellers can not only support multi-rotor aircraft, but also effectively adapt to the needs of vertical take-off and landing aircraft, providing higher flexibility and performance to meet the requirements of different flight missions.

Multirotor

VTOL

Prototype Propellers Customization

Standard Customization

MOQ 1, with pitch angle customizable to 0.01°.

Assisted Customization

For mass production, engineers assist in determining the angle, and the customized pitch angle can be fixed before leaving the factory.

Technical Drawing


Specification

Model NO.	MF2412VP	T-MOTOR Series	Folding
Weight(Single Blade)	115.8g	Package Weight	337.2g
Diameter	24.4inch(619.76mm)	Package Size	30512748mm
Pitch	8.7inch(220.98mm)	Material	Polymer+CF
RecommendedThrust	2.8~6kg	RecommendedMax Thrust	13kg
Ambient Temp	-40℃～65℃	Storage Temp/Humidity	-10℃～50℃/＜85%

Recommendation
Recommended ESC	FLAME 180A 12S V2.0	Recommended Motor	MN705 KV140/MN701 KV135

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
MN705 KV140 FLAME 180A 12S V2.0 MF2412VP (0°)	10%	48	48	0.01	0.13	374	0	8.00	65 (Motor temperature after 3 minutes of operation) (Ambient Temperature:25℃)
	15%	48	193	0.06	0.34	733	5	11.92
	20%	48	408	0.13	0.69	1077	15	12.24
	25%	48	708	0.22	1.21	1409	32	12.15
	30%	48	1073	0.34	1.91	1717	61	11.68
	35%	48	1555	0.47	3.09	2048	101	10.50
	40%	48	2070	0.63	4.30	2334	154	10.06
	45%	48	2597	0.77	5.63	2614	211	9.63
	50%	48	3364	1.00	8.36	2971	311	8.42
	55%	48	4166	1.21	11.15	3297	418	7.82
	60%	48	4933	1.44	14.29	3586	541	7.24
	65%	48	5704	1.65	17.32	3850	665	6.93
	70%	47	6622	1.92	21.66	4147	834	6.44
	75%	47	7782	2.23	27.69	4493	1049	5.94
	80%	47	8613	2.46	32.23	4783	1232	5.67
	85%	47	9496	2.69	37.31	4960	1397	5.41
	90%	47	10286	2.92	42.31	5167	1580	5.18
	95%	47	10941	3.11	46.51	5333	1737	5.03
	100%	47	10948	3.10	46.76	5334	1732	5.00
MN705 KV140 FLAME 180A 12S V2.0 MF2412VP (+2.5°)	10%	48	47	0.00	0.14	373	0	6.89	82 (Motor temperature after 3 minutes of operation) (Ambient Temperature:25℃)
	15%	48	225	0.06	0.37	728	5	12.56
	20%	48	491	0.15	0.79	1076	17	12.94
	25%	48	852	0.26	1.45	1404	38	12.24
	30%	48	1249	0.40	2.25	1697	71	11.59
	35%	48	1803	0.57	3.52	2007	120	10.69
	40%	48	2395	0.75	5.07	2281	179	9.85
	45%	48	3066	0.95	6.88	2550	254	9.30
	50%	48	3953	1.23	10.05	2894	373	8.24
	55%	48	4881	1.53	13.92	3217	515	7.35
	60%	48	5761	1.81	17.62	3484	660	6.87
	65%	47	6601	2.06	21.46	3727	804	6.48
	70%	47	7640	2.40	26.92	4007	1007	6.00
	75%	47	8900	2.77	34.18	4319	1253	5.52
	80%	47	9734	3.05	39.72	4516	1442	5.22
	85%	47	10600	3.31	45.56	4791	1661	4.97
	90%	47	11438	3.58	51.91	4932	1849	4.72
	95%	47	12130	3.78	57.46	5080	2011	4.54
	100%	47	12140	3.80	57.57	5072	2018	4.54
MN705 KV140 FLAME 180A 12S V2.0 MF2412VP (+5°)	10%	48	53	0.02	0.12	373	1	9.43	72 (Motor temperature after 1 minutes of operation) (Ambient Temperature:25℃)
	15%	48	245	0.09	0.38	724	7	13.42
	20%	48	524	0.19	0.83	1059	21	13.21
	25%	48	905	0.33	1.55	1377	48	12.15
	30%	48	1360	0.49	2.51	1667	86	11.29
	35%	48	1947	0.70	4.00	1966	144	10.15
	40%	48	2565	0.91	5.76	2234	213	9.31
	45%	48	3248	1.15	7.83	2493	300	8.68
	50%	48	4234	1.49	11.78	2828	441	7.53
	55%	48	5191	1.83	15.90	3123	598	6.86
	60%	47	6136	2.15	20.53	3387	763	6.29
	65%	47	7023	2.46	25.03	3615	931	5.92
	70%	47	8120	2.85	31.69	3877	1157	5.43
	75%	47	9156	3.22	38.54	4112	1387	5.06
	80%	47	10208	3.59	46.60	4329	1627	4.68
	85%	47	11148	3.93	54.78	4515	1858	4.37
	90%	46	12032	4.25	63.35	4706	2095	4.10
	95%	46	12725	4.50	71.38	4801	2263	3.87
	100%	46	12676	4.49	71.13	4788	2251	3.87
MN705 KV140 FLAME 180A 12S V2.0 MF2412VP (+7.5°)	10%	48	64	0.03	0.16	371	1	8.12	82 (Motor temperature after 1 minutes of operation) (Ambient Temperature:25℃) (This angle is not recommended for static testing)
	15%	48	273	0.12	0.45	716	9	12.61
	20%	48	602	0.24	0.97	1047	26	12.93
	25%	48	1039	0.41	1.83	1353	58	11.85
	30%	48	1546	0.62	2.97	1636	106	10.86
	35%	48	2168	0.84	4.68	1921	169	9.68
	40%	48	2830	1.10	6.73	2177	251	8.79
	45%	48	3524	1.37	9.09	2428	348	8.11
	50%	48	4553	1.76	13.53	2750	507	7.06
	55%	48	5575	2.16	18.80	3038	687	6.24
	60%	47	6513	2.53	23.65	3275	868	5.81
	65%	47	7467	2.90	29.37	3498	1062	5.38
	70%	47	8512	3.32	37.00	3732	1298	4.89
	75%	47	9532	3.72	44.88	3939	1534	4.54
	80%	47	10395	4.06	52.19	4102	1744	4.28
	85%	46	11264	4.41	65.19	4267	1971	3.74
	90%	46	11594	4.54	82.51	4329	2058	3.07
	95%	45	11728	4.61	92.94	4353	2102	2.78
	100%	45	11554	4.54	91.07	4326	2057	2.79
MN705 KV140 FLAME 180A 12S V2.0 MF2412VP (+10°)	10%	48	63	0.03	0.14	365	1	9.10	104 (Motor temperature after 1 minutes of operation) (Ambient Temperature:25℃) (This angle is not recommended for static testing)
	15%	48	264	0.14	0.46	705	10	11.92
	20%	48	607	0.31	1.09	1030	33	11.63
	25%	48	1078	0.48	2.00	1338	67	11.23
	30%	48	1603	0.69	3.25	1607	116	10.28
	35%	48	2236	0.96	5.17	1889	190	9.04
	40%	48	2905	1.24	7.33	2140	278	8.29
	45%	48	3626	1.55	10.05	2383	387	7.56
	50%	48	4678	1.98	14.96	2695	559	6.57
	55%	47	5693	2.41	20.59	2976	751	5.82
	60%	47	6622	2.82	26.15	3205	947	5.35
	65%	47	7553	3.22	32.36	3416	1152	4.95
	70%	47	8562	3.69	41.32	3635	1405	4.42
	75%	47	9525	4.13	51.50	3828	1655	3.97
	80%	46	10243	4.46	59.70	3966	1852	3.70
	85%	46	10794	4.72	73.01	4073	2013	3.21
	90%	46	10802	4.73	90.81	4074	2018	2.61
	95%	45	10988	4.84	98.19	4115	2086	2.47
	100%	45	10749	4.74	97.09	4077	2024	2.44
MN705 KV140 FLAME 180A 12S V2.0 MF2412VP (-2.5°)	10%	48	32	0.01	0.15	375	0	4.50	53 (Motor temperature after 1 minutes of operation) (Ambient Temperature:25℃)
	15%	48	136	0.05	0.33	741	4	8.50
	20%	48	317	0.10	0.67	1063	11	9.86
	25%	48	565	0.16	1.07	1428	24	11.05
	30%	48	878	0.26	1.64	1751	48	11.18
	35%	48	1262	0.37	2.50	2091	81	10.52
	40%	48	1693	0.48	3.50	2392	120	10.10
	45%	48	2157	0.60	4.68	2681	168	9.62
	50%	48	2815	0.76	6.80	3057	243	8.66
	55%	48	3450	0.92	8.95	3403	328	8.07
	60%	48	4058	1.08	11.07	3701	419	7.68
	65%	48	4680	1.24	13.51	3980	517	7.27
	70%	48	5585	1.46	17.82	4403	673	6.59
	75%	47	6365	1.65	21.20	4706	813	6.33
	80%	47	6993	1.80	24.25	4967	936	6.09
	85%	47	7682	1.95	27.88	5247	1071	5.83
	90%	47	8158	2.08	31.01	5495	1197	5.57
	95%	47	8571	2.15	33.35	5672	1277	5.45
	100%	47	8581	2.16	33.29	5671	1283	5.47
Note:Motortemperatureisthebelltemperatureat80%throttle. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Analysis Chart


Packing List


Note

(1)Please make sure that screws of cover plates are mounted well.

(2)Do not add force onto the propellers,

(3)Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. in this case,

you will need to replace them with good ones.

(4)NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use

the propellers in hostile environments containing H20,S02,N02,Cl2,organosilicon,cyanogroup and

phenol.

(5)Keep the propellers away from the mentioned environments in (4).

(6)For long time storage of over 6 months, please keep it in sealed preservation.
