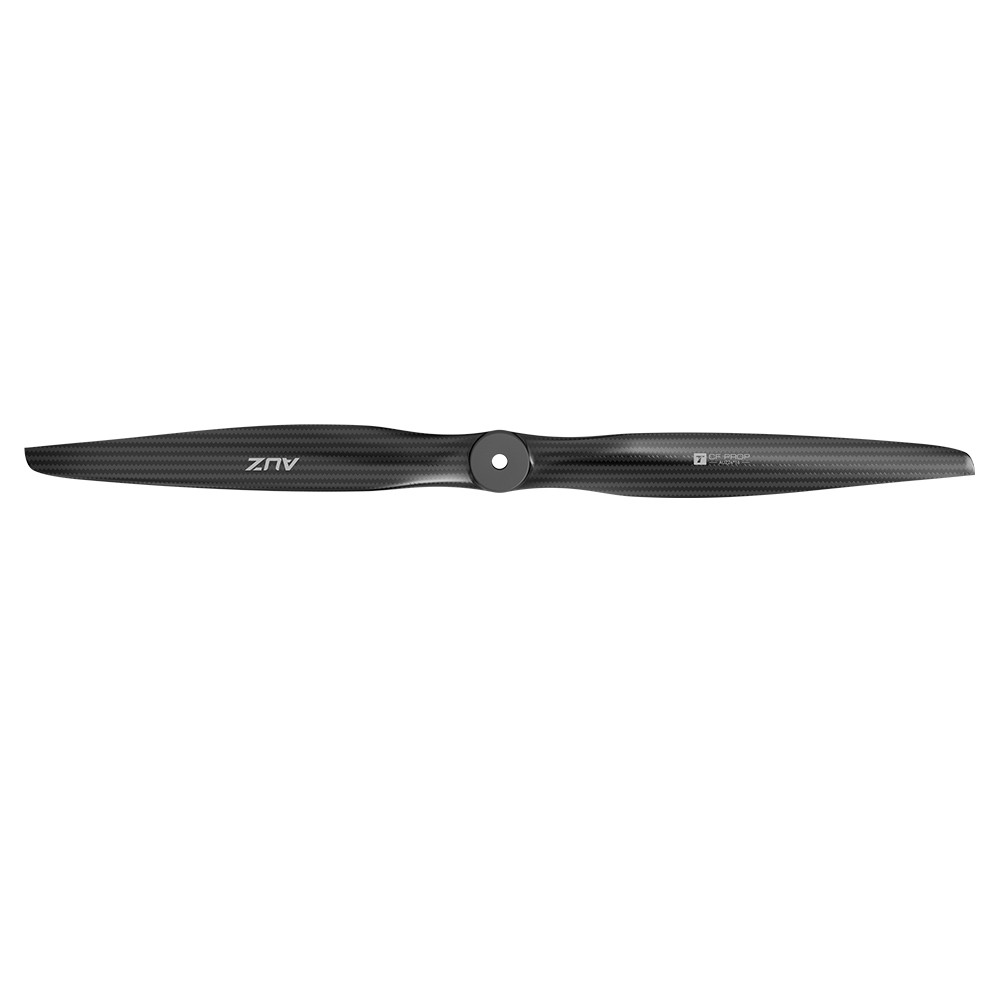

T-Motor AUZ24x16 Carbon Fiber Propeller 24x16 Fixed-Wing 27.2kg Max Thrust 81g
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 3-4 Wochen.
- Artikel-Nr.: PM-7376
- Hersteller: T-Motor
- Artikelname: AUZ24x16
- EAN: 4250902367282
Features
AUZ Series — Electric Fixed-Wing Propellers
Precisely matched with AT motors for both powerful performance and extended endurance. Compatible with all layouts and available in multiple sizes.
High-Efficiency Aerodynamic Design
Airfoils specifically developed for electric fixed-wing UAVs, enhancing aerodynamic efficiency while reducing noise.
Forward Flight Efficiency Optimization
Multiple pitch options across the series, each optimized for a specific speed range. Select based on your flight envelope for high-efficiency output.
Precision Power Matching
Optimized chord length and angle of attack combination + AT motor RPM/torque characteristics = Improved overall power system efficiency.
Rapid Dynamic Response
Optimized center of gravity distribution and reduced rotational inertia enhance acceleration and deceleration response.
Stronger, Stiffer Structure
Prepreg + PMI core + molded one-piece forming process. Optimal balance of lightweight + high stiffness + high strength.

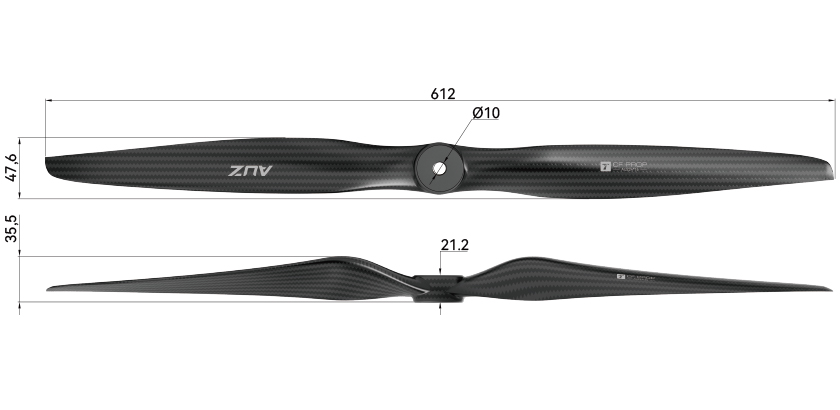

Technical Drawing
Specification
| Diameter (Inch) | 24 (609.6mm) | Material | Resin-based Carbon Fiber Composite + PMI Foam Core |
| Pitch (Inch) | 16 (406.4mm) | Surface Treatment | Matte |
| Avg. Single Blade Weight (g) | 81 | Type | Carbon Fiber Straight Propellers |
| Recommended Max RPM | 7600 | Application | Fixed-Wing UAV Propellers |
| Recommended Max Thrust (kg) | 27.2 | Connections & Dimensions | Ø10mm motor shaft central locking |
| Limit RPM | 8700 | Recommendations | AT7224/AT8020/AT8030+AUZ24*16 |
| Limit Thrust (kg) | 34 |
Test Data
Ambient Temperature: 22°C, Altitude: 25m
| RPM | Torque (N·m) | Thrust (gf) | Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 3800 | 2.37 | 7464 | 944.45 | 7.90 |
| 4150 | 2.86 | 9006 | 1244.22 | 7.24 |
| 4500 | 3.43 | 10607 | 1617.75 | 6.56 |
| 4850 | 4.08 | 12267 | 2073.89 | 5.91 |
| 5200 | 4.81 | 13985 | 2621.45 | 5.33 |
| 5550 | 5.63 | 15761 | 3269.29 | 4.82 |
| 5900 | 6.52 | 17596 | 4026.24 | 4.37 |
| 6250 | 7.49 | 19490 | 4901.14 | 3.98 |
| 6600 | 8.54 | 21442 | 5902.82 | 3.63 |
| 6950 | 9.67 | 23453 | 7040.11 | 3.33 |
| 7300 | 10.89 | 25522 | 8321.87 | 3.07 |
| 7650 | 12.18 | 27650 | 9756.91 | 2.83 |
| 8000 | 13.55 | 29837 | 11354.09 | 2.63 |
| 8350 | 15.01 | 32082 | 13122.23 | 2.44 |
| 8700 | 16.54 | 34385 | 15070.18 | 2.28 |
| Data may vary under different testing standards. Ensure compatibility between propeller mounting holes and motors. | ||||
Packing List
