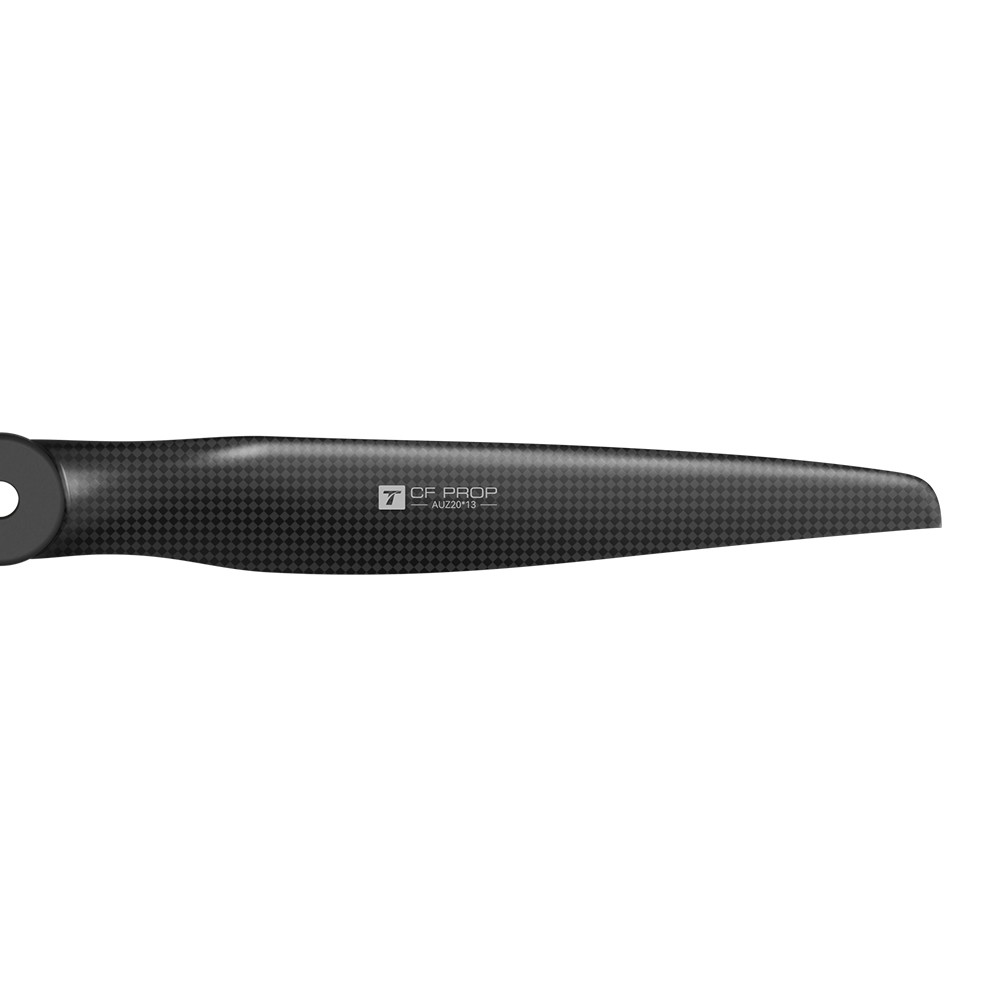

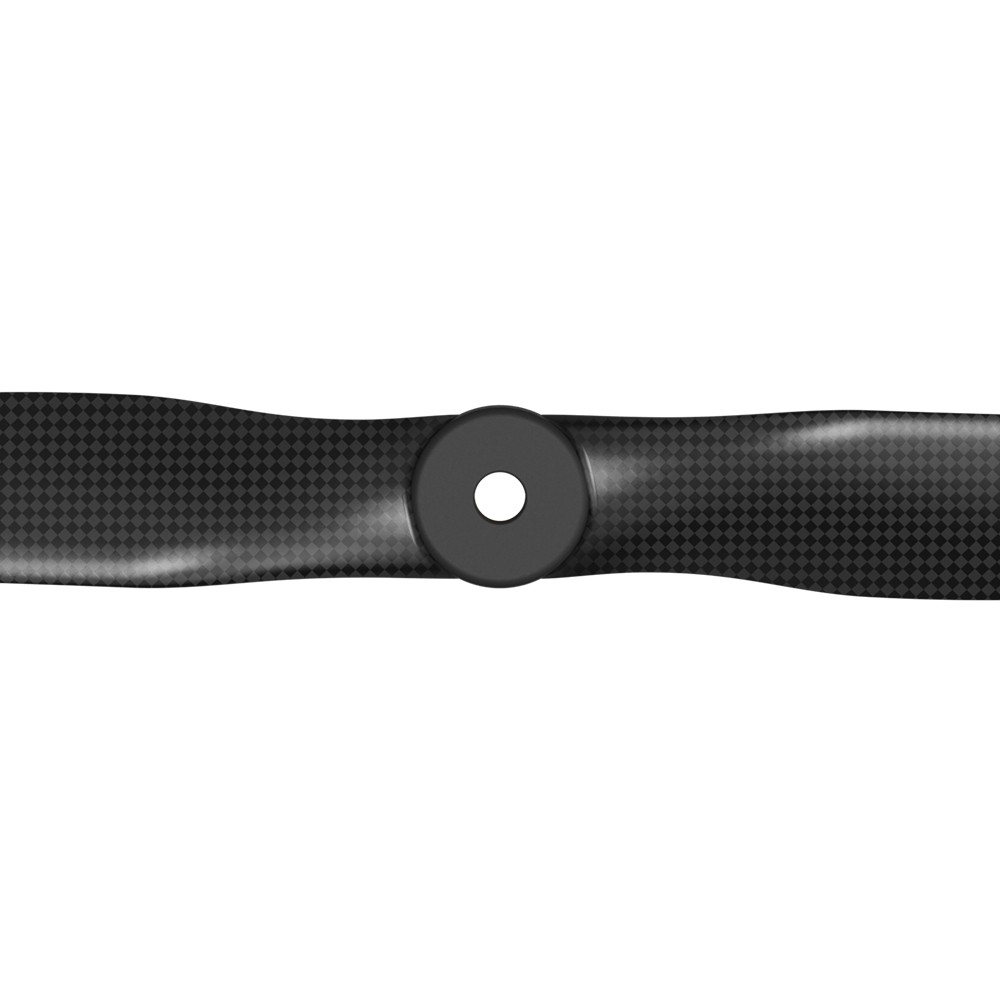

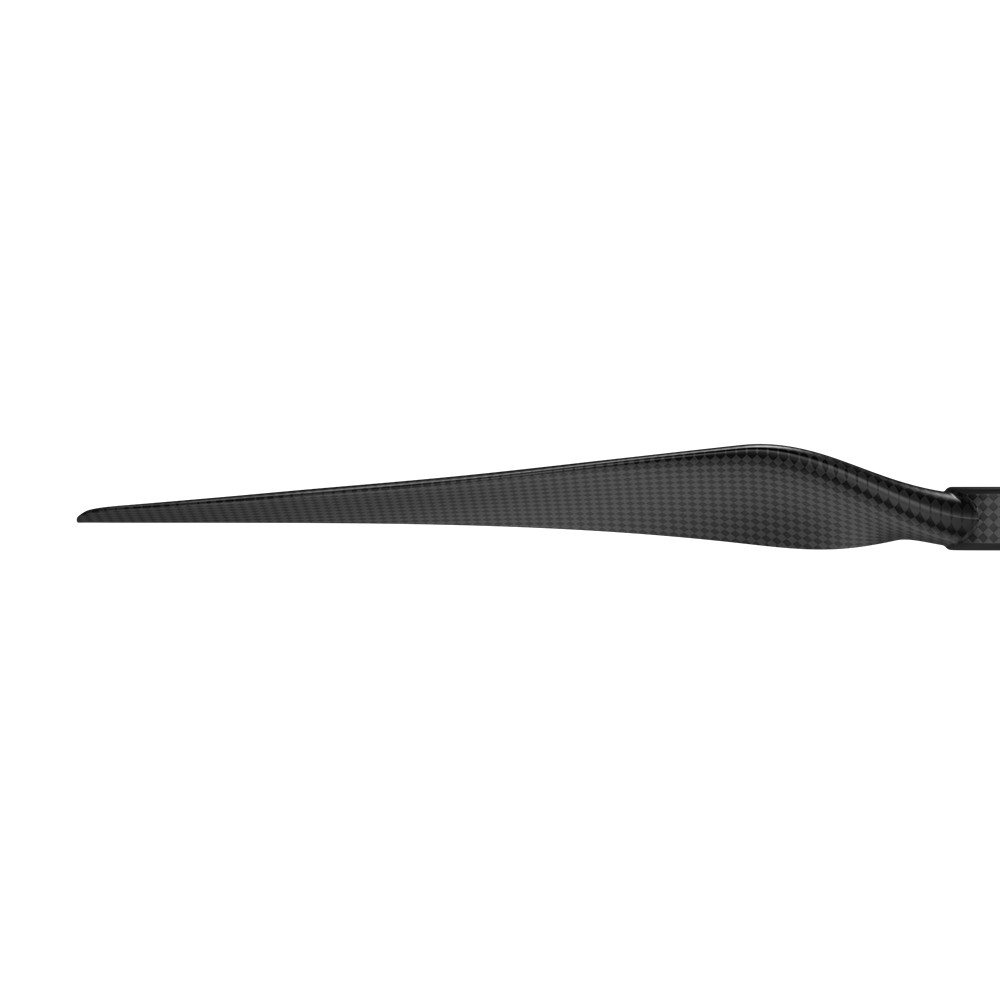

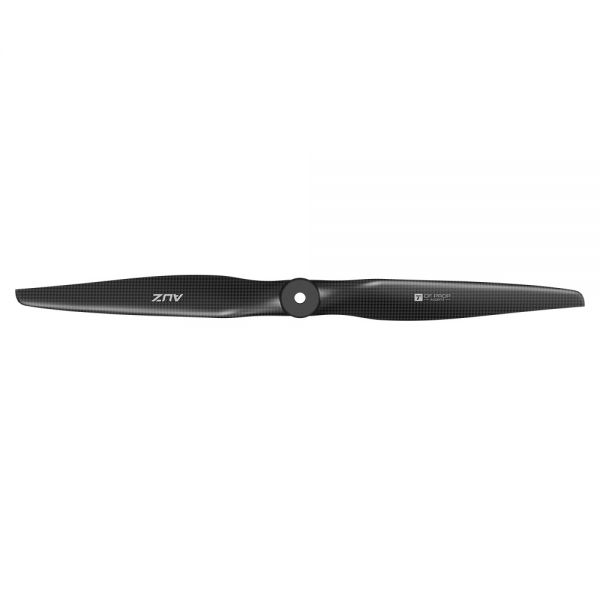

T-Motor AUZ20x13 Carbon Fiber Propeller 20x13 Fixed-Wing 16kg Max Thrust 50g
inkl. MwSt. zzgl. Versandkosten
Versandkostenfreie Lieferung
innerhalb Deutschlands
Lieferzeit ca. 2 Wochen
- Artikel-Nr.: PM-7371
- Hersteller: T-Motor
- Artikelname: AUZ20x13
- EAN: 4250902367237
Features
AUZ Series — Electric Fixed-Wing Propellers
Precisely matched with AT motors for both powerful performance and extended endurance. Compatible with all layouts and available in multiple sizes.
High-Efficiency Aerodynamic Design
Airfoils specifically developed for electric fixed-wing UAVs, enhancing aerodynamic efficiency while reducing noise.
Forward Flight Efficiency Optimization
Multiple pitch options across the series, each optimized for a specific speed range. Select based on your flight envelope for high-efficiency output.
Precision Power Matching
Optimized chord length and angle of attack combination + AT motor RPM/torque characteristics = Improved overall power system efficiency.
Rapid Dynamic Response
Optimized center of gravity distribution and reduced rotational inertia enhance acceleration and deceleration response.
Stronger, Stiffer Structure
Prepreg + PMI core + molded one-piece forming process. Optimal balance of lightweight + high stiffness + high strength.

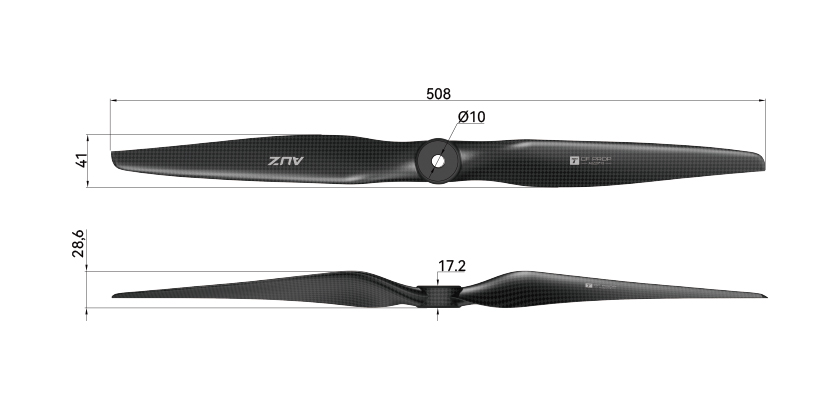

Technical Drawing
Specification
| Diameter (Inch) | 20 (508mm) | Material | Resin-based Carbon Fiber Composite + PMI Foam Core |
| Pitch (Inch) | 13 (330.2mm) | Surface Treatment | Matte |
| Avg. Single Blade Weight (g) | 50 | Type | Carbon Fiber Straight Propellers |
| Recommended Max RPM | 8650 | Application | Fixed-Wing UAV Propellers |
| Recommended Max Thrust (kg) | 16 | Connections & Dimensions | Ø10mm motor shaft central locking |
| Limit RPM | 9500 | Recommendations | AT5230/AT5330/AT7215+AUZ20*13 |
| Limit Thrust (kg) | 20 |
Test Data
Ambient Temperature: 22°C, Altitude: 25m
| RPM | Torque (N·m) | Thrust (gf) | Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 5000 | 1.54 | 5958 | 805.37 | 7.40 |
| 5350 | 1.78 | 6819 | 995.20 | 6.85 |
| 5700 | 2.04 | 7703 | 1219.94 | 6.31 |
| 6050 | 2.34 | 8611 | 1482.80 | 5.81 |
| 6400 | 2.67 | 9542 | 1787.00 | 5.34 |
| 6750 | 3.02 | 10496 | 2135.74 | 4.91 |
| 7100 | 3.41 | 11474 | 2532.24 | 4.53 |
| 7450 | 3.82 | 12476 | 2979.71 | 4.19 |
| 7800 | 4.26 | 13501 | 3481.37 | 3.88 |
| 8150 | 4.73 | 14549 | 4040.43 | 3.60 |
| 8500 | 5.24 | 15621 | 4660.10 | 3.35 |
| 8850 | 5.77 | 16717 | 5343.60 | 3.13 |
| 9200 | 6.33 | 17835 | 6094.14 | 2.93 |
| 9550 | 6.91 | 18978 | 6914.94 | 2.74 |
| 9900 | 7.53 | 20143 | 7809.19 | 2.58 |
| Data may vary under different testing standards. Ensure compatibility between propeller mounting holes and motors. | ||||
Packing List
