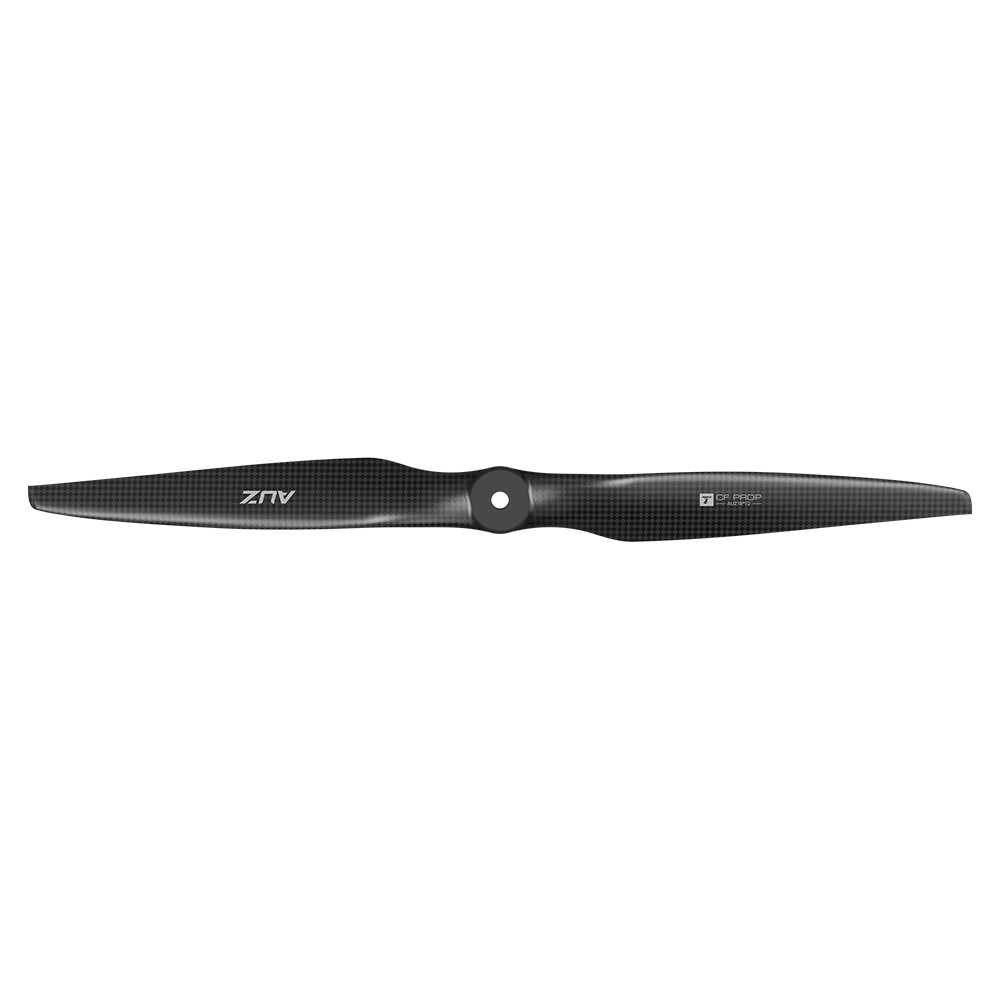

T-Motor AUZ18x10 Carbon Fiber Propeller 18x10 Fixed-Wing 10.4kg Max Thrust 39g
- Artikel-Nr.: PM-7366
- Hersteller: T-Motor
- Artikelname: AUZ18x10
- EAN: 4250902367183
Features
AUZ Series — Electric Fixed-Wing Propellers
Precisely matched with AT motors for both powerful performance and extended endurance. Compatible with all layouts and available in multiple sizes.
High-Efficiency Aerodynamic Design
Airfoils specifically developed for electric fixed-wing UAVs, enhancing aerodynamic efficiency while reducing noise.
Forward Flight Efficiency Optimization
Multiple pitch options across the series, each optimized for a specific speed range. Select based on your flight envelope for high-efficiency output.
Precision Power Matching
Optimized chord length and angle of attack combination + AT motor RPM/torque characteristics = Improved overall power system efficiency.
Rapid Dynamic Response
Optimized center of gravity distribution and reduced rotational inertia enhance acceleration and deceleration response.
Stronger, Stiffer Structure
Prepreg + PMI core + molded one-piece forming process. Optimal balance of lightweight + high stiffness + high strength.

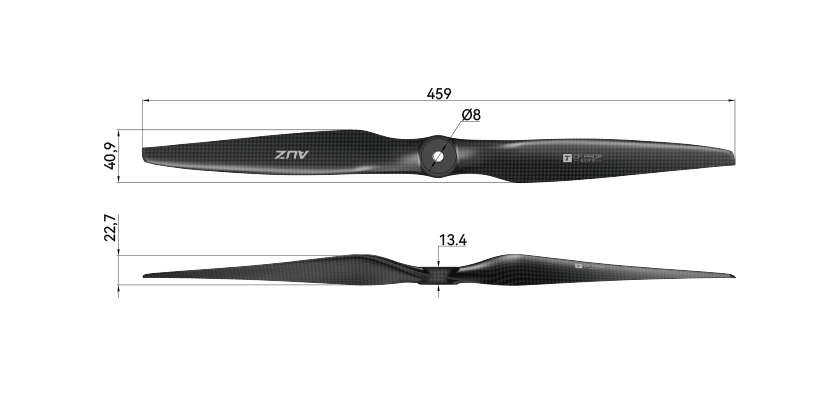

Technical Drawing
Specification
| Diameter (Inch) | 18 (457.2mm) | Material | Resin-based Carbon Fiber Composite + PMI Foam Core |
| Pitch (Inch) | 10 (254mm) | Surface Treatment | Matte |
| Avg. Single Blade Weight (g) | 39 | Type | Carbon Fiber Straight Propellers |
| Recommended Max RPM | 8500 | Application | Fixed-Wing UAV Propellers |
| Recommended Max Thrust (kg) | 10.4 | Connections & Dimensions | Ø8mm motor shaft central locking |
| Limit RPM | 9600 | Recommendations | AT5220/AT5230/AT5330/AT7215+AUZ18*10 |
| Limit Thrust (kg) | 13 |
Test Data
Ambient Temperature: 22°C, Altitude: 25m
| RPM | Torque (N·m) | Thrust (gf) | Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 4700 | 0.83 | 3203 | 410.40 | 7.80 |
| 5050 | 0.97 | 3740 | 511.37 | 7.31 |
| 5400 | 1.12 | 4304 | 632.75 | 6.80 |
| 5750 | 1.29 | 4894 | 776.63 | 6.30 |
| 6100 | 1.48 | 5510 | 945.07 | 5.83 |
| 6450 | 1.69 | 6151 | 1140.15 | 5.39 |
| 6800 | 1.92 | 6818 | 1363.94 | 5.00 |
| 7150 | 2.16 | 7512 | 1618.51 | 4.64 |
| 7500 | 2.43 | 8231 | 1905.94 | 4.32 |
| 7850 | 2.71 | 8976 | 2228.29 | 4.03 |
| 8200 | 3.01 | 9746 | 2587.65 | 3.77 |
| 8550 | 3.34 | 10543 | 2986.07 | 3.53 |
| 8900 | 3.68 | 11366 | 3425.64 | 3.32 |
| 9250 | 4.03 | 12214 | 3908.43 | 3.13 |
| 9600 | 4.41 | 13089 | 4436.51 | 2.95 |
| Data may vary under different testing standards. Ensure compatibility between propeller mounting holes and motors. | ||||
