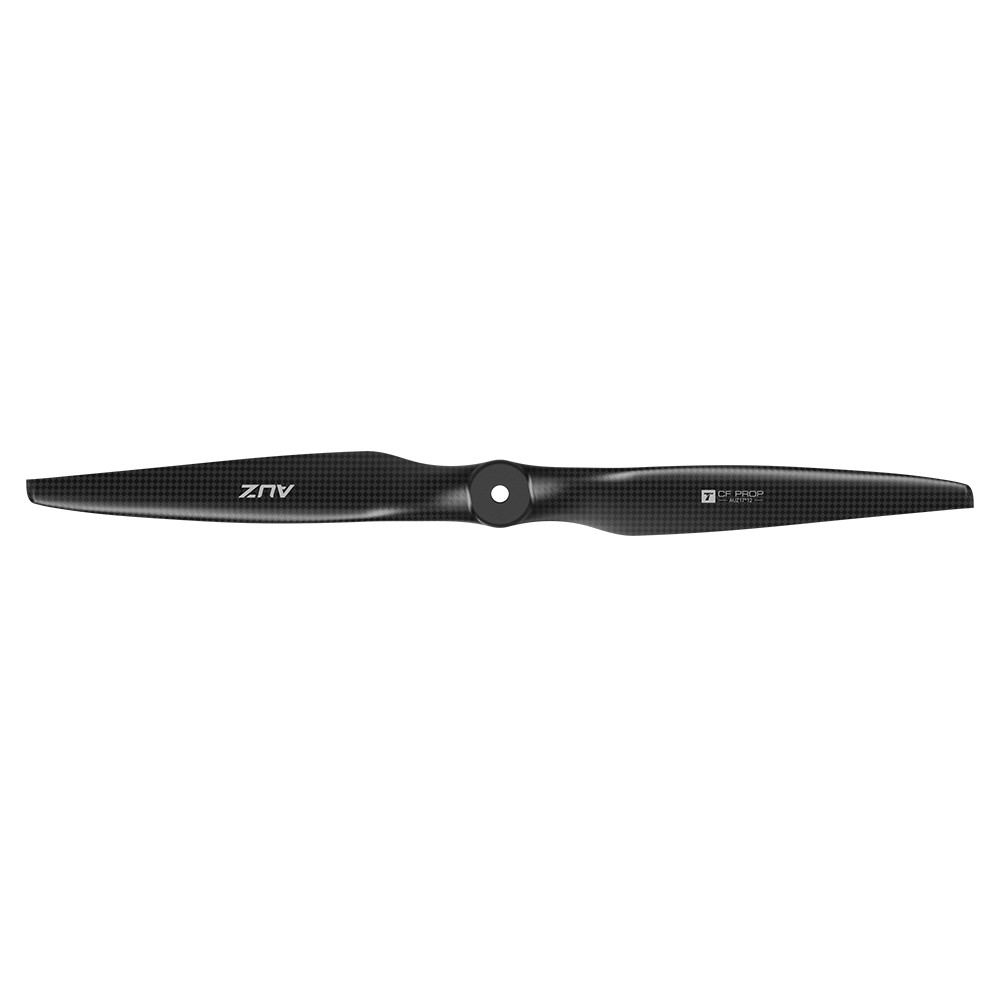

T-Motor AUZ17x12 Carbon Fiber Propeller 17x12 Fixed-Wing 9.6kg Max Thrust 35g
- Artikel-Nr.: PM-7365
- Hersteller: T-Motor
- Artikelname: AUZ17x12
- EAN: 4250902367176
Features
AUZ Series — Electric Fixed-Wing Propellers
Precisely matched with AT motors for both powerful performance and extended endurance. Compatible with all layouts and available in multiple sizes.
High-Efficiency Aerodynamic Design
Airfoils specifically developed for electric fixed-wing UAVs, enhancing aerodynamic efficiency while reducing noise.
Forward Flight Efficiency Optimization
Multiple pitch options across the series, each optimized for a specific speed range. Select based on your flight envelope for high-efficiency output.
Precision Power Matching
Optimized chord length and angle of attack combination + AT motor RPM/torque characteristics = Improved overall power system efficiency.
Rapid Dynamic Response
Optimized center of gravity distribution and reduced rotational inertia enhance acceleration and deceleration response.
Stronger, Stiffer Structure
Prepreg + PMI core + molded one-piece forming process. Optimal balance of lightweight + high stiffness + high strength.

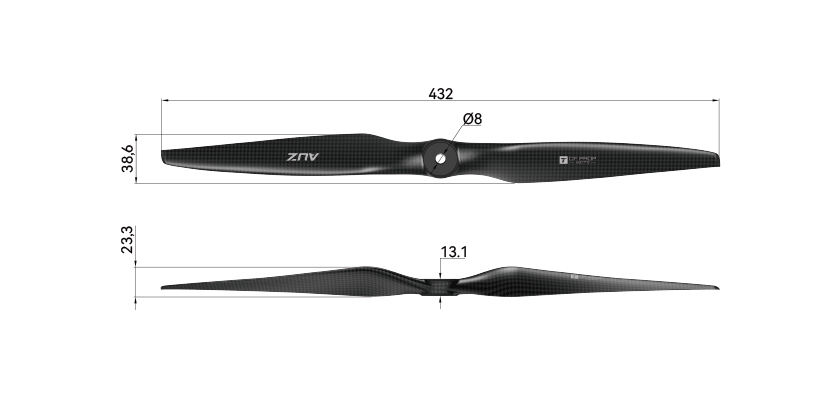

Technical Drawing
Specification
| Diameter (Inch) | 17 (431.8mm) | Material | Resin-based Carbon Fiber Composite + PMI Foam Core |
| Pitch (Inch) | 12 (304.8mm) | Surface Treatment | Matte |
| Avg. Single Blade Weight (g) | 35 | Type | Carbon Fiber Straight Propellers |
| Recommended Max RPM | 9000 | Application | Fixed-Wing UAV Propellers |

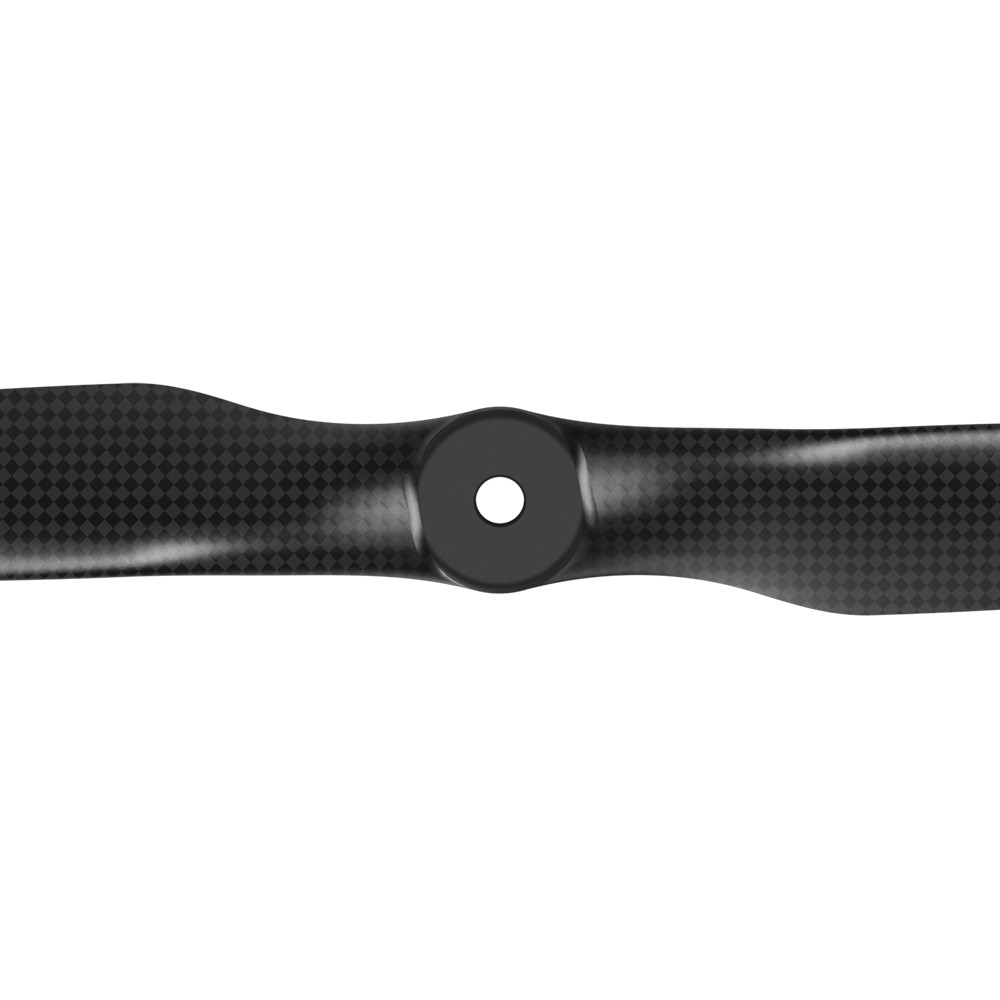

| Recommended Max Thrust (kg) | 9.6 | Connections & Dimensions | Ø8mm motor shaft central locking |
| Limit RPM | 10200 | Recommendations | AT4130+AUZ17*12 |
| Limit Thrust (kg) | 12 |
Test Data
Ambient Temperature: 22°C, Altitude: 25m
| RPM | Torque (N·m) | Thrust (gf) | Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 4600 | 0.67 | 2569 | 322.37 | 7.97 |
| 5000 | 0.79 | 3068 | 411.83 | 7.45 |
| 5400 | 0.93 | 3595 | 523.41 | 6.87 |
| 5800 | 1.09 | 4152 | 659.85 | 6.29 |
| 6200 | 1.27 | 4737 | 823.88 | 5.75 |
| 6600 | 1.47 | 5351 | 1018.23 | 5.25 |
| 7000 | 1.70 | 5993 | 1245.63 | 4.81 |
| 7400 | 1.95 | 6665 | 1508.82 | 4.42 |
| 7800 | 2.22 | 7365 | 1810.53 | 4.07 |
| 8200 | 2.51 | 8094 | 2153.48 | 3.76 |
| 8600 | 2.82 | 8851 | 2540.42 | 3.48 |
| 9000 | 3.16 | 9638 | 2974.08 | 3.24 |
| 9400 | 3.51 | 10453 | 3457.18 | 3.02 |
| 9800 | 3.89 | 11297 | 3992.46 | 2.83 |
| 10200 | 4.29 | 12170 | 4582.65 | 2.66 |
| Data may vary under different testing standards. Ensure compatibility between propeller mounting holes and motors. | ||||
