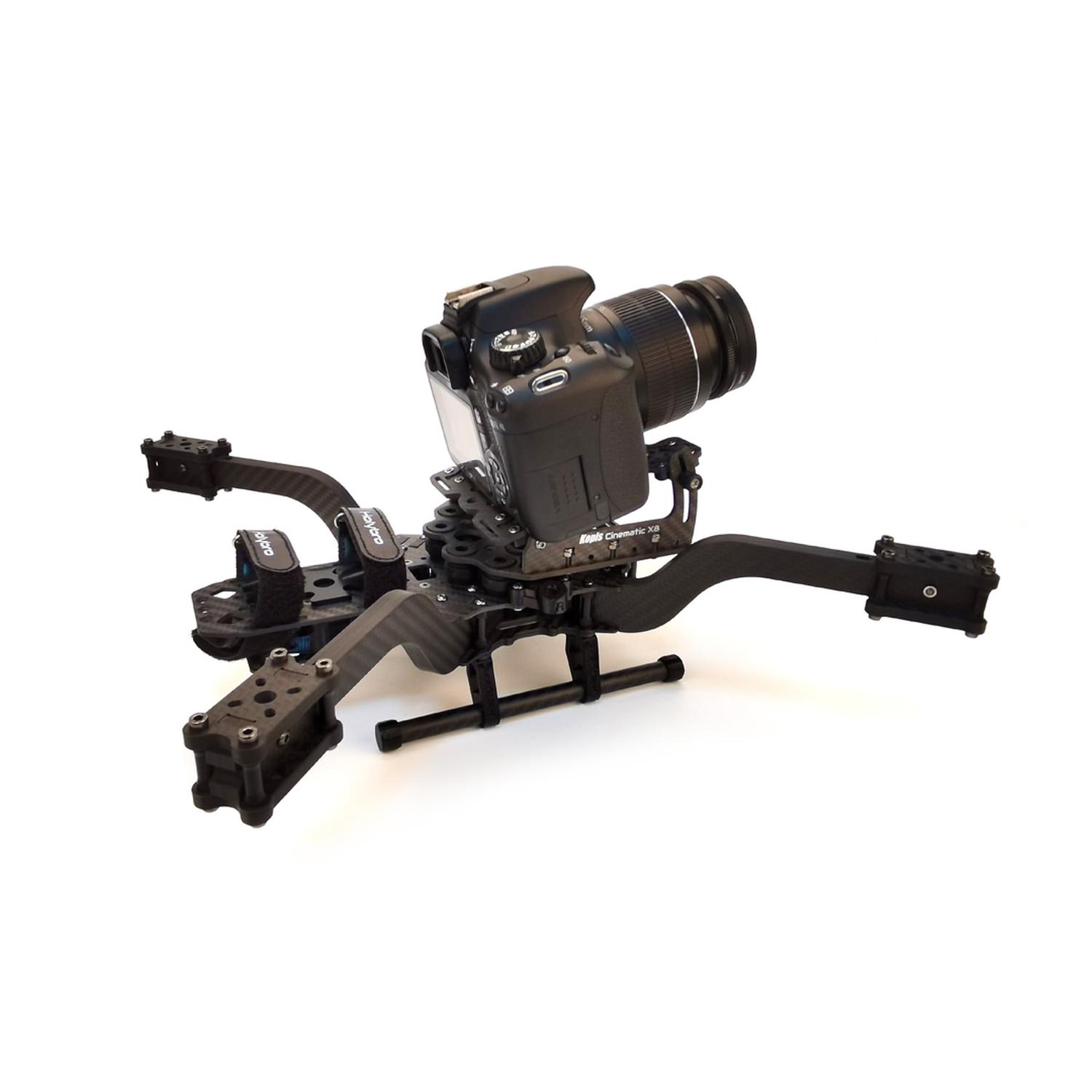

Holybro Kopis Cinematic X8 CFK Carbon Frame Set - 30088

Holybro Kopis Cinematic X8 CFK Carbon Frame Set - 30088

Mini X8 Cinematic FPV Frame von Holybro.

Der Rahmen wir als Bausatz geliefert.

Es handelt sich um den reinen CFK Frame - Es ist keinerlei Elektronik enthalten.

Informationen:

Holybro kopis cinematic X8 is a powerful and heavy-duty model designed for professionals. With a full carbon fiber frame which provides a good shock absorption performance.

Kopis Cinematic X8 offers a perfect platform with adjustable installation angle available from 0 to 25 °.  for both SLR and HD cameras such as Comodo; zcam-e2; Sony a7s3 and Panasonic S5, etc.

With redundant configurations of ESC and motor supported, best performance and security are both ensured. DJI FPV air unit digital VTx system installation seat has been reserved.

Two pieces of 5mm carbon fiber arms provide reliable structural support for this powerful quad.

Features:

• Wheelbase: 396mm

• Arm: 16mm wide x 10mm thick ( with 5mm thick carbon fiber boards overlaid)

• Landing gear: TPU bracket combined with 10 mm carbon fiber tube

• Compatible with DJI AIR UNIT&CADDX Vista HD digital VTx

• Compatible with multiple mounting holes specs : 30.5x30.5mm & 20x20mm

• Professional camera installation supported: Comodo, zcam-e2, Sony a7s3, Panasonic S5

• Camera platform shock absorption structrue with 10 silicone damping balls

• Spacing between top and bottom plates: 22mm

• Camera platform elevation: 0 ~ 25 ° Adjustable

• Propeller size: 7 "

• Frame weight: 640g

Recommended equipments?


Includes?

1x Kopis Cinematic x8 Kit
