inkl. MwSt. zzgl. Versandkosten
Lagerartikel, ca. 1-3 Werktage
Lieferzeit innerhalb Deutschlands
- Artikel-Nr.: PM-5804
- Hersteller: FrSky
- Artikelname: HV5612
- EAN: 4250902357047

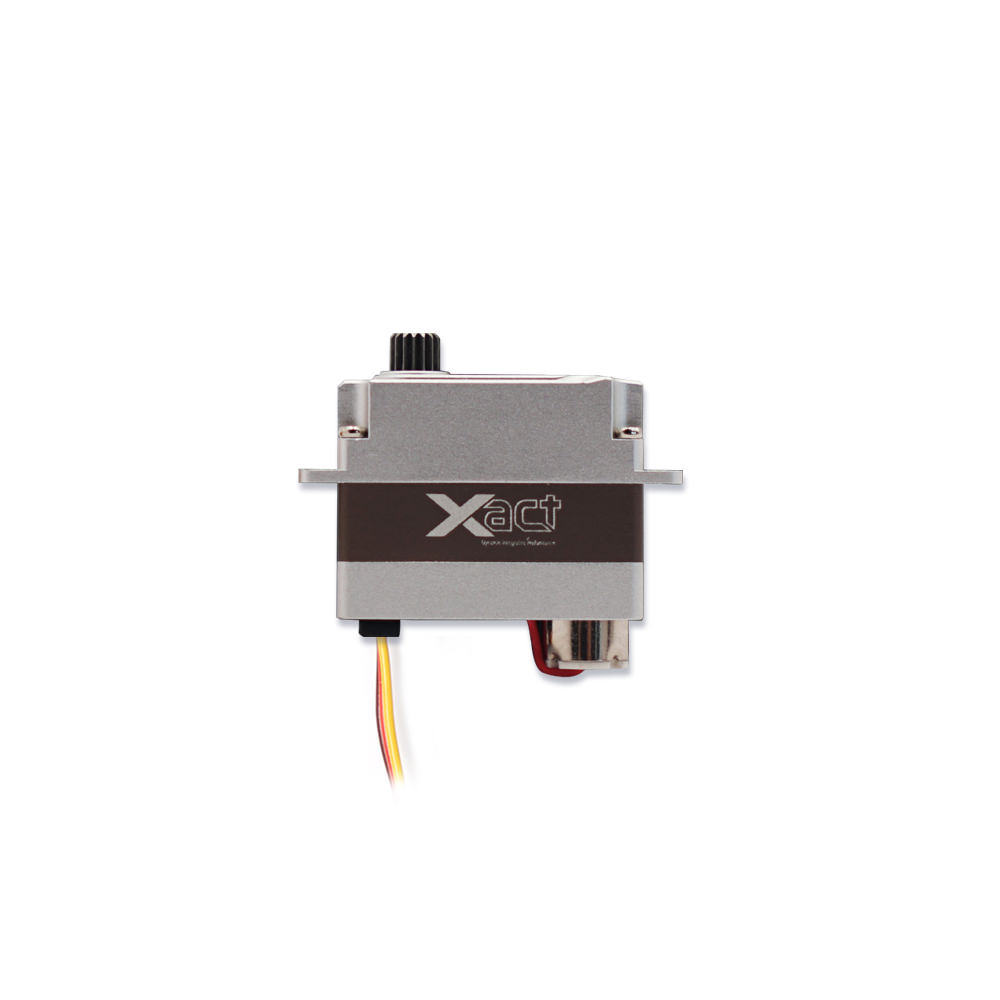

FrSky Xact Flächenservo HV5611 8,4V 4,1kg 0,05sec 9g
Sehr hochwertiges Frsky Servo aus der Xact Reihe.
Bei Verwendung des F.Port 2.0 Protokolls können die Telemetriedaten des Servos (Stromaufnahme, Spannung) an eine Frsky Fernsteuerung übertragen werden.
The Xact series coreless servos utilize all CNC machined aluminum protective case and metal gears, these servos are 3.7 to 8.4V wide voltage capable and offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit for different model types and precision usage.
Working with the F.Port 2.0 protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly on an ACCESS radio through the host device of F.Port 2.0 line, and the configurable servo steering as well as travel degree are additions now can be expected on this series.
Features:
Supports F.Port 2.0, SBUS and PWM protocol
High durability with metal gear and all-aluminum CNC machined protective case
3.7V to 8.4V wide voltage capable operation with good speed performance
Built-in dual precision balls bearing with potentiometer sensor (5612)
Supports over-current and over-hot monitor and alarm
Updatable firmware ensures the performance superior
Compatible with specific IDS (Integrated Drive System) kit (Optional)
Technische Daten:
Torque @ 3.7v – 1.40 kgf.cm / 19.4 Oz-in
Torque @ 4.2v – 1.90 kgf.cm / 26.4 Oz-in
Torque @ 8.4v – 4.1 kgf.cm / 56.9 Oz-in
Speed @ 3.7v – 0.11 sec/60°
Speed @ 4.2v – 0.10 sec/60°
Speed @ 8.4v – 0.05 sec/60°
Dimensions: 19*8*23mm (L*W*H)
Weight: 9.5g
Motor Type: Coreless
Servo Horn Spline: Φ4 15T
Operating Voltage Range: 3.7-8.4V
Max Refresh Rate: 333Hz
