Tarot TL2962 Abwurfvorrichtung Ausklinkvorrichtung 20kg
Prices incl. VAT plus shipping costs
In Stock
Delivery time appr. 1-3 workdays within Germany
- Order number: PM-6404
- Hersteller: Tarot
- Artikelname: TL2962
- EAN: 4250902363048

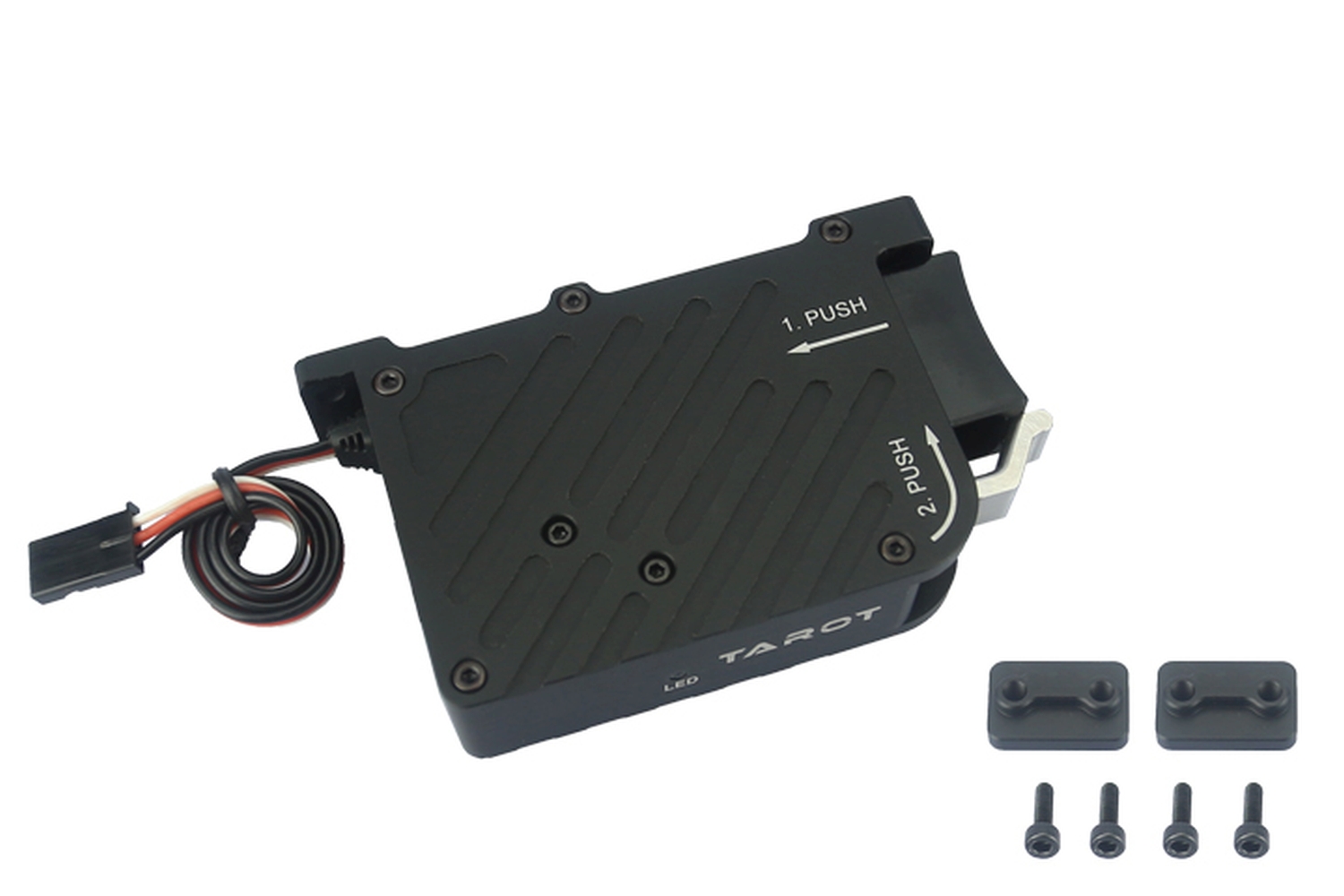

Tarot TL2962 Abwurfvorrichtung Ausklinkvorrichtung 20kg
hochwertige, CNC gefräste Halterung aus 6063 Aluminium und 304 Edelstahl.
Die Vorrichtung ist geeignet um z.B. Produkte abzuwerfen oder eine Leine / Kabel, etc. auszuklinken.
Belastbar: 20kg (Empfehlung)
Product Parameters:
Voltage:5-12V

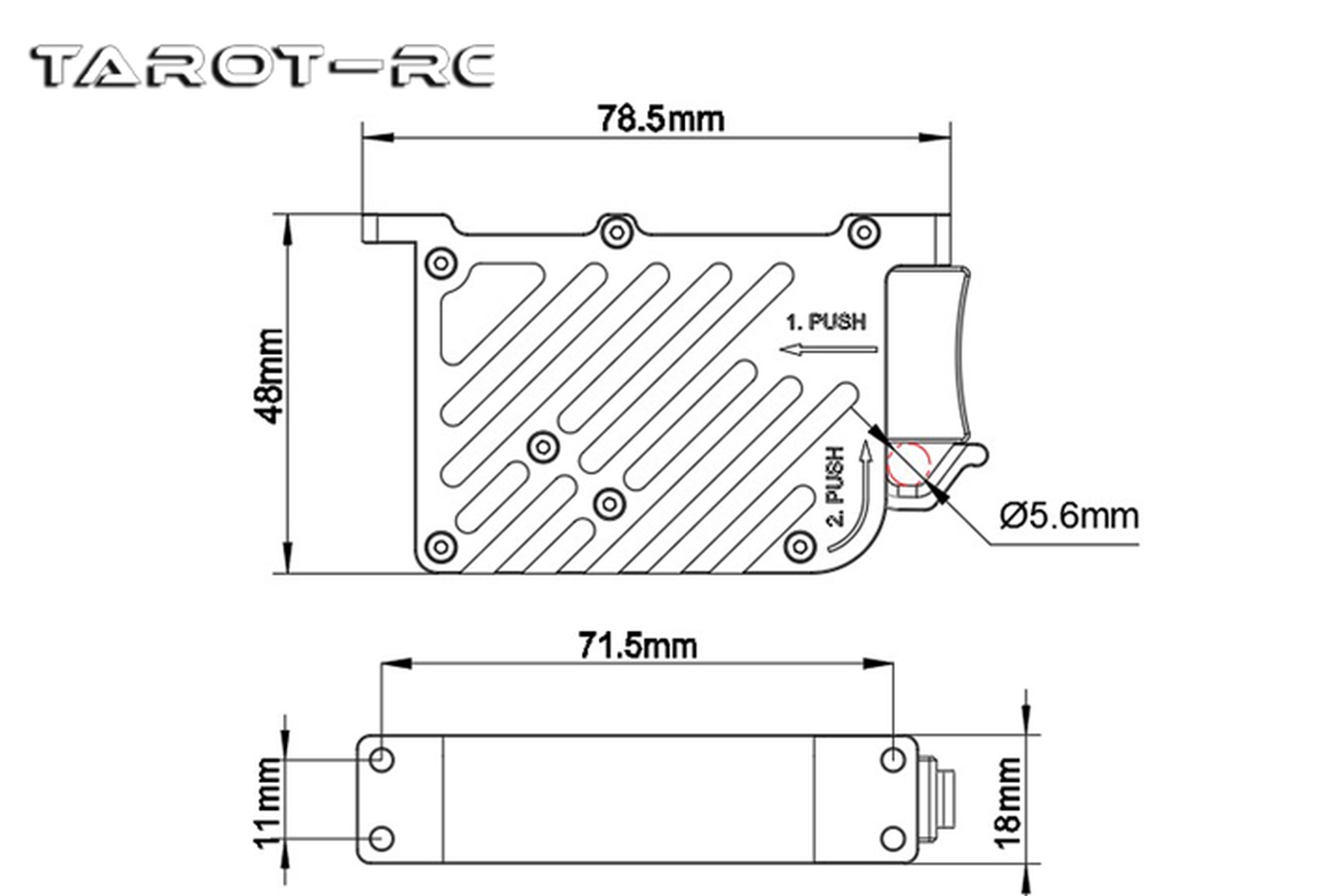

Size:78.5mm*48mm*18mm
Weight:91.5g
Product operating instructions and LED status light description:
Note:This product uses standard PWM remote control servo signal analysis(the following description assumes a 0-100% travel amount as a result of the analysis)
1:When the PWM signal input value remains at 0-59% travel,the red LED is always on/no device action.
2:When the PWM signal input value reaches 60-100% travel,the LED green light flashes once/the device drop switch is turned on once;the LED light stays on green after the drop is over.
3:LED red light flashes(2 times/second)when no PWM signal input is detected by the device.
4:When power-on initialisation,the LED flashes green(2 times/sec)if the detected PWM signal input value is at 60-100% travel,until the PWM signal input value is adjusted to 0-59% travel when the operation of Article 1 is triggered.
