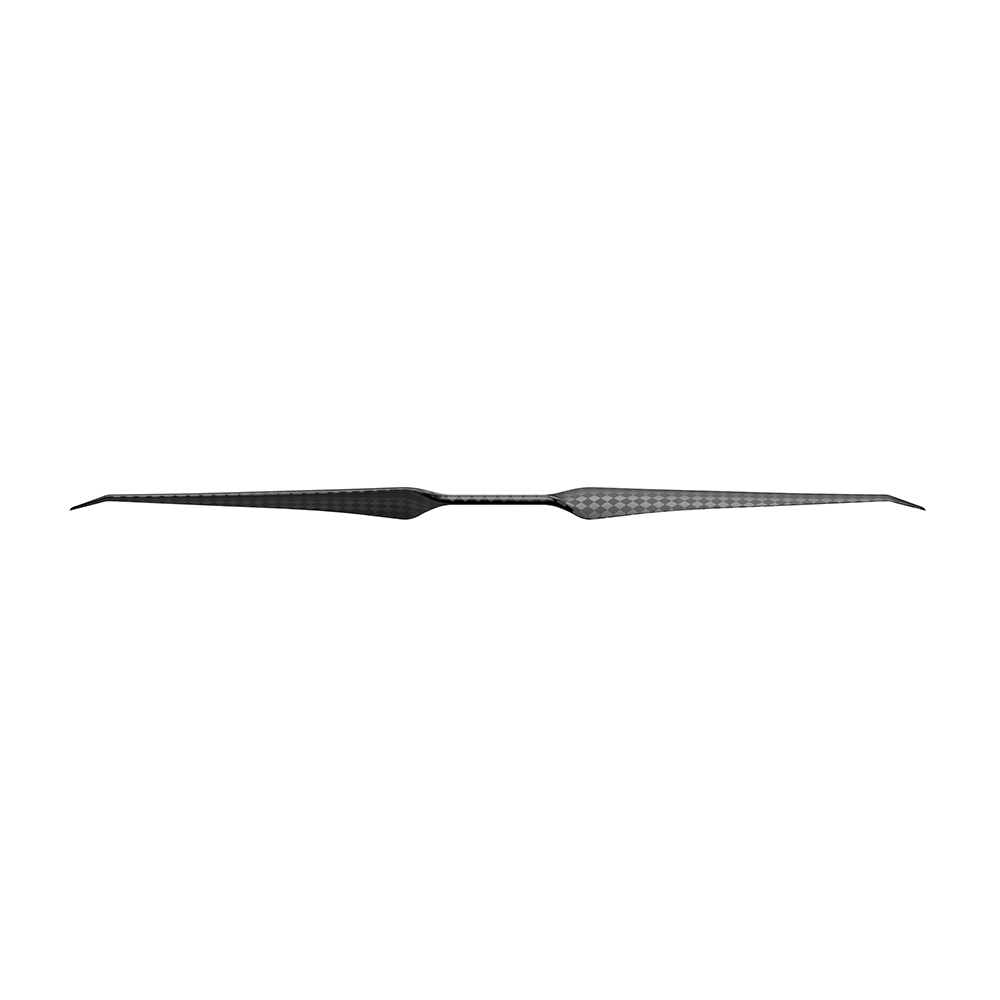

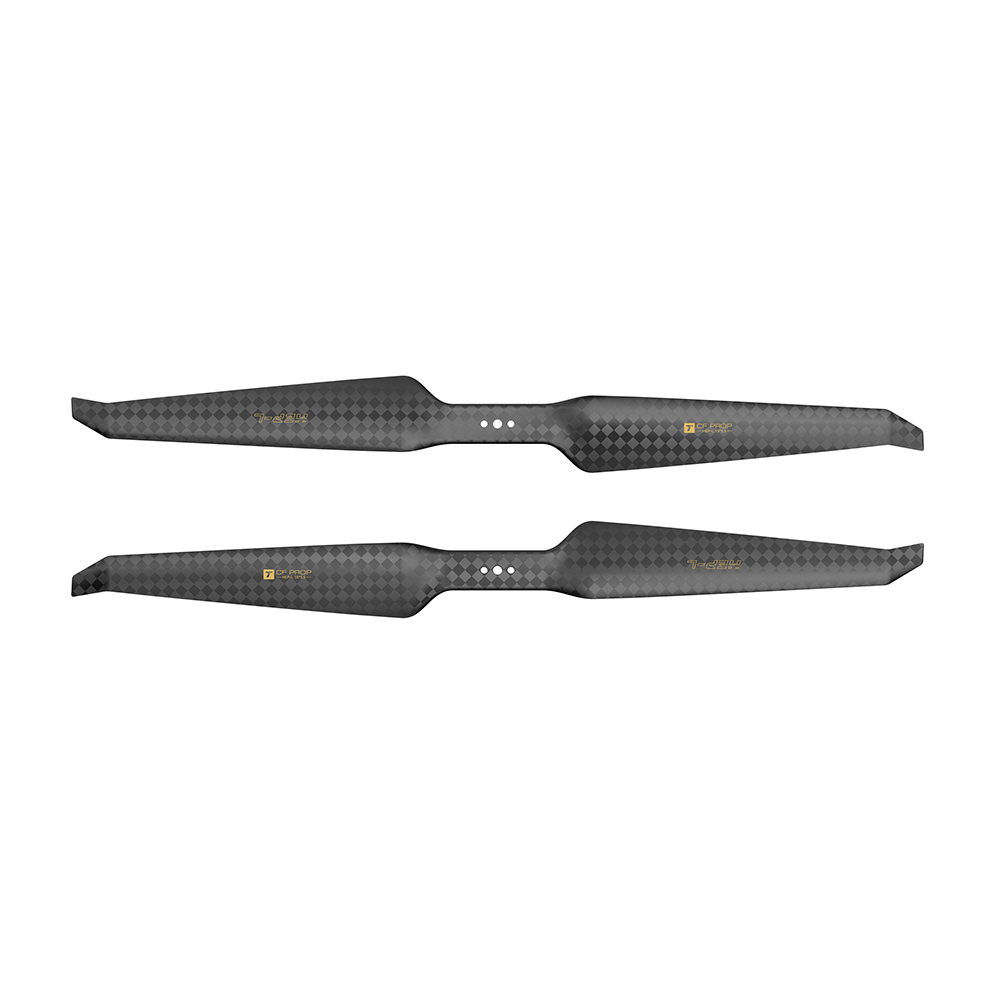

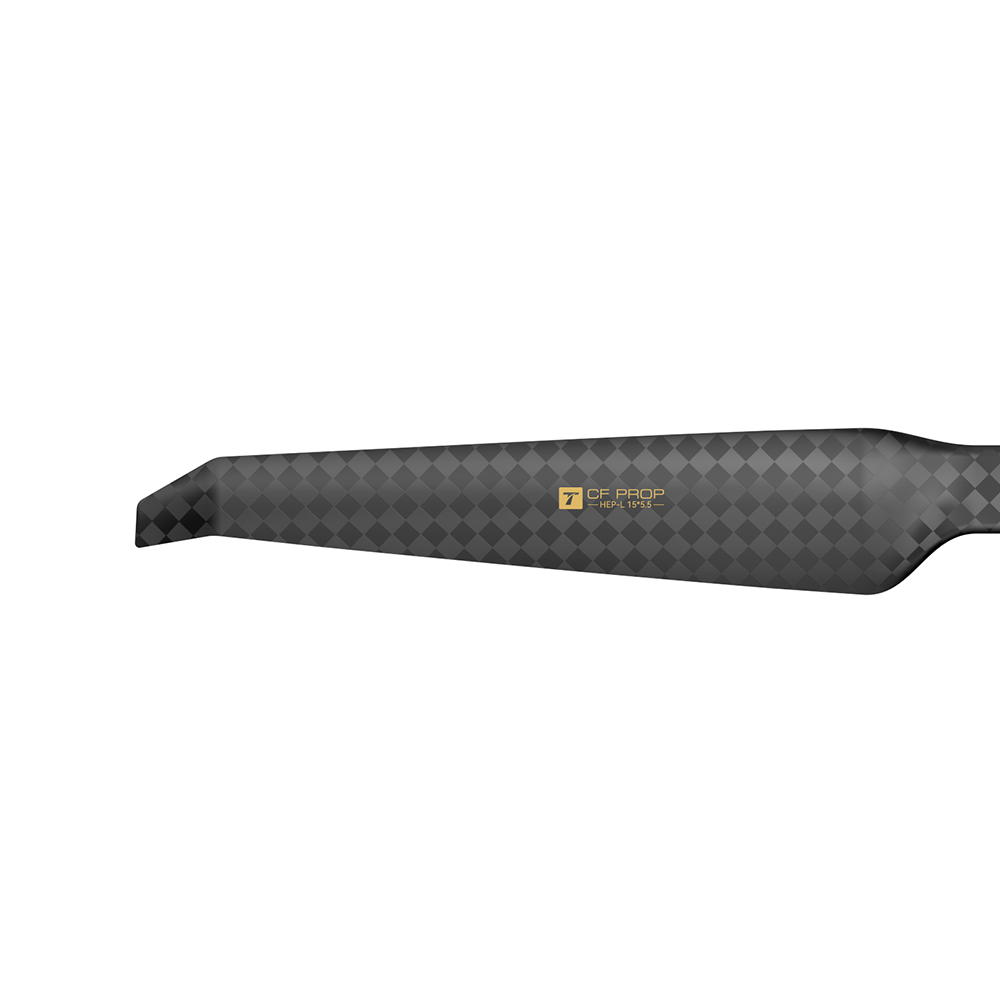

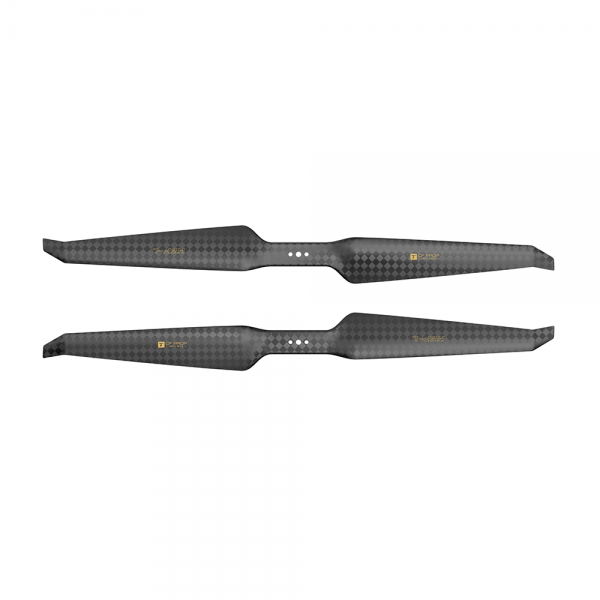

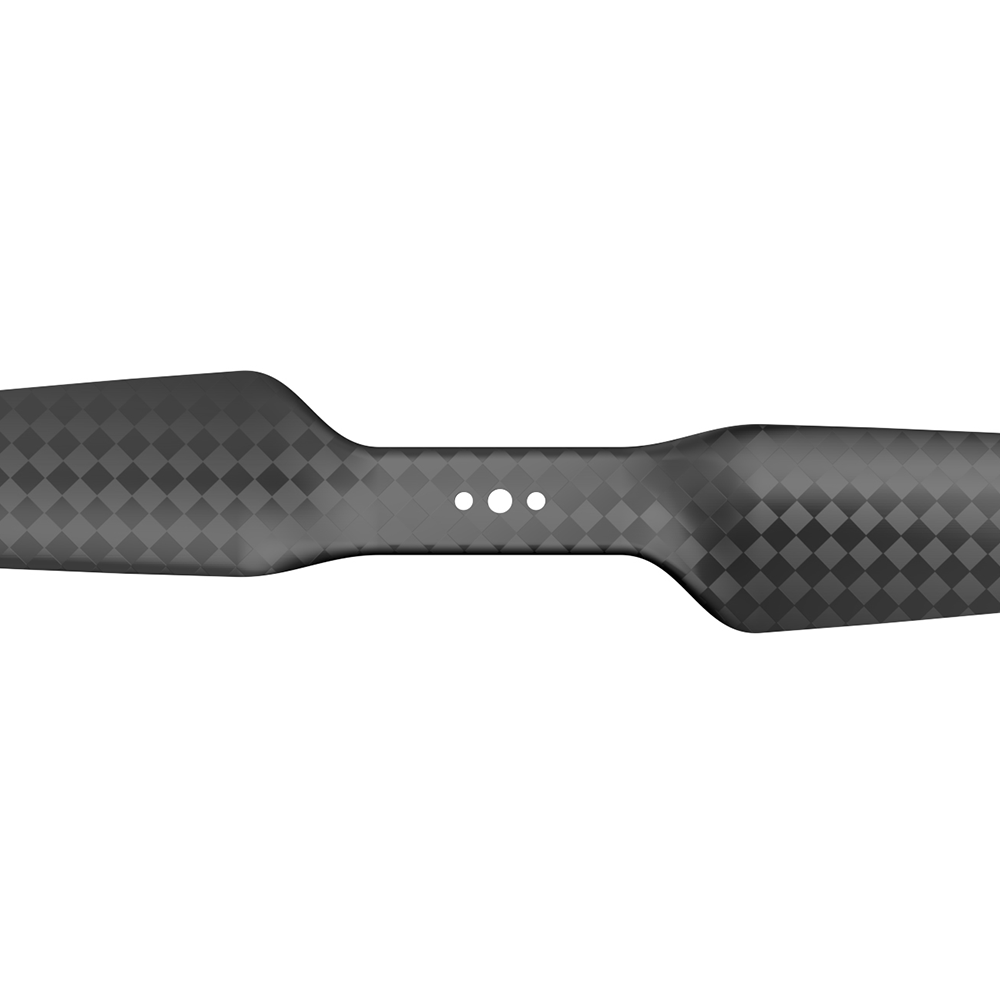

HEP-L 15*5.5 High-Performance Ultra-Light Rotor Propellers

3% Increased Flight Time · More Stable Forward Flight · Motor Collaborative Design

• Single Propeller Weight 15.5g

• Recommended RPM Range 3000~4300RPM

• Recommended Thrust Range 470~1000g

Extended Flight Endurance

Aerodynamic optimization improves hovering efficiency and increases effective flight time by up to 3%

Optimized Motor Propeller Matching

Designed specifically for T-MOTOR efficiency motors to achieve optimal RPM and torque matching

HEP-L is precisely matched with T-MOTOR's high-efficiency motors enabling long endurance multirotors with flights of 60~90 minutes

Forward Flight Vibration Suppression

Enhanced propeller structure reduces vibration and improves wind resistance during cruise

Lightweight and Durable

Breakthroughs in lightweight and toughness

Scaling industrial-grade lightweight processes for ultra-lightweight mass production

HEP-L 15*5.5 single propeller weighs about 15.5g

Enhanced Damage Resistance

Engineered high-toughness resin surface fiber reinforcement, and damage-tolerant design limit micro-damage propagation for enhanced reliability

Under identical 6J impact energy, HEP-L achieves a 1.93mm impact depth versus 2.54mm for NS, delivering 24% improved impact resistance

NS Series

Damage Measurement: Ultrasonic C-Scan

Pre-Impact

Post-Impact

HEP-L Series

Damage Measurement: Ultrasonic C-Scan

Pre-Impact

Post-Impact

Reliable Identification and Protection

Integrated QR code molding and protective packaging improve lifetime traceability and transport safety

Recommended Combo

HEP-L 15*5.5, Motor Compatibility: MN4006 EVO KV380, Recommended Voltage: 6S
Recommended Takeoff Weight for Quadcopter: 3 kg

Technical Drawing

Specification

Recommendations

Test Data

Ambient Temperature 22 °C, Altitude 25 m RPM Torque (N·m) Thrust (gf) Output Power (W) Efficiency (gf/W) 3700 0.14 721 55.88 12.90 4100 0.18 902 75.26 11.98 4500 0.21 1102 99.13 11.12 4900 0.25 1323 127.98 10.34 5300 0.29 1563 162.32 9.63 5700 0.34 1822 202.66 8.99 6100 0.39 2102 249.48 8.42 6500 0.45 2401 303.30 7.92 6900 0.50 2720 364.61 7.46 7300 0.57 3058 433.93 7.05 7700 0.63 3417 511.74 6.68 8100 0.71 3795 598.55 6.34 8500 0.78 4192 694.87 6.03 8900 0.86 4610 801.19 5.75 9300 0.94 5047 918.02 5.50

Important: Data may vary under different testing standards due to factors such as equipment, methodology, and environment. Ensure compatibility between the propeller mounting holes and motor before flight.

Packing List

Lieferumfang: 2× HEP-L Carbonfaser-Propeller (1× CW + 1× CCW), 1× Montagezubehör (Schrauben & Adapter)

Motor Compatibility — HEP-L Series
