Preview: T-Motor Cine20 Cinewhoop Brushless Motor 4S 2" 10g

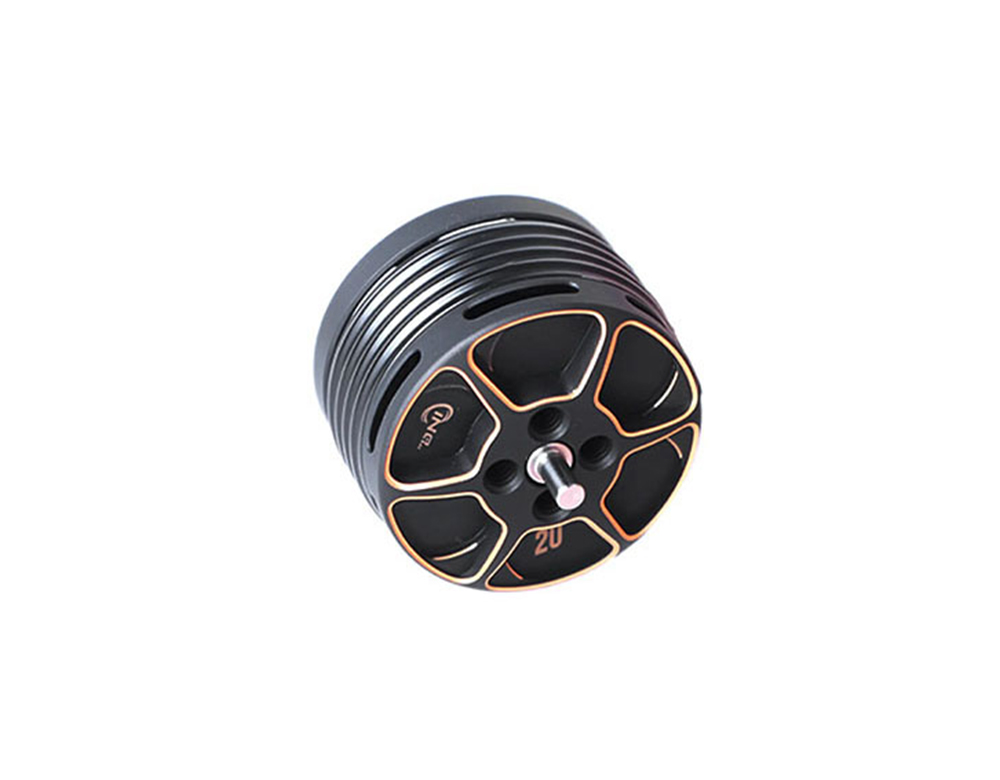

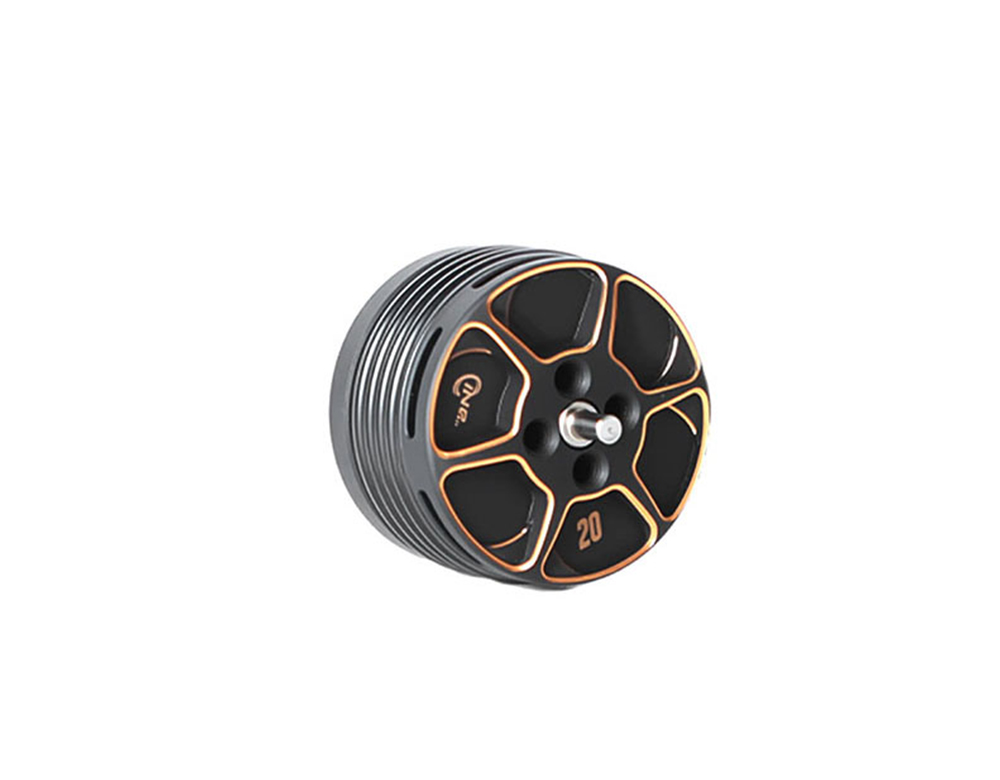

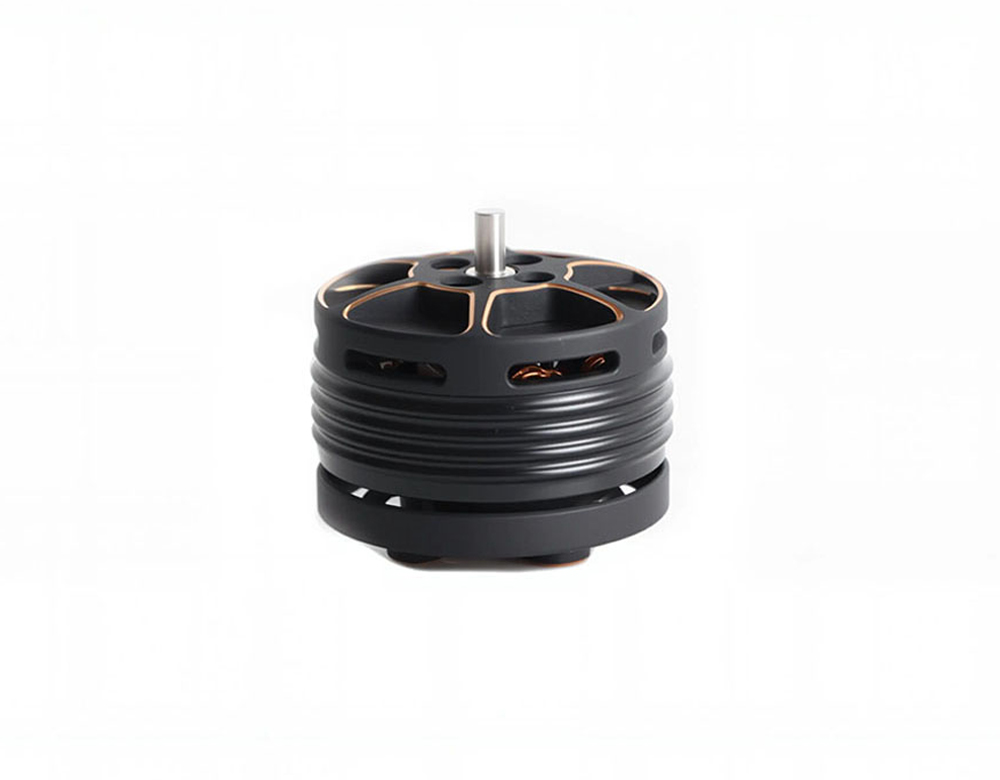

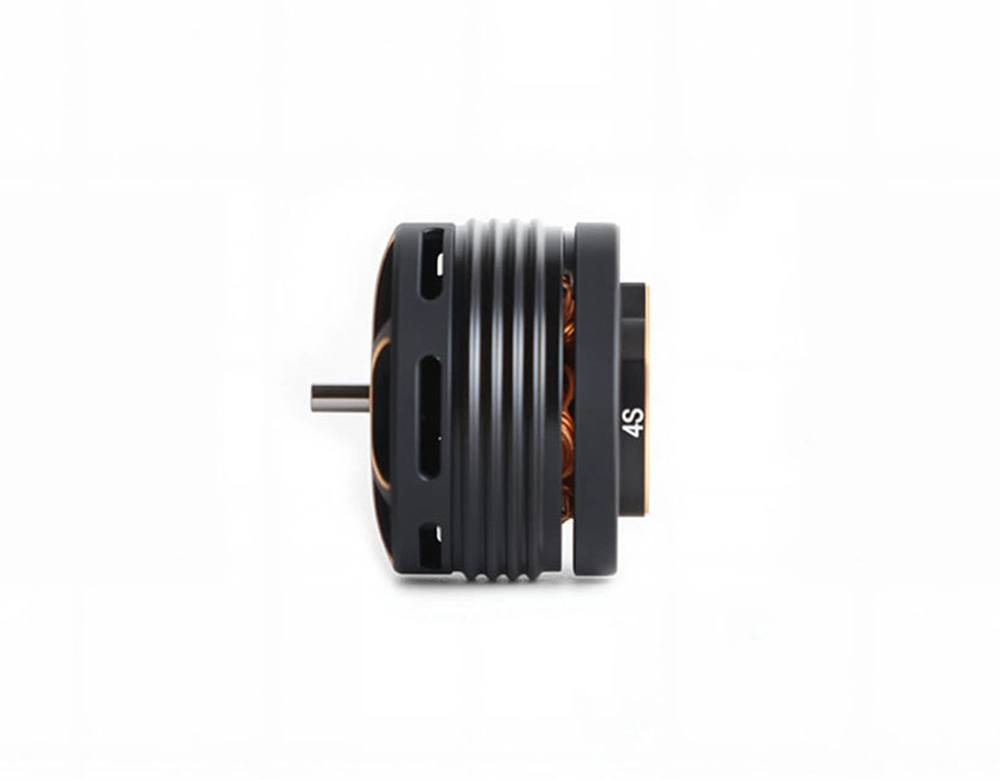

T-Motor Cine20 Cinewhoop Brushless Motor 4S 2" 10g

€38.90 * €39.90 * (2.51% Saved)

Prices incl. VAT plus shipping costs

Item is backordered – Lead time approx. 2-4 weeks.

Order number: PM-7234
Hersteller: T-Motor
Artikelname: Cine20
EAN: 4250902365875

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT The integrated protective design... more

Close menu

Product information "T-Motor Cine20 Cinewhoop Brushless Motor 4S 2" 10g"

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

CORROSION
RESISTANT

SAND
RESISTANT

DUST
RESISTANT

ALL-ENVIRONMENT
RELIABILITY

MASTERY OF COMPACT SPACE

With high responsiveness enabling flexible control in confined spaces and dense obstacle environments, it easily enhances high-speed close-range shots.It maintains strong output and efficiency even when carrying payloads up to 60g (like naked GOPRO), achieving a single-flight duration of 3-6 minutes.

MULTI-FRAME COMPATIBLE BASE DESIGN

The non-protruding shaft screw configuration ensures compatibility with various frame types, allowing the motor to demonstrate exceptional performance across different application scenarios and frame configurations.

RECOMMENDED

CINE20

F7 45A AIO

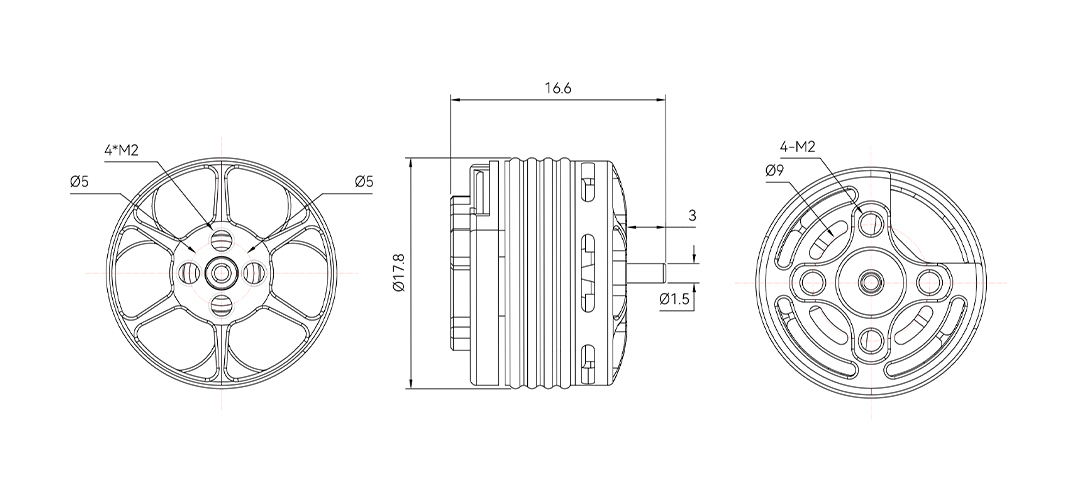

Technical Drawing

Specification Export to Excel

Type	Cine20 4S	Motor Dimension	Φ17.8*16.6mm
Magnet	Nickel plated arc magnet	Coil insulation test	200V withstand voltage test(3s)
Waterproof anddustproof class	IP45	Configuration	9N12P
Dynamic balancerequirements standards	≤3mg	Bearings	Imported 520ZZ
Shaft Diameter	1.5mm	Lead	24AWG*100mm
Screw Diameter	Φ9-M2-4	Prop Adapter Shaft Thread	Φ5-M2-4
Packing Size	656533mm	Packing Weight	91.3g（4pcs）

Tech Specs
Recommended Voltage	4S	Idle Current(10V)	0.7A
Max Power(1s)	192W	Internal Resistance	94mΩ
Rated Voltage (Lipo)	16V	Peak Current(1s)	12A
Max Thrust	270g	Weight (incl.cable)	10g

Recommended
Motor	Cine20 4S	Frame Type	Cinewhoop X4
Prop	HQ T51-4	Lipo Cells	16V
ESC	F7 35A AIO	Recommended takeoff weight range	Within 260g
FC	F7 35A AIO	Max Takeoff Weight	360g
Test Data:	1、650mah 4s battery (76g), load weight 40g, AUW 240g, flight time 6 minutes. 2、650mah 4s battery (76g), without payload, AUW 200g, flight time 8 minutes. 3、850mah 4s battery (92g), without payload, AUW 216g, flight time 9 minutes.
Note: Recommend BL32 ESC settings: Startup power: 40%, Timing: AUTO, PWM frequency: 32-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync)

Test Data Export to Excel

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
Cine20 4S	HQ T51-4	16.03	10%	0.11	7760	3.81	1.84	2.09	0.000	68 (Ambient temperature: 25℃)
		16.03	20%	0.40	15323	16.36	6.43	2.54	0.001
		16.02	30%	0.88	22433	36.03	14.12	2.55	0.003
		16.02	40%	1.53	28611	59.18	24.48	2.42	0.004
		16.00	50%	2.42	34724	86.99	38.66	2.25	0.006
		15.99	60%	3.58	40558	119.71	57.24	2.09	0.009
		15.96	70%	4.98	46011	153.31	79.54	1.93	0.011
		15.94	80%	6.78	51632	192.38	108.03	1.78	0.014
		15.91	90%	8.79	56694	231.42	139.84	1.65	0.016
		15.87	100%	11.32	59523	275.10	179.61	1.53	0.019
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine20 4S	HQ T51-4 (With Oddity frame)	16.05	10%	0.10	7673	3.20	1.61	1.99	0.000	63 (Ambient temperature: 25℃)
		16.04	20%	0.35	15178	15.40	5.68	2.71	0.001
		16.03	30%	0.78	22163	34.44	12.51	2.75	0.003
		16.02	40%	1.38	28432	57.53	22.08	2.61	0.004
		15.99	50%	2.17	34420	85.47	34.63	2.47	0.006
		15.96	60%	3.16	40115	115.76	50.43	2.30	0.008
		15.93	70%	4.40	45524	149.90	70.14	2.14	0.010
		15.90	80%	5.97	51065	186.96	94.89	1.97	0.012
		15.85	90%	7.69	55940	223.25	121.86	1.83	0.015
		15.80	100%	9.73	59523	260.11	153.69	1.69	0.017
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine20 4S	GF 51-5 (With Oddity frame)	16.05	10%	0.11	7681	2.99	1.70	1.76	0.000	75 (Ambient temperature: 25℃)
		16.03	20%	0.39	15050	16.28	6.29	2.59	0.002
		16.02	30%	0.90	21780	38.71	14.46	2.68	0.003
		16.00	40%	1.59	27525	63.95	25.51	2.51	0.005
		15.98	50%	2.56	33113	94.28	40.94	2.30	0.008
		15.95	60%	3.84	38560	129.84	61.26	2.12	0.010
		15.91	70%	5.41	43398	167.64	85.97	1.95	0.013
		15.86	80%	7.29	48170	207.49	115.62	1.79	0.016
		15.80	90%	9.53	52389	248.80	150.52	1.65	0.019
		15.74	100%	12.03	56102	285.79	189.24	1.51	0.021
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Analysis Chart

Packing List
